Old 01-16-2007, 06:43 PM   #1
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default how do i turn on my fog lights???

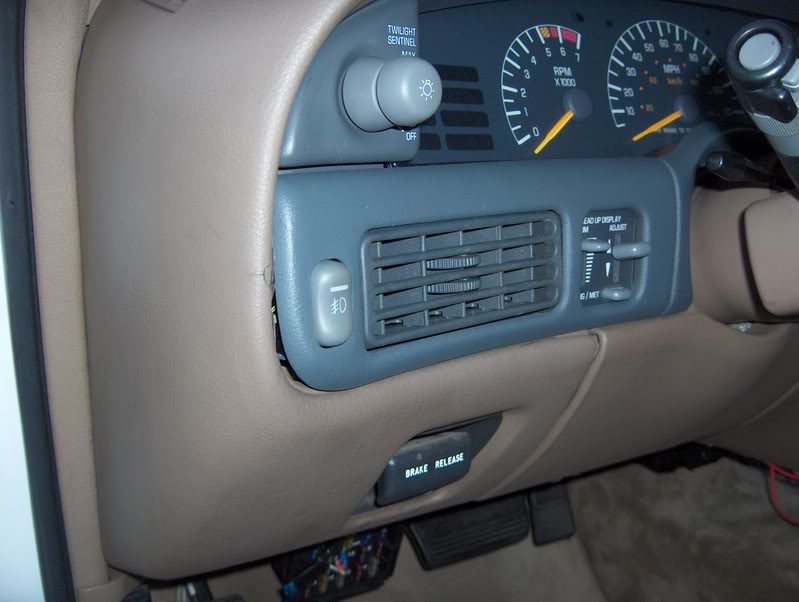

Name:  foglightswitch001.jpg
Views: 0
Size:  54.6 KB

Name:  foglightswitch004.jpg
Views: 0
Size:  65.2 KB

NOTE: dash crack is NOT my fault, Remember this is the HUD dash from my parts car, NOT my stock dash
1993 SLE is offline   Reply With Quote
Old 01-16-2007, 06:58 PM   #2
Senior Member
Posts like a Turbo

Join Date: Nov 2006
Location: Northern WV
Posts: 456
Thanks: 0
Thanked 0 Times in 0 Posts
two bonnies is on a distinguished road
Default

pull **** to half stop and turn on fog light switch??. Note: If you have DRLs (probably don't in a 93) they will stay on. They are easily disabled.

That is a MUCH more logical place for the fog switch than in my 96 SSE. Its up on the map light unit. Idiotic. Useless fact: That'* the exact same fog switch that was in my 95 Grand Prix "Special" Edition.
two bonnies is offline   Reply With Quote
Old 01-16-2007, 07:00 PM   #3
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

I see someone followed suit with bill
corvettecrazy is offline   Reply With Quote
Old 01-16-2007, 07:02 PM   #4
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by corvettecrazy
I see someone followed suit with bill
i gave him the idea for the switch over the summer when he was doing the first homelink

.....he beat me to it because...one i gave him a GP switch, and two he had a dremil before i did
1993 SLE is offline   Reply With Quote
Old 01-16-2007, 07:04 PM   #5
Senior Member
Posts like a Turbo

Join Date: Nov 2006
Location: Northern WV
Posts: 456
Thanks: 0
Thanked 0 Times in 0 Posts
two bonnies is on a distinguished road
Default

Quote:
one i gave him a GP switch, and two he had a dremil before i did
Is it easy to move the wiring? My guess is "no". I have the mechanical skills of a field mouse.
two bonnies is offline   Reply With Quote
Old 01-16-2007, 07:06 PM   #6
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by two bonnies
Quote:
one i gave him a GP switch, and two he had a dremil before i did
Is it easy to move the wiring? My guess is "no". I have the mechanical skills of a field mouse.
yup 5 wires.....

two from the existing fog light switch
two get grounded
one gets tapped into the headlight switch for the dimmer
1993 SLE is offline   Reply With Quote
Old 01-16-2007, 07:08 PM   #7
Senior Member
Posts like a Turbo

Join Date: Nov 2006
Location: Northern WV
Posts: 456
Thanks: 0
Thanked 0 Times in 0 Posts
two bonnies is on a distinguished road
Default

Quote:
two from the existing fog light switch
O.K. my wife has the SSE out or I would go look. Where on earth does the wiring from that switch in the map light unit come down? Does it run all the way to the back or through the front pillars?
two bonnies is offline   Reply With Quote
Old 01-16-2007, 07:10 PM   #8
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by corvettecrazy
I see someone followed suit with bill
i gave him the idea for the switch over the summer when he was doing the first homelink

.....he beat me to it because...one i gave him a GP switch, and two he had a dremil before i did
sounds familiar to my office chair...
corvettecrazy is offline   Reply With Quote
Old 01-16-2007, 07:13 PM   #9
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by two bonnies
Quote:
two from the existing fog light switch
O.K. my wife has the SSE out or I would go look. Where on earth does the wiring from that switch in the map light unit come down? Does it run all the way to the back or through the front pillars?
the skinny is.....the wires run UP the a pillar, and then go into a 5 pin connector....i removed the 2 wires (Brown and Yellow) from that connector and then removed them from the tape on the A pillar and let them hang at the bottom on the A pillar..... At the bottom of the A pillar i ran the wires into the dash under the headlight switch where the switch is...made my connection to the fog light switch via another connector

the black and the Green wires from the fog light switch both get grounded

and the grey wire on the fog light switch goes to the grey wire on the head light switch for interior dimming
1993 SLE is offline   Reply With Quote
Old 01-16-2007, 07:17 PM   #10
Senior Member
Posts like a Turbo

Join Date: Nov 2006
Location: Northern WV
Posts: 456
Thanks: 0
Thanked 0 Times in 0 Posts
two bonnies is on a distinguished road
Default

Quote:
the skinny is.....
Well, now how sweet is this??? Had I known this, I would have done it along time ago.

The foglight switch was the only thing worth keeping on the GP and here I went and sold it with the car!
two bonnies is offline   Reply With Quote
