Angry HID problem

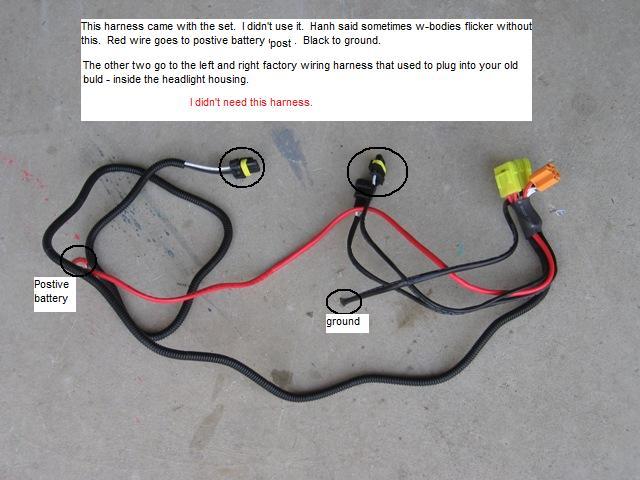

I recently purchased an HID kit from a guy that owned a 97 regal. He didn't have to use the harness but for some reason they are not working so I plugged the harness in and I can not get the lights to turn on. Now on the last picture on the very bottom I circled (tried to at least) the connection that I have not figured out where to plug into. Need some assistance....

thumbnails are small but once clicked they will expand

2000 pontiac bonneville ssei
Attached Thumbnails

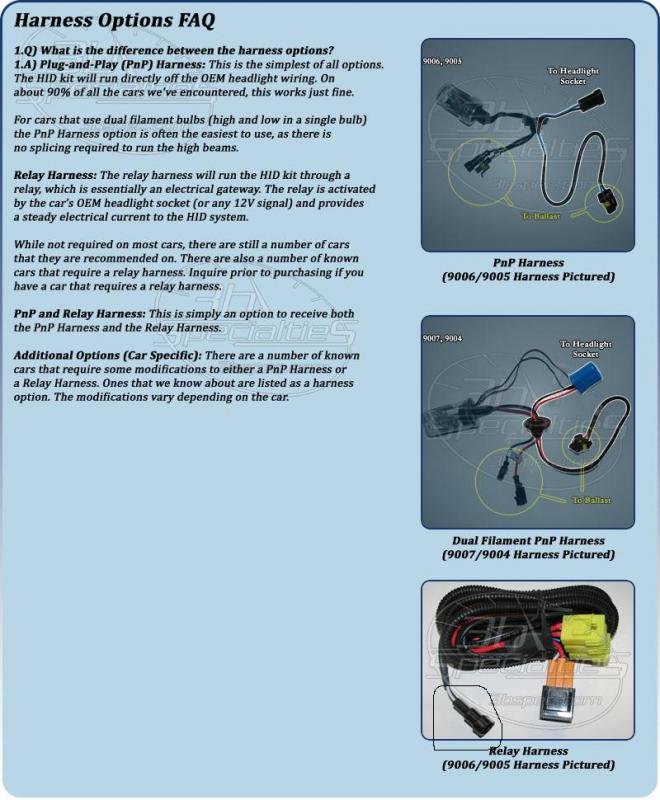

HID problem-harness.jpg   HID problem-harness_faq1.jpg
airlife9 is offline   Reply With Quote
Old 05-13-2009, 07:45 AM   #2
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

ah but you do need that harness, the stock wiring connector cannot supply enough power to the balasts, so heres how that harness needs to be connected, the female end goes to your stock headlight connector on the passenger side, the short male end that is the same length goes to the passenger side balast, the long wire with the male connector goes to the balast on the driver side

then connect the positive to the fuse box where the screw under the cover is, the ground to a bolt somewhere around there, just take the bolt out and put the screw through the ring connector

then you need to get a relay from autozone, thats why they won't turn on, the relay goes in that little orange socket right next to the fuses on the harness and tada HIDs properly wired
crunkfrunk is offline   Reply With Quote
Old 05-13-2009, 10:13 AM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by crunkfrunk View Post
ah but you do need that harness, the stock wiring connector cannot supply enough power to the balasts, so heres how that harness needs to be connected, the female end goes to your stock headlight connector on the passenger side, the short male end that is the same length goes to the passenger side balast, the long wire with the male connector goes to the balast on the driver side

then connect the positive to the fuse box where the screw under the cover is, the ground to a bolt somewhere around there, just take the bolt out and put the screw through the ring connector

then you need to get a relay from autozone, thats why they won't turn on, the relay goes in that little orange socket right next to the fuses on the harness and tada HIDs properly wired

maybe im just lucky, or a really good set of HIDs but i installed the HID'* in my Projector low beams, and i do not have a harness running them
1993 SLE is offline   Reply With Quote
Old 05-13-2009, 10:59 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Harness or no harness. I've seen them both ways. Problem here is no workie.

On the ballast..and thank the locals for this knowledge. When you plug the old light connector into it.. usually it can be done two ways. The way that works and the way that won't work. Try flipping that connector.
BillBoost37 is offline   Reply With Quote
Old 05-13-2009, 03:08 PM   #5
Senior Member
Posts like a Camaro

looong4's Avatar

Join Date: Dec 2002
Location: Holly, Michigan
Posts: 1,181
Thanks: 0
Thanked 0 Times in 0 Posts
looong4 is on a distinguished road
Default

yup flip the connector, shouldn't need a harness...
looong4 is offline   Reply With Quote
Old 05-14-2009, 05:15 AM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

well i am going to try and see if it works;

also, thanx for telling me that I could hook the power wire to fuse box because I orginally had it running all the way to the battery (which in that case is in the backseat)
airlife9 is offline   Reply With Quote
Old 05-18-2009, 01:20 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

flipped the connector and now they are working.... Thanx everyone for all your help
airlife9 is offline   Reply With Quote
Old 05-21-2009, 06:32 AM   #8
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

how do i get the fog lights to work.....
airlife9 is offline   Reply With Quote
Old 05-21-2009, 07:38 AM   #9
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

do you have a kit for those now?
crunkfrunk is offline   Reply With Quote
Old 05-22-2009, 12:10 AM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

i installed the hid kit, do i have to run an aftermarket fog light
