Default custom spoiler for a 95 (step by step 2nd part)

I want to make the spoiler biger & make it more racing looking. This will be done in fiberglass, but first I had to do the mold to create the shape. I used the foam card board that you buy at school suplies, I got mime at Office Max. To glue it I used a hot glue gun.

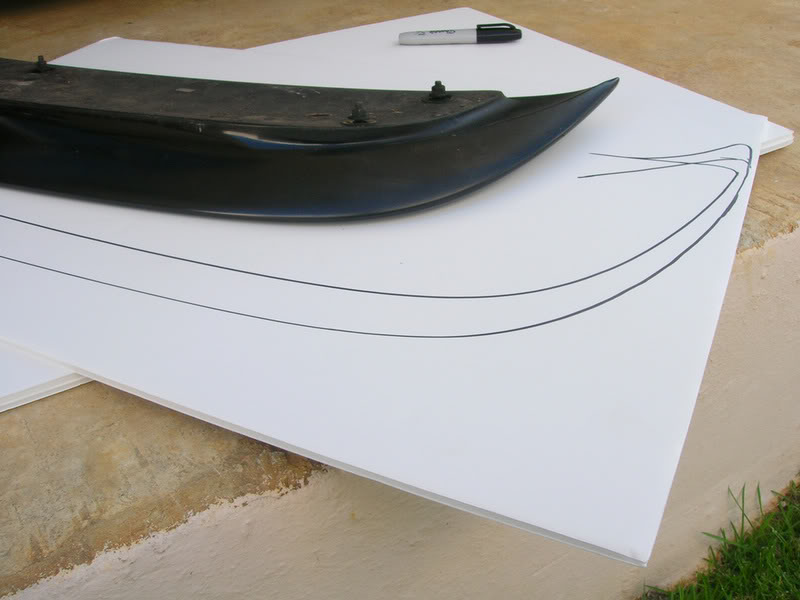

First I traced the spoiler to the board. Used the back of the spoiler to create both lines & the edge part was freehanded.
Name:  DSCN0858.jpg
Views: 0
Size:  56.0 KB

Then I cut the part with an exacto knife.
Name:  DSCN0859.jpg
Views: 0
Size:  100.8 KB

Created a duplicate with the part I had done before. Thats both sides.
Name:  DSCN0860.jpg
Views: 0
Size:  90.5 KB
alexcoqui is offline   Reply With Quote
Old 04-13-2007, 04:48 PM   #2
Senior Member
Certified Car Nut

Join Date: Jul 2003
Location: Robbinsdale, MN
Posts: 15,408
Thanks: 0
Thanked 0 Times in 0 Posts
MOS95B is on a distinguished road
Default

Hmmmm.... This could get interesting. Can't wait to see what you have planned.

I've often thought of rasing mine no more than about a 1/2 inch, mostly to keep crap from getting stuck under it
MOS95B is offline   Reply With Quote
Old 04-13-2007, 04:50 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

i like your plans, looks like devil horns
harofreak00 is offline   Reply With Quote
Old 04-13-2007, 04:54 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2005
Location: Puerto Rico
Posts: 409
Thanks: 0
Thanked 0 Times in 0 Posts
alexcoqui is on a distinguished road
Default

Next step was to cut the parts in to pices. I numbered the parts before cutting them, makes it easier.
Name:  DSCN0861.jpg
Views: 0
Size:  115.0 KB

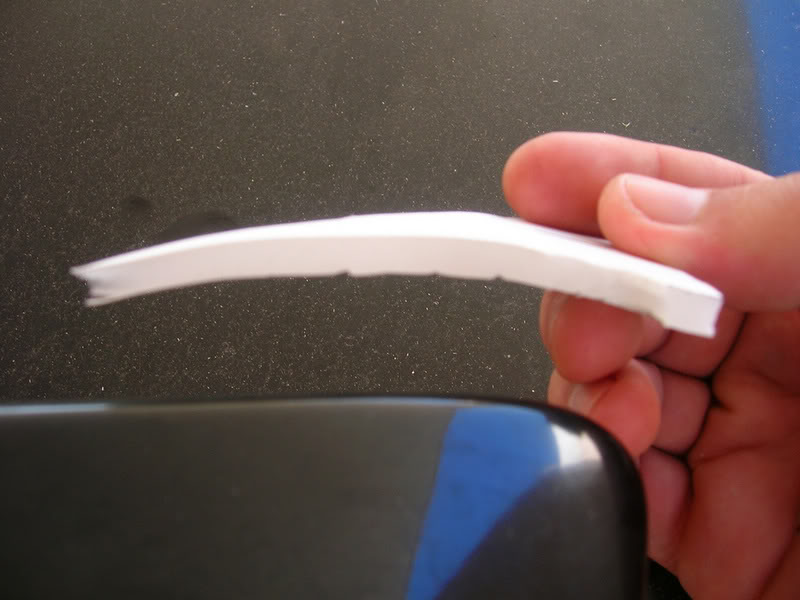

I shaped every pice to match the part of the spoiler where it goes, then it gets glued.
Name:  DSCN0862.jpg
Views: 0
Size:  64.7 KB

Dont know if you can tell but it follows the contour of the spoiler & it points upward at the center.
Name:  DSCN0864.jpg
Views: 0
Size:  78.4 KB
Name:  DSCN0863.jpg
Views: 0
Size:  87.6 KB
Name:  DSCN0865.jpg
Views: 0
Size:  105.6 KB

This is all for now. Next is to cover it in the mesh & pour th fiberglass.
But you get an idea of the final product.
Didnt want to go too crazy with the spoiler, I think it matches the lines of the car.
alexcoqui is offline   Reply With Quote
Old 04-13-2007, 06:00 PM   #5
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

that looks sorta like the SLP spoiler available for the GP'*

i like it
1993 SLE is offline   Reply With Quote
Old 04-13-2007, 09:52 PM   #6
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

oh man,
that things gonna be Kick ***!


cant wait ot see more progress pics
Peterg22000 is offline   Reply With Quote
Old 04-13-2007, 11:05 PM   #7
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Cool project! I was worried it was gonna be too ricey when I first started reading, but it'* gonna turn out welll I think. I can't wait to see more progress pics.
dillcc is offline   Reply With Quote
Old 04-14-2007, 12:13 AM   #8
Senior Member
Certified GM nut

Join Date: Dec 2004
Location: Port Charlotte FLORIDA
Posts: 2,077
Thanks: 0
Thanked 0 Times in 0 Posts
its840 is on a distinguished road
Default

oh i gotta see this one...

subscribe to thread....
its840 is offline   Reply With Quote
Old 04-14-2007, 12:16 AM   #9
Senior Member
Certified GM nut

redwingsfan34's Avatar

Join Date: Jan 2006
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
redwingsfan34 is on a distinguished road
Default

that is definitely going to look sweet!

can't wait to see what it will look like done!
redwingsfan34 is offline   Reply With Quote
Old 04-14-2007, 12:09 PM   #10
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2005
Location: Puerto Rico
Posts: 409
Thanks: 0
Thanked 0 Times in 0 Posts
alexcoqui is on a distinguished road
Default

This is the easy part just lay the mat over...
Name:  DSCN0868.jpg
Views: 0
Size:  126.5 KB

& pour the fiberglass mix over.
Name:  DSCN0869.jpg
Views: 0
Size:  141.1 KB

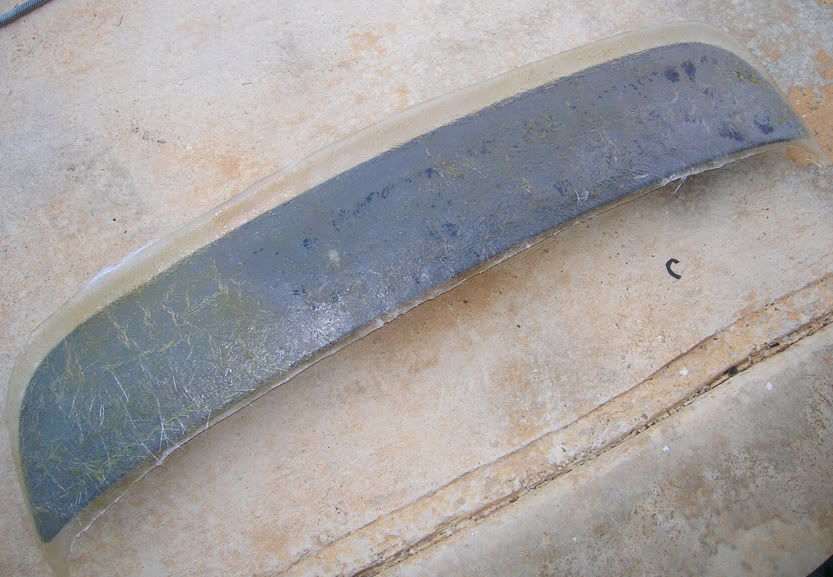

After it was dry I pulled it out & ripped all of the cardboard out. (I covered the hole spoiler with that plastic wrap that you have in the kitchen. So that the the fiberglass wont stick. Dont tell my wife.)
Name:  DSCN0871.jpg
Views: 0
Size:  111.3 KB

Name:  DSCN0873.jpg
Views: 0
Size:  233.1 KB

Dont know if you can tell by the pics, but the new pice sticks out about 2 inches back.
Name:  DSCN0874.jpg
Views: 0
Size:  77.0 KB

will be doing some more work later, hope to have more pics by tomrow.
