Default Battery Tray

so i was battleing a weak battery (i didnt know it) till the car wouldnt start.....well turns out that the battery was leaking ......mind you i didnt know this...and this is my 6th battery in less than 4 years....thank god for the warrenty...LMAO

so i pull the battery out and OMFG what the hell is that

Name:  batterytray001.jpg
Views: 1
Size:  116.4 KB

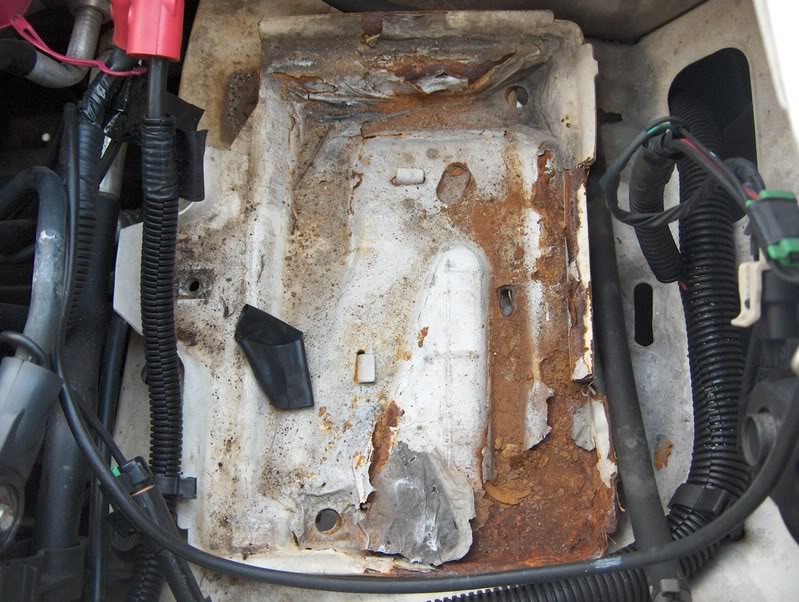

Name:  batterytray002.jpg
Views: 1
Size:  117.0 KB

Name:  batterytray003.jpg
Views: 1
Size:  113.9 KB
r r r r r ust.....(insert many cus words) the acid from the battery ate thru the paint and fkud the tray

so i got out the baking soda to absorb the acid that was in the metal and then cleaned it off

Step one:

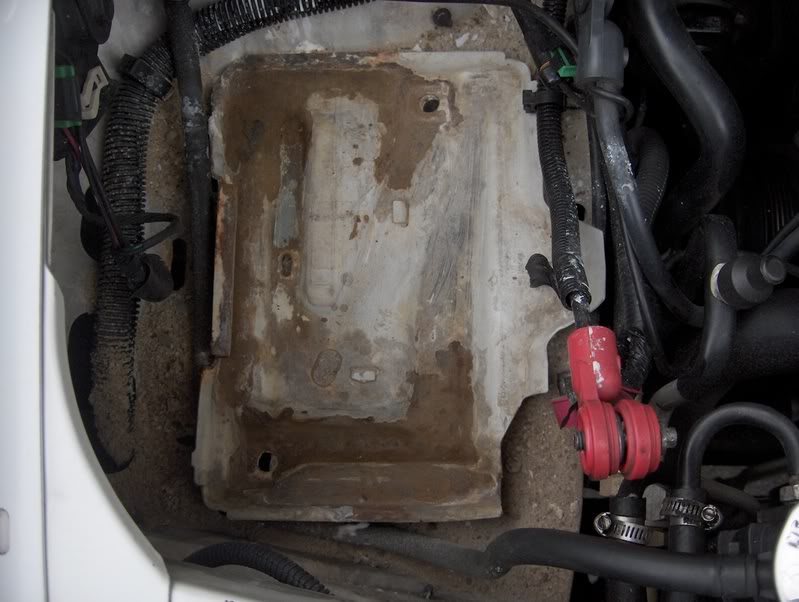

Name:  batterytray004.jpg
Views: 1
Size:  72.4 KB

Name:  batterytray005.jpg
Views: 1
Size:  89.7 KB

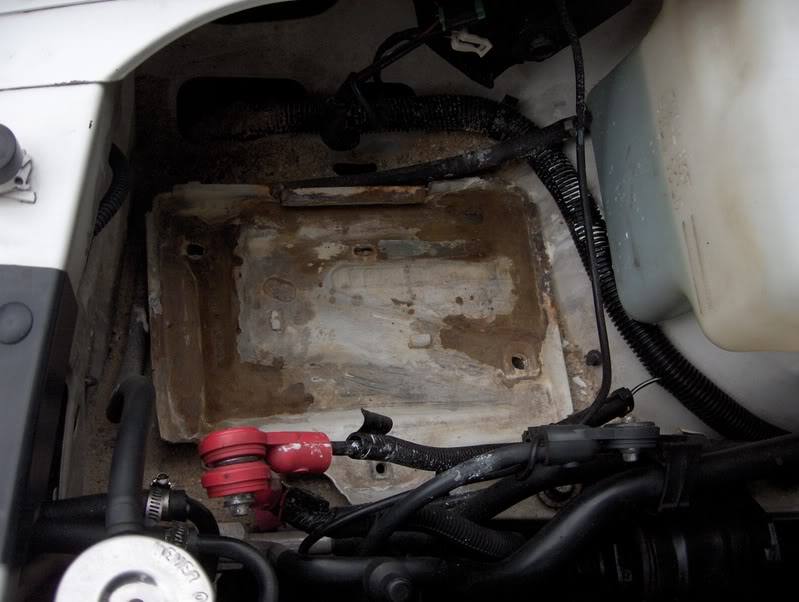

Name:  batterytray006.jpg
Views: 1
Size:  64.1 KB

after it the baking soda was all off and the tray was clean and dry it was time to bring in the big guns...

Step Two. get rust inhibitor spray paint to stop the spread of the rust, and kill anymore that is there or left.

Name:  batterytray007.jpg
Views: 1
Size:  71.4 KB

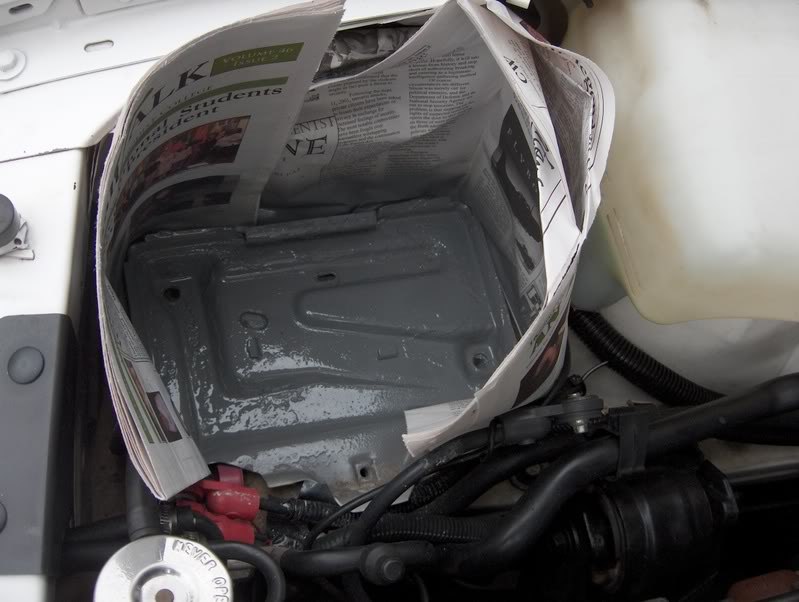

Name:  batterytray009.jpg
Views: 1
Size:  67.1 KB

so most "normal people would be done at this point buuuuuutttt not me

Step three. time for the rubberized undercoating. this also stops rust and should be a good barrier if anymore of there damn batteries leak.

Name:  batterytray010.jpg
Views: 1
Size:  92.7 KB



Name:  batterytray012.jpg
Views: 1
Size:  107.4 KB

and the final step is paint it all white so noone who looks in the engine bay knows the wiser.....ya i dont have pics of it painted white...i needed to throw the battery and go somewhere.....so you dont get pics

i showed that damn rust whos boss....how it dare form on my car
1993 SLE is offline   Reply With Quote
Old 10-15-2006, 12:48 AM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

aww, i was really looking forward to seeing the white one! haha
harofreak00 is offline   Reply With Quote
Old 10-15-2006, 01:49 AM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I did exactly the same thing to the 95 last month. Only difference is that I used rust converter, not rust inhibitor.
willwren is offline   Reply With Quote
Old 10-15-2006, 02:06 AM   #4
Senior Member
Certified GM nut

Join Date: Jan 2004
Posts: 1,656
Thanks: 0
Thanked 0 Times in 0 Posts
crzydmnd72 is on a distinguished road
Default

Sweet! I am wondering why 6 batteries in 4 years, even I have better luck than that and Murphy is my constant co-pilot.

Is the tray welded/formed into the fender or does it unbolt like older ones?
crzydmnd72 is offline   Reply With Quote
Old 10-15-2006, 02:09 AM   #5
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by crzydmnd72
Sweet! I am wondering why 6 batteries in 4 years, even I have better luck than that and Murphy is my constant co-pilot.

Is the tray welded/formed into the fender or does it unbolt like older ones?
its welded to the car, and i have NFC, but it seems that every year i am replacing, sometimes more....i have a high electrical demand on my car...i need to go to a dual battery setup here pretty soon


and Bill....i used good crap.... its from the gas company......they use it on Gas meters to keep the rust off and keep it from spreading.....
1993 SLE is offline   Reply With Quote
Old 10-15-2006, 02:48 AM   #6
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

If your load was that bad, you'd be killing your alt too. I'd try to measure exactly how much you're pulling off of it. Your amp sholdn't be hurting it much, but i have NFC what neons do.

Maybe a deep cycle?
BonneMeMN is offline   Reply With Quote
Old 10-15-2006, 02:54 AM   #7
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

hah, never thought I would see the day when Pat'* car had rust, and then I did, AND YOU HAD TO RUIN IT FOR ME!!!!

You killed the rust pat...poor oxydized steel...it needs a home TOO!! Thats why I own a rust habitat. I call it an 89 LE

STOP THE RUST OPRESSION!!! either that, or eliminate rust altogether and I will be just as happy

nice job on that fix there, looks like a completely overdone, totally unnessicary rust fix, but hey, thats the Pat way right?
wjcollier07 is offline   Reply With Quote
Old 10-15-2006, 03:07 AM   #8
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Nice fix! I would HOPE that takes care of things from now on
dillcc is offline   Reply With Quote
Old 10-15-2006, 10:15 AM   #9
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

[quote="wjcollier07"]hah, never thought I would see the day when Pat'* car had rust, and then I did, AND YOU HAD TO RUIN IT FOR ME!!!!

quote]

LMAO...the car is 13 years old.....you gotta expect metal that had acid on it and got the paint stripped off to do something.....right??

but there is rust no more
1993 SLE is offline   Reply With Quote
Old 10-15-2006, 03:15 PM   #10
Senior Member
Certified Car Nut

Join Date: Apr 2004
Location: Quincy, Ma
Posts: 15,341
Thanks: 0
Thanked 0 Times in 0 Posts
Gumball is on a distinguished road
Default

I'm suprised you never caught that earlier.

good job,
Gumball is offline   Reply With Quote
