Default 92-95 Hidden Switches.......interested???

This post is intended for any owners of a 92-95 that want to add some switches and dont want to tear up there car to do so.....

so....you are thinking....

ok where would they go???
Name:  hiddenswitches005.jpg
Views: 0
Size:  52.6 KB

Name:  hiddenswitches006.jpg
Views: 0
Size:  51.4 KB

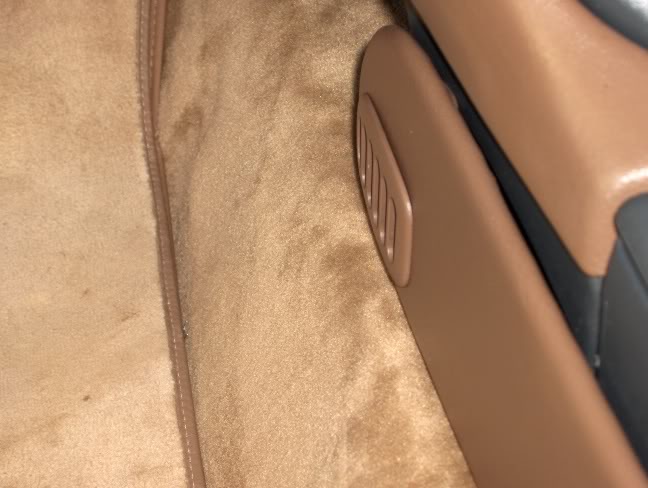

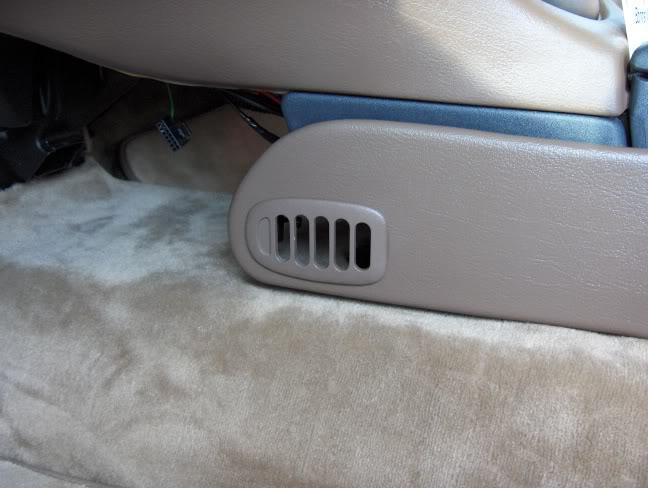

this looks like a good spot, its out of the way.....and Hidden from the passenger view

here is what you have after the vent is removed....big hole
Name:  hiddenswitches007.jpg
Views: 0
Size:  35.8 KB


so what switches are you going to use......
Name:  hiddenswitches003.jpg
Views: 0
Size:  41.6 KB

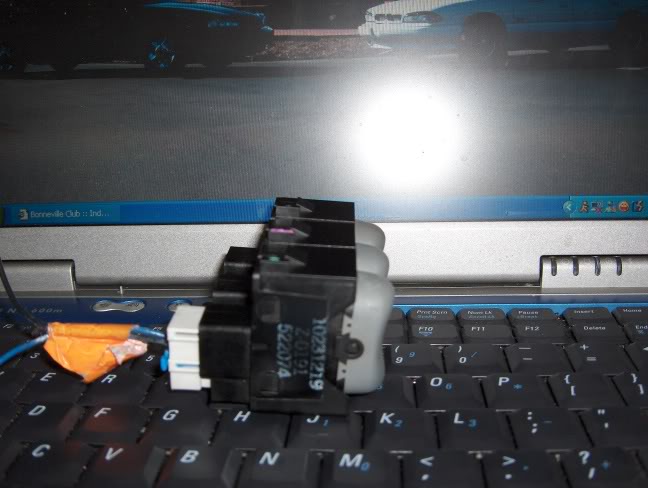

yup second gear start switches
i glued 3 of them together
Name:  hiddenswitches002.jpg
Views: 0
Size:  32.9 KB

Name:  hiddenswitches001.jpg
Views: 0
Size:  48.2 KB

Name:  hiddenswitches004.jpg
Views: 0
Size:  59.1 KB

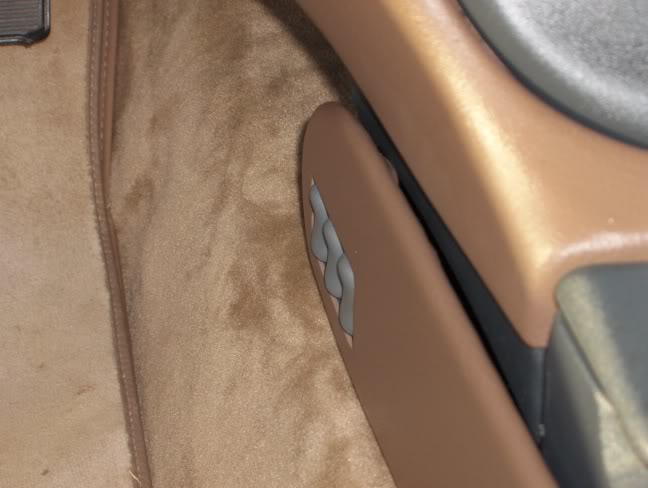

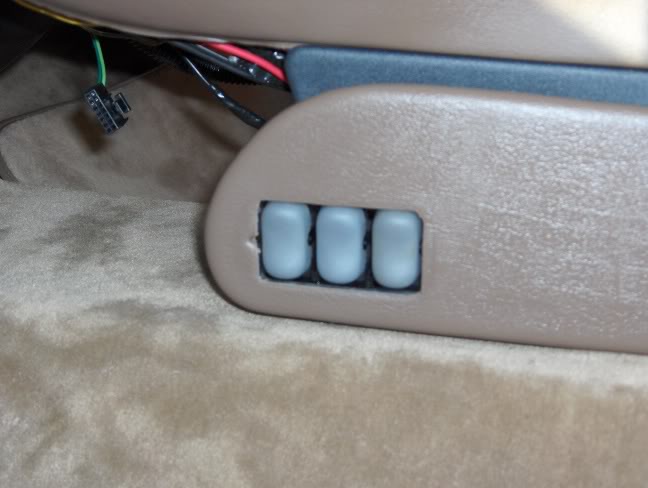

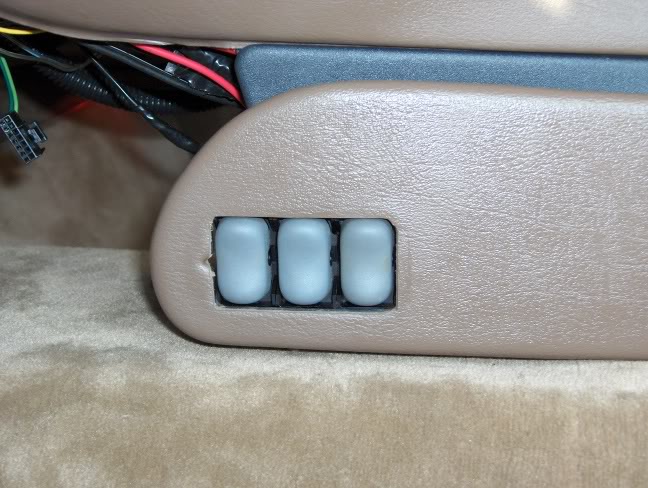

and the installed pics
Name:  hiddenswitches009.jpg
Views: 0
Size:  77.5 KB
Name:  hiddenswitches008.jpg
Views: 0
Size:  39.0 KB
Name:  hiddenswitches010.jpg
Views: 0
Size:  40.3 KB



as you can see.....these would be out the way, and hidden from your passengers, to still keep the car stock looking....the only way you would see these switches if you looked through the drivers door when open. I think Merlin did something similar....but with the second gear start switches, it fits perfectally and look almost stock, because they match the other grey accents that the car has
1993 SLE is offline   Reply With Quote
Old 03-13-2006, 07:20 PM   #2
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

that does look good, but i have to ask...
What are second gear start switches, and what are yo ugoing to us these switches for?
Peterg22000 is offline   Reply With Quote
Old 03-13-2006, 08:18 PM   #3
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

The second gear start switches are from a older gen GP....some of the cars had a button to start off in second gear, instead of traction control.....The switches will be used for the high speed Fan Override among a few other things
1993 SLE is offline   Reply With Quote
Old 03-13-2006, 08:22 PM   #4
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

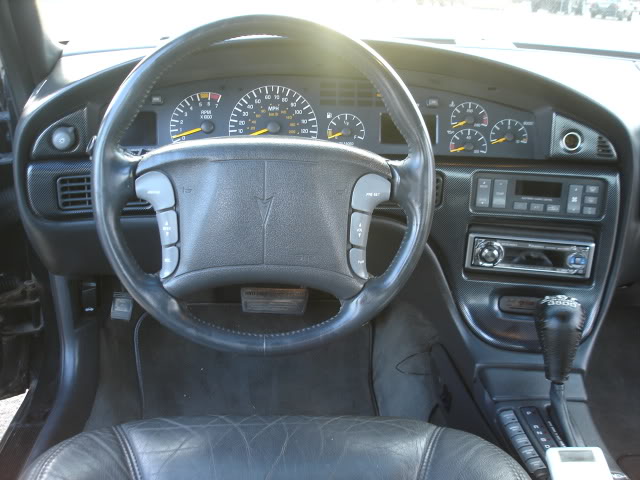

i had switches in that area... you can kinda see it in this pic

Name:  DSC07162.jpg
Views: 0
Size:  57.8 KB
harofreak00 is offline   Reply With Quote
Old 03-13-2006, 08:22 PM   #5
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

nice laptop



that is a COOL idea..THOSE airvents are strictly cosmetic arnt they?
Hans is offline   Reply With Quote
Old 03-13-2006, 08:36 PM   #6
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by Hans
nice laptop



that is a COOL idea..THOSE airvents are strictly cosmetic arnt they?
thanks......I guess you havent seen the outside of the lappy yet????


yes the vents serve no purpose
1993 SLE is offline   Reply With Quote
Old 03-13-2006, 11:38 PM   #7
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

You never did fully explain why you wanted the switches while we were at the yard. Now I know
dbeast420 is offline   Reply With Quote
Old 03-14-2006, 03:49 AM   #8
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Needs a trim peice... maybe a cut vent that the switches replaced. The switch has 5 prongs what are all them for?
llBlazin_llLo is offline   Reply With Quote
Old 03-14-2006, 09:03 AM   #9
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I agree some trim would help. Those vents do provide heat btw, just not much. And that seems like kina a reach to hit a switch. Neat idea, but I prefer where I put mine. I don't even have to look to hit 'em.
willwren is offline   Reply With Quote
Old 03-14-2006, 12:12 PM   #10
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by llBlazin_llLo
Needs a trim peice... maybe a cut vent that the switches replaced. The switch has 5 prongs what are all them for?
I agree with ya there, and that was exactly what i was gonna do. take a vent to make the trim.....and its weird....the connectors only have 2 wires, but the switches have 5....i have NFC what GM was thinking
Quote:
Originally Posted by willwren
I agree some trim would help. Those vents do provide heat btw, just not much. And that seems like kina a reach to hit a switch. Neat idea, but I prefer where I put mine. I don't even have to look to hit 'em.
thanks for the compliments....I would put switches where yours are but the heated seat buttons may end up there
1993 SLE is offline   Reply With Quote
