Default ** Next Project ** Projectors **

Whats up everyone? As you guys know I took the time to crack open my headlights and do my Angel Eyes! Welp, my next modification to those stockers are putting Projectors in! As of right now I only purchased the Projectors, but the HIDs arent gonna happen for a lil bit till Im able to afford it! But the projectors that I bought fit my stock 9006 bulbs cuz they're off of a Mercury Cougar!

Install Pix This Weekend!

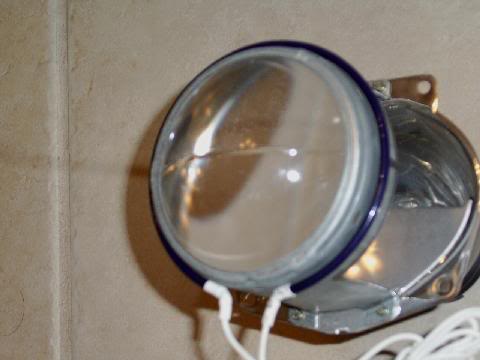

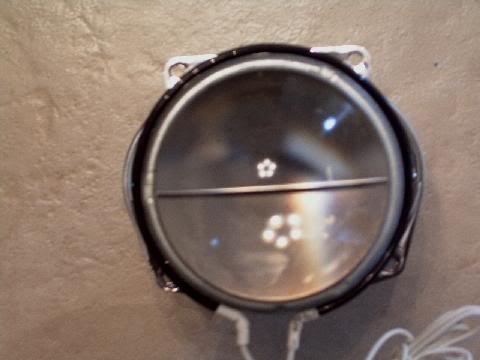

The first 2 pix show you the projectors and how PERFECTLY they fit my angel eyes
Name:  bosch-projectors-00004.jpg
Views: 1
Size:  19.2 KB
Name:  bosch-projectors-00003.jpg
Views: 1
Size:  18.7 KB

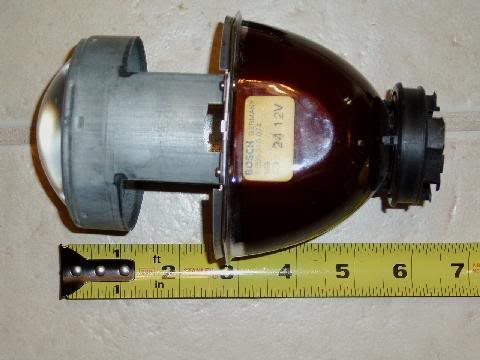

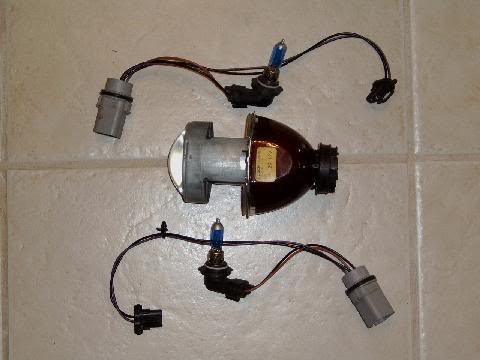

This one shows how big! They're alot bigger than I expected but Im gonna have fun with the dremel!
Name:  bosch-projectors-00001.jpg
Views: 1
Size:  25.0 KB
Name:  bosch-projectors-00000.jpg
Views: 1
Size:  21.6 KB
K-OtiK is offline   Reply With Quote
Old 12-11-2006, 08:56 AM   #2
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

cool! nice project!
however, i dont understand why you would waste your time mounting in a lower quality, halogen projector if HIDs are in future plans
toastedoats is offline   Reply With Quote
Old 12-11-2006, 06:37 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2006
Location: Cleveland Ohio
Posts: 218
Thanks: 0
Thanked 0 Times in 0 Posts
K-OtiK is on a distinguished road
Default

lol all you do is change the bulb to get the HIDs...im not wasting any time...these projectors are going in now...and when i have enought for the hids all i do is replace the bulb and wire in the ballasts
K-OtiK is offline   Reply With Quote
Old 12-11-2006, 06:43 PM   #4
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

but a halogen projector is designed differently than an HID projector due to the different light and arc pattern of the filament, as well as the color output
toastedoats is offline   Reply With Quote
Old 12-11-2006, 06:48 PM   #5
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

x2

There'* a slight chance you'll have decent output, but if you're going through the effort, it really would have been worth it to use true HID projectors in my opinion. I'm curious to see how this comes out for you though.
CC is gonna be all over this one

I guess when the time comes you could swap out HID projectors as you put in the HID system...not the way I'd go though.
dillcc is offline   Reply With Quote
Old 12-11-2006, 06:55 PM   #6
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

Quote:
Originally Posted by dillcc
x2

There'* a slight chance you'll have decent output, but if you're going through the effort, it really would have been worth it to use true HID projectors in my opinion. I'm curious to see how this comes out for you though.
CC is gonna be all over this one
especially when you can get really good HID projectors for 60-80 bucks each... its not a huge investment for the projectors themselves
toastedoats is offline   Reply With Quote
Old 12-11-2006, 06:58 PM   #7
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

If you haven't done so already, I'd highly suggest visiting the forum/university at www.hidplanet.com

I'm really not trying to knock down your efforts, but I'd hate to see you put in the effort and wind up unhappy with the results.
dillcc is offline   Reply With Quote
Old 12-11-2006, 08:07 PM   #8
Junior Member

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Custom88 is on a distinguished road
Default

I'm going to have to agree with Toasty and Dillcc. I have projectors on my car, but while they're better than regular halogen housings, I know they're not as good as HID projectors. The cut-off isn't crisp enough to be used in HID light setups. The cut off and pattern is going to be off due to the completely different properties between Xenon, and Halogen lighting.
Custom88 is offline   Reply With Quote
Old 12-11-2006, 09:14 PM   #9
Senior Member
Posts like a Camaro

looong4's Avatar

Join Date: Dec 2002
Location: Holly, Michigan
Posts: 1,181
Thanks: 0
Thanked 0 Times in 0 Posts
looong4 is on a distinguished road
Default

the projectors that I have that came out of a CTS (same houseing), Upper had an HID bulb lower had halogen but when I switch the projector it looks exactly the same.
If this makes any since...
looong4 is offline   Reply With Quote
Old 12-11-2006, 09:16 PM   #10
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

I see a few problems with this.

1, you are using a halogen projectors with plans to eventually go to a HID setup. If you are staying with halogen that'* fine.
2 you picked one of the markets worst halogen projectors to start with. And believe me when I say this. I have a set sitting on my work bench.
3 the output of those blue bulbs is going to suck and be lower output than a clear one.
4 You CAN do the process you are talking about. IF you chose a projecter that accepts HID kit bulbs well. The Valeo H7 projectors is one set that does very nice with both halogen and HID.

I see no reason to continue with the bosch projectors. IMO you will have worse output than your current reflectors.
corvettecrazy is offline   Reply With Quote
