scanner won't communicate with car - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Chevrolet When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 02-26-2014, 04:53 PM   #1
Senior Member

True Car Nut
Thread Starter

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default scanner won't communicate with car

A friend of mine has a 2002 Monte Carlo with the 3.8, and when he took it in for e-testing it failed because the diagnostic equipment (hooked up to the OBD port) could not communicate with the car. Has anyone else experienced this and have an idea what the problem could be?
2kg4u is offline   Reply With Quote
Old 02-26-2014, 04:56 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

If it "obviously" worked on another car, typical cig lighter fuse is probably blown. Check fuse, then check for BAT+12 at PIN 16 using chassis ground at PIN 4. This is usually the culprit.
Mike is offline   Reply With Quote
Old 02-26-2014, 05:00 PM   #3
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Oops...
Attached Thumbnails

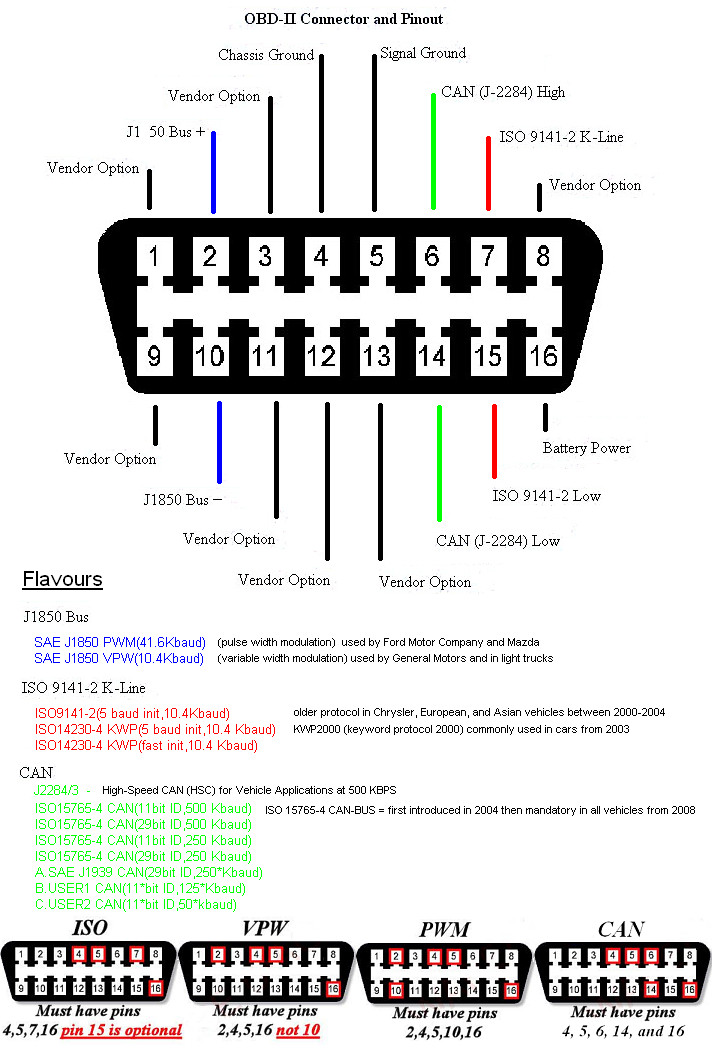

scanner won't communicate with car-odbii%2520master%2520pinout.jpg
Mike is offline   Reply With Quote
Old 02-26-2014, 05:46 PM   #4
Senior Member

True Car Nut
Thread Starter

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by Mike1995 View Post
If it "obviously" worked on another car, typical cig lighter fuse is probably blown. Check fuse, then check for BAT+12 at PIN 16 using chassis ground at PIN 4. This is usually the culprit.

It is the original PCM in the vehicle. The ADL has power (it powers up a scanner) but the scanner won't connect with the PCM.
2kg4u is offline   Reply With Quote
Old 02-26-2014, 05:49 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Make sure the OBD2 pins aren't pushed into the socket or bent. Next is to BEEP out OBD pin to PCM pin. Unless you have another scanner you can double check its functionality.
Mike is offline   Reply With Quote
Old 02-26-2014, 05:54 PM   #6
Senior Member

True Car Nut
Thread Starter

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by Mike1995 View Post
Make sure the OBD2 pins aren't pushed into the socket or bent. Next is to BEEP out OBD pin to PCM pin. Unless you have another scanner you can double check its functionality.
He had the problem at the garage when he took it in for e-test, and I checked it with my Actron scanner. Same result.

Explain "BEEP out OBD pin to PCM pin".

I will check the pins.
2kg4u is offline   Reply With Quote
Old 02-26-2014, 05:58 PM   #7
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Using the continuity test function of your DVOM, your verifying the connection between the OBD port pins and the pins at the PCM. Or at least the wire right at the PCM connector(back probe into the wire insulation)

Or in other words, the BEEP test. If your DVOM supports BEEPING.
Mike is offline   Reply With Quote
Old 02-27-2014, 07:48 AM   #8
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

Attached Thumbnails

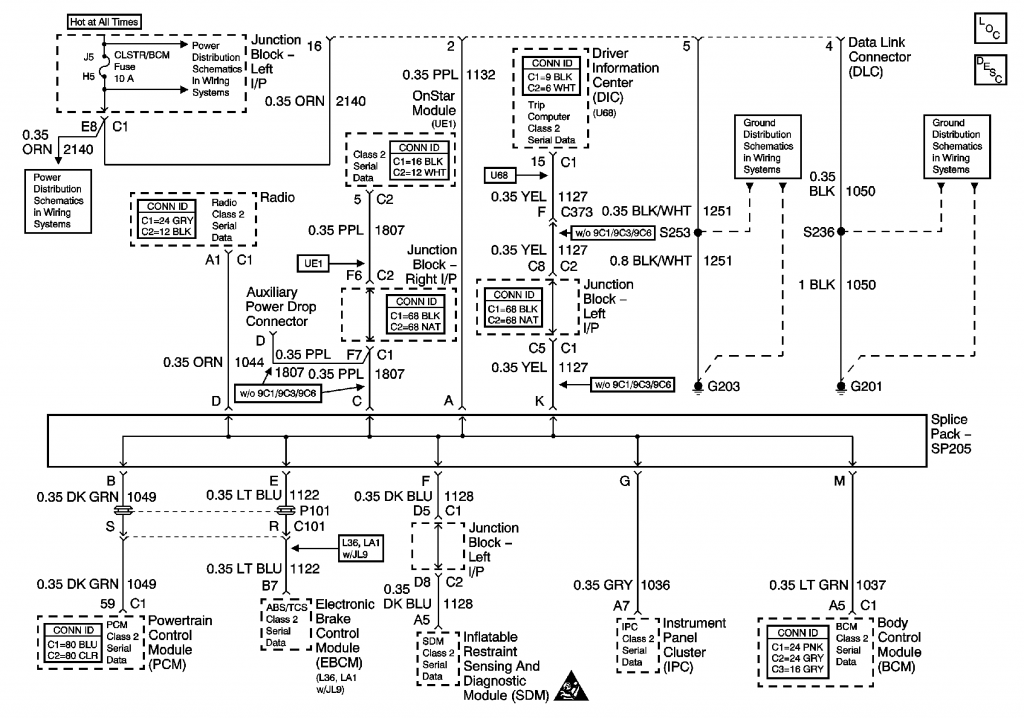

scanner won't communicate with car-02monteinpdata_zpsbcef4748.png
jwfirebird is offline   Reply With Quote
The Following User Says Thank You to jwfirebird For This Useful Post:
Mike (02-27-2014)
Old 02-27-2014, 08:08 PM   #9
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

HUH! So they stopped using the cig lighter fuse. Now its the cluster/BCM fuse.
