Default 07 monte fuel leak

so i had a few leak a couple weeks ago and i found it was the oring on the quick connect under the driver seat area, ended up fixing it with a new connector on the factory line but there was no room to move or hold it well so i ended up kinking it a bit. but it didnt leak so i left it.now i have a pinhole leak in the metal part a few inches in front of where the nylon connects. the trunk no longer has a access panel for the top of the tank(i have never been so disappointed with gms quality and cheapness as i have been with this car, but thats another thread). i was planning on just replacing the line with nylon from the tank to the fuel rail but they have a different style metal connector on the front now and not sure what is on the back because i would have to drop the tank now. not sure if i want to do that but trying to find good metal to use a compression fitting on under the car is never fun either so i dont know what i should do at this point.

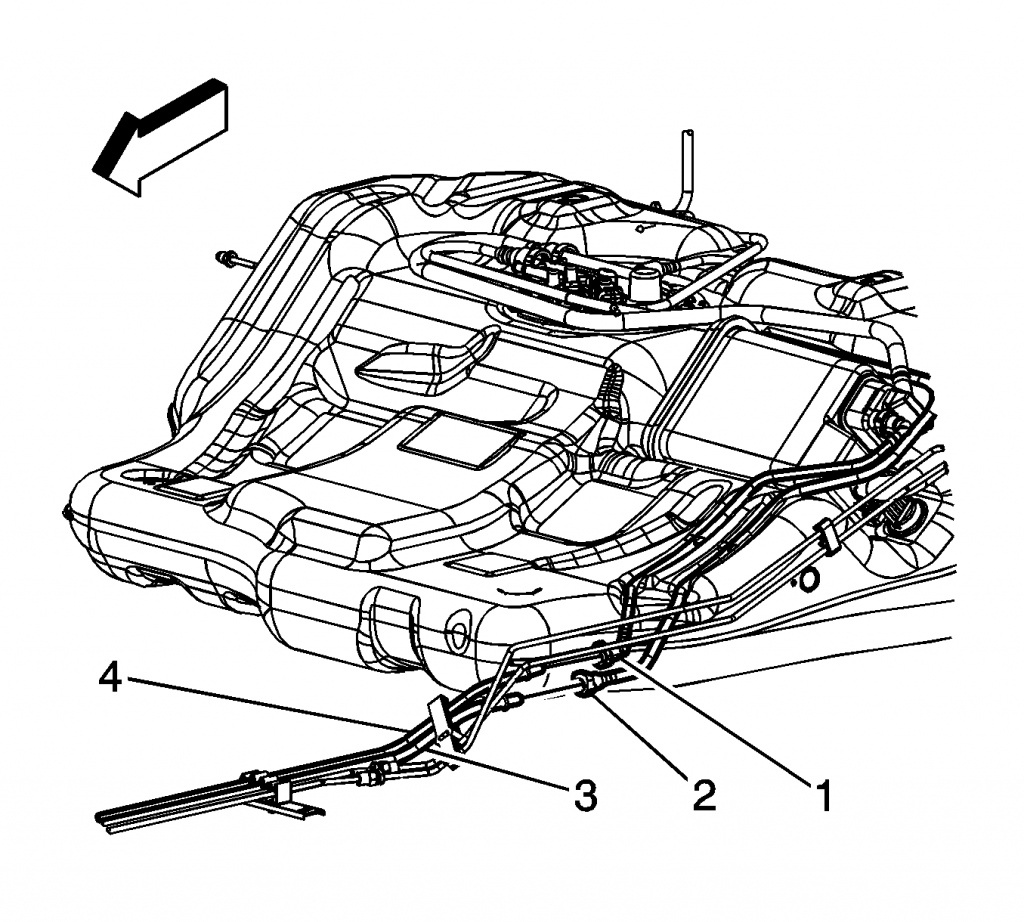

looking at the pic and service manual you can tell if its got the plastic or metal type

Attached Thumbnails
07 monte fuel leak-07montetank_zpse4271a5a.png
jwfirebird is offline   Reply With Quote
Old 01-17-2014, 12:45 PM   #2
Senior Member
True Car Nut
Thread Starter

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the metal disconnect on the rail, apparently you need a tool to remove it after you take that retainer off, according to the service manual.

Attached Thumbnails
07 monte fuel leak-montefuelline_zps8c079117.jpg
jwfirebird is offline   Reply With Quote
Old 01-17-2014, 01:16 PM   #3
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

You need the fuel line disconnect tool. Can be found in the tool section at Autozone.


That'* the same type of fuel line connector on my L67 fuel rail.
Mike is offline   Reply With Quote
Old 01-17-2014, 01:42 PM   #4
Senior Member
True Car Nut
Thread Starter

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

jwfirebird is offline   Reply With Quote
Old 01-17-2014, 04:46 PM   #5
Senior Member
True Car Nut
Thread Starter

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

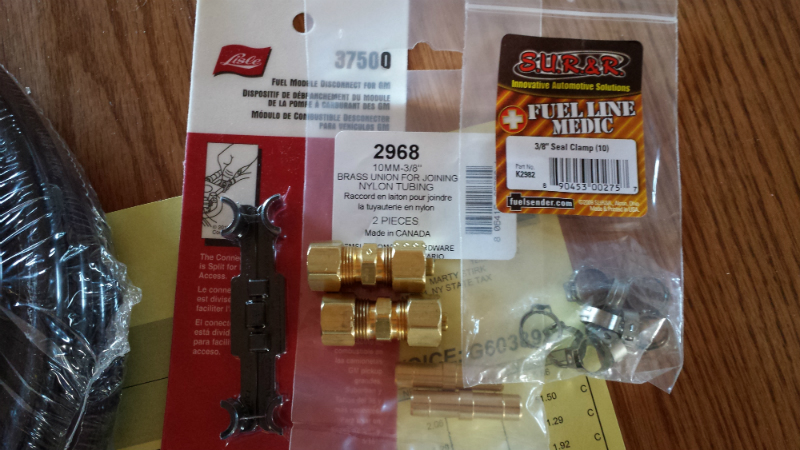

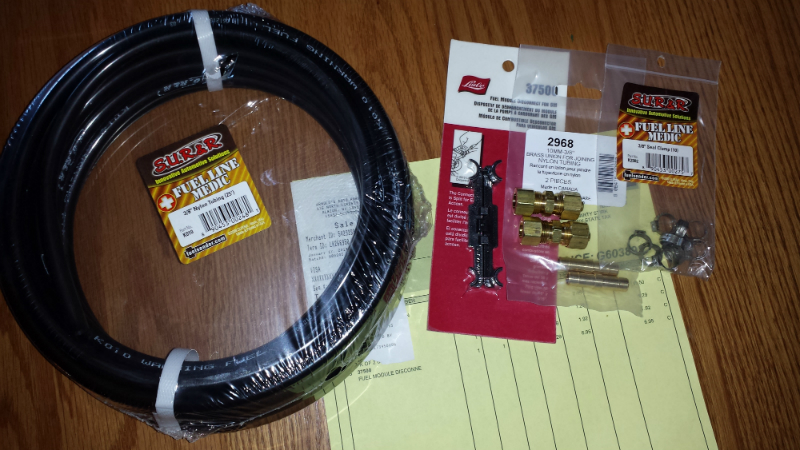

this is what carquest had, we will see how it works tomorrow probably.


Attached Thumbnails
07 monte fuel leak-fuelparts2_zpsf51e2b94.jpg   07 monte fuel leak-fuelparts1_zps5fd6ca25.jpg
jwfirebird is offline   Reply With Quote
Old 01-17-2014, 05:28 PM   #6
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Yes, please do keep us updated. That kit intrigues me.
Mike is offline   Reply With Quote
Old 01-17-2014, 05:29 PM   #7
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Wait, those are one time use clamps, do you have the clamp tool?
Mike is offline   Reply With Quote
Old 01-17-2014, 10:25 PM   #8
Senior Member
True Car Nut
Thread Starter

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i looked at the tool and it appears that i do, the one they had was just strait face wire cutters. not sure if thats the right name.

they looked like this
Amico Mini End Nipper Cutting Pliers Jewelry Wire Cutter Tool - Amazon.com Amico Mini End Nipper Cutting Pliers Jewelry Wire Cutter Tool - Amazon.com
jwfirebird is offline   Reply With Quote
Old 01-17-2014, 11:58 PM   #9
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

They should work.
Mike is offline   Reply With Quote
Old 01-18-2014, 09:03 AM   #10
Senior Member
True Car Nut
Thread Starter

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i hope so. not looking forward to going out there its like 19 degrees and i dont think i want to run my heater next to a car thats been leaking gas
