Default Cadillac CTS - Fuel Pump

Hi GM Forum users: Is this the best place for Cadillac troubleshooting and fix up general knowledge base? Perhaps there is a better site.

Any quick help on how to check if my fuel pump is pumping? 3.6L almost want to start but only for a second. Pulled the fuel line right next to the pressure pressure port and no gas come out when starting of moving the ignition to on.
Mlrutigl is offline   Reply With Quote
Old 04-01-2013, 06:50 AM   #2
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,636
Thanked 990 Times in 769 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Right now, the best troubleshooting tool to get is a fuel pressure tester. It connects to the port on the fuel rail. Usually you can get these at Autozone tool rental program.

What year and how many miles are currently on your Caddy?
Mike is offline   Reply With Quote
Old 04-01-2013, 10:19 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2013
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Mlrutigl is on a distinguished road
Default

Thanks Mike, I'll use the pressure gauge. Do you know the PSI target pressure for the CTS? Thanks, Mike
Mlrutigl is offline   Reply With Quote
Old 04-01-2013, 11:50 PM   #4
Senior Member
Posts like a Turbo

Shaun_300's Avatar

Join Date: Feb 2012
Location: Ottawa, Ontario
Posts: 308
Thanks: 0
Thanked 1 Time in 1 Post
Shaun_300 is on a distinguished road
Default

Should be in the neighborhood of 55-60psi.
If it doesn't start, have someone crank the engine and hit the bottom of the fuel tank with a hammer and see if it tries a little harder to start or starts up.
Shaun_300 is offline   Reply With Quote
The Following User Says Thank You to Shaun_300 For This Useful Post:
Nittany (01-04-2016)
Old 04-02-2013, 12:25 AM   #5
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,854
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Quote:
Originally Posted by Shaun_300 View Post
Should be in the neighborhood of 55-60psi.
If it doesn't start, have someone crank the engine and hit the bottom of the fuel tank with a hammer and see if it tries a little harder to start or starts up.

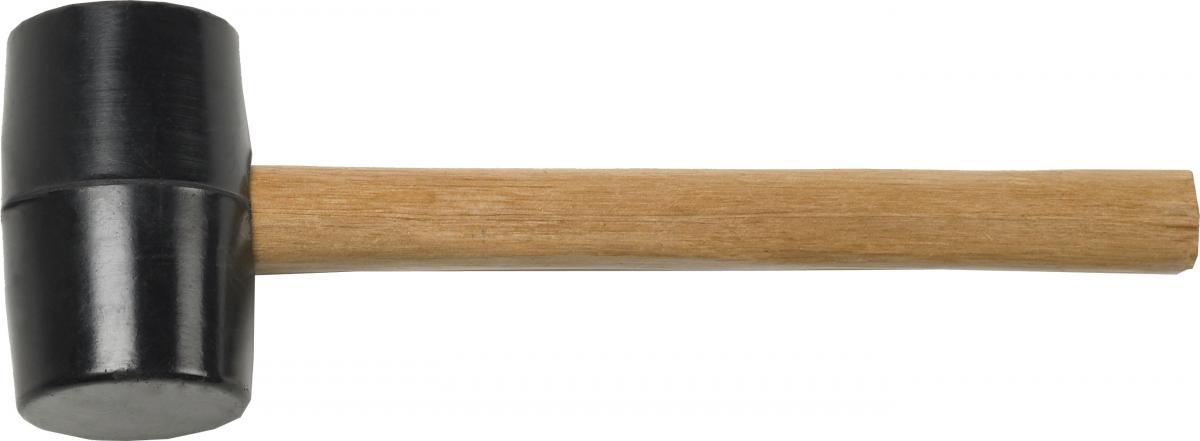

A rubber mallet might be a little better tool than a hammer.

Attached Thumbnails
Cadillac CTS - Fuel Pump-50899.jpg
GunsOfNavarone is offline   Reply With Quote
Old 04-03-2013, 05:38 AM   #6
Junior Member
Thread Starter

Join Date: Mar 2013
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Mlrutigl is on a distinguished road
Default

Thanks for the tip. Always liked the BFH method. I have a list of things to try now. I'll start with the electrical, move to pressure gauge and beat the heck out of it before I drop the tank which doesn't look like fun.
Regards
Mlrutigl is offline   Reply With Quote
Old 04-03-2013, 07:28 PM   #7
Senior Member
Posts like a Turbo

Shaun_300's Avatar

Join Date: Feb 2012
Location: Ottawa, Ontario
Posts: 308
Thanks: 0
Thanked 1 Time in 1 Post
Shaun_300 is on a distinguished road
Default

Yes when I said hammer I meant a rubber mallet or a dead blow hammer. Wouldn't want you to smash a hole in your tank.
Shaun_300 is offline   Reply With Quote
Old 04-03-2013, 11:43 PM   #8
Junior Member
Thread Starter

Join Date: Mar 2013
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Mlrutigl is on a distinguished road
Default

Well, the relay engages, no pressure at the Schrader valve, beat the gas tank several times, on/off many cycles. Shot Fuel Pump. Too bad, need to drop the tank. Lots of labor. Hope I can find a pump for under $500.

Thanks, Folks.
Mlrutigl is offline   Reply With Quote
Old 04-04-2013, 08:47 AM   #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

look for delphi pump on rock auto, amazon, parts geek
jwfirebird is offline   Reply With Quote
Old 04-07-2013, 11:00 PM   #10
Junior Member
Thread Starter

Join Date: Mar 2013
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Mlrutigl is on a distinguished road
Default

No Pumping pump. Great. Just dropped the Exhaust System. Drive Shaft. But those really TRICKY two bolts to remove the gas tank straps. There has got to be a special wrench or from the rear bumper..? Does anyone have that experience with the CTS? It would really help. Thanks
