Default Washer nozzles

My 2001 LeSabre'* washer nozzles are in the wiper arms - NOT GOOD! This has been driving me nuts since I recently bought the car. They spray ok, but only the top half of the windshield ever gets any fluid, with the bottom half being mostly dry-wiped. I do not like this design.

I've decided to add new nozzles to either the cowl or the rear of the hood - I'd prefer to go with the cowl so I don't damage the factory paint.. even though I could seal it well enough to prevent it creeping.

Has anyone done a relocation like this to their vehicle? I'd like to hear some do'* and don'ts.

Seems straight forward enough. Everything up to the current nozzles is in place and working fine. I'm thinkin' all I have to do is find some cowl-mount nozzles from anycar, drill a couple holes, then clip'em in - maybe with some RTV for good measure. Heck, I haven't inspected my cowl grille yet.. their might even be some existing openings I can use.

Any thoughts..?
John01 is offline   Reply With Quote
Old 05-25-2015, 01:10 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,645
Thanked 998 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

You are trekking into uncharted territory. Take pics!
Mike is offline   Reply With Quote
Old 05-25-2015, 02:04 PM   #3
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

I'm a trekker..

John01 is offline   Reply With Quote
The Following User Says Thank You to John01 For This Useful Post:
Mike (05-25-2015)
Old 05-25-2015, 04:05 PM   #4
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Ya those arm mounted nozzles also can get plugged up, and removing the hose, and running a sewing needle though nozzles, clears them out.
Another idea is to run the hose the length of the blade, attach via zip straps, and drill small holes in hose, facing towards windshield. This will really get a spray happening!

Last edited by Soft Ride; 05-25-2015 at 04:07 PM. Reason: nozzles
Soft Ride is offline   Reply With Quote
Old 05-25-2015, 06:13 PM   #5
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

Quote:
Originally Posted by Soft Ride View Post
Ya those arm mounted nozzles also can get plugged up, and removing the hose, and running a sewing needle though nozzles, clears them out.
Another idea is to run the hose the length of the blade, attach via zip straps, and drill small holes in hose, facing towards windshield. This will really get a spray happening!
Hey! What about this..

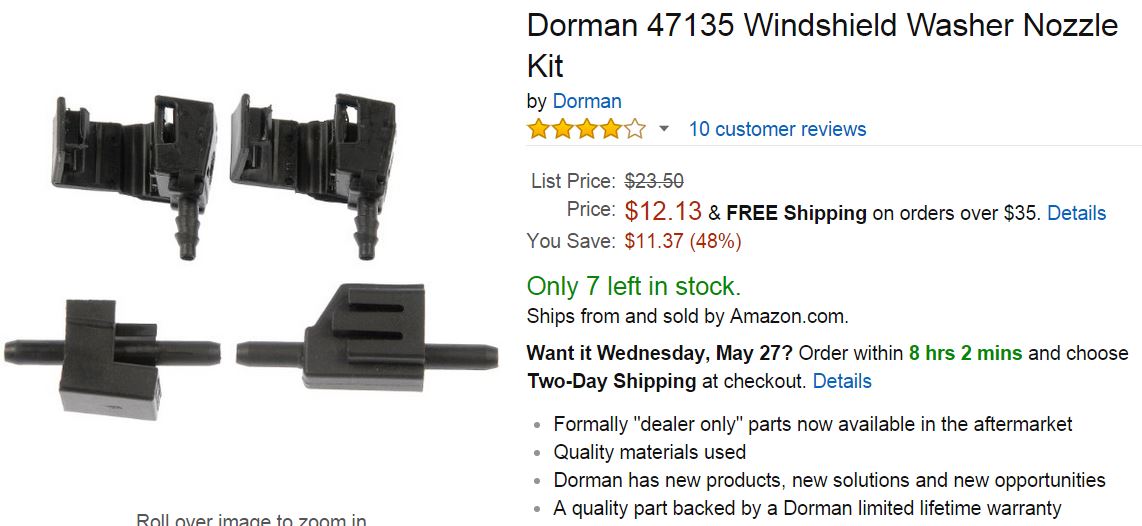

I found this Dorman wet arm nozzle kit on Amazon. I could tee the nozzles into the middle of the existing hose (which runs up the wiper arm), just about 6"-8" below the factory nozzle. This would spray the lower half of the windshioeld below the blade. The price is right.. if I order more stuff and get free shipping.

I'm not too worried about the cost of this project as long as it doesn't get over around $30 or so.
I could try this and if it doesn't work, go ahead with my original plan of relocating the nozzles into the cowl screen.

Attached Thumbnails
Washer nozzles-2ugkoxf.jpg

Last edited by John01; 05-25-2015 at 06:15 PM.
John01 is offline   Reply With Quote
Old 05-25-2015, 08:08 PM   #6
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

I'm interested in how this goes. Arm mounted nozzles are the worst, especially in the winter.
2k2cse is offline   Reply With Quote
Old 05-25-2015, 08:42 PM   #7
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

Quote:
Originally Posted by 2k2cse View Post
I'm interested in how this goes. Arm mounted nozzles are the worst, especially in the winter.
I'm in Florida, so the winter problem doesn't bother me. The one thing I do like about these wet-arm nozzles is they get nearly all the spray on the glass. The cowl or hood nozzles can go crazy sometimes, like my E350 - that thing sprays the windshield, roof, side mirrors, and door glass.

It may be a couple weeks before I get this done, as I'm building an order from Amazon to get the free shipping.
John01 is offline   Reply With Quote
Old 06-13-2015, 01:18 PM   #8
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

I actually took a close-up look at my washer system today. The reservoir is VERY buried inside the right front fender - all I can see is the refill cap and some tubing back by the cowl going to both arms.

I discovered there are actually two nozzles on each wiper arm, and for some reason the lower nozzles on both arms do not spray.. their hoses and connections are perfect. It all looks brand new.

So instead of rebuilding my washer nozzle system with a modified version, I'm going to try running some fine wire through both and see if that unclogs them. Does anyone know exactly what clogs these things? I'm guessing it'* mineral deposits from tap water - they get into everything. I wonder if a good soaking in CLR would do the trick.. If the reaming out don't work, I'll give good ol' CLR a shot at it.

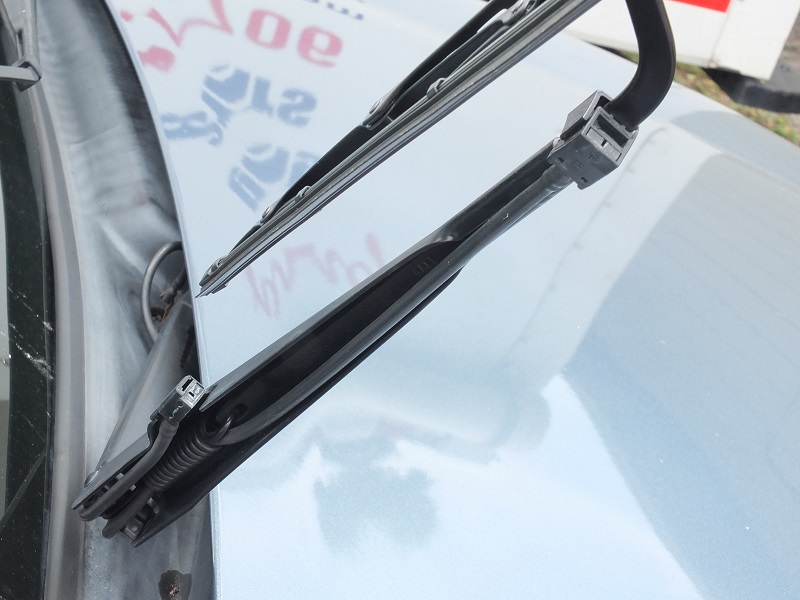

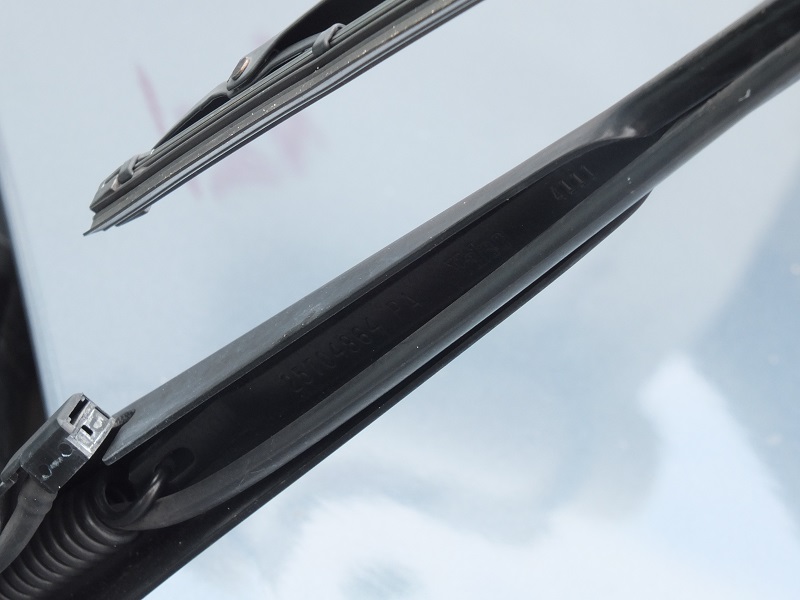

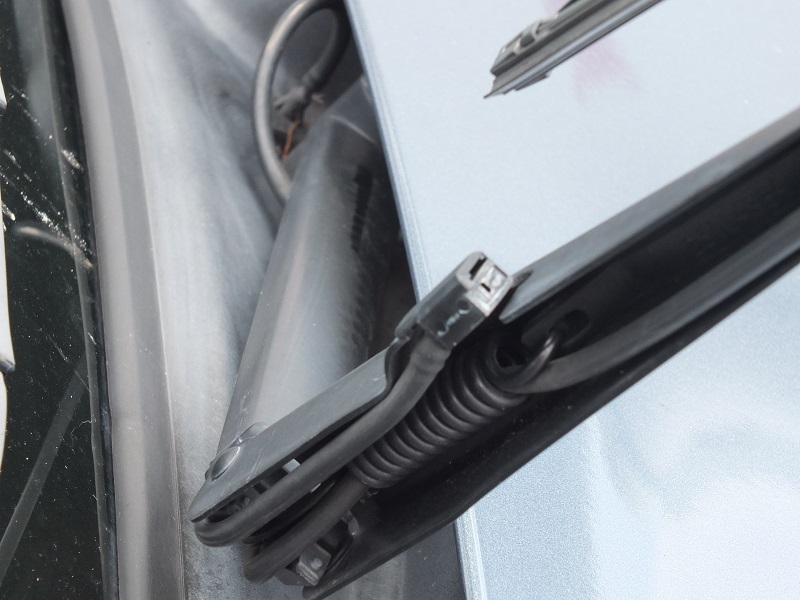

Here'* some shots of my Pass side arm with the nozzles and hoses







Attached Thumbnails
Washer nozzles-2418tbp.jpg   Washer nozzles-2ywso6r.jpg   Washer nozzles-10prma1.jpg   Washer nozzles-evc315.jpg
John01 is offline   Reply With Quote
Old 07-06-2015, 07:55 PM   #9
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Apr 2015
Posts: 156
Thanked 21 Times in 17 Posts
John01 will become famous soon enoughJohn01 will become famous soon enough
Default

I finally got around to fixing my washer nozzles today (the lower ones didn't spray). There'* a slot in the nozzle housing which slips onto a tab on the arm - it'* just this snug fit that holds it there. Like a 1/4" electrical spade connector.

I ran a small needle through the nozzle openings and that did nothing, so I pulled off the pass side lower nozzle and tried to get one of the new Dorman nozzles on there, but first I squirted the washers with the hose off the nozzle - it sprayed like crazy. Hmmm..

The Dorman nozzle was a loose fit on the arm but seemed like it would stay on because the hose kept it from sliding upwards and off the tab.. so I tried the washers - it sprayed ok but it'* direction was off a little, so only half got on the windshield and the rest shot up inside the arm and ran down to the cowl - no good. I took it off and replaced the original. Just for kicks, I squirted the washers again and.. BAM! the original nozzle squirted like it was brand new! How 'bout that!? I guess the nozzle itself wasn't clogged, just some debris in the hose which got flushed out earlier - cool!

So.. I took the hose off the driver'* side and it squirted great. I put the hose back on the original nozzle and now IT works great! Go figure.. Just some gunk in the hoses which got flushed when I tested them off the nozzles.

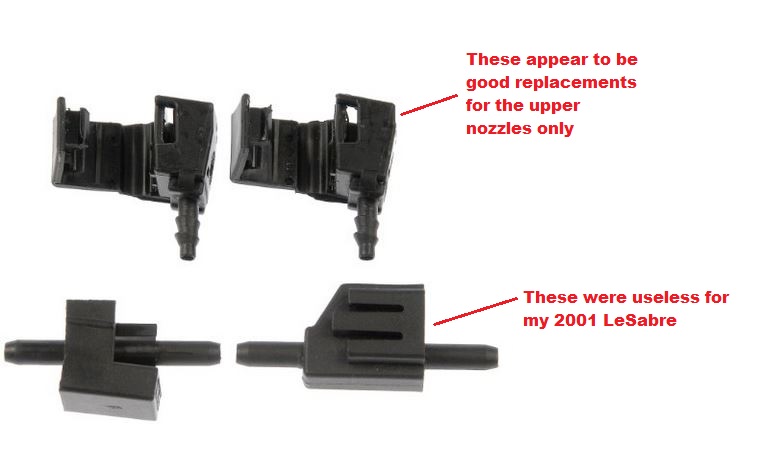

These Dorman nozzles were only half right - good for upper nozzles only
Attached Thumbnails
Washer nozzles-crrhsop.jpg   Washer nozzles-ffjasos.jpg
John01 is offline   Reply With Quote
Old 07-07-2015, 05:29 AM   #10
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

I am glad that you now have the nozzles working again.
I guess some tank contamination plugged the lines up! Good work!
Nice to have a clear windshield again!
