Old 01-15-2012, 11:17 PM   #31
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

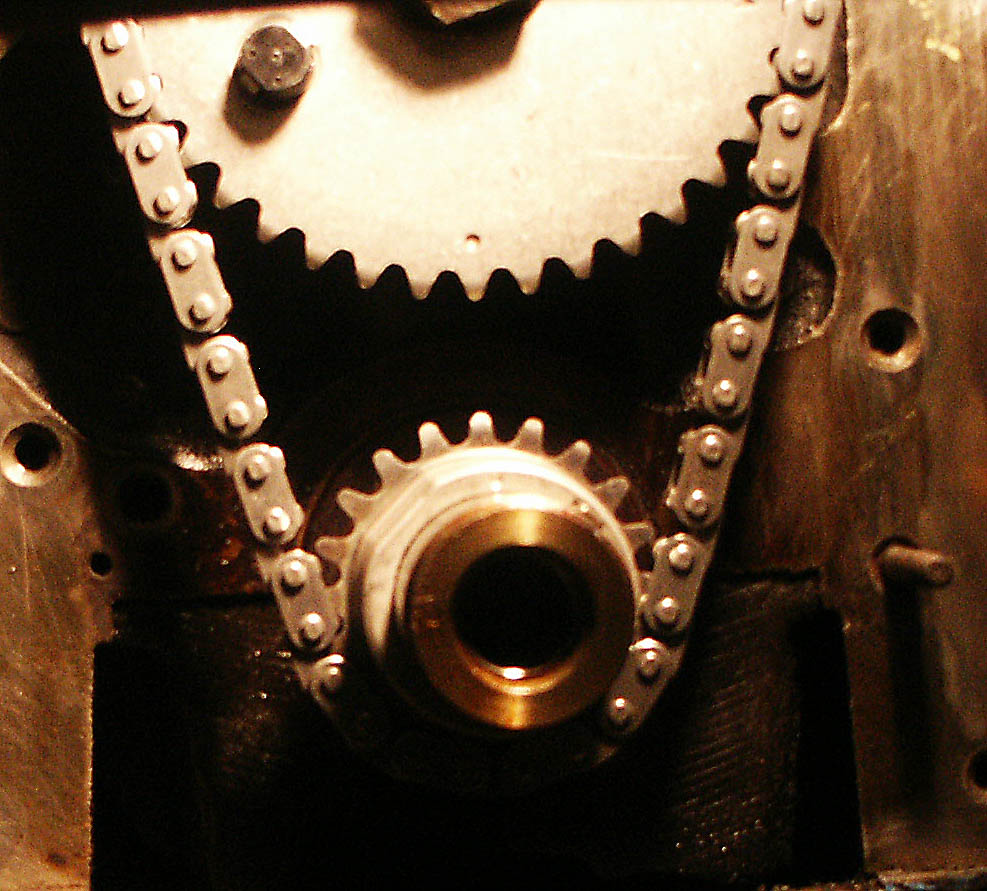

I stuck the cam bolt in place to check alignment. Maybe I need to shift the crank a bit and see if that allows me to push it on by hand. Here is a photo.
Attached Thumbnails
Replacing Timing Chain/Gears Questions-cam_crank_chain.jpg
Kimberly is offline   Reply With Quote
Old 01-16-2012, 12:32 AM   #32
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

I installed a timing set this morning and i put mine crank on first then the dowel pin on cam.and turn the cam to line up with the holes.I had to use a brass punch and ball peen hamer to lightly tap it into place
sseidriver97 is offline   Reply With Quote
Old 01-16-2012, 01:35 PM   #33
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The dots look good, but dang, that'* tight. Are you sure you have the right gear set? Something just don't seem right, 2 sets and both very tight.
Danthurs is offline   Reply With Quote
Old 01-16-2012, 06:36 PM   #34
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

The cam gear and chain is in place. Thanks everyone for the tips and suggestions. There was probably nothing wrong with the first set. Once in place, the chain is not that tight; I guess once it is in proper alignment. There is the proper deflection I would expect to see.

The problem was that I was afraid of damaging the chain, or the gear, or shaft or pin and I could not see what was going on since it is just me. What I did was to place a suitable sized mirror resting on the crankshaft and AC bracket that would allow me to see the face of the timing gear. I could see the shaft and pin were in the proper place although I could not push it on by hand. I then put the cam bolt in place and using very light pressure on the socket wrench simply pushed the cam gear in place using the cam bolt. It slid easily into place without any effort.

Being able to see the face of the gear and seeing that the alignment was correct did away with my fear of damaging something.
Kimberly is offline   Reply With Quote
Old 01-17-2012, 09:27 AM   #35
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I also will put a light behind the cam gear to see the key line up in the keyway of the gear.
BillBoost37 is offline   Reply With Quote
Old 01-17-2012, 11:50 AM   #36
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Good to hear you got it on.
Danthurs is offline   Reply With Quote
Old 01-19-2012, 05:45 PM   #37
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

I had someone to tell me that one should pull the filter adapter when doing the timing chain repair so you can do a proper cleaning. A GM service bulletin warns that trash can cause the relief valve to stick open preventing normal oil pressure. I thought I would pass that along.

Now, I have a question about the gasket. I noticed that the inlet and outlet for the water pump could leak and cause water to enter the oil pan. Is there any precaution I should do with installing the gaskets? Do I need to apply rtv anywhere? Dad always applied spray-on copper coat to just one side of the gasket, usually on the part side (timing chain cover). He told me that made it easier to take the part back off it needed.. Please recommend on this as I get ready to reinstall things.

Gosh, this has been one slow job for me. For one thing, the shed has no insulation and no heat.
Kimberly is offline   Reply With Quote
Old 01-20-2012, 08:27 PM   #38
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

Another question. I have learned that there is no such thing as a counterbore hole on the chain tensioner, that the differences is that one has a longer bolt. I think I ordered the shorter bolt one; need to pull it back off to be sure. I am wondering if I can go ahead and use the shorter bolt one or if I need to go back and order the one with the longer bolt.
Kimberly is offline   Reply With Quote
Old 01-21-2012, 10:10 AM   #39
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Not sure what you are refering to. The tensioner bolt only holds it in place. I have not heard of any with different length bolts.
Danthurs is offline   Reply With Quote
Old 02-08-2012, 04:37 PM   #40
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

The job is complete. Yes, there are two different chain tensioners/dampers on these cars, one is shorter length; there is no such thing as a counterbore hole so you have to know which length you have.

I reordered to get the correct one and when it came, it was the correct box but wrong part. So I had to order for the third time.
Kimberly is offline   Reply With Quote
