Default Replaced ECM 95 LeSabre

I Replaced ECM in my 95 LeSabre because the check engine light was on (code 1640) it is still on now, but I heard I need to drive it around and cycle it so the computer can reset. Any advice on this??? Thanks.
Cynical1x3 is offline   Reply With Quote
Old 02-22-2012, 04:09 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Where did the PCM come from?
Mike is offline   Reply With Quote
Old 02-22-2012, 04:57 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2011
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Cynical1x3 is on a distinguished road
Default

Junkyard
Cynical1x3 is offline   Reply With Quote
Old 02-23-2012, 08:10 PM   #4
Senior Member
Posts like a Turbo

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

If the PROM in the one from the junkyard is not correct for your car, that may cause a problem. Unhook the battery cable. Remove the PROM cover off of your old computer, carefully lift out the PROM by pushing down on the two lift arms, and try it in the junkyard computer. Take a sharpie and place a dot of x on your PROM so you don't get them mixed up.
Kimberly is offline   Reply With Quote
Old 02-26-2012, 03:10 PM   #5
Senior Member
Posts like a Northstar

RobertISaar's Avatar

Join Date: Jul 2010
Location: Camden, MI
Posts: 615
Thanks: 0
Thanked 0 Times in 0 Posts
RobertISaar is on a distinguished road
Default

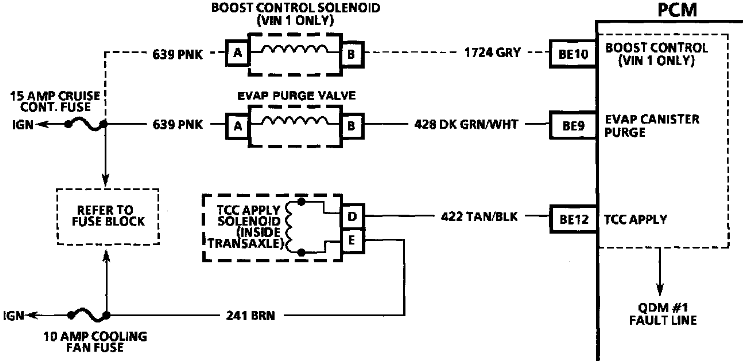

P1640 can be set by more than a bad PCM.

it'* a DTC for the quad driver, and any kind of circuit failure in any of the circuits that are controlled by that specific quad driver can set that DTC. the boost control solenoid(if it were present), the EVAP cannister solenoid and the TCC Apply solenoid(the one connected to pin E12) are the ones connected to this quad driver.

any type of manual override, shorted circuits, open circuits, weak circuits or bad solenoids would be what i would look for.

Attached Thumbnails
Replaced ECM 95 LeSabre-gabvb.png
