Default Intake Air Control Cleaning (IAC) On 97 Park Avenue

Had a bit of a sticky Higher idle than normal this AM.

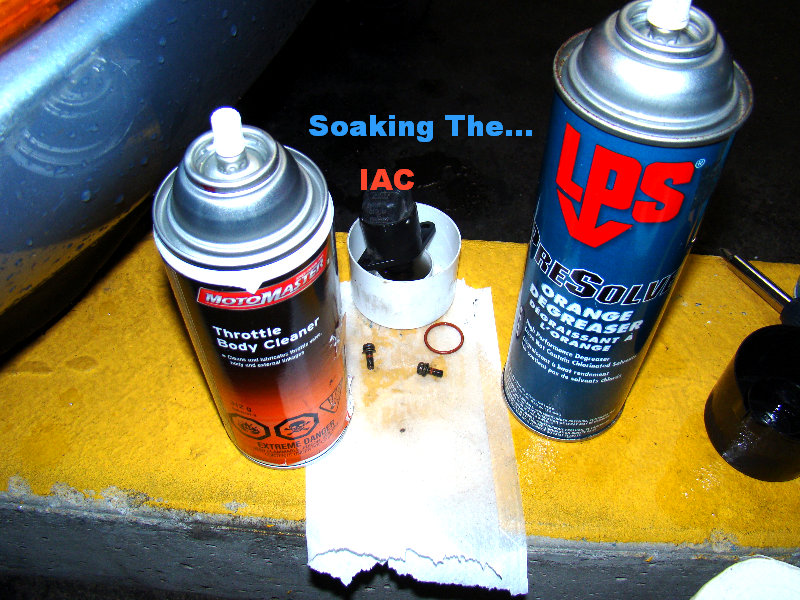

So decided to clean the intake IAC !
Used small Ratchet, 1/4 socket & Larger Phillips to break the 'Two screws Loose" !





Based on the amount of Carbon inside the IAC Port....
I think the whole Throttle body should come off and be cleaned!
Attached Thumbnails
Intake Air Control Cleaning (IAC) On 97 Park Avenue-buickiacunit6.jpg   Intake Air Control Cleaning (IAC) On 97 Park Avenue-buickiacunit3.jpg   Intake Air Control Cleaning (IAC) On 97 Park Avenue-buickiacunit4.jpg   Intake Air Control Cleaning (IAC) On 97 Park Avenue-buickiacunit5.jpg
Soft Ride is offline   Reply With Quote
Old 10-27-2012, 04:59 PM   #2
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

OOps double posted the wrong photo ...
Here is the dirty carboned port..

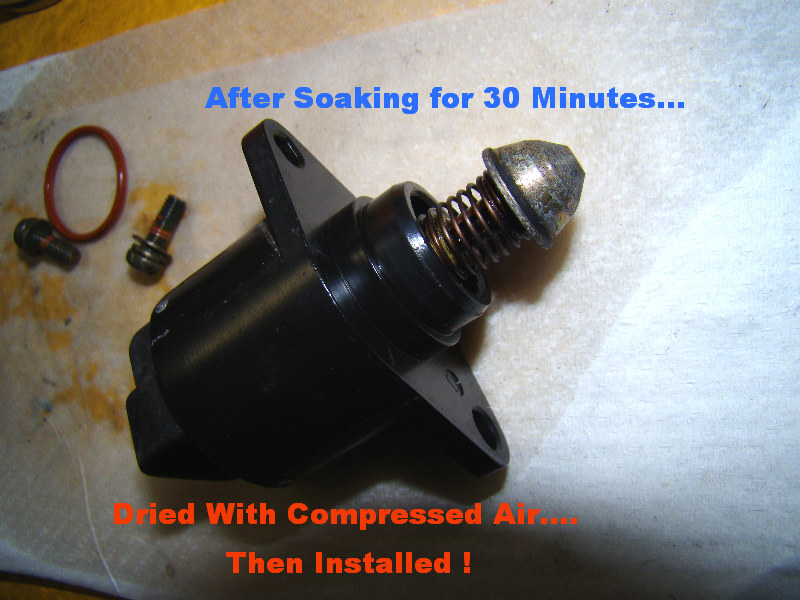

After Cleaning and re-install, the idle is perfect now..nice & smooth. Smooth shifts too!
Attached Thumbnails
Intake Air Control Cleaning (IAC) On 97 Park Avenue-buickiacunit2.jpg
Soft Ride is offline   Reply With Quote
Old 10-27-2012, 05:03 PM   #3
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

That aint nasty. While you were doing that, I'm in the process of cleaning the 1/4" of baked on carbon out of a supercharger inlet. I'll post pics sooner or later.

Good job! Someone could benefit from this!
Mike is offline   Reply With Quote
Old 10-27-2012, 05:41 PM   #4
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Look forward to those pics!
1/4 " ya wow... that sounds like it hasn't been cleaned in a while...
You running premium fuel and take it on the highway? or why so much carbon?
Damn....
Use this stuff on the highway..2 bottles to a full tank and let er rip...
Chevron Techron Concentrate Plus, 10 oz: Automotive : Walmart.com
Good luck on the "Super" cleaning job ahead...
Soft Ride is offline   Reply With Quote
Old 10-27-2012, 05:53 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Dunno, I can only guess its 16 years of carbon buildup. It came off of a 96 Park Ave Ultra.
Mike is offline   Reply With Quote
Old 11-21-2012, 01:47 AM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Mar 2011
Location: Golden, CO
Posts: 19
Thanks: 0
Thanked 0 Times in 0 Posts
Tinactin is on a distinguished road
Default

I did this last week when I replaced my LIM gaskets.

Be careful when taking out the mounting screws, especially if the IAC solenoid hasn't been removed before. I stripped the hell out of one of the screws and had to extract it. It'* mounted now with only one screw, but the o-ring seems to keep it sealed.
Tinactin is offline   Reply With Quote
Old 11-21-2012, 08:39 AM   #7
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Good tip Nev.

I have always found it easier to take a large cross head screwdriver, put it into the screw head and give the screwdriver a good whack with a hammer. This usually breaks the thread lock and makes it easier removing the screw.
Mike is offline   Reply With Quote
Old 11-24-2012, 05:00 PM   #8
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

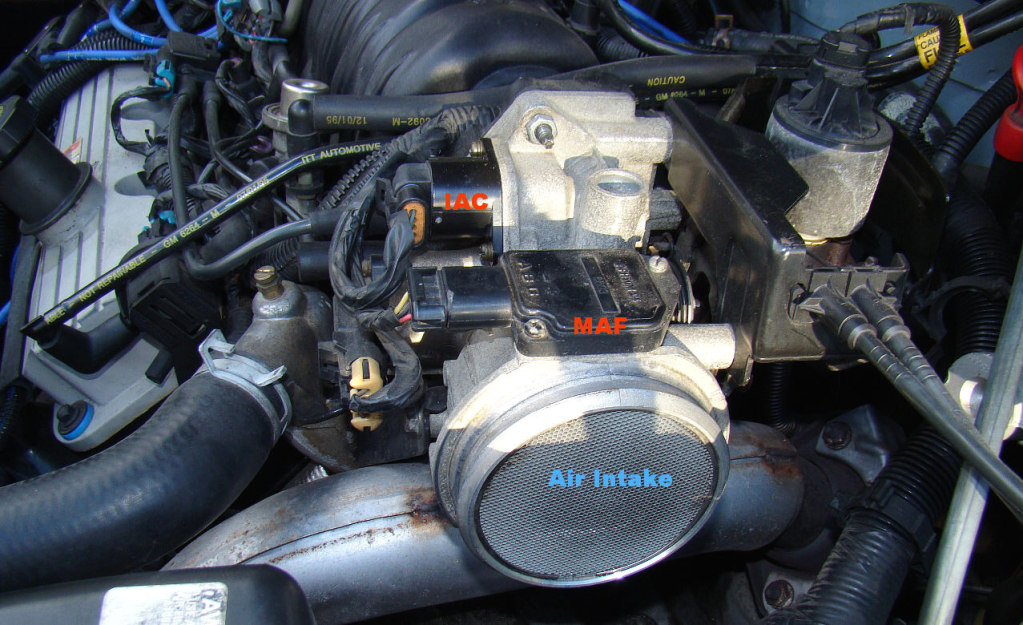

Is there a way to remove the intake air screen?

Anyways, I did end up spraying MAF friendly throttle body cleaner in wide bursts through screen, while the car was running at about 2000rpm, to keep it from stumbling as the spray went in.
The Pk.Ave seems to have like this treatment.
Idles about 300rpm lower after a good highway boogie too.
I am going to remove the MAF soon. I can image the carbon gunk in there too!
Attached Thumbnails
Intake Air Control Cleaning (IAC) On 97 Park Avenue-97paairintake.jpg
Soft Ride is offline   Reply With Quote
Old 11-24-2012, 05:05 PM   #9
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Yes, there is a way to remove it. There is a snap ring on the outside of the screen. Simply pull it out with a large bobby pin of some sort. But the thing of it is though, it just doesn't pop out. It has to be forced out, and the BEST way to do that is to remove the TB, and push something very DULL through the backside of the TB to push the screen out.
Mike is offline   Reply With Quote
Old 11-24-2012, 05:37 PM   #10
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Thanks Mike!
May remove it permanently in spring when I get to removing the whole body then.
Besides stopping mice from entering.. what real purpose does this thing serve?
May even do the LIM gaskets too again while there... to be on safe side.
Soft Ride is offline   Reply With Quote
