Default Horn Wiring in 93PA

Horn not working because of steering wheel pad issues. I would like to place a new button on the floor for my foot. Like the brites in an old car. Anybody know what wires I need to mess with under the dash/steering wheel?
93PA is offline   Reply With Quote
Old 11-16-2012, 01:35 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

Attached Thumbnails

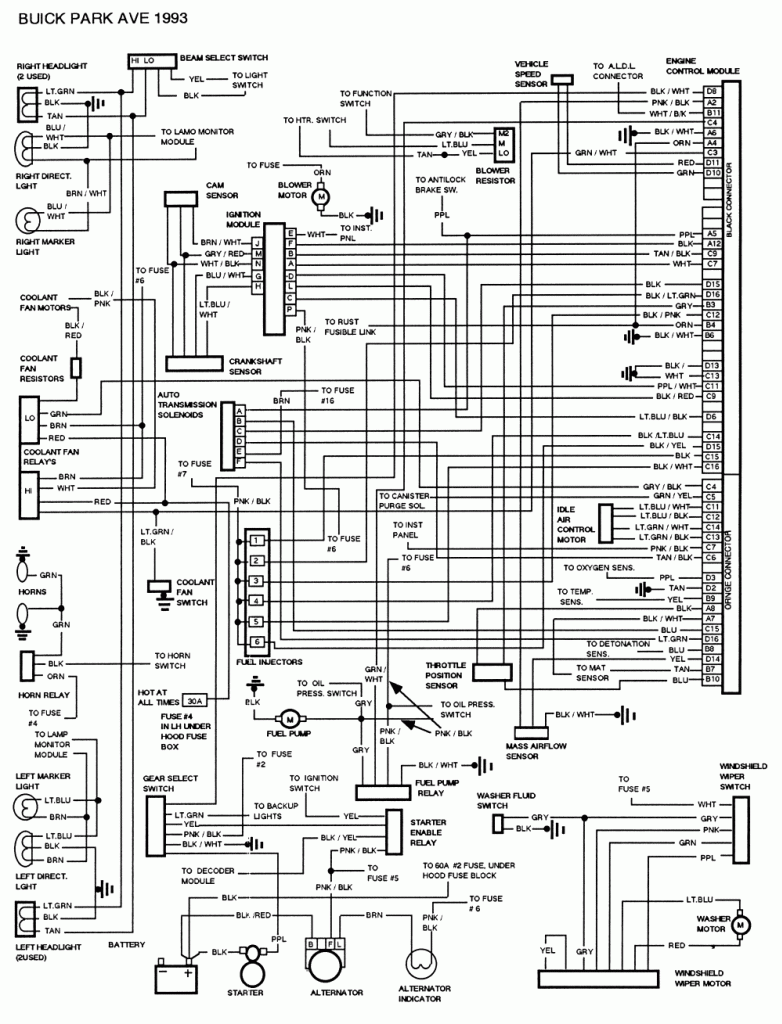

Horn Wiring in 93PA-93pa.gif
jwfirebird is offline   Reply With Quote
Old 11-16-2012, 02:15 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Aug 2012
Posts: 36
Thanks: 0
Thanked 1 Time in 1 Post
93PA is on a distinguished road
Default

WOW! Thanx. Since I'm an idiot I still have to ask....I am only looking for one wire at steering coluom? Black?
93PA is offline   Reply With Quote
Old 11-16-2012, 03:06 PM   #4
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Yes, the black wire between the horn switch and the horn relay.
2kg4u is offline   Reply With Quote
Old 11-16-2012, 03:08 PM   #5
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Pull the steering column shroud off and you should be able to determine which wires run to the horn button.
2kg4u is offline   Reply With Quote
