Default GM 3800 TIMING COVER PROPLEMS DID GM MESS UP

in closed first is a few pictures of our beloved 3800 timing covers
seams left side inside of timing cover has a leak and corrosion
problems

first picture from 2006 model
Attached Thumbnails
GM 3800 TIMING COVER PROPLEMS DID GM MESS UP-tc-5.jpg
REGAL GUY is offline   Reply With Quote
Old 10-14-2014, 10:13 PM   #2
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

now is picture from
2008 model
Attached Thumbnails
GM 3800 TIMING COVER PROPLEMS DID GM MESS UP-tc-9.jpg
REGAL GUY is offline   Reply With Quote
Old 10-14-2014, 10:18 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

we have seen at least 5 of these all have corrosion
in same area
with different kinds of antifreeze
looks like here is why

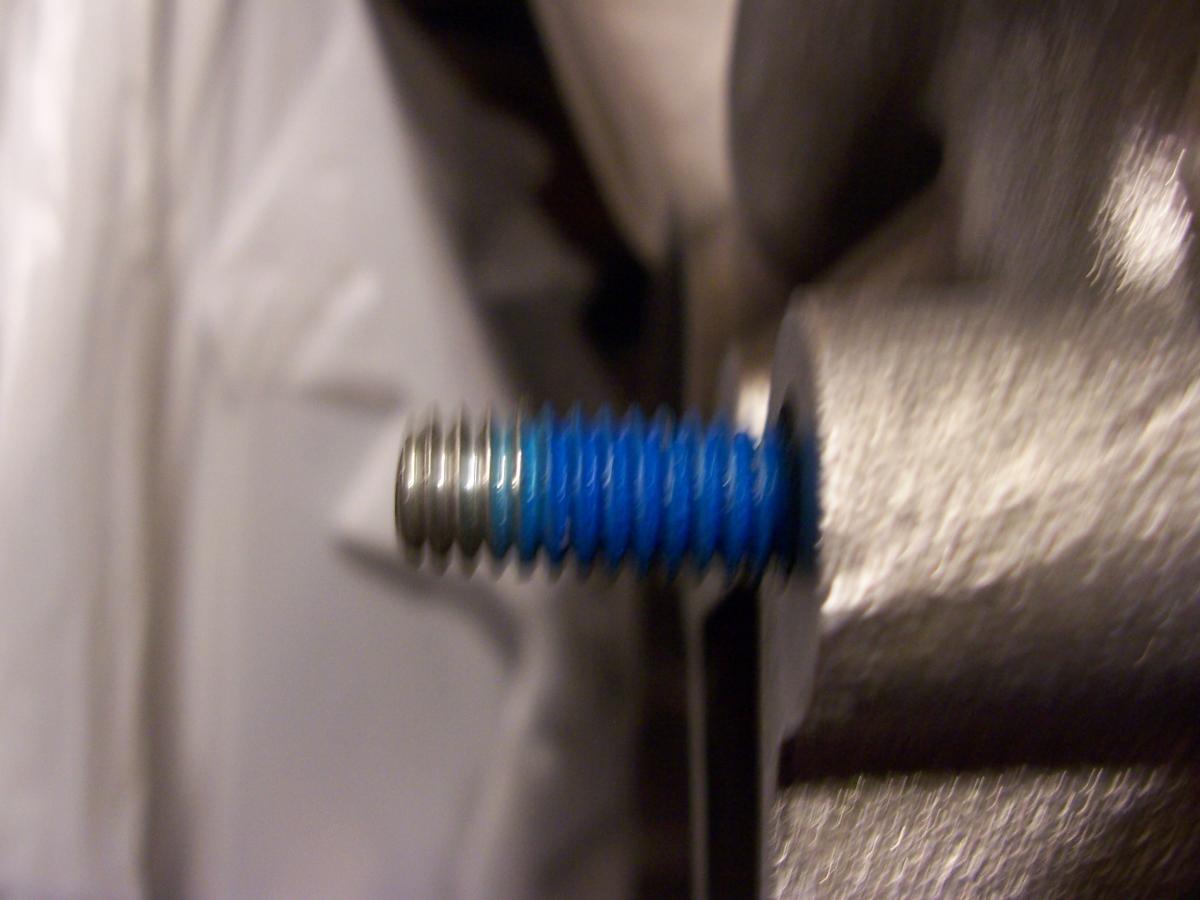

3 picture is right side of TC with the 3 inch bolt and water pump in place
note thread length
Attached Thumbnails
GM 3800 TIMING COVER PROPLEMS DID GM MESS UP-tc-8.jpg
REGAL GUY is offline   Reply With Quote
Old 10-14-2014, 10:21 PM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

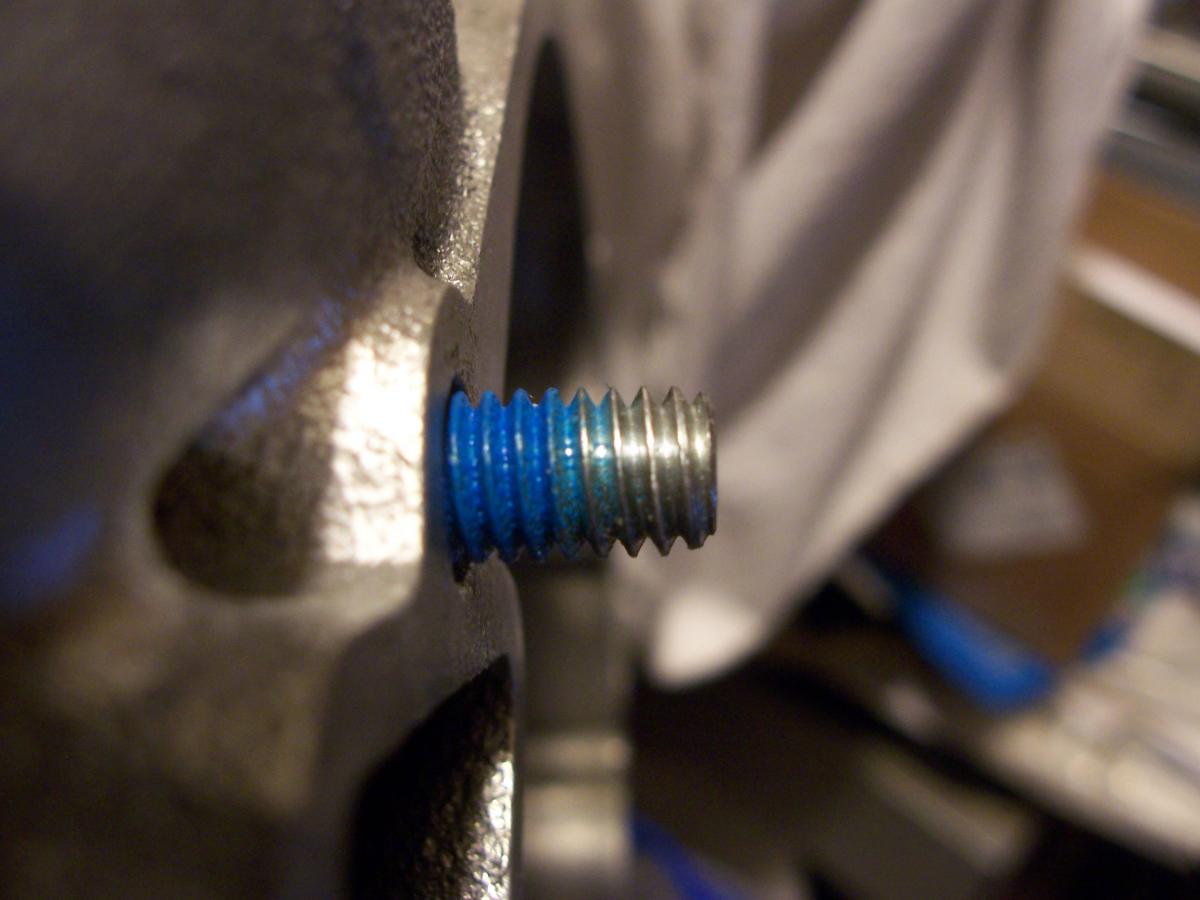

now is left side of TC were the corrosion is and signs of leakage
note thread length
Attached Thumbnails
GM 3800 TIMING COVER PROPLEMS DID GM MESS UP-tc-6.jpg

Last edited by REGAL GUY; 10-14-2014 at 10:22 PM. Reason: picture
REGAL GUY is offline   Reply With Quote
Old 10-14-2014, 10:27 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

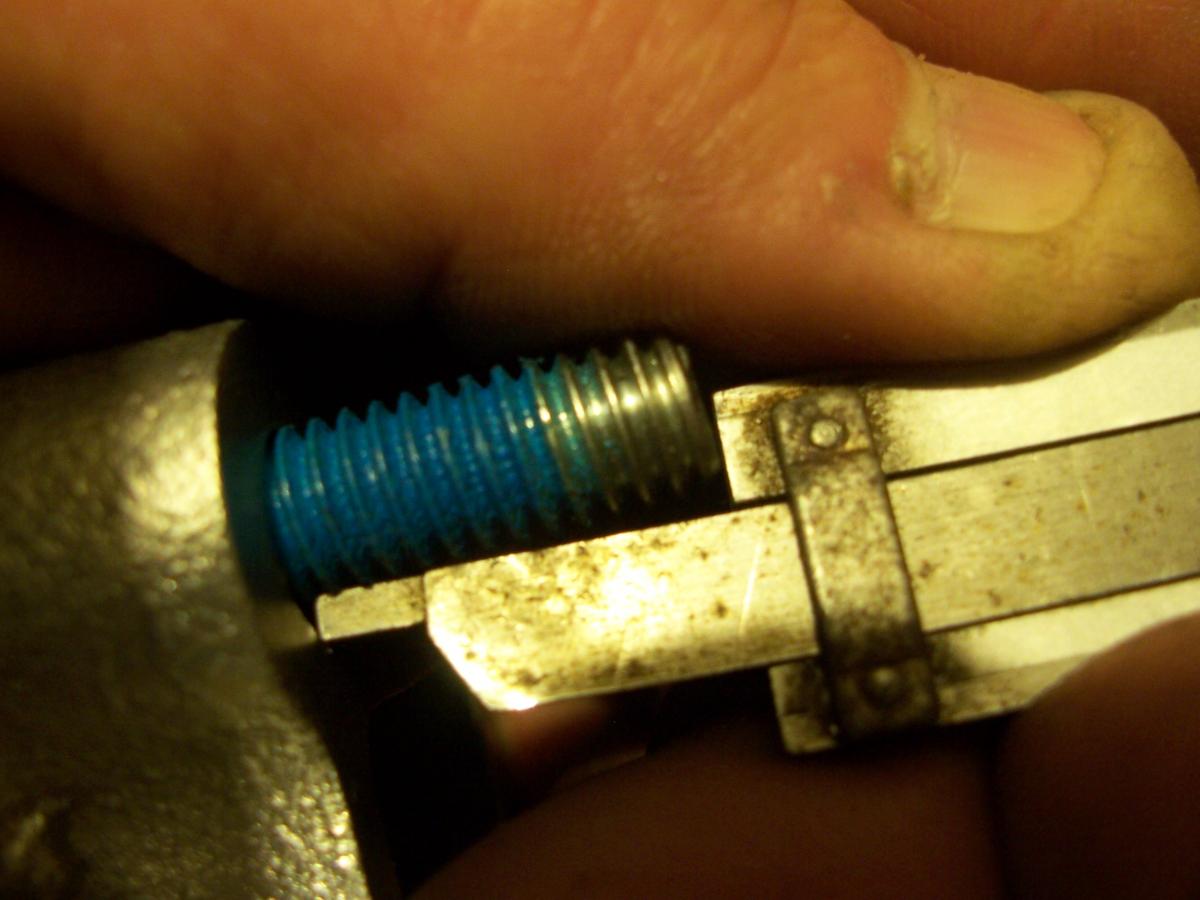

now more pictures of how there is not enough thread length
left side has all most 3/4 inch of thread length for clamping force
Attached Thumbnails
GM 3800 TIMING COVER PROPLEMS DID GM MESS UP-tc-4.jpg   GM 3800 TIMING COVER PROPLEMS DID GM MESS UP-tc-3.jpg
REGAL GUY is offline   Reply With Quote
Old 10-14-2014, 10:32 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

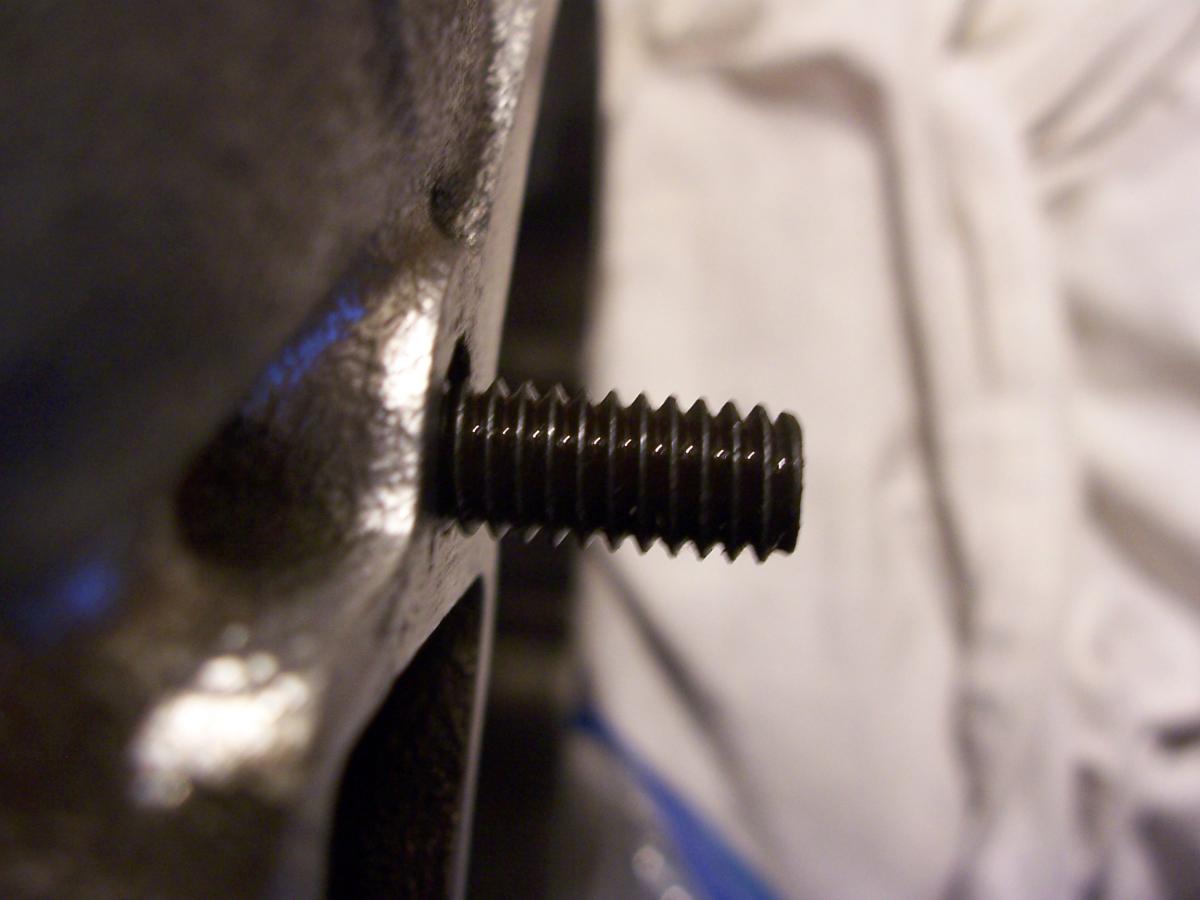

these are with factory 3 inch 5/16 water pump bolts
seams like answer is a 5/16 3 1/4 flange bolt not easy to come by
lacks just little of being same thread length as right side
picture inclosed
Attached Thumbnails
GM 3800 TIMING COVER PROPLEMS DID GM MESS UP-tc-7.jpg
REGAL GUY is offline   Reply With Quote
Old 10-14-2014, 10:42 PM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

I just wondering did anyone ever notice this
we are going to use new TC with a ZZ performance
thicker TC gasket they sell intended for clearance with a
double row timing chain they sell
all so any one wants factory kind of water pump bolts
DORMAN 902-803 fits picture unclose
they fit all of our late model cars
but they don't say so
about $13.00 on eBay
just wondering any ones thoughts on this
we found the 5/16 3 1/4 flange bolts after much
searching but now wondering if 5/16 3 1/4 studs might be better
for more clamp force
Attached Thumbnails
GM 3800 TIMING COVER PROPLEMS DID GM MESS UP-dorman-902-803.jpg
REGAL GUY is offline   Reply With Quote
