Old 12-16-2014, 06:10 PM   #81
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i used simple green to get the majority of it and brake cleaner, it gets rid of any residue that might screw up the silicone adhesion.

i think i got the plugs at home depot, lowes should have had them, just not the ones with internal hex. they have the square head ones that you have to grind down a little.
jwfirebird is offline   Reply With Quote
Old 12-17-2014, 10:24 PM   #82
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

I put the lower intake manifold on this evening. It turned into a bit of a job. I was trying to install the intake with the coolant elbow but I could not do it; maybe with some help but not by myself. The gasket would not stay in place on the back/right head; it seemed to have a bit of a spring in it but I did not want to try any adjustments due to the cost of these gaskets. I finally installed the intake without the coolant elbow so now I will have to take the belt tensioner off in order to get the coolant elbow in place. I hope I did not damage the lower intake gaskets. I should have asked for more information on assembly.
Kimberly is offline   Reply With Quote
Old 12-17-2014, 10:32 PM   #83
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Thanked 99 Times in 84 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Normally that'* how I do the job myself. I also leave the throttle body on as well. Nothing wrong with having the job take longer than expected.
chevy82 is offline   Reply With Quote
Old 12-18-2014, 08:25 AM   #84
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

there should be silicone holding the bottom just put a couple dots on the top to hold it down, then i put the elbow in and lower the manifold
jwfirebird is offline   Reply With Quote
Old 12-18-2014, 11:52 AM   #85
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

Thanks, hopefully it won't be coming off again if I did not mess up the gaskets. I will just have to take the tensioner lose now; part of the work is already done for that anyway since the alternator is off. I figured it could be done but when I tried, the gasket kept slipping on me. I figured more work to take the tensioner off but better safe than sorry later.

Anything I should know about the upper intake/plenum installation?
Kimberly is offline   Reply With Quote
Old 12-18-2014, 12:37 PM   #86
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

on the tensioner there was, another seal you have to worry about in the back if you disturb that. i think it was an oring on the ones before 2000, would put new oring and silicone on that
jwfirebird is offline   Reply With Quote
Old 12-18-2014, 08:45 PM   #87
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by Kimberly View Post
Thanks, hopefully it won't be coming off again if I did not mess up the gaskets. I will just have to take the tensioner lose now; part of the work is already done for that anyway since the alternator is off. I figured it could be done but when I tried, the gasket kept slipping on me. I figured more work to take the tensioner off but better safe than sorry later.

Anything I should know about the upper intake/plenum installation?

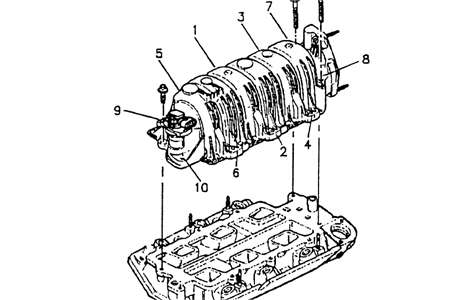

Torque in sequence and use a torque wrench...

89 inch lbs

Attached Thumbnails
Coolant Leak Intake-ironfist109_326.jpg
Mike is offline   Reply With Quote
Old 12-23-2014, 01:41 PM   #88
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

I am trying to install the PVC valve assembly onto the upper intake that came with the Dorman kit. I put the O-ring on the PVC valve and the spring and the large O-ring as per the instructions. I press down as hard as I can but I can not rotate the assembly into place. Is it that I am just not able to apply enough pressure to compress the O-rings. Help please.

While I wait for an answer I am going to work on replacing other things.
Kimberly is offline   Reply With Quote
Old 12-23-2014, 02:44 PM   #89
Senior Member
Posts like a Turbo

Join Date: Apr 2014
Posts: 419
Thanks: 0
Thanked 35 Times in 30 Posts
REGAL GUY has a spectacular aura aboutREGAL GUY has a spectacular aura about
Default

put some oil on the orings
REGAL GUY is offline   Reply With Quote
Old 12-24-2014, 12:58 AM   #90
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2011
Posts: 407
Thanked 18 Times in 14 Posts
Kimberly will become famous soon enoughKimberly will become famous soon enough
Default

I got the PCV valve assembly in place but it was very difficult; I guess I just did not have the strength to push hard enough. I took the dorman O-ring off the PCV valve and replaced it with one from the Fel-pro gasket set and it was still hard. I read a tip elsewhere about using a socket on a ratchet and that made it easier to push down and use the ratchet to carefully turn when you have it depressed enough. Still was a touch job for me to get something so simple in place. Strength is one area that men have an advantage when it comes to working on cars.
Kimberly is offline   Reply With Quote
