Default Convert PA Battery -Side To TOP Post??

Who'* bright idea is this set up with faking a top connection when it actually connect to the rear or side posts, and has no room if you did have a top post there.? I don't think you can use this set up with a dual post battery without turning the back/side post onto the side of battery.
Everyone one knows the internal straps supplying power are not as good as an ole solid top post.
I really have not had a good look at how to convert this onto a top post but, I *** ume this is GM'* idea of a good terminal set up.

Since I may have to get a new battery, I normally use dual posts, but this 97PA will not work without some mods...ideas appreciated. THX
Attached Thumbnails
Convert PA Battery -Side To TOP Post??-buickbattsideterminals.jpg
Soft Ride is online now   Reply With Quote
Old 03-15-2012, 11:38 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

You can change the cables and do what ever you wish.
Danthurs is offline   Reply With Quote
Old 03-16-2012, 11:55 AM   #3
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Or you could change just the cable ends and put in a top post battery..easy as pie
sseidriver97 is offline   Reply With Quote
Old 03-16-2012, 11:39 PM   #4
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Or...
You could try Marine Terminals.... (PA Stock ends have hole ring terminal)
Will try this for the new Odyssey PC-1500 DT (34-7

880CCA @-19 and 1500 CA for 5 seconds!
I guess I will no longer have to worry about stereo or lights on etc.
"Buy the best" and you won't have to die like the " Rest" (LOL)
http://www.odysseybattery.com/batteries.html
Attached Thumbnails
Convert PA Battery -Side To TOP Post??-buickodysseybatterymarineterminals.jpg
Soft Ride is online now   Reply With Quote
Old 03-17-2012, 12:51 AM   #5
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

I've never liked side posts, because every time I torque the battery cables (even to their ridiculously low spec), I always feel them slip a little. If they could just use steel helicoils instead of soft lead, I wouldn't mind.
SignOfZeta is offline   Reply With Quote
Old 03-17-2012, 08:45 AM   #6
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

They do. It'* a steel threaded cap that is inserted during the mold process. I ripped one out by accident last year. Had to replace the hole battery.
Mike is offline   Reply With Quote
Old 03-17-2012, 01:39 PM   #7
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Ah, never noticed. Still, good to hear I won't easily strip it out.
SignOfZeta is offline   Reply With Quote
Old 03-17-2012, 02:00 PM   #8
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

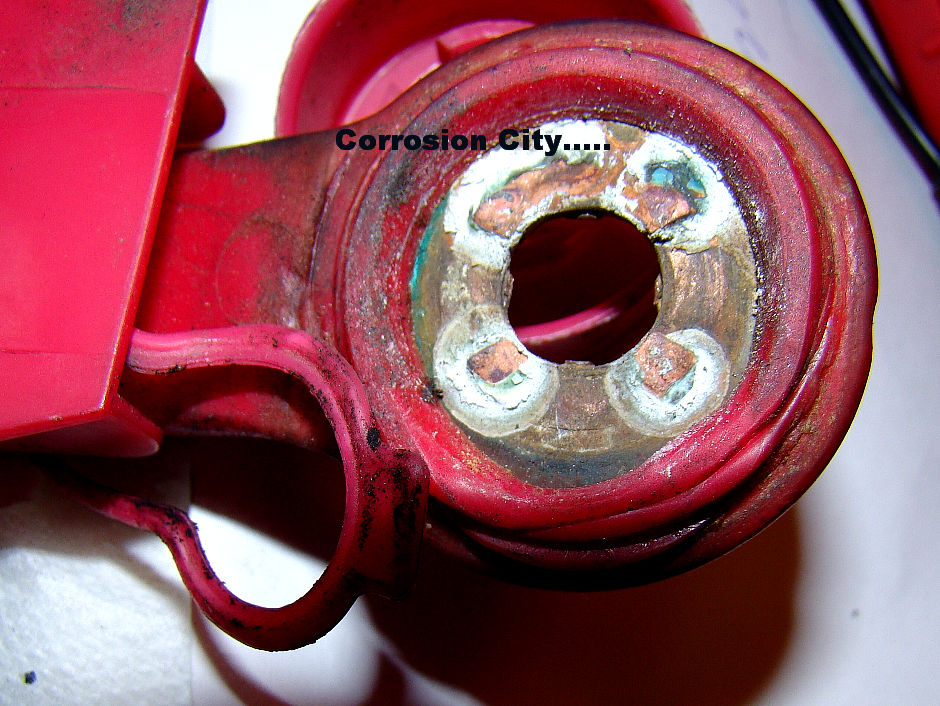

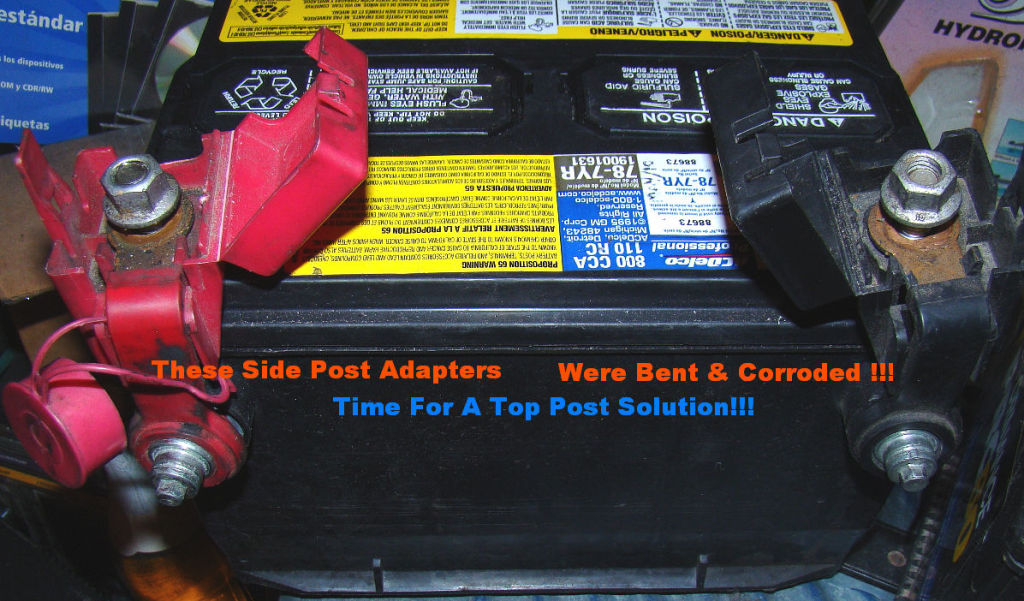

The negative was bent and loose at battery. The Positive side adapter inside looked ugly.

Time to move onto A top Post Solution!

Battery Problem Solved & Installed!

Let there be Mega Power Connected Right!
Attached Thumbnails

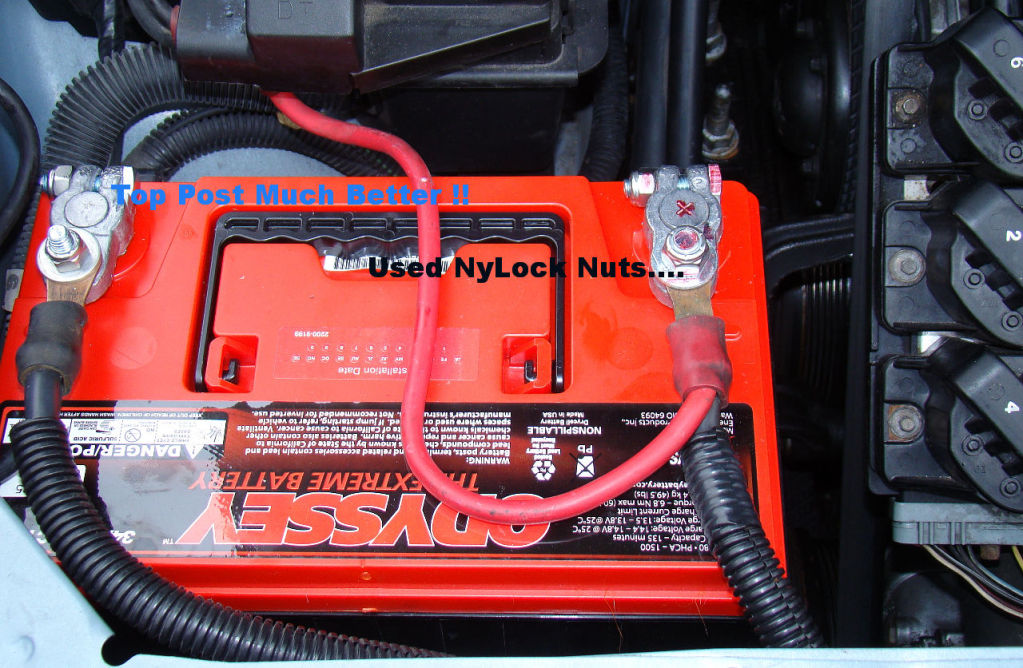

Convert PA Battery -Side To TOP Post??-buickbattsidecorrosion.jpg   Convert PA Battery -Side To TOP Post??-buicksidepostadapters.jpg   Convert PA Battery -Side To TOP Post??-buickodysseyinstalledtopposts.jpg
Soft Ride is online now   Reply With Quote
Old 03-17-2012, 03:42 PM   #9
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

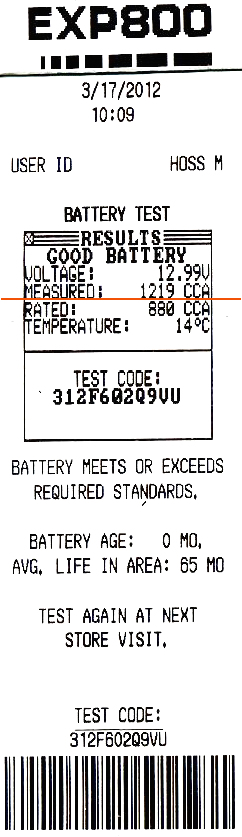

Using a $4000 Midtronics EXP 800 Battery Load Tester:
http://www.midtronics.com/shop/produ...grated-printer
Even Though the Odyssey is Rated @ 880 CCA (1500 CA 5 Seconds) The EXP 800'* print out shows an amazing 1219 CCA !
Care to Jump Start a Boeing?

The guy doing the test was "shocked" as he has never seen any battery test over 1000CCA!
Attached Thumbnails
Convert PA Battery -Side To TOP Post??-buicknewodysseyloadtest.jpg
Soft Ride is online now   Reply With Quote
Old 03-18-2012, 10:46 PM   #10
Junior Member

Join Date: Jan 2012
Location: Honolulu, Hi.
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
paradisesky is on a distinguished road
Default

I used this type of post converter:
http://www.grainger.com/Grainger/QUI...sion-Kit-5LMR2
they are available locally don't need to buy 100didn't have to change or cut the cale
