Default Buick Regal Mods - BillBoost Style

Brought over to keep everything on one forum. Here'* the list of the goodies.

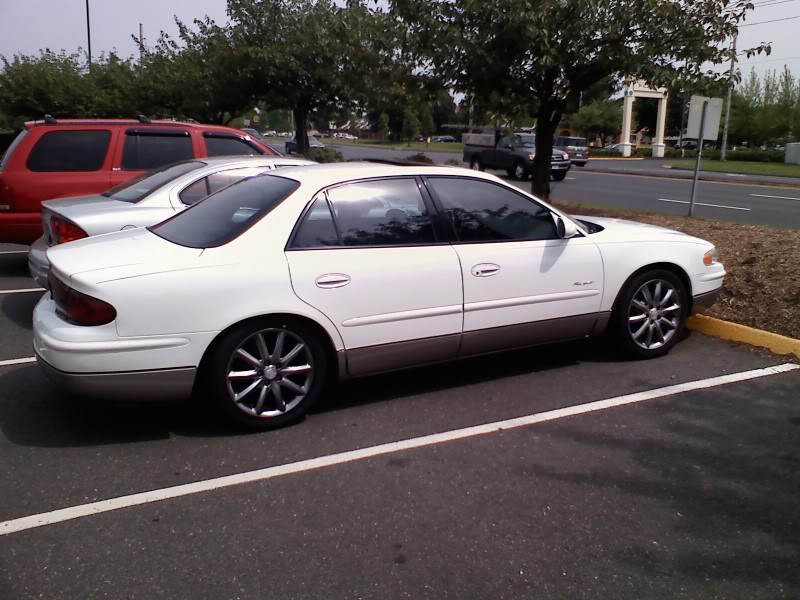

As of 05/22/2010 it looks like this.
Name:  regal2.jpg
Views: 243
Size:  91.8 KB
I'm planning on getting a 2000+ Regal with sunroof and fold down back seat. While I look for the car, I've started picking up parts that I want to be on the car. These mods will go on the car that will become the DD for two or three years. I'm pulling parts together as I find them and appreciate opinions on whether things are good/bad/no difference from stock etc. Parts I already have are bolded.

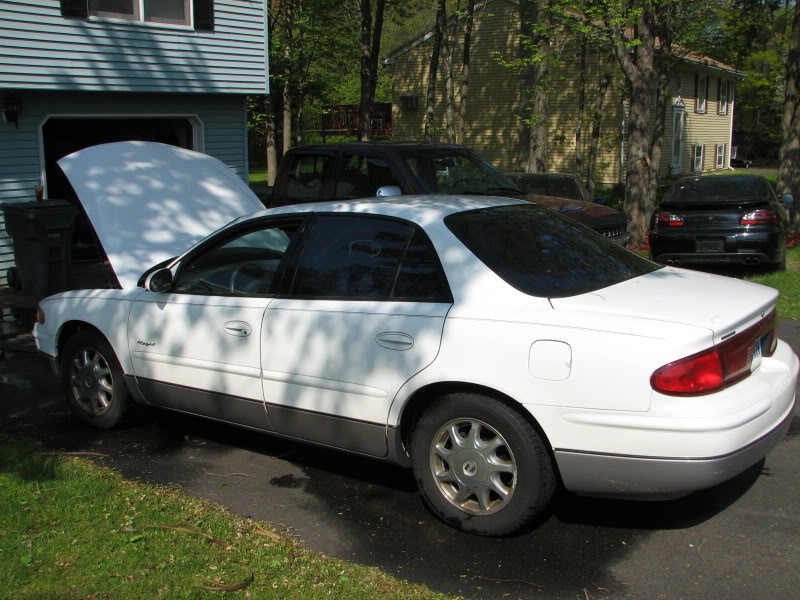

Car: Purchased 4/30/2010
Name:  IMG_6010.jpg
Views: 90
Size:  124.7 KB

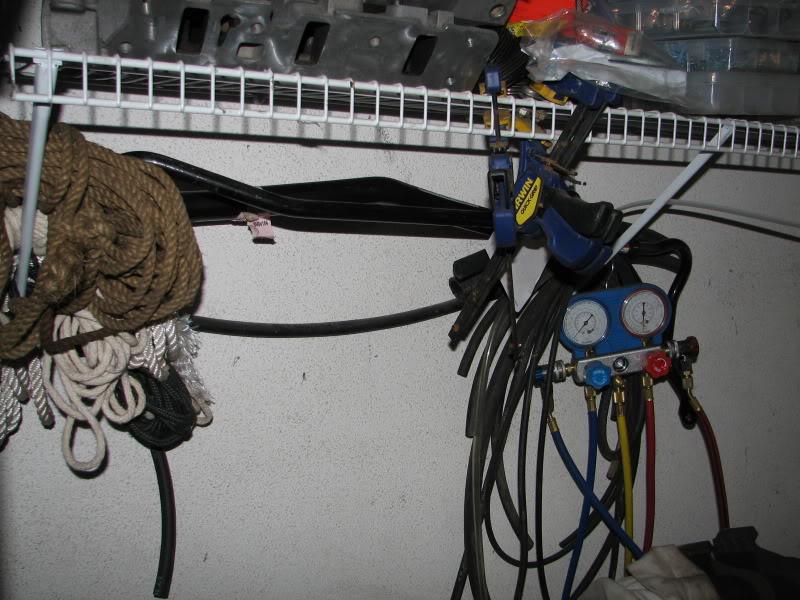

Sways:
GMPP front and rear bars. They are in the pic somewhere.
Name:  IMG_5056.jpg
Views: 96
Size:  120.1 KB

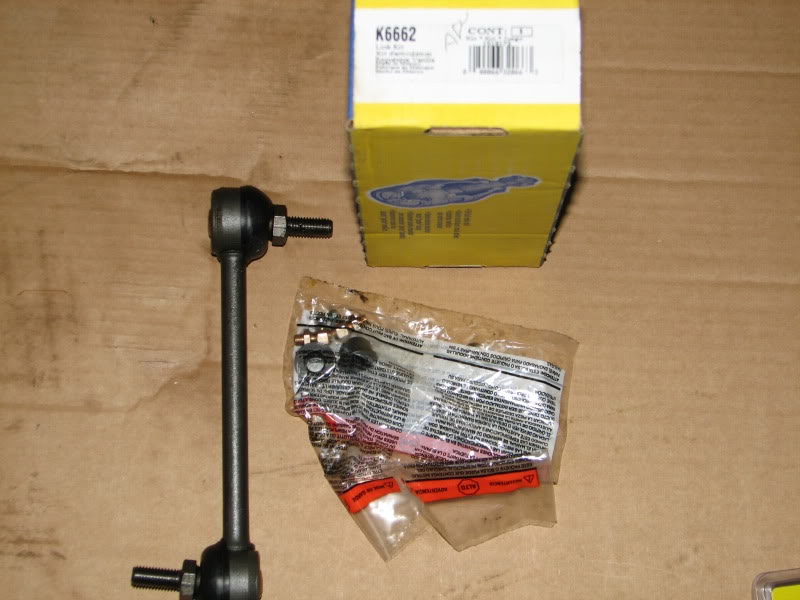

EndlinksFront: Energy Suspension urethane 9.8122G (G denotes black, R is for red)
Rear: Moog K662 (Same ones Rob used)

Name:  IMG_5053.jpg
Views: 85
Size:  77.8 KB

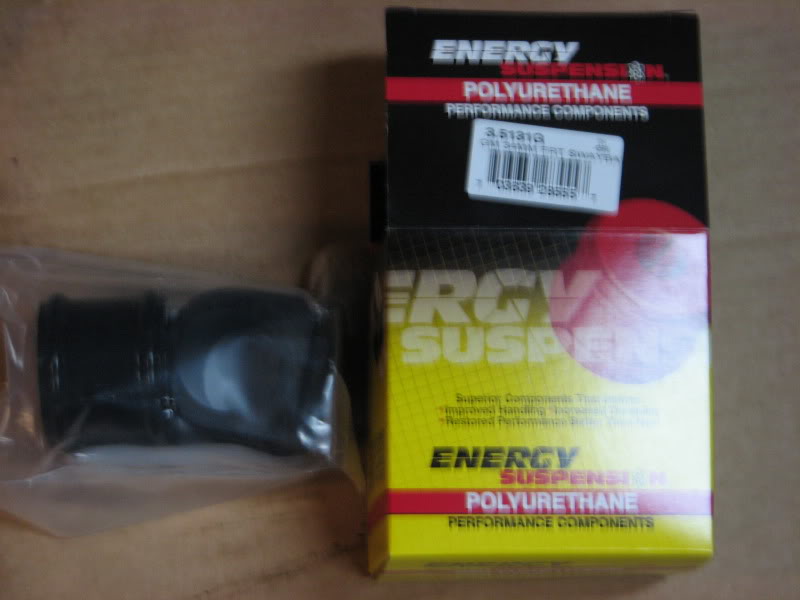

Center bushings The W body guys swear the center sway bushings make more of a difference than the end links. I've done both on the Bonnie, and the centers did make a much bigger difference.
Front: Energy Suspension urethane 3.5131G (I considered the greaseable, ES only offers 33mm and 35mm)

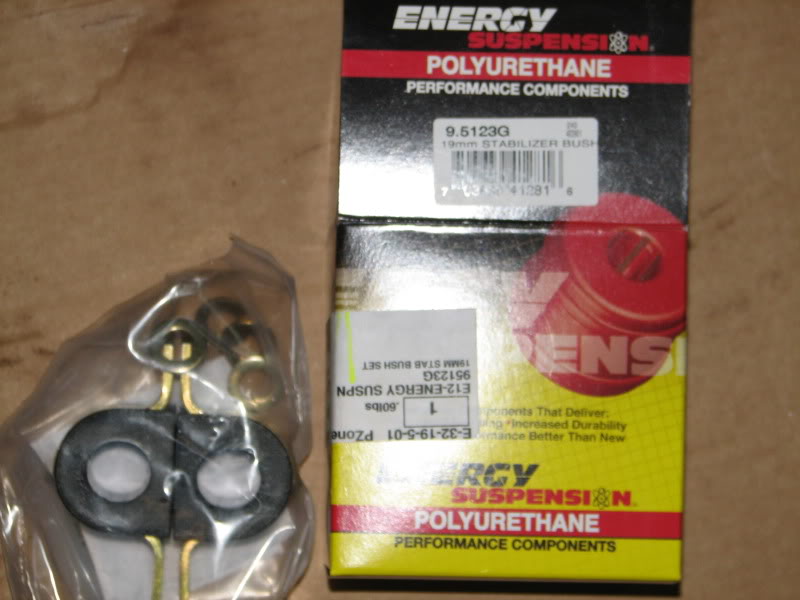

Rear: Energy Suspension urethane 9.5123G
Name:  IMG_5049.jpg
Views: 88
Size:  52.0 KB
Name:  IMG_5050.jpg
Views: 81
Size:  68.6 KB

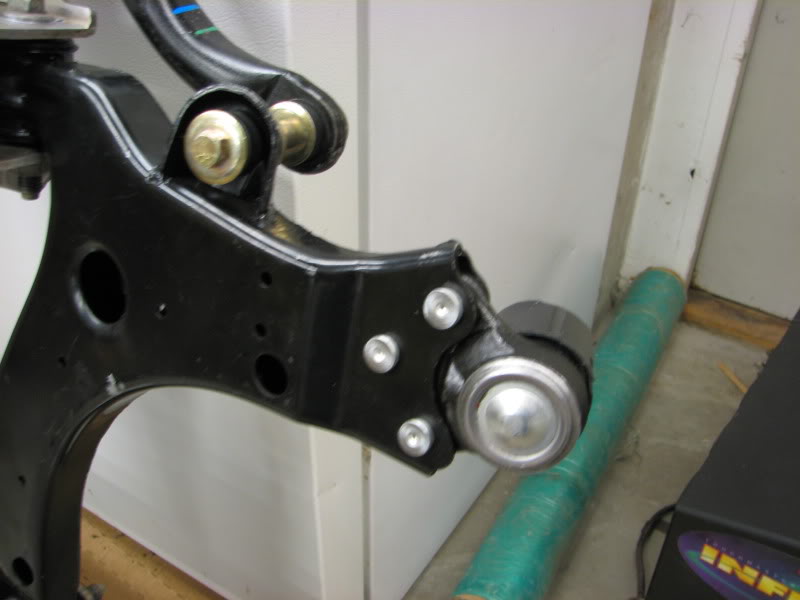

Dorman Control Arms: These are GTP control arms. The subframe, sways and everything being new bushing wise facilitated me ordering them for $72 each from Rockauto.
Name:  IMG_5133.jpg
Views: 81
Size:  51.7 KB

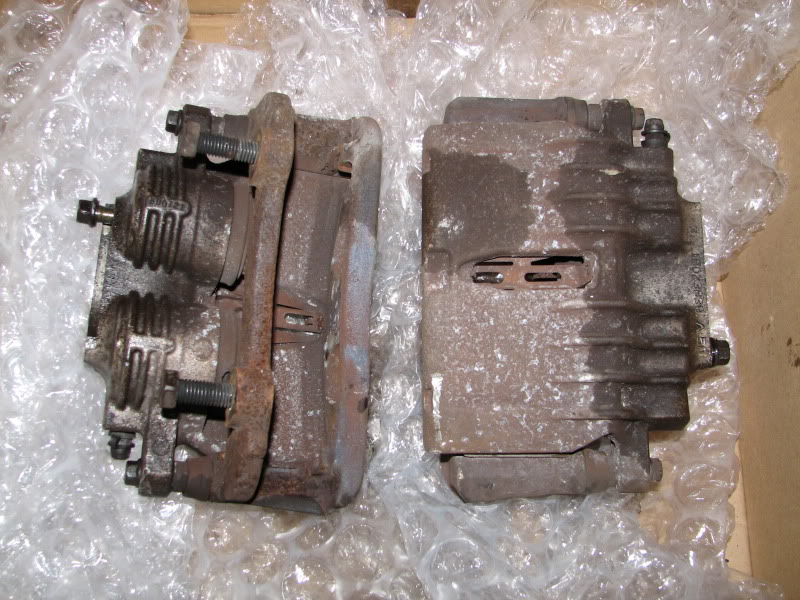

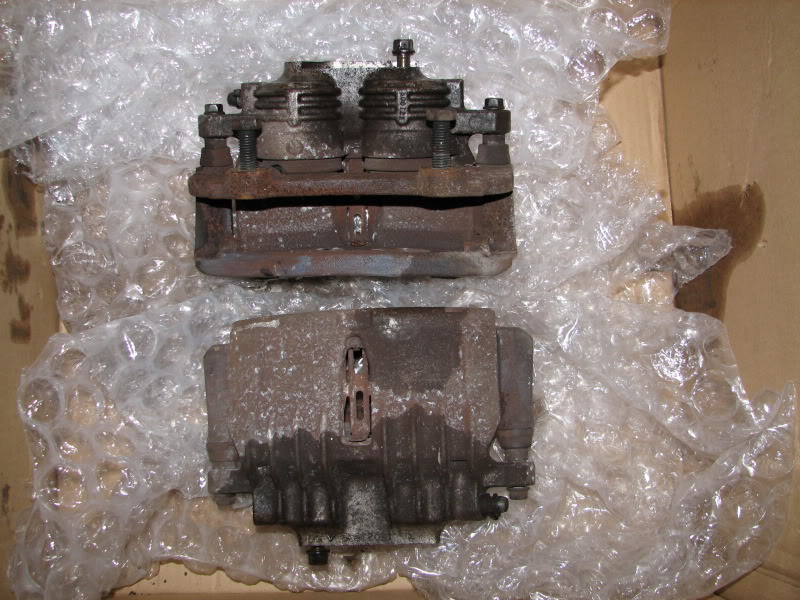

F body brakes: One question was raised by a buddy. Will the spare fit if a tire is shot? No, but you shouldn't run a spare on the front of a FWD, therefore you swap a rear to the front and there is no fitment issues, or use a Bonneville spare.
Name:  IMG_5046.jpg
Views: 94
Size:  128.1 KB
Name:  IMG_5047.jpg
Views: 81
Size:  133.9 KB

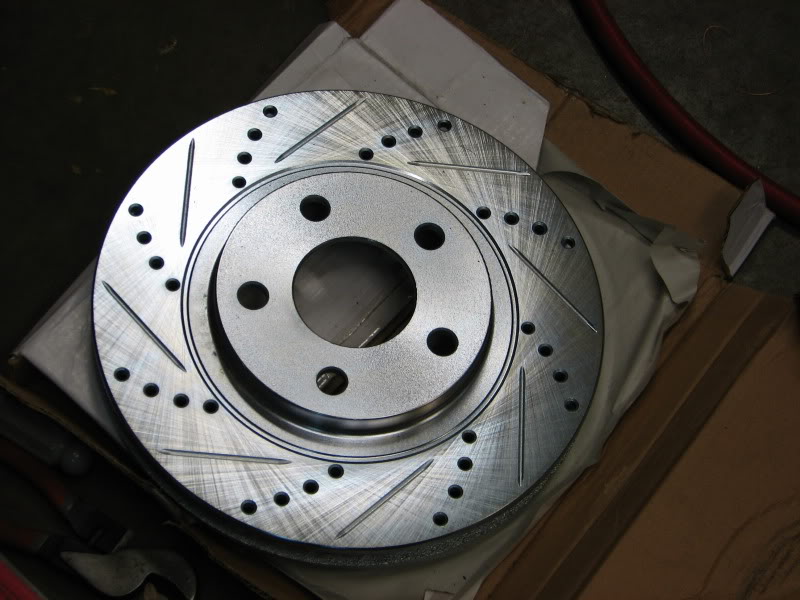

Drilled Slotted Rotors: R1 Concepts, a set of scorched (no break in or bedding) pads were picked up with the rotors. Update 11/9/10 the rotors have been on for a good 6 months and show no signs of rust. I am pleased with them in all respects so far.
Name:  IMG_6077.jpg
Views: 82
Size:  86.7 KB

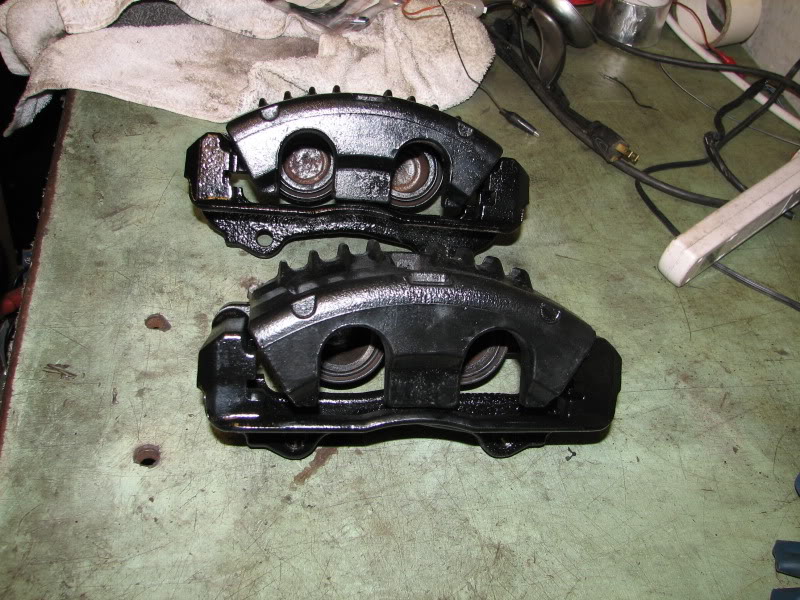

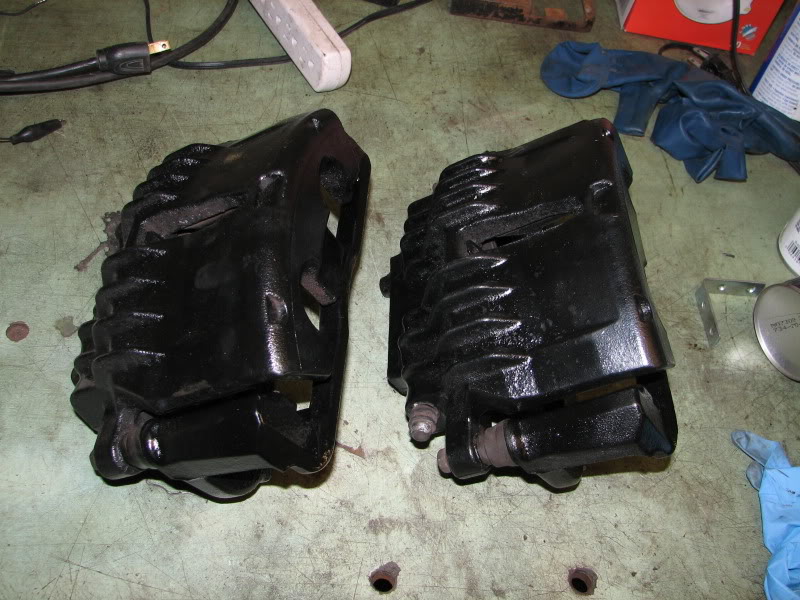

Painted to clean and hide them from sight when they are on the car.
Name:  IMG_5082.jpg
Views: 90
Size:  116.1 KB
Name:  IMG_5083.jpg
Views: 76
Size:  141.5 KB

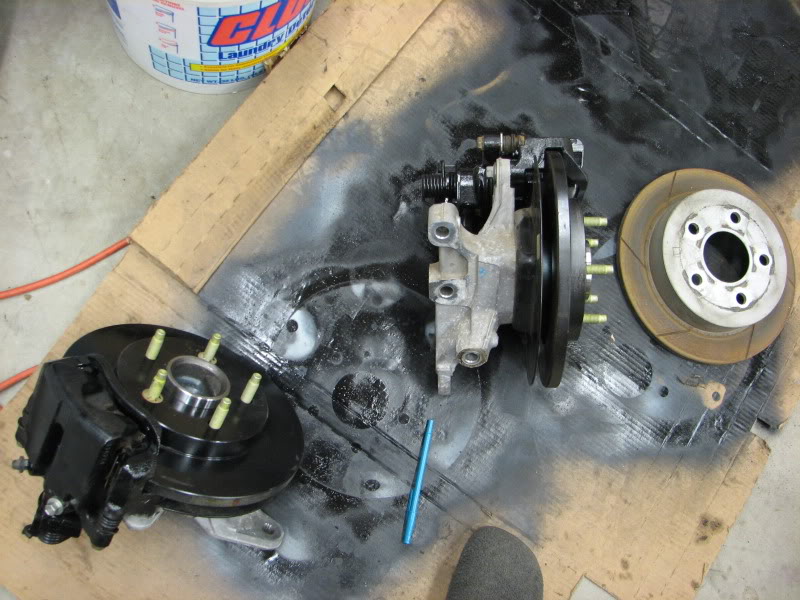

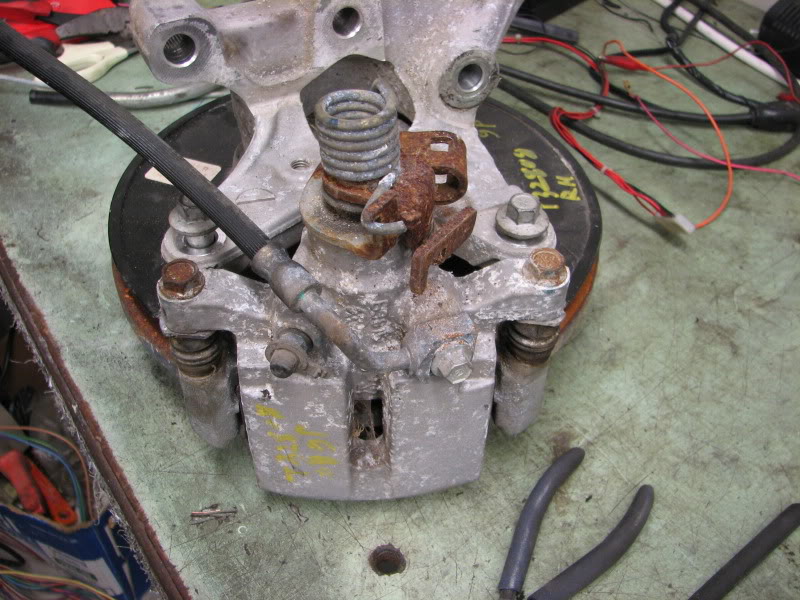

Rear brakes: Decided to go with 05-08 GP rear brakes. The E brake is built into the caliper, whereas the Regal E Brake is an inner drum on the disc setup. They are a direct bolt up.
Name:  IMG_5319.jpg
Views: 76
Size:  121.4 KB
Name:  IMG_5436.jpg
Views: 83
Size:  108.6 KB

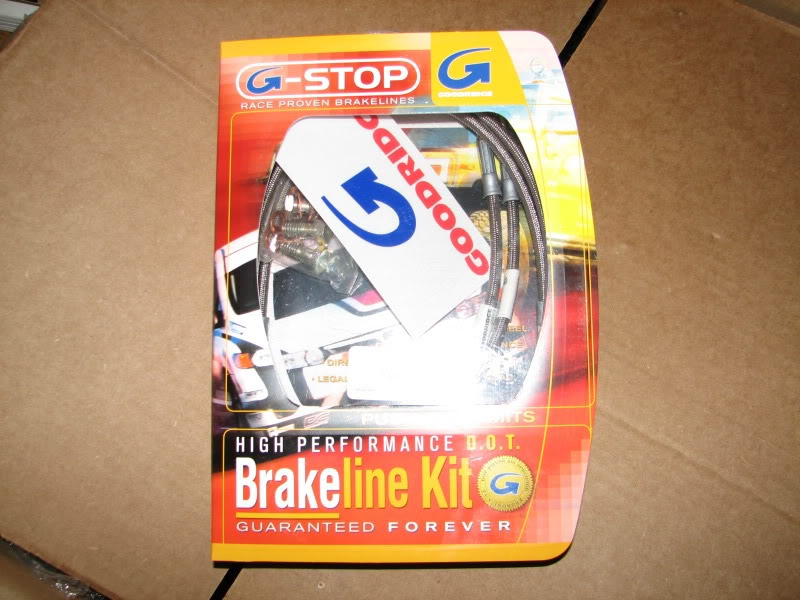

Stainless Goodridge brake lines: I've done the research on spongy brakes after upgrading. Name:  IMG_5048.jpg
Views: 88
Size:  99.6 KB
GXP brake pedal:Another item to help fight a lower pedal due to the caliper pistons using more fluid. It has a different rate and therefore the pedal grabs at the same point as before. Many say the lower pedal is not material, I'm going all the way though. Chosen not to do this mod after feeling the pedal....there is no need in my mind.

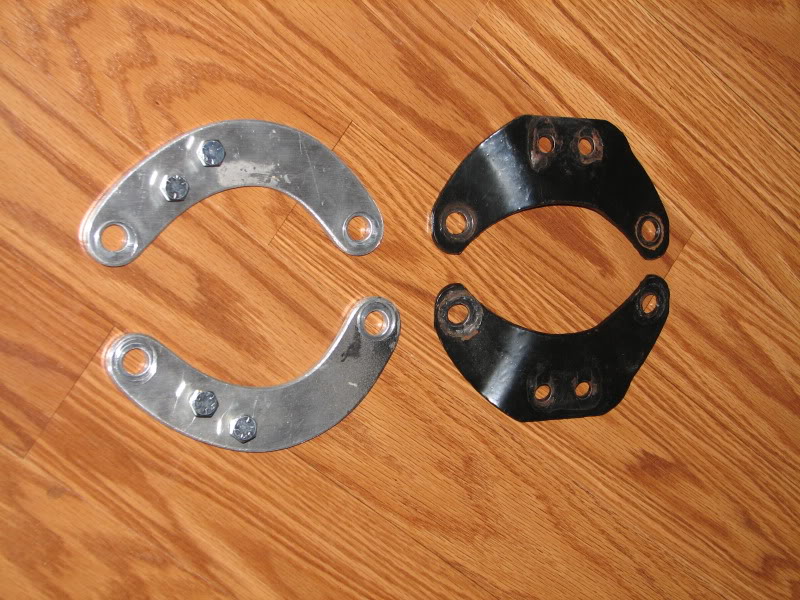

Strut tower bars: Front and rear both. Happened to find a set with the Don Rome brackets.
Name:  IMG_5062.jpg
Views: 86
Size:  131.2 KB
Trailing Arms, Lateral Arms, Toe Links: http://www.westshorefabricators.com/WBody/index.htm
Compared to BMR the quality seems to be equal with $200 less price tag. These have arrived, I'm beyond impressed.

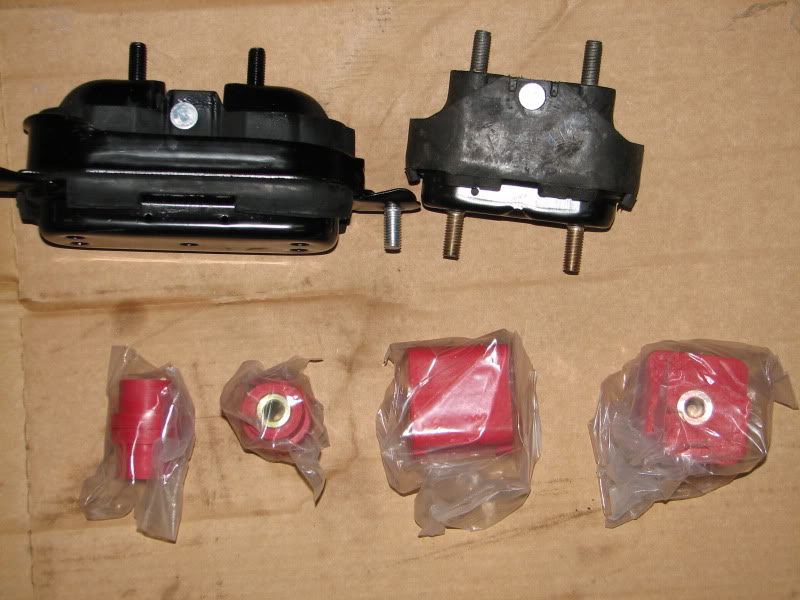

Full poly engine mounts: Thanks to WBS for a great black friday sale. This is the dogbone, front mounts, both trans and engine mounts. IIRC I ordered them in black to keep them from standing out. One item to note is that the engine mount being solid means it'* simply an unfilled hydrauilic. I found it necessary to add 1/2" spacer to the mount with the aluminum subframe to maintain proper height.
Name:  IMG_5055.jpg
Views: 79
Size:  84.1 KB

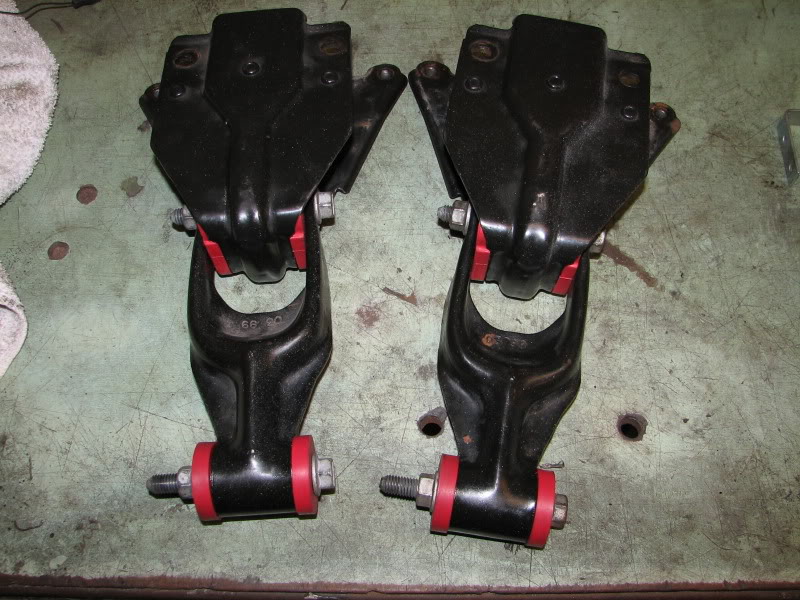

Installed in mounts, I retapped the bolt holes and lubed them to keep them nice until install time.
Name:  IMG_5081.jpg
Views: 87
Size:  126.2 KB

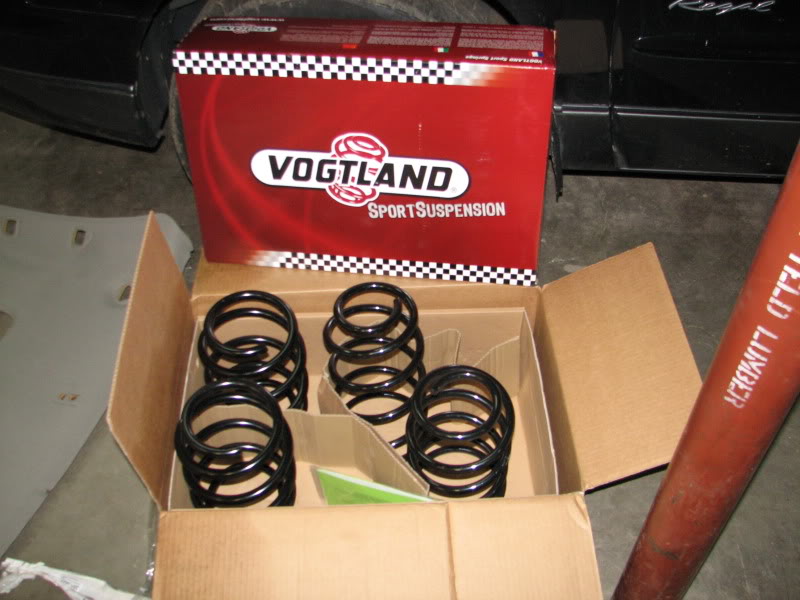

Struts and drop: I have a set of KYB GR2 rear struts and mounts. A 1" drop would help the handling. Picked up a set of matching struts for the front with mounts. I decided to go with Vogtland springs for a .9" drop.

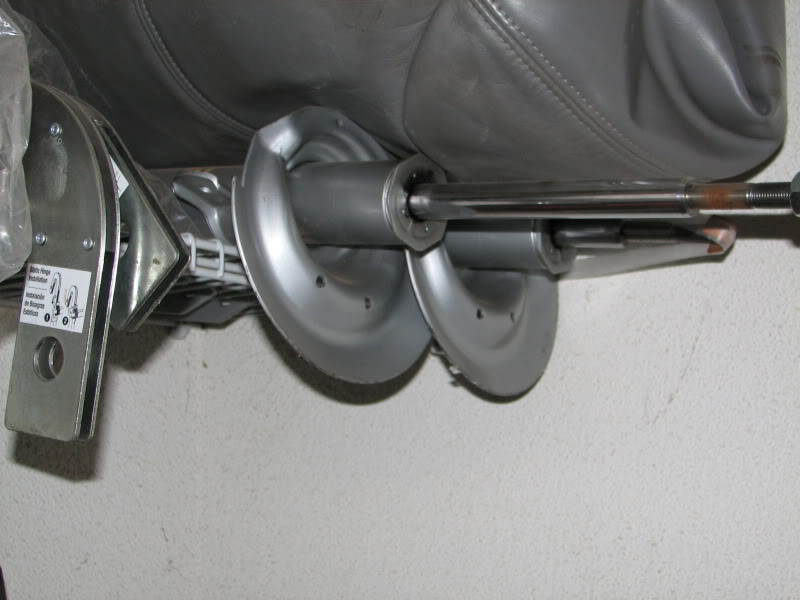

Name:  IMG_5066.jpg
Views: 86
Size:  58.9 KB

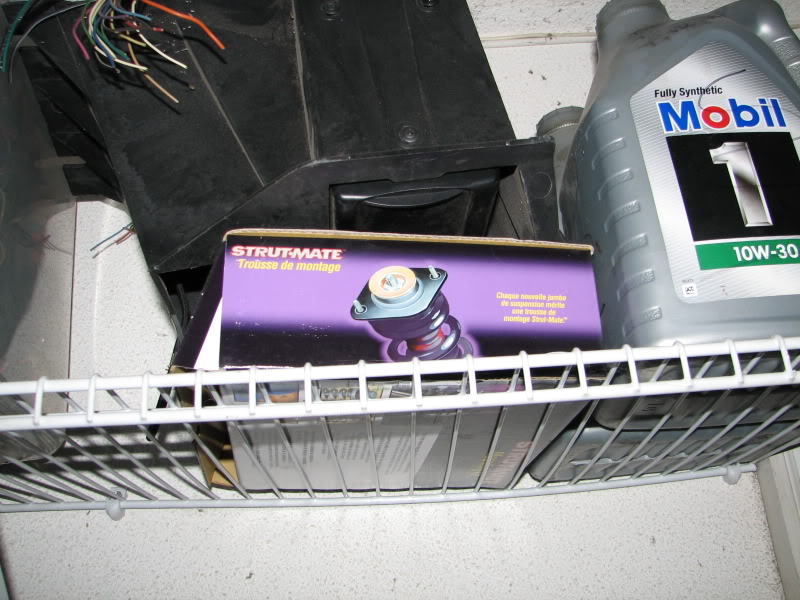

Name:  IMG_5069.jpg
Views: 77
Size:  107.4 KB
Name:  IMG_5795.jpg
Views: 86
Size:  84.6 KB

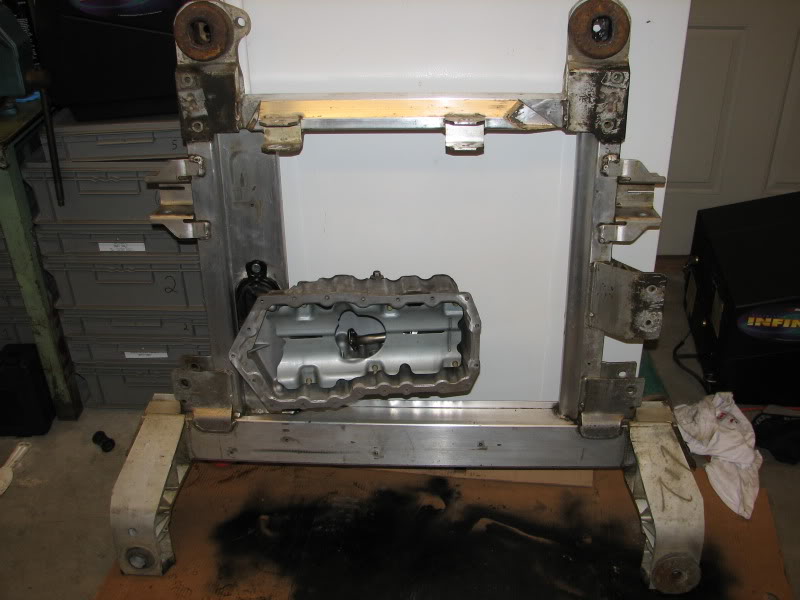

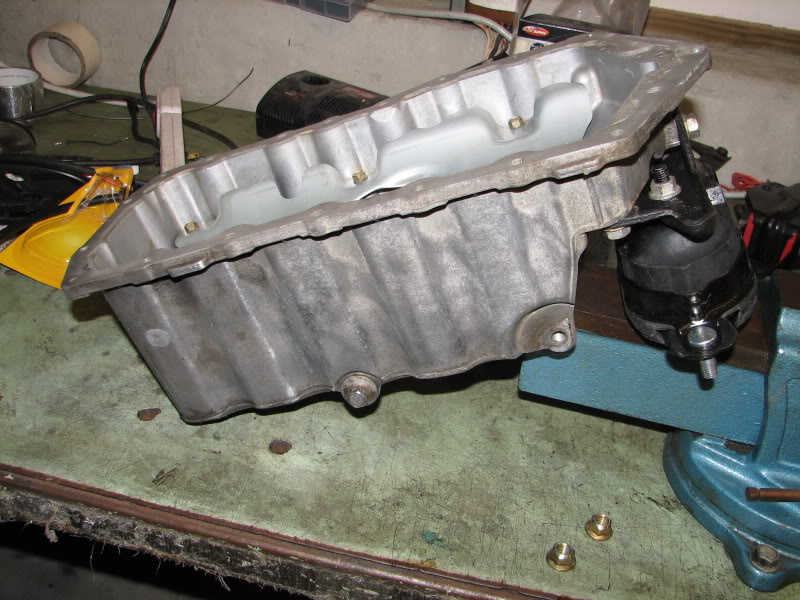

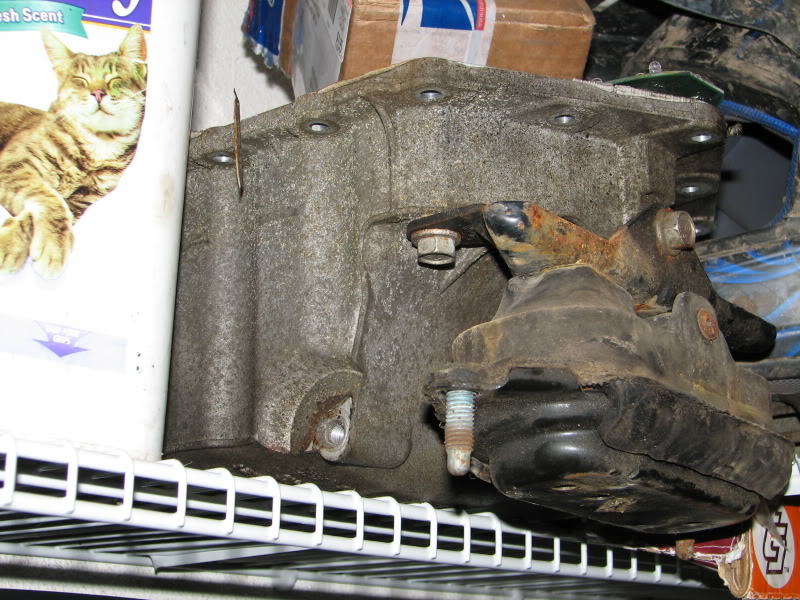

Aluminum W body oil pan w/mount as part of it: If you've never seen the big bracket on a W body that surrounds the oil pan and nearly makes changing the gasket a major pain. This pan has the mount attached to it and will be much easier to work with overall.
Name:  IMG_5065.jpg
Views: 81
Size:  139.8 KB

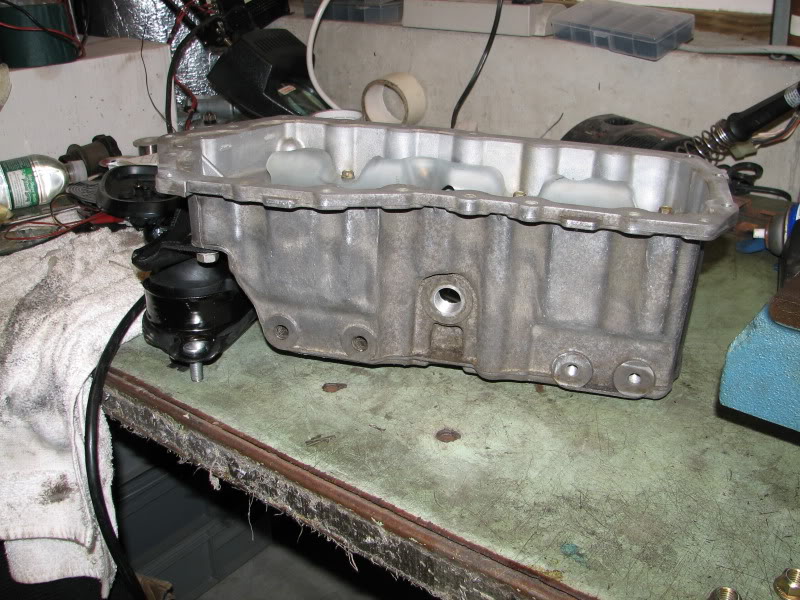

Cleaned and put new solid mount on it.
Name:  IMG_5096.jpg
Views: 96
Size:  130.0 KB
Name:  IMG_5098.jpg
Views: 108
Size:  123.0 KB
Name:  IMG_5100.jpg
Views: 81
Size:  71.0 KB

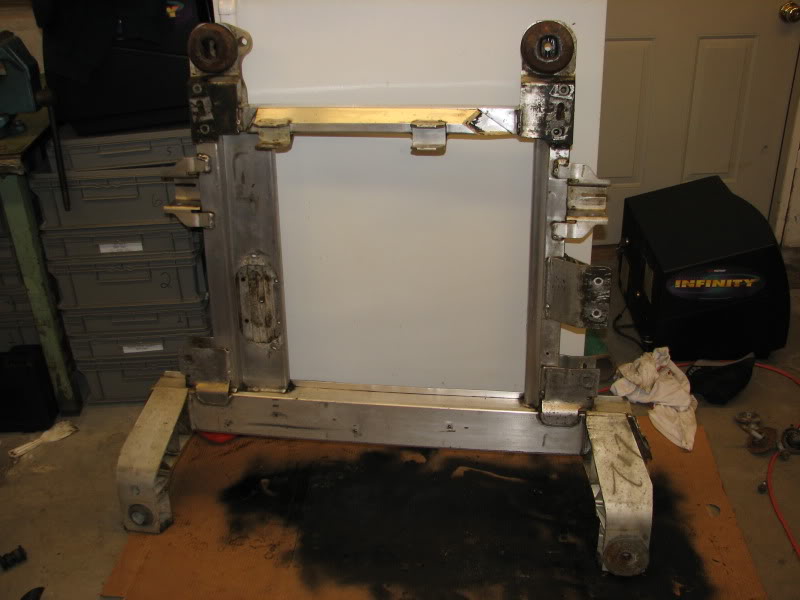

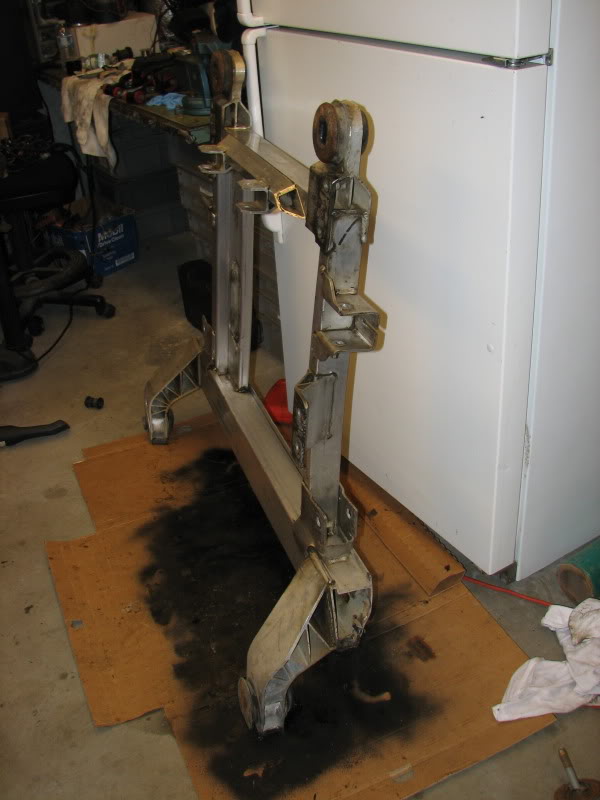

Aluminum cradle: Found in the Monte'* and some Impala'* the aluminum cradle weighs about 25-35 lbs lightger and is said to be stronger. As well, it will facilitate swapping the oil pan. Actual weight of this cradle is 44lbs.
Name:  IMG_5078.jpg
Views: 77
Size:  61.4 KB
Name:  IMG_5079.jpg
Views: 84
Size:  66.4 KB
Harland Sharp 1.9 Rockers: A set or 7 found their way into my heart. They are sitting here refreshed and ready to install. Being that I was aiming for an LS and this car is a GS with a little more power, Installed

Powerlog: I have one, it'll go on the car.

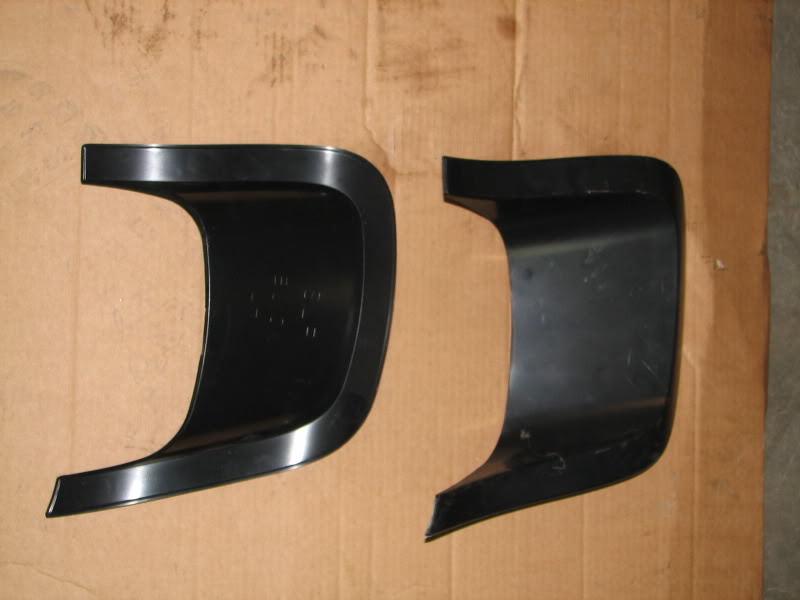

Dual exhaust with SLP fascias:Regals were born with one exhaust cutout in the bumper cover. A bumper cover that hangs low enough to make the oldest prude happy. When adding duals you must cut the cover. SLP made fascia'* to put on both sides and make it look good. Got a 3" downpipe and full catback, ready to be put on the car.
Name:  IMG_5067.jpg
Views: 98
Size:  46.2 KB
Full Body Undercoating: A friend gave me about 8 cans of 3M Rubberized Undercoating. Car was on the lift and is fully coated from bumper to bumper.
POR 15: In looking the car over, the only real spots that looked to be rusty (surface were the front and rear bumpers as well as the lower radiator support. These have been coated with POR 15 when the car was undercoated.

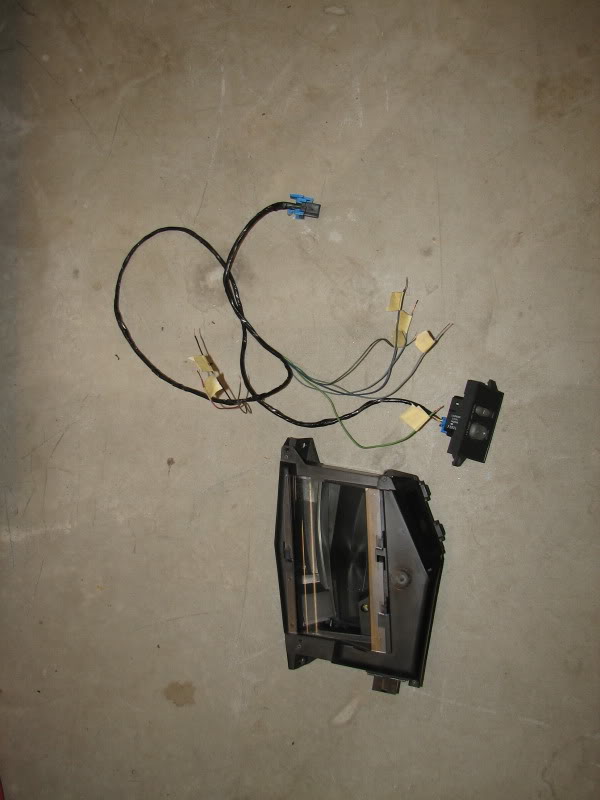

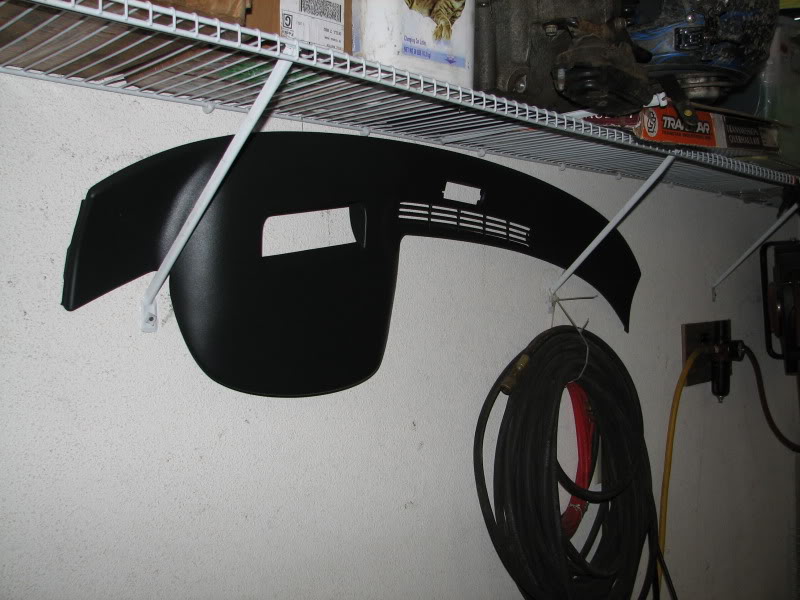

HUD: I consider it a necessary item. Wiring was prepped for install.
Name:  IMG_5058.jpg
Views: 81
Size:  57.3 KB
Name:  IMG_5061.jpg
Views: 89
Size:  91.0 KB

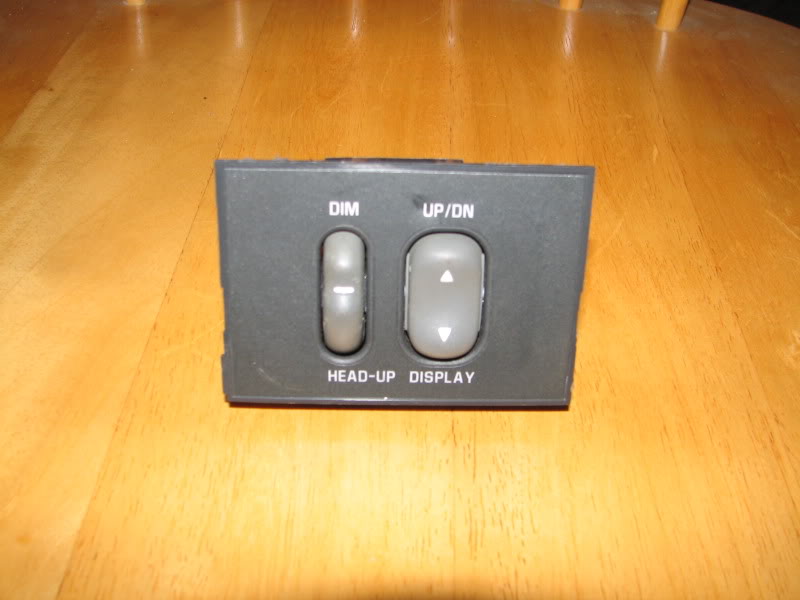

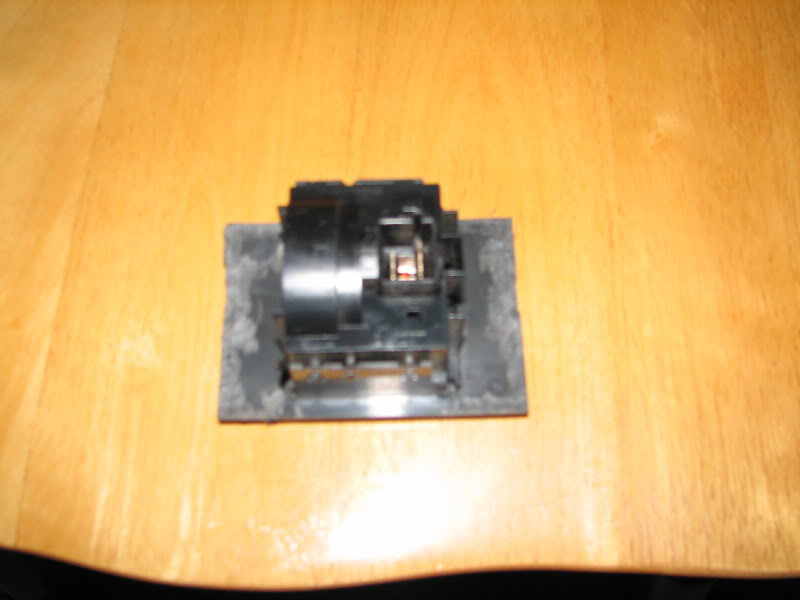

Switch prepped
Name:  IMG_5154.jpg
Views: 88
Size:  54.7 KB
Name:  IMG_5156.jpg
Views: 85
Size:  43.2 KB

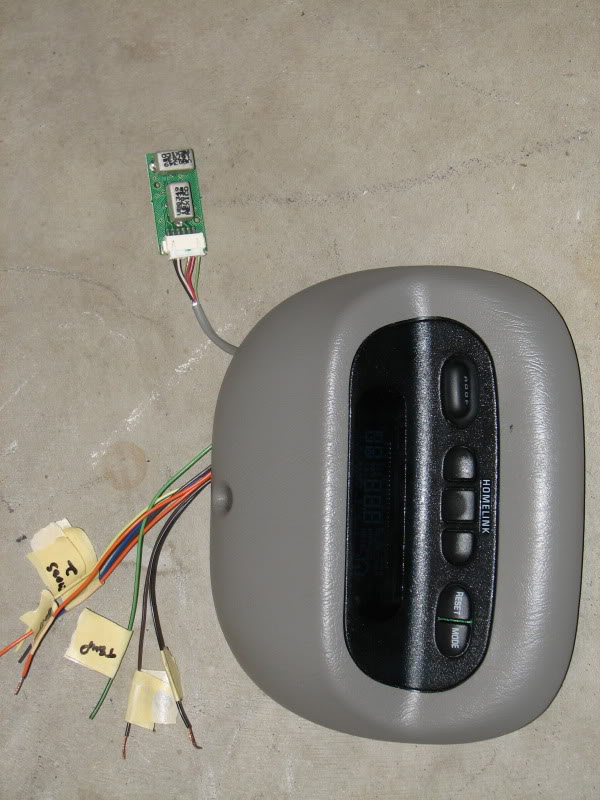

Monte Carlo DIC/compass/sunroof switch/homelink: Have chosen not to do this, the DIC info operates independently of the DIC in the cluster. Looking for other options.
Name:  IMG_5059.jpg
Views: 90
Size:  92.8 KB

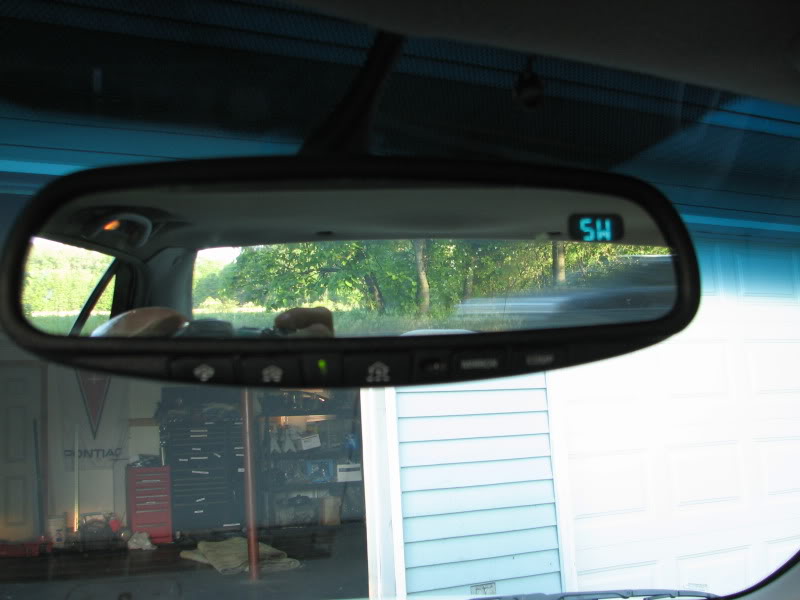

Autodim compass/homelink mirror: With the decision around the overhead console and a standard feature (broken) Donnelly mirror, I saw a need. The only thing this doesn't supply is lights under the mirror. Can't seem to find one of those.
Name:  IMG_6227.jpg
Views: 88
Size:  60.9 KB

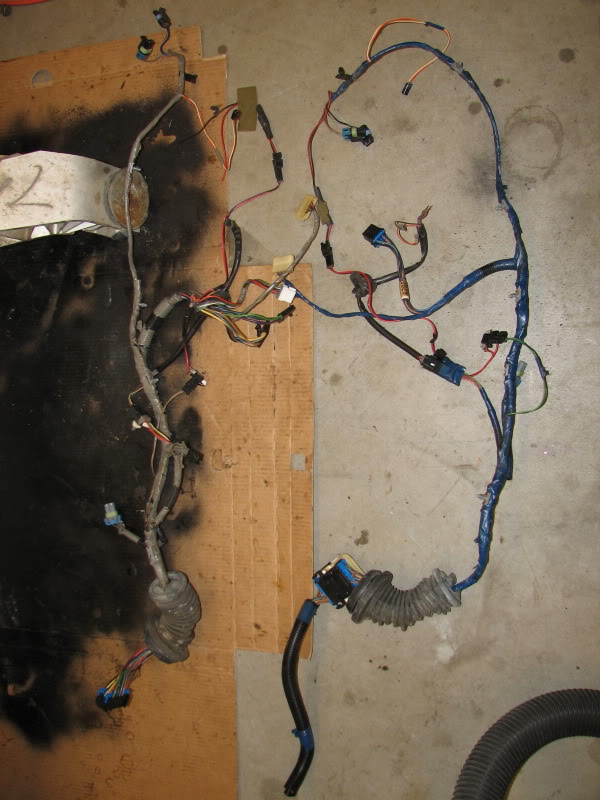

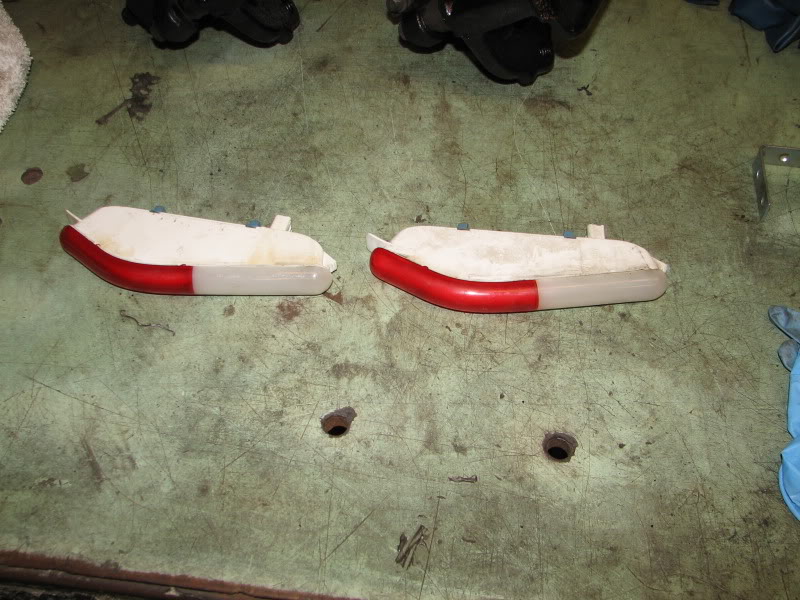

Door lights: I found out that 00+ Regals don't have the door lights, only reflectors. Being that I planned on running the puddle lights off the door light circuit, which is not there. I picked up the door lights and entire door wiring from the mirrors to the interior of the car, including speakers. I prepped the wiring for the puddle lights and interior lights. the wires were added into the connectors at the right places through the door jamb and connected to the wiring by the front door sills.
Name:  IMG_5084.jpg
Views: 77
Size:  115.1 KB
Name:  IMG_5080.jpg
Views: 81
Size:  89.9 KB

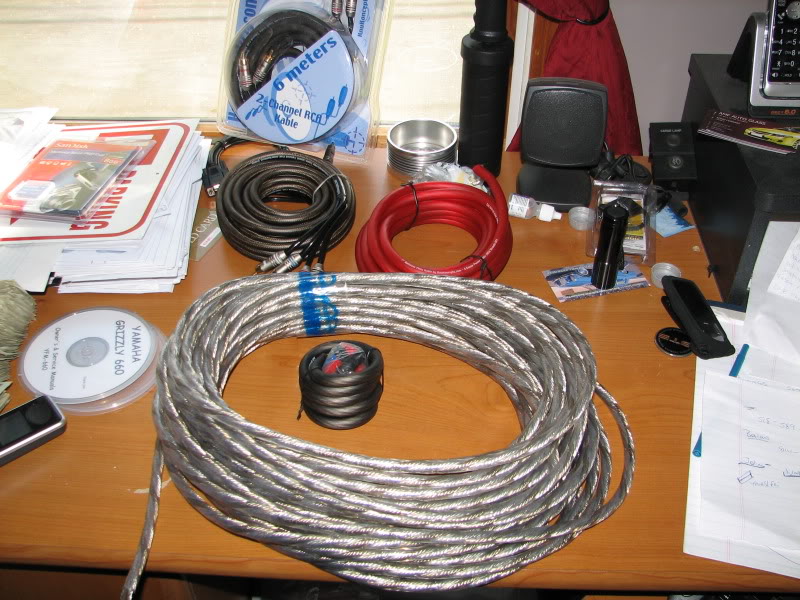

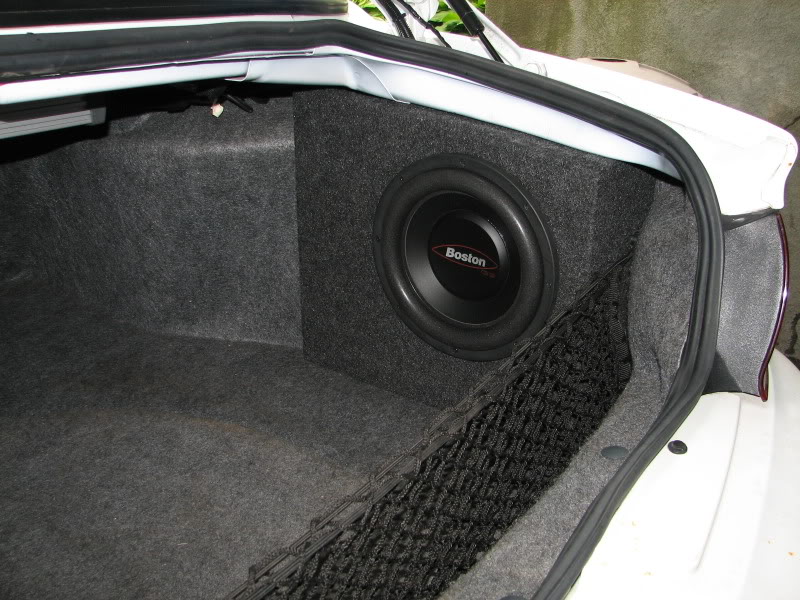

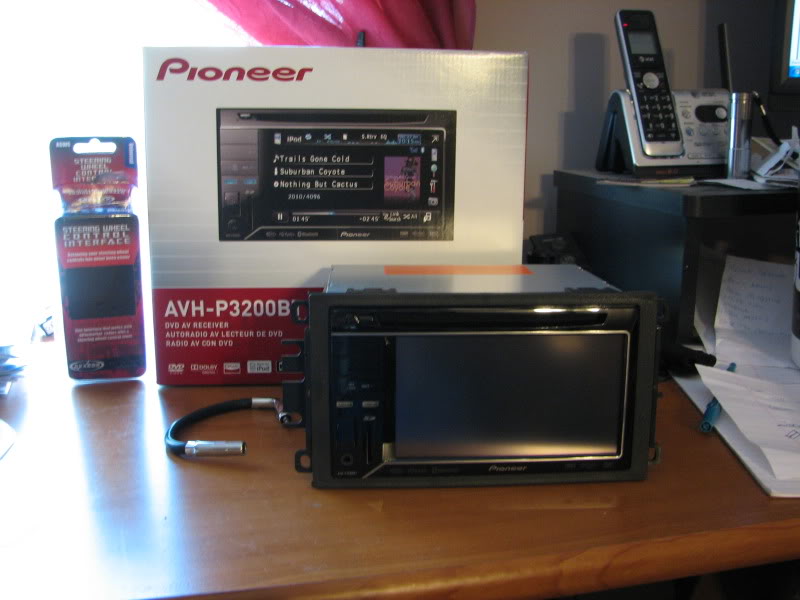

Speakers and headunit: Picked up Boston Acoustics GTA-1005 5 channel amp, SC50 component 5.25'* and SC90 6x9'*. Sub is a G3 10" Boston Acoustics sub. Headunit is a Pioneer AVH-P3200BT DVD capable bluetooth ready unit. Cabling from KnuKnoncepts.
Knu Kit, added speaker wire for a total of 80 feet and another 2 channel RCA http://www.knukonceptz.com/productDe...rodID=KFX-AK44.
Details in total are
18 Feet 4 Gauge Red Kolossus Fleks Power Wire
3 Feet 4 Gauge Smoke Kolossus Fleks Ground Wire
One Waterproof Mini-ANL Fuse Holder with 120A Fuse

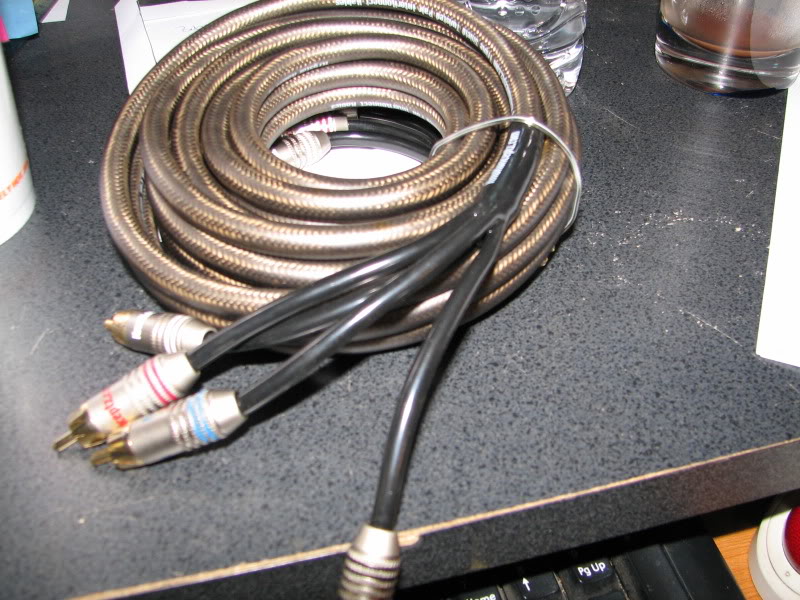

One 6 Meter 4 Channel Karma SS RCA Cable
One 6 meter 2 Channel Karma SS RCA Cable

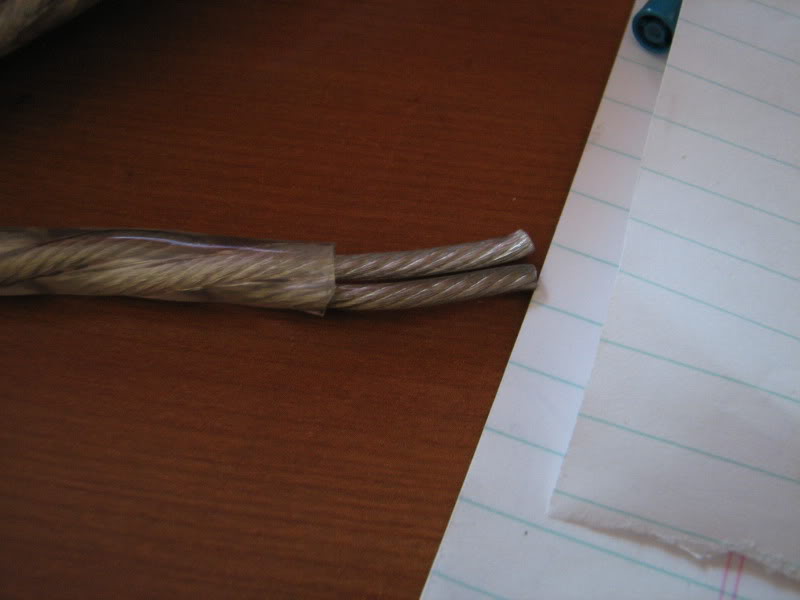

20 Feet Karma SS 12 Gauge Speaker Wire (up'd to 80 feet)
2 Gold Plated 4 Gauge Ring Terminals, 2 Gold Plated 4 Gauge Spade Terminals
6 feet split loom, 20 feet of remote wire, and wire ties
Name:  IMG_5854.jpg
Views: 82
Size:  66.1 KB
Name:  IMG_5910.jpg
Views: 79
Size:  67.0 KB
Name:  IMG_5913.jpg
Views: 81
Size:  125.0 KB
Name:  IMG_5911.jpg
Views: 79
Size:  132.3 KB
Name:  IMG_5912.jpg
Views: 77
Size:  42.1 KB
Name:  IMG_6310.jpg
Views: 127
Size:  126.5 KB

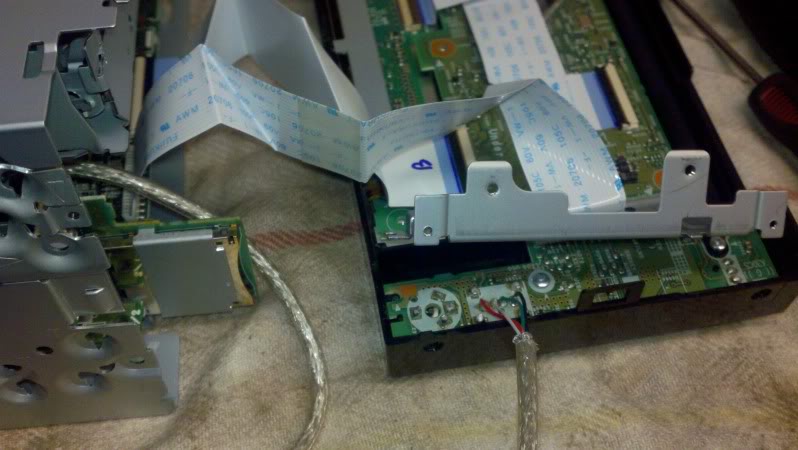

Added the Pioneer backup camera with park assist/night vision, and HD radio modules. Had to add a rear USB cable (by soldering to the headunit) because no other Pioneer product will control the iPod w/o wires hanging off the front of the headunit. Now all wiring is hidden from sight.
Name:  2010-11-03_18-18-28_155.jpg
Views: 92
Size:  95.3 KB
Viper 5901 car alarm/starter has been purchased and installed as weill with a window module (not yet installed). The basics are that it will allow me to start the car from a mile away and provide an alarm to ward off unfriendlies. This gives me opening windows in the summer and heated seats/rear defroster in the winter. Being that it'* a long walk from the building to the parking lot the 1 mile of range should come in handy.

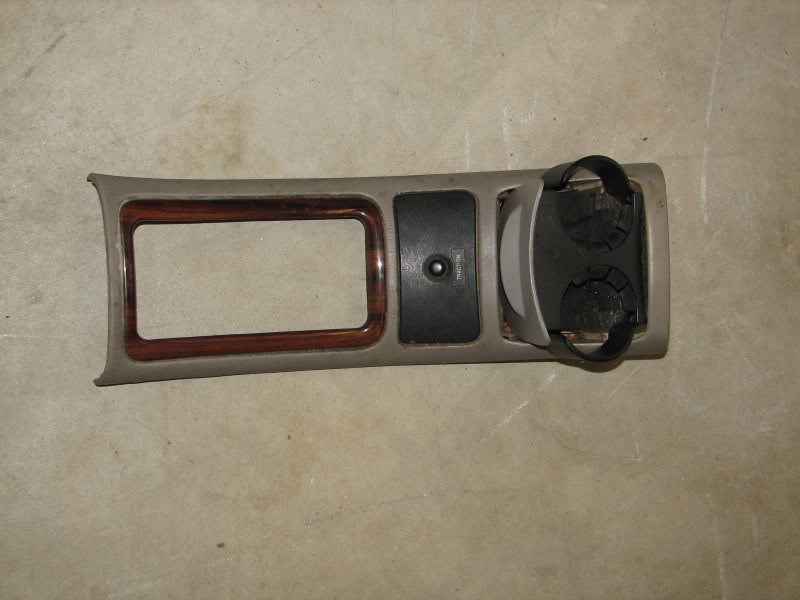

Good cupholder: If you know Regals, the chance of a good cupholder is near 20%. I have found and fixed one that will go into the car if it'* the right color and needs one. From the dealer these are $150
Name:  IMG_5060.jpg
Views: 84
Size:  65.5 KB
Heated Seats: Let'* admit it. In the winter this is the way to go. The car didn't come with them, I'll add them. I have both sides from Grand Prix'* ready for install. The harness under the carpet was prewired for heated seats. All that needs to be done is install the heating element pads. Installed!
LED Brake lights/etc: There is a flasher that you modify to use with LED bulbs w/o needing special things, EP29

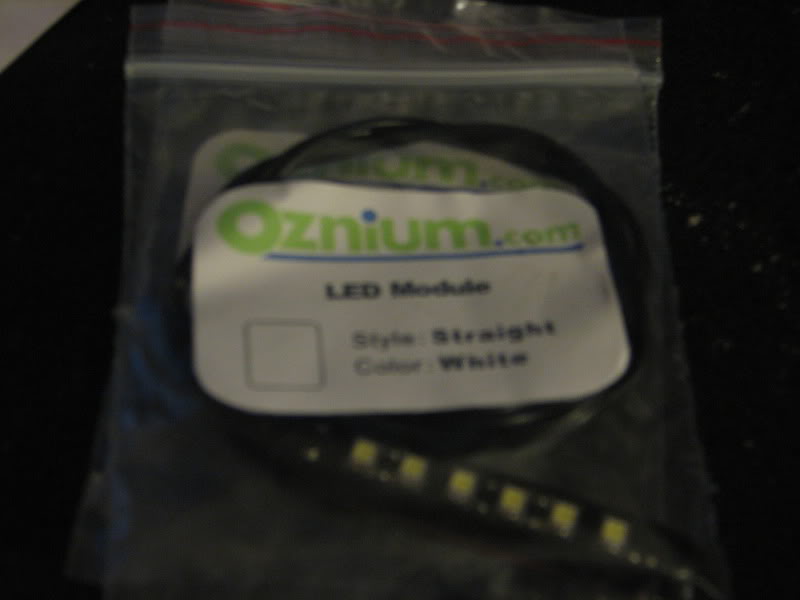

Puddle Lights: They will be in the mirror housing and project down when the car is unlocked.
From Oznium and totally waterproof. These project a lot of light.
Name:  IMG_5074.jpg
Views: 81
Size:  33.6 KB

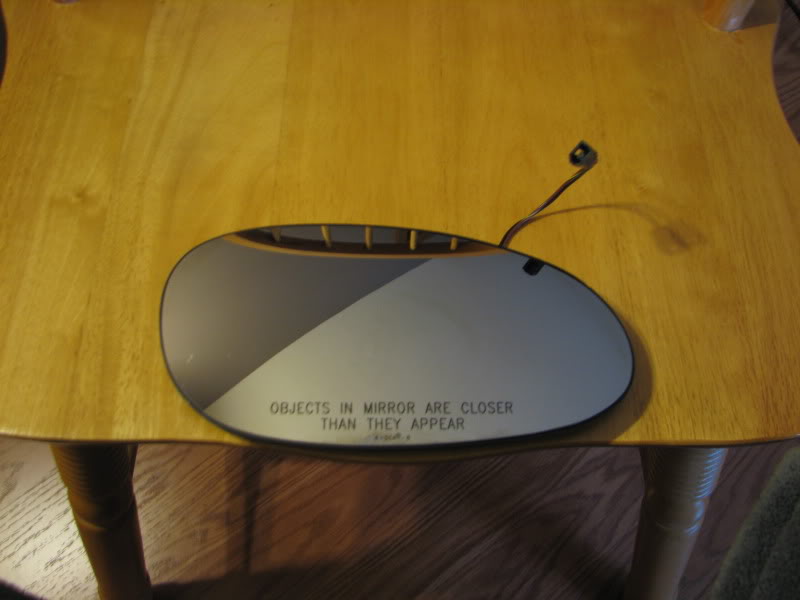

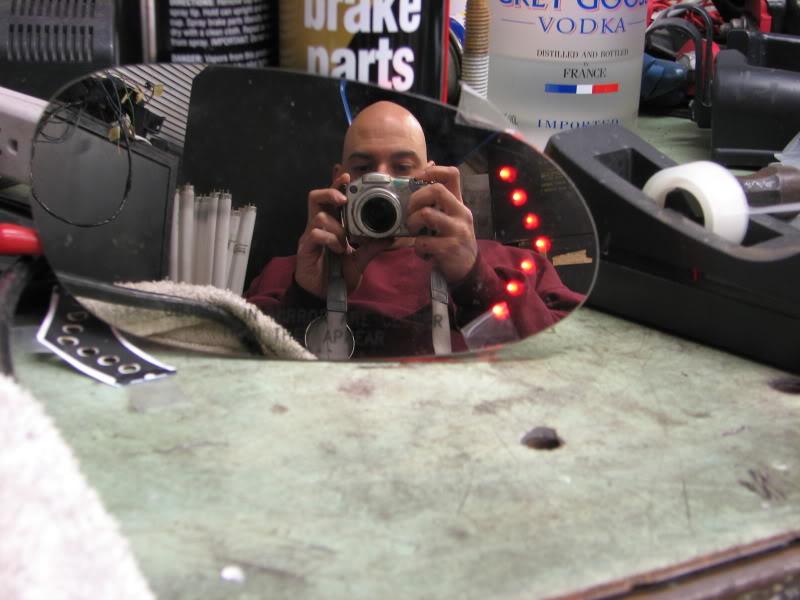

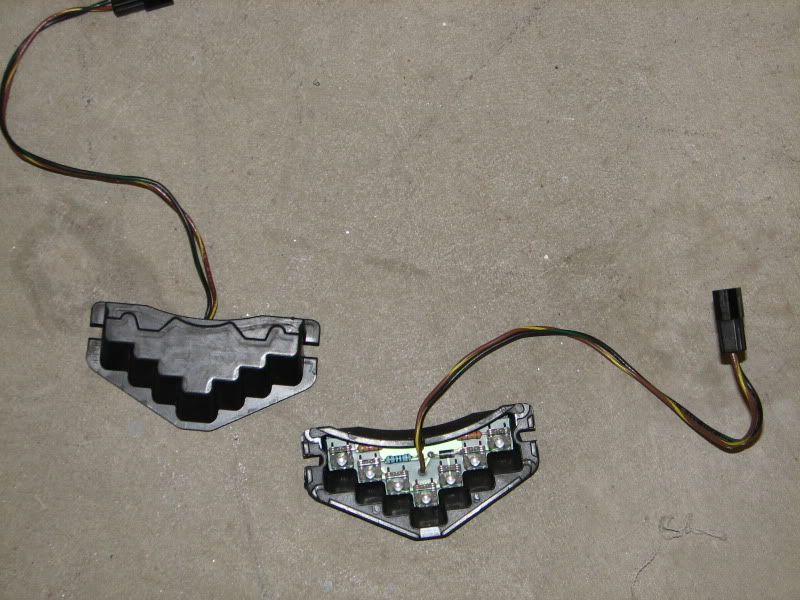

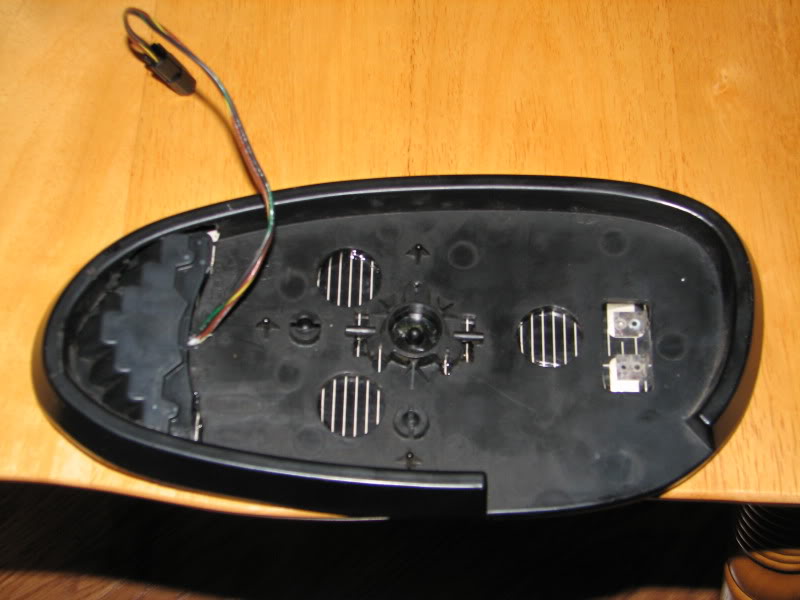

Turn Signals in Mirrors: I had a set of the LED signal pods waiting to be installed. Time to work over a set of mirrors and make this happen.
Name:  IMG_5064.jpg
Views: 81
Size:  110.0 KB
Name:  IMG_5117.jpg
Views: 86
Size:  72.3 KB
Name:  IMG_5146.jpg
Views: 96
Size:  61.8 KB
Name:  IMG_5144.jpg
Views: 77
Size:  47.7 KB
Sequential Turn Signal Tail Lights: I had to.

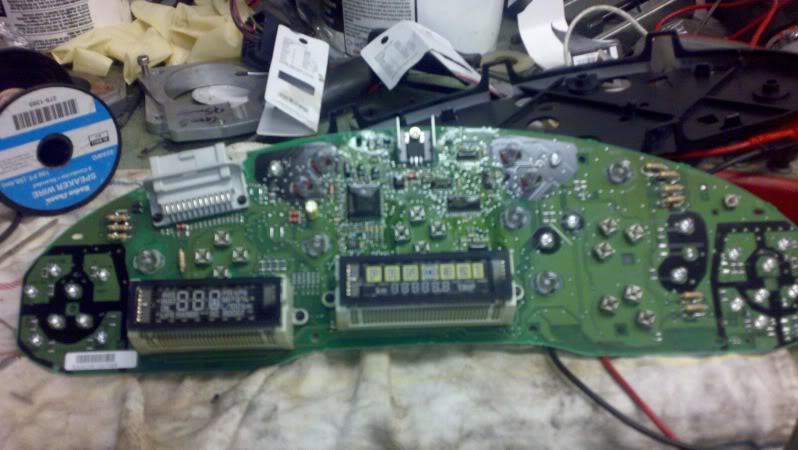

Cluster: It is common for these clusters to have dim digital displays from bad resistors. Replaced them and all is good.
Name:  2010-11-03_19-11-05_413.jpg
Views: 78
Size:  108.9 KB

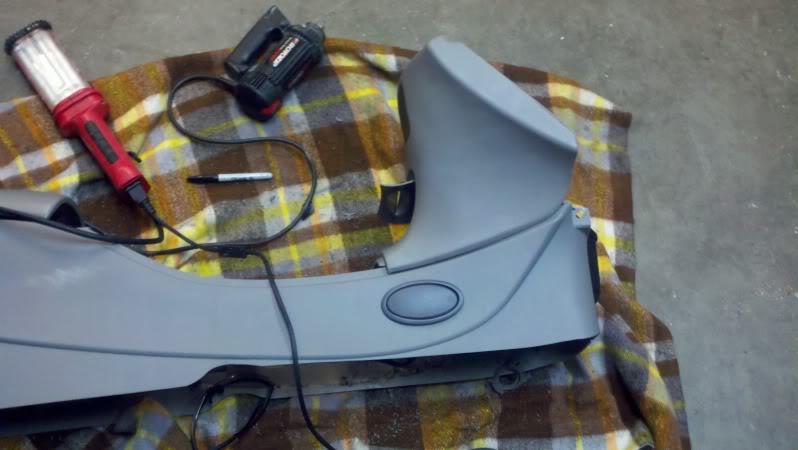

Center console: Couldn't leave well enough alone. I added Intrigue flip out cigarette lighters to both sides of the console. Normally there'* one on the passenger side and to remove the console from the car you destroy it. (it'* in the FSM). I've added one and swapped them out.
Name:  2010-11-03_20-19-28_735.jpg
Views: 83
Size:  80.1 KB

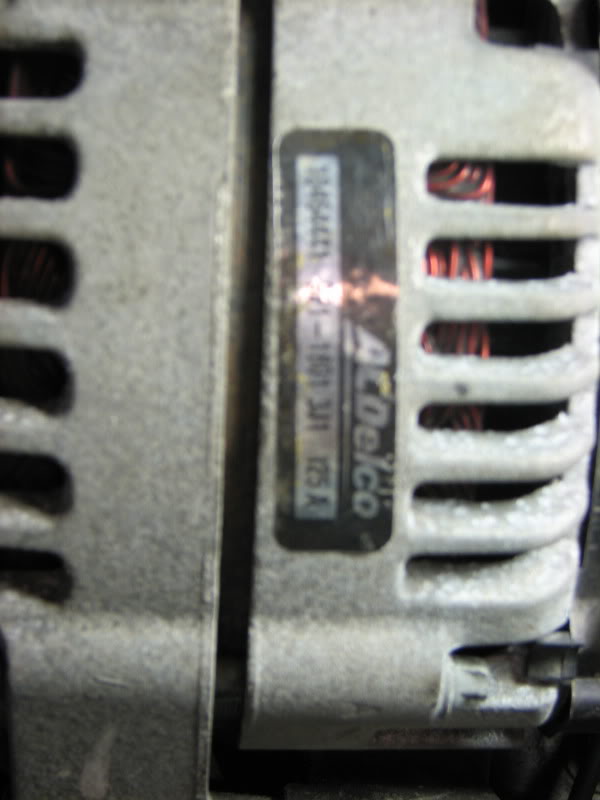

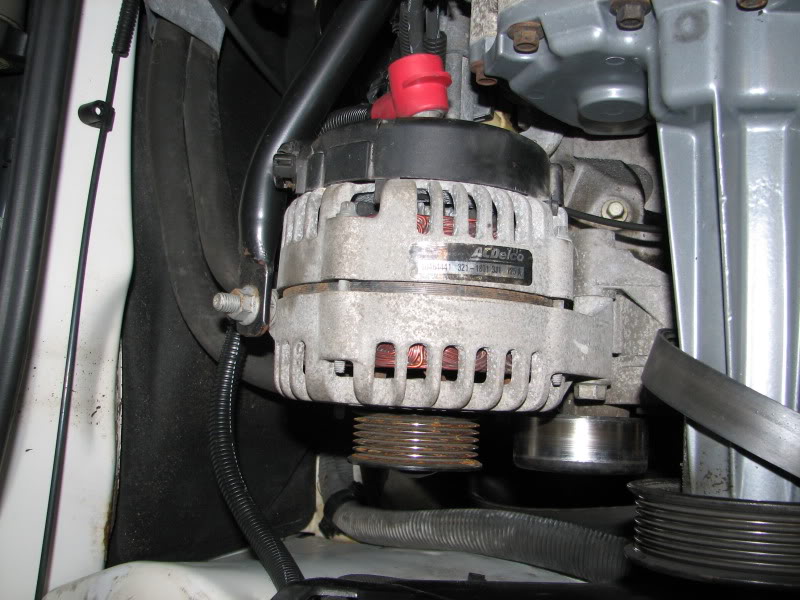

125 amp alternator: While adding the ZZP upgrade wire from the relay fuse box to the alternator, I installed a Bonneville/Park Ave 125amp. This should help with any strain the amplifier/headunit may put on the charging system.
Name:  IMG_6215.jpg
Views: 84
Size:  99.8 KB
Name:  IMG_6217.jpg
Views: 92
Size:  54.3 KB
Projector Headlights: Somehow Ben convinced me into a set of Lexus RX330 lights. Need to be put into some Regal housings. Pretty neat setup. Thanks to Rob for willing his to me.

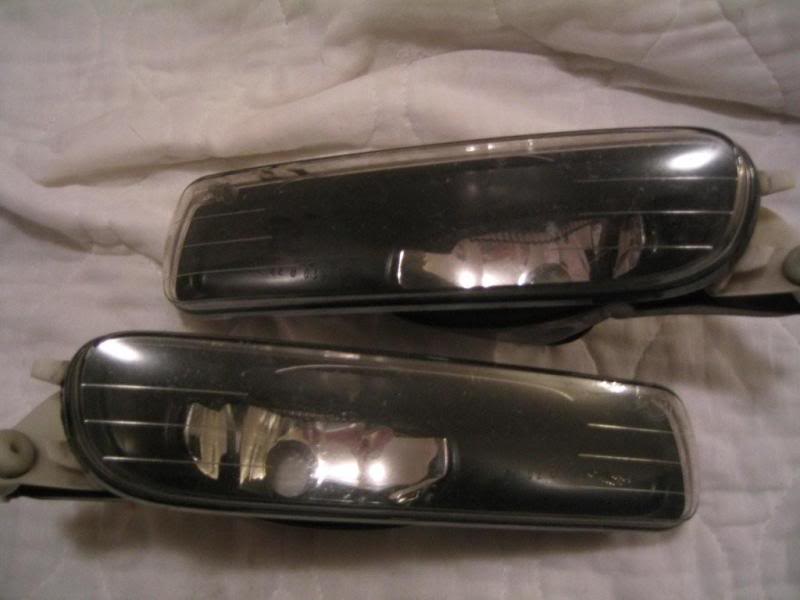

E46 BMW Fog Lights: A slightly different look that takes a 9006 bulb. I have an 880 HID kit, guess it'* time to order a 9006 kit. awaiting install.
Name:  Fog1.jpg
Views: 78
Size:  38.2 KB
Fuel Filter: High flow fuel filter comes off a 2004 Tahoe Flex vehicle. Uh..haven't installed yet.
Braided fuel lines: Not sure how, but I ordered everything to do them. On hold
Cabin Air Filter: Automatically purchased because they are always missing or horrible. Installed
O2 Sensor: At $35 I ordered one as a spare/good to have around if the new car needs it. Installed
LIM Gaskets: There is a set on the shelf for the new car. Installed

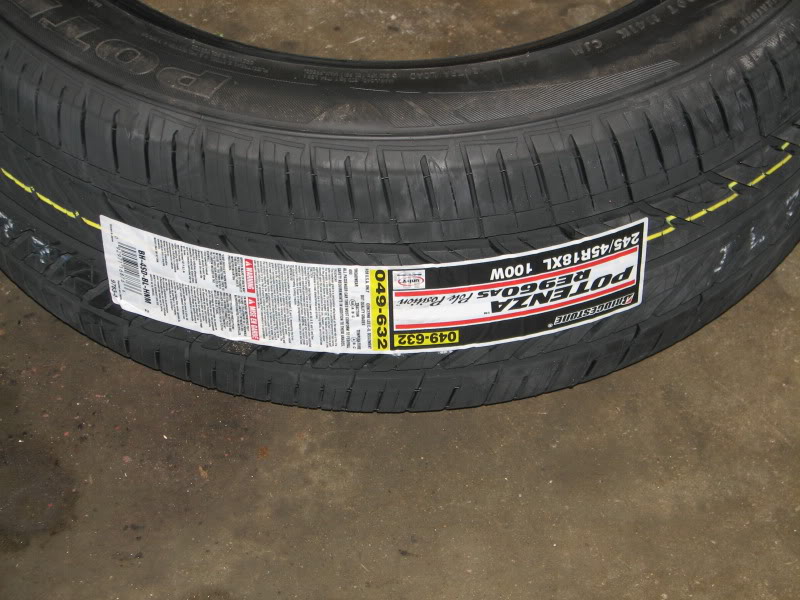

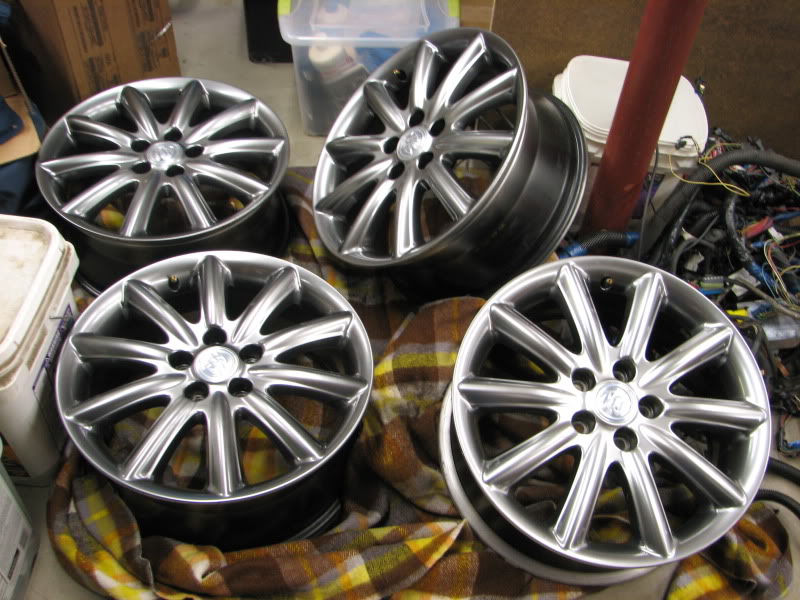

Rims and tires, Due to the peeling feature of 4 sets of chrome wheels and not being able to come up with four good rims out of four full sets, I pulled the trigger on 2007 Buick Lucerne CXS rims and Bridgestone Potenza RE960AS Pole Position tires in 245/45/18. All recommended by Max and approved by Pat. Great setup guys.
Name:  IMG_6225.jpg
Views: 76
Size:  98.0 KB
Name:  IMG_6212.jpg
Views: 90
Size:  117.4 KB
My plan was to buy a car, jack it up and pull the seats, center console, carpet, pillars, rear deck, dash bezel, and door panels. Wash carpet and thoroughly clean seats and interior parts. Then pull the windows and regulators out of the doors. Drop the glass at the tint shop for tinting, and fix the regulators before they break by inserting some metal into the area where the plastic is the weakpoint. I'll cut the dash for the HUD install and wire it up, get a basic fit on the headunit and cut if needed. Determine how the DIC will be mounted to the roof and begin applying sound proofing to all doors, floor, rear deck and maybe the roof where possible. While that is drying, the engine will be supported and the subframe and oil pan will be changed. Struts installed if applicable. F body brakes, rear brakes and new brake lines will be installed and well bled with a power bleeder. Drag arms, lateral arms and toe links installed. Strut tower bars will be installed. Install HID headlights, foglights and all exterior LED lights. By now the sound proof coating should be dry. Run all cables and wires for the headunit/amps/speaker install. Mount amps and speakers. Locate and solder into turn signal and interior lighting wiring by doors, run the wiring into the doors. Run the LED and puddle light into the mirrors and put the turn signal mirrors on. Complete headunit and hud install. Install LED bulbs throughout interior and reinstall headliner with DIC. If needed install heaters in seats and run wiring into console. Reinstall carpet, console seats, windows/regulators, door panels. Get alignment and have rear window tinted, then reinstall rear deck.
BillBoost37 is offline   Reply With Quote
Old 02-17-2011, 02:42 PM   #2
Senior Member
True Car Nut

raptor660's Avatar

Join Date: Mar 2010
Location: Eaton Rapids MI
Posts: 2,964
Thanks: 0
Thanked 0 Times in 0 Posts
raptor660 is on a distinguished road
Default

GOOOOD LORD! Wow... kinda speechless, ill get back to you with a better response in a minute Bill when i can catch my breath.
raptor660 is offline   Reply With Quote
Old 02-17-2011, 03:33 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You should pop on over for a cruise when the summer wheels are on. You'd like it.
BillBoost37 is offline   Reply With Quote
Old 02-17-2011, 03:37 PM   #4
Senior Member
True Car Nut

Jonpro03's Avatar

Join Date: Jul 2010
Location: Danville, Illinois
Posts: 2,469
Thanks: 0
Thanked 0 Times in 0 Posts
Jonpro03 is on a distinguished road
Default

I might need to send you my car and my tax return.
Jonpro03 is offline   Reply With Quote
Old 02-17-2011, 04:31 PM   #5
Senior Member
Posts like a Turbo

oldsmobile99's Avatar

Join Date: Jan 2010
Location: Murray, Ky
Posts: 349
Thanks: 0
Thanked 0 Times in 0 Posts
oldsmobile99 is on a distinguished road
Default

wow ! very very nice !
oldsmobile99 is offline   Reply With Quote
Old 02-17-2011, 04:42 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looking great Bill, I like those wheels a lot.
Danthurs is offline   Reply With Quote
Old 02-17-2011, 04:54 PM   #7
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

I'm going to attempt to make a clone of this, only with a better sound system.
xtremerevolution is offline   Reply With Quote
Old 02-17-2011, 05:53 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Best of luck on that, I keep adding stuff all the time. A potential project is a heated steering wheel for next winter. Holler with any questions... everything i do is an open book for others.

On the sound system. I'm not a huge audio person and this was my first real install. Love the way it sounds and I've yet to get over half volume with the windows down. There'* absolutely no light dimming, even with the engine off. It is amazing how efficient the Boston stuff is and how well it all works together.

X.. You should really go read the entire gabillion page threads at the other forum to get a true idea of what went into doing this car.
BillBoost37 is offline   Reply With Quote
Old 02-17-2011, 06:51 PM   #9
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Best of luck on that, I keep adding stuff all the time. A potential project is a heated steering wheel for next winter. Holler with any questions... everything i do is an open book for others.

On the sound system. I'm not a huge audio person and this was my first real install. Love the way it sounds and I've yet to get over half volume with the windows down. There'* absolutely no light dimming, even with the engine off. It is amazing how efficient the Boston stuff is and how well it all works together.

X.. You should really go read the entire gabillion page threads at the other forum to get a true idea of what went into doing this car.
I looked at all of the pictures, all 21 some pages in one of the threads. I'll have to sit down and read all the comments. It definitely looks like a lot of work went into it, but I'm not planning on getting rid of this car any time soon.
xtremerevolution is offline   Reply With Quote
Old 02-17-2011, 06:51 PM   #10
Senior Member
True Car Nut

raptor660's Avatar

Join Date: Mar 2010
Location: Eaton Rapids MI
Posts: 2,964
Thanks: 0
Thanked 0 Times in 0 Posts
raptor660 is on a distinguished road
Default

That sounds great Bill I would like that however i think u have ulterior motives.. Ur car will look even sexier by comparison next to mine? LOL
raptor660 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Sleepers, Regal, I wonder if Billboost inspired this kid? (NSFW Language) Mike Lounge 42 01-27-2013 11:34 AM
if billboost was your sibling.... LilSis Lounge 41 12-19-2005 02:40 AM
BillBoost and Randman MOS95B Lounge 4 09-11-2005 04:39 PM
Billboost LilSis Lounge 106 08-24-2005 11:39 PM


Tags
buick, regal

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 10:48 PM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
