Default Alternator K68 105 AMP

PK Ave 97- stock alt is K68 105 amp ...can barely keep up.
Is there another larger output alt that can bolt in this car?
Maybe I should just pull this thing and get it bench tested & rebuilt.
If there is a larger amp bolt on, what brand to go with..??
Soft Ride is offline   Reply With Quote
Old 02-28-2012, 07:41 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

jwfirebird is offline   Reply With Quote
Old 02-28-2012, 12:22 PM   #3
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

get one off an l67 car my 97 SSEI had a 140A you may have to swap the faceplates but it will work
sseidriver97 is offline   Reply With Quote
Old 03-10-2012, 06:58 PM   #4
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Thanks for the links very helpful!

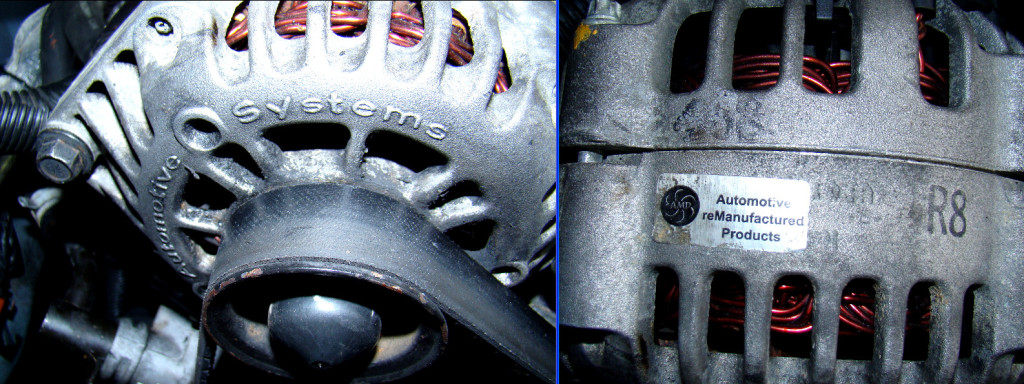

Why do I think that what is in MY 97 PA is not a K68 105 amp?

Do not recognize this part or co.name AMP=Automotive reManfactured products.
I bet this is an 80 amp LOL.
Anyone able to offer more on this part or info?
Attached Thumbnails
Alternator K68 105 AMP-buickalt.jpg
Soft Ride is offline   Reply With Quote
Old 03-10-2012, 07:05 PM   #5
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

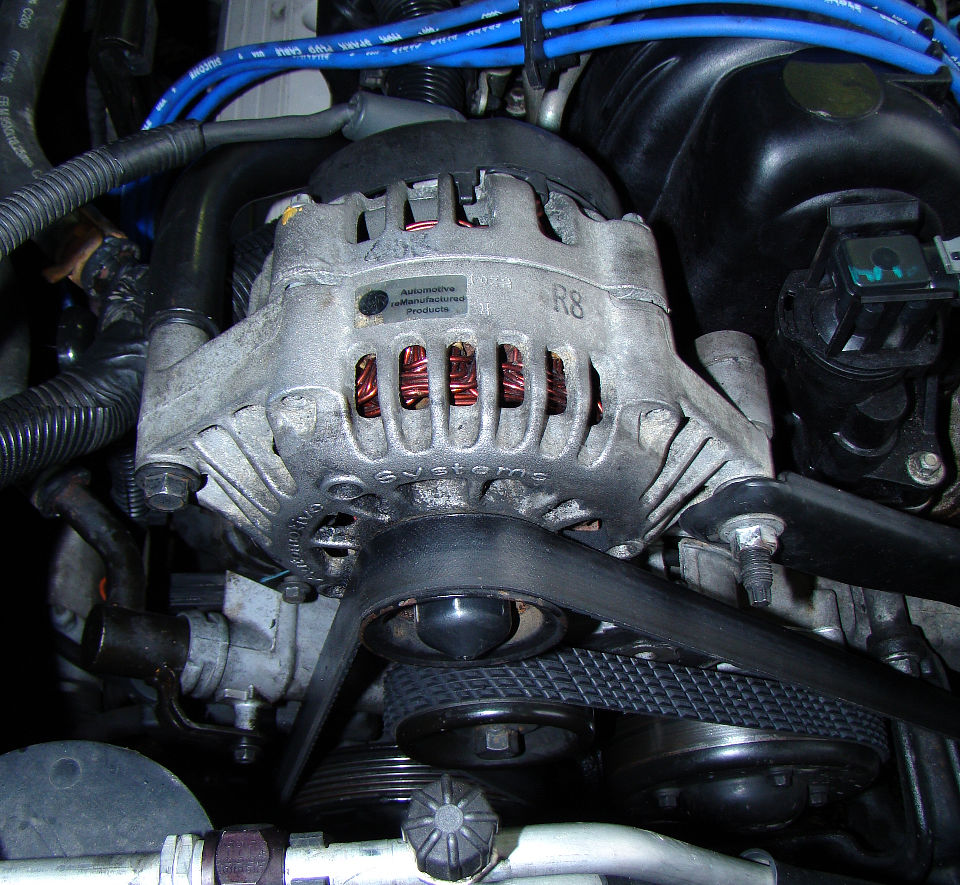

It has single wire rear....
Also What clock position is this ALT???
Attached Thumbnails
Alternator K68 105 AMP-buickalt2.jpg
Soft Ride is offline   Reply With Quote
Old 03-11-2012, 04:26 AM   #6
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

Just found in California "Quality Power" after searching CS-130D
140 Amp total w/ 100amp @idle for $170 using Delco Case...nice!
http://www.qualitypowerauto.com/catalog.php?item=122
Soft Ride is offline   Reply With Quote
Old 03-11-2012, 08:22 AM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

if its not the right clock position you just take the case bolts loose and spin it.
jwfirebird is offline   Reply With Quote
Old 03-12-2012, 11:23 PM   #8
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

This makes no sense but will insert reply while inquiring about the CS-130D from:
http://www.alternatorparts.com/cs130...lternators.htm
Their reply was:
I apologize, but the high output replacement for your alternator is the larger AD244 series, which is not available in your mounting style. Any high output CS130D series alternator will give you less-than-stock output at idle, because of a small diameter.

Wonder what the California Co. Quality Power Auto will say about theirs then?
Sending them an email now...
Soft Ride is offline   Reply With Quote
Old 03-18-2012, 04:23 PM   #9
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

OK Received a reply by email from Quality Power ! Good News !
"Your alternator has unique mounting ears and the only case that will be a direct bolt-in fit is the CS-130D. We have them (click on link below) up to 180 amp max. It will provide 120 amp at idle. You would want the "J Mount Left" mounting style. You can add the alternator into the shopping cart and then calculate the shipping cost without actually being committed to purchasing. Let us know if you have any other questions"
http://www.qualitypowerauto.com/cata...Fcategory%3D41
Their 140 Amp (J Mount Left) Alt is only $160 good deal.
The Stock 110 amp is only $115 !

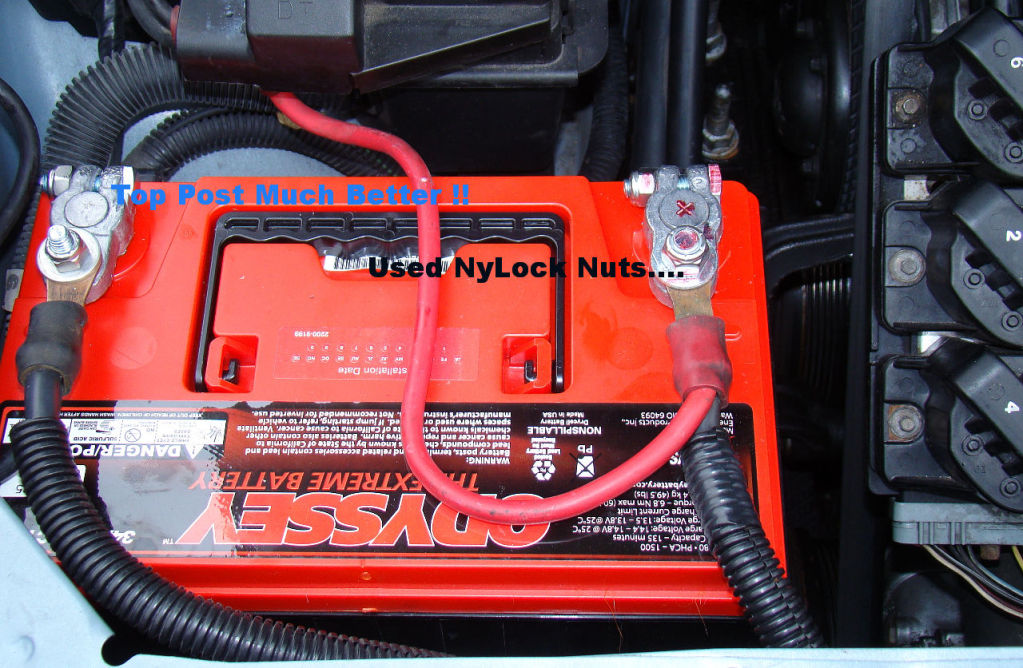

Not sure if I really need another alternator now as the problem really was a weak battery! I just installed an Odyssey AGM Battery.
This 880 CCA battery just load tested at 1219 CCA!
No more lights dim now to say the least, even with my weak 105 amp alternator.
Yes I am a happy camper now and removed the GM side mount battery adapters and am no hooked directly to top posts, using marine adapter and Nylock nuts.
Attached Thumbnails
Alternator K68 105 AMP-buickodysseyinstalledtopposts.jpg
Soft Ride is offline   Reply With Quote
Old 04-07-2012, 05:24 PM   #10
Senior Member
True Car Nut
Thread Starter

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

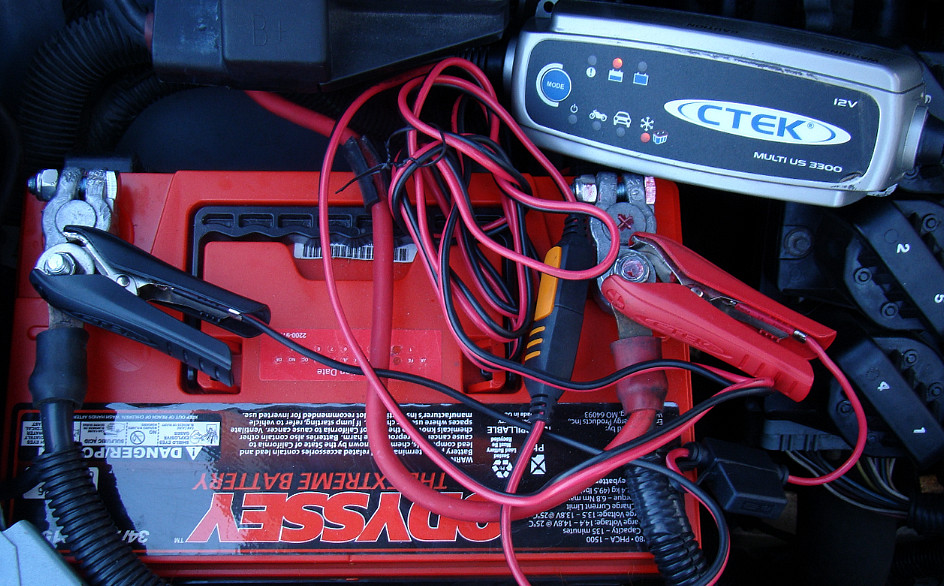

Even after a 30 minute car run, the Odyssey is still not fully charged.
This leaves me to believe that even though a VOM reads 14.5 volts going in, the battery is still not getting enough juice or amps or something.
I now connected to a 3.3 amp CTEK AGM trickle charger, giving that top up.
Hopefully it can fully charge it in one hour?
Attached Thumbnails
Alternator K68 105 AMP-odysseyonctekcharger.jpg
Soft Ride is offline   Reply With Quote
