Default Air Conditioning problem

So it looks like my car hates me.. Monday was one of the hottest days of the summer here, and my a/c decided it wasn't going to work. It will only blow warm air. Even with the a/c off, and just the normal temperature set on cold, it will only blow warm air. I'm taking my car to get a check up tomorrow, but I don't really want to over pay for something that could be done quick and cheap. Is there anything that I can do or check? The condenser does cut in, so I don't know if the refrigerant leaked out or what..

Thanks in advance guys.
2k2cse is offline   Reply With Quote
Old 08-25-2011, 01:34 PM   #2
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Sounds like the blend door is not functioning, allowing hot air from the heater core into the mix with the the A/C or the outside air. Could be stuck. Could be a bad actuator.
2kg4u is offline   Reply With Quote
Old 08-25-2011, 02:44 PM   #3
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

ymmot04 is offline   Reply With Quote
Old 08-25-2011, 04:36 PM   #4
Junior Member

Join Date: Aug 2011
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Waldy is on a distinguished road
Default

My 98 Buick Century is blowing hot air on passenger side and cold on drivers side. Settings are set to cold air. I tried adding more R134a, but it would not take any more. Can anyone help?
Can someone post an exploded view of the system, or component locations, etc... Any help would be greatly apreciated.
Waldy is offline   Reply With Quote
Old 08-25-2011, 06:32 PM   #5
Senior Member
Certified GM nut
Thread Starter

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

Quote:
Originally Posted by 2kg4u View Post
Sounds like the blend door is not functioning, allowing hot air from the heater core into the mix with the the A/C or the outside air. Could be stuck. Could be a bad actuator.
Quote:
Originally Posted by ymmot04 View Post
I second that notion. This thread may be of some help: https://www.gmforum.com/showthread.php?t=274213
Thanks guys. So I would assume its in the same general location as in that link? I'll have to take a look tomorrow, if I can. I really hope its just stuck, if thats the problem.. It just randomly started doing this..it was fine a couple days before, and it doesn't make any strange noises..
2k2cse is offline   Reply With Quote
Old 08-25-2011, 11:25 PM   #6
Junior Member

Join Date: Aug 2011
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Waldy is on a distinguished road
Default

If the blend too is stuck, how do I get to it? Where is that actuator located? What is the correct name so I can ask for it at the parts store? Is there an exploded view or step by step instruction?
Waldy is offline   Reply With Quote
Old 08-26-2011, 02:47 AM   #7
Senior Member
Certified GM nut
Thread Starter

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

Take a look at the thread ymmot posted, if you haven't already. That should give you the general location. As for the part name, I would guess its called an a/c actuator? I can try to take some pictures if I attempt to fix mine tomorrow.
2k2cse is offline   Reply With Quote
Old 08-26-2011, 01:55 PM   #8
Junior Member

Join Date: Aug 2011
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Waldy is on a distinguished road
Default

Quote:
Originally Posted by 2k2cse View Post
Take a look at the thread ymmot posted, if you haven't already. That should give you the general location. As for the part name, I would guess its called an a/c actuator? I can try to take some pictures if I attempt to fix mine tomorrow.
Thanks a lot for replying for what some people would consider stupid questions, but even though I have plenty mechanical experience, I am totally clueless when it comes to AC'* and automatic transmissions. Specially on this type of AC'* (climate control) that is a little different from the conventional AC'*. (or so I've been told). I know pictures will help a great deal.
I have not seen YMMOT'* posting, I am new to this forum system and am still learning how to navigate and find stuff in it. Please bear with me while I learn. Thanks.
Waldy is offline   Reply With Quote
Old 08-26-2011, 03:20 PM   #9
Senior Member
Certified GM nut
Thread Starter

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

Quote:
Originally Posted by Waldy View Post
Thanks a lot for replying for what some people would consider stupid questions, but even though I have plenty mechanical experience, I am totally clueless when it comes to AC'* and automatic transmissions. Specially on this type of AC'* (climate control) that is a little different from the conventional AC'*. (or so I've been told). I know pictures will help a great deal.
I have not seen YMMOT'* posting, I am new to this forum system and am still learning how to navigate and find stuff in it. Please bear with me while I learn. Thanks.
There are no stupid questions when you try to learn something I'm quite unfamiliar with working on a/c systems too, so this is a learning experience for me as well. This is the link ymmot posted: https://www.gmforum.com/showthread.php?t=274213 It seems like a similar problem to yours. I would assume that essentially, everything is similar between the car in the link, and our Centuries. I didn't get to do anything with it today.. I'm going out of town for the weekend tomorrow and I had some things to take care of, so I'll dig into this on Monday hopefully.
2k2cse is offline   Reply With Quote
Old 08-27-2011, 12:23 AM   #10
Senior Member
Certified GM nut
Thread Starter

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

Okay, so I did manage to take a look at it today after. It appears that the actuator is working properly. I took this video..
[YT]http://www.youtube.com/watch?v=FhAbDRMc4Fw[/YT]

I never realized how hard it is to record a video while holding my phone (camera) and a flashlight, while working the controls. lol

So could my problem be something as simple as refrigerant leaked out and it needing to be recharged? From what I could see, everything looked like it was working properly..

Waldy: Its not really that hard to get at. Its behind the glove box. You need to remoe the carpet cover on the bottom part of the dash. There are 3 christmas tree style clips keeping it up. Once you take them off, you can remove the panel after disconnecting the footwell light. You should be able to look up through and see a small orange going to a black plastic cylinder. I assume this is the a/c actuator. Here are some pictures I took of mine.

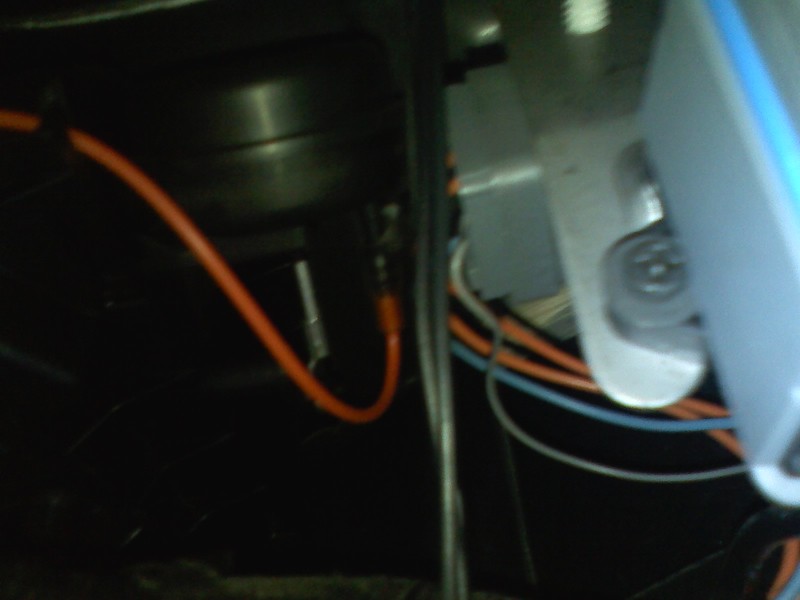

Here is the whole assembly

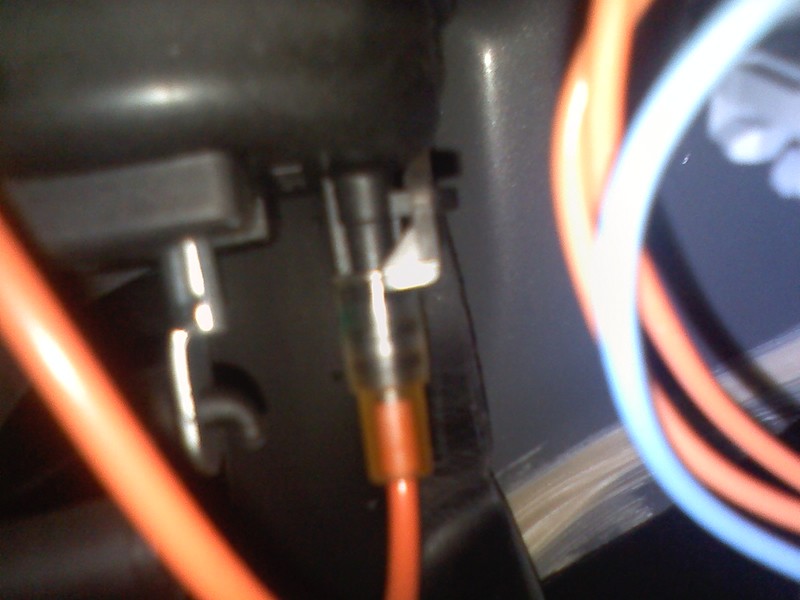

and this is a little closer view of where the hose connects.

Attached Thumbnails
Air Conditioning problem-0826011626a.jpg   Air Conditioning problem-0826011629.jpg
2k2cse is offline   Reply With Quote
