2003 Buick Regal Over Heating - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Reply



Thread Tools Search this Thread
Old 10-22-2012, 01:54 AM   #1
Junior Member
Posts like a Ricer Type-R
Thread Starter

FiretoFlames's Avatar

Join Date: Jan 2012
Location: Los Angeles, California
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
FiretoFlames is on a distinguished road
Default 2003 Buick Regal Over Heating

I have a 2003 Buick Regal with 3.8L V6 and it'* been over heating quite a bit recently. I have to fill up the radiator every other day however there always seems to be water in the Reservoir. I need a quick simple fix for it that can last a most a month since I plan to get rid of it soon.

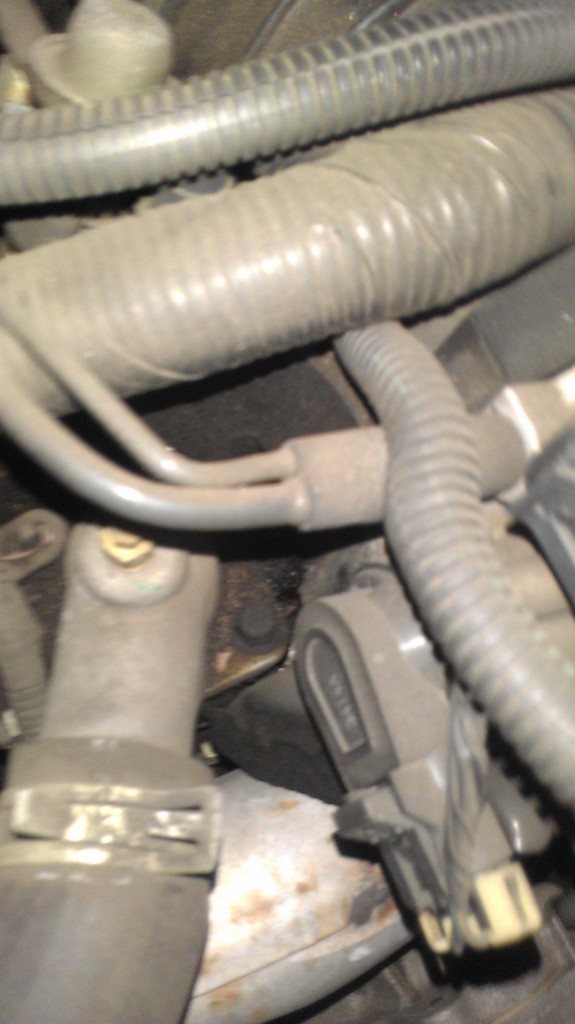

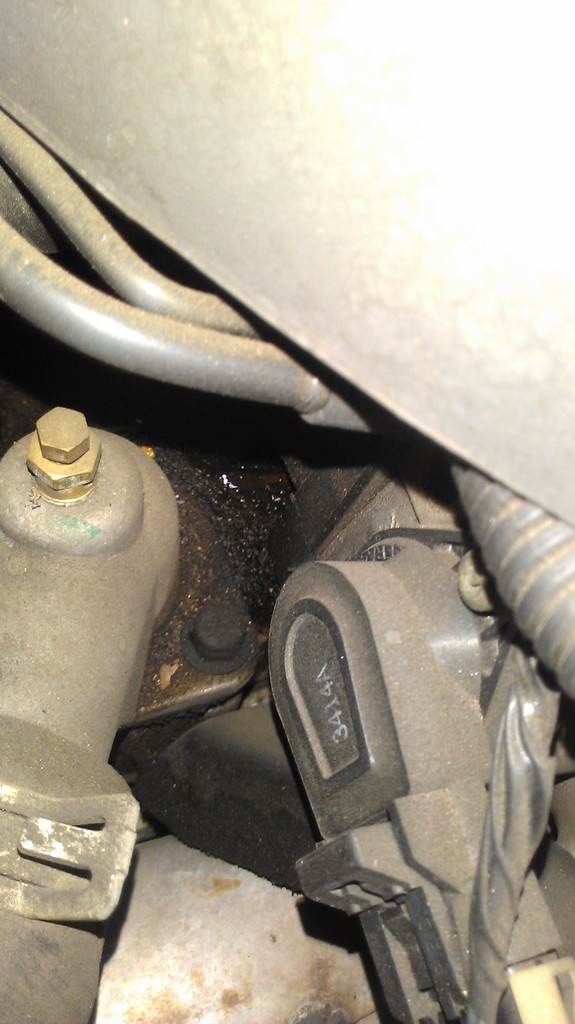

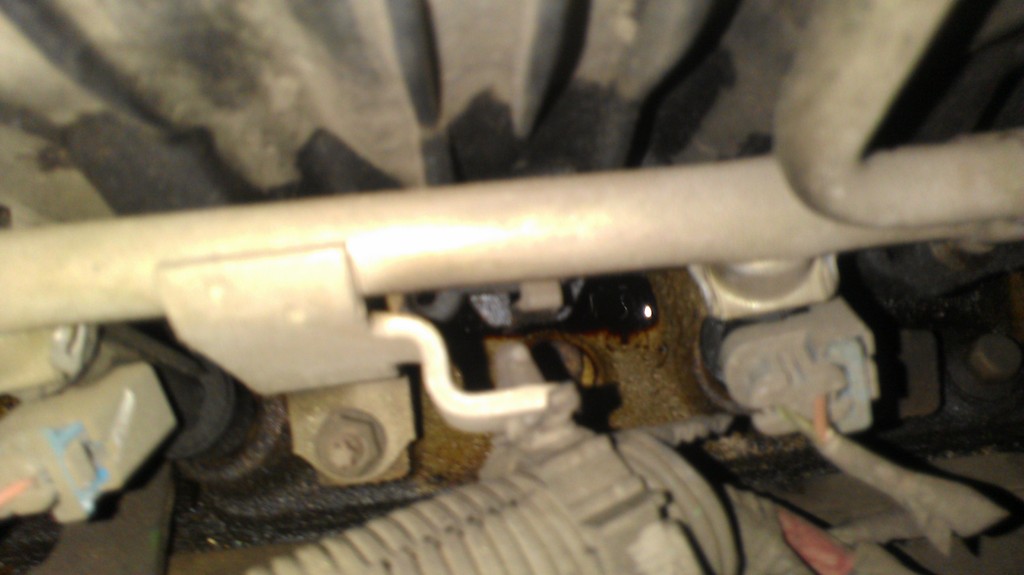

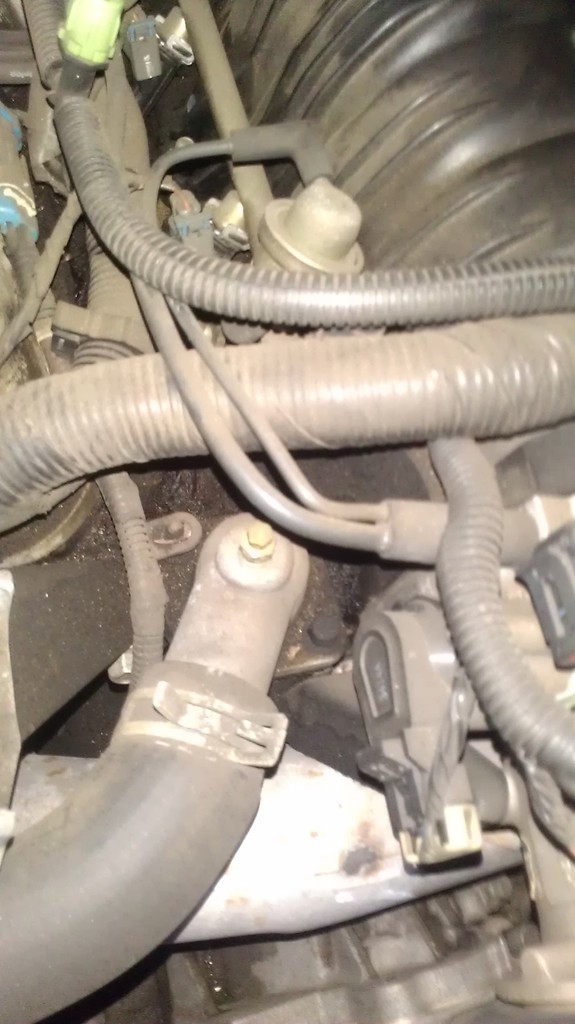

I took there pics of where it seems to be leaking a small amount of water. It seemed to be a bit "sizzling" after I drove the car.

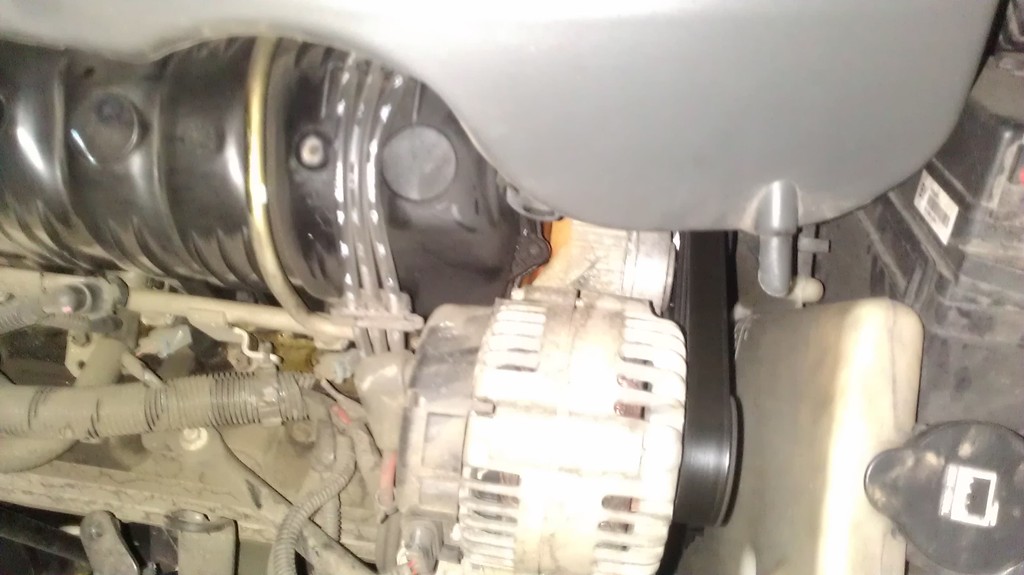

Also on the other side I found a small puddle of oil.





What'* the best way for a quick temp for both of these?
Attached Thumbnails
2003 Buick Regal Over Heating-imag0026byy.jpg   2003 Buick Regal Over Heating-imag0028dr.jpg   2003 Buick Regal Over Heating-imag0031fv.jpg   2003 Buick Regal Over Heating-imag0034y.jpg   2003 Buick Regal Over Heating-imag0035b.jpg

FiretoFlames is offline   Reply With Quote
Old 10-22-2012, 07:52 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

no quick fix for this, your intake manifold gaskets are bad and likely your rad cap because a leak doesnt mess up the fluid return to the rad. but you cant just leave it the coolant is probably mixing in the oil on the inside and will hydrolock the engine or spin the bearings. im in the same boat i just went to take care of the other common problem which is the coolant elbow which you can get in aluminum now to stop having to mess with. but i got the whole upper intake (because the heat cracks it sometimes) dorman 615-180 comes with all the gaskets inj o rings and other stuff for 67 from rock auto. i also got the lowers as long as i was in it i figured i might as well take the lower off and plug the coolant risers which most belive is the root cause of the issue
jwfirebird is offline   Reply With Quote
Old 10-22-2012, 07:55 AM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

jwfirebird is offline   Reply With Quote
Old 10-22-2012, 09:08 AM   #4
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Just to recap Tony, the upper and lower intake manifold gaskets are a common failure on these engines. Through our years of research on this forum, its best to upgrade the lower manifold gaskets to the aluminum framed ones. Block off the coolant ports on the manifold and you should be good to go for the next 10 years.

Dorman has just came out with a newer designed coolant elbow that are made out of aluminum also. Justin should be installing his soon so HOPEFULLY, he will take pics.
Mike is offline   Reply With Quote
Old 10-22-2012, 10:04 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i will when i get it together, i was pretty dissapointed when i went out expecting just to do that and i find im now doing upper and lower gaskets
jwfirebird is offline   Reply With Quote
Old 10-22-2012, 10:20 AM   #6
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

The LIM gaskets may be fine now, but it would be YOUR luck, a month down the road and Murphy rears his ugly head. Better piece of mind knowing you did it now and not have it fail on you when its -10 outside.
Mike is offline   Reply With Quote
Old 10-22-2012, 11:13 AM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

hes from la not much chance of -10. but anyway that would be my luck. i have been screwed many times by myself buying cheap or saying it will be fine so i try to remember those times i could have saved myself why i got to shell out for some decent parts.

i remember one time it was colder than that and like the third fuel pump in my old 89 GP before i wised up. the worst part was my wife was driving the car, thankfully she was at work and it just wouldnt start she just went back in the building could have been way worse if she was in the middle of no where when it died. so thats why it seems better to get it done and get it done right
jwfirebird is offline   Reply With Quote
Old 12-21-2012, 08:57 PM   #8
Junior Member

Join Date: Dec 2012
Location: Swannanoa, NC
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
cboling67 is on a distinguished road
Default need to do this exact repair , questions?

Quote:
Originally Posted by Mike1995 View Post
Just to recap Tony, the upper and lower intake manifold gaskets are a common failure on these engines. Through our years of research on this forum, its best to upgrade the lower manifold gaskets to the aluminum framed ones. Block off the coolant ports on the manifold and you should be good to go for the next 10 years.

Dorman has just came out with a newer designed coolant elbow that are made out of aluminum also. Justin should be installing his soon so HOPEFULLY, he will take pics.
which coolant ports do you block off? I see the coolant ports in the heads once the LIM is removed. So are the ports in the LIM or the UIM? Also how do you block them off and with what?

cboling67
cboling67 is offline   Reply With Quote
Old 12-22-2012, 09:32 AM   #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

jwfirebird is offline   Reply With Quote
Old 01-04-2013, 12:55 PM   #10
Junior Member

Join Date: Jan 2013
Posts: 1
Thanks: 0
Thanked 0 Times in 0 Posts
tard4 is on a distinguished road
Default

have a 2005 buick century also obeen told thermosat needs replacement 3.1 say its a 2 hour job does that sound about right
tard4 is offline   Reply With Quote
