Default What is this bushing?

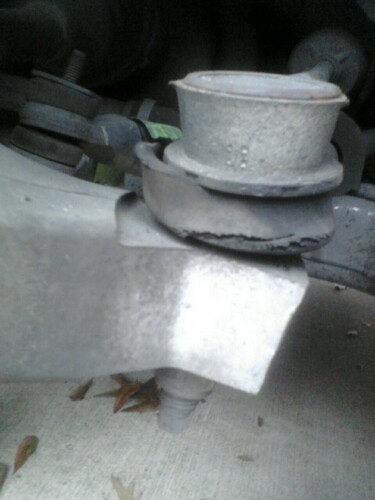

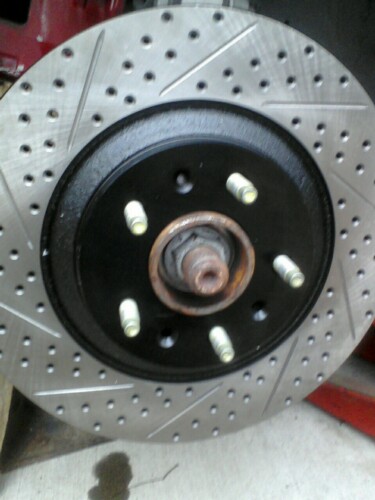

I installed new pads + rotors today and noticed a bushing that looks totally hammered. What is it called? (see pic)
Attached Thumbnails
What is this bushing?-bushing.jpg   What is this bushing?-rotor.jpg
JL is offline   Reply With Quote
Old 01-04-2011, 12:21 AM   #2
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Tie rod end bushing
sseidriver97 is offline   Reply With Quote
Old 01-04-2011, 12:23 AM   #3
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by sseidriver97 View Post
Tie rod end bushing lol
Actually, that'* not a bushing. That'* the grease boot that holds the grease inside the tie rod. Its likely that the grease has long dried up and the tie rods are probably shot.

Put the wheel back on, bolt it in, and wobble the wheel left and right while holding it at the 3:00 and 9:00 positions. If there'* play, that tie rod is gone and needs to be replaced ASAP. Its likely that the other side is just as bad, so check that too.
xtremerevolution is offline   Reply With Quote
Old 01-04-2011, 12:25 AM   #4
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Yeah yeah mister technical lol...But yes if its trashed like that your grease is probably gone
sseidriver97 is offline   Reply With Quote
Old 01-04-2011, 12:30 AM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Yep, going to need to change out the joint. Wont take long for water to get in there and rust it away to nothing. Then you will have slop.
Danthurs is offline   Reply With Quote
Old 01-04-2011, 01:25 AM   #6
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Yep, going to need to change out the joint. Wont take long for water to get in there and rust it away to nothing. Then you will have slop.
And wobble when going above 50mph, and excessive tire wear.
xtremerevolution is offline   Reply With Quote
Old 01-06-2011, 03:45 PM   #7
JL
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2007
Location: Tomball, TX
Posts: 87
Thanks: 0
Thanked 0 Times in 0 Posts
JL is on a distinguished road
Default

Yep that did the trick. I had both sides replaced plus a front end alignment.
