Default Under the hood questions

just trying to clear few things out

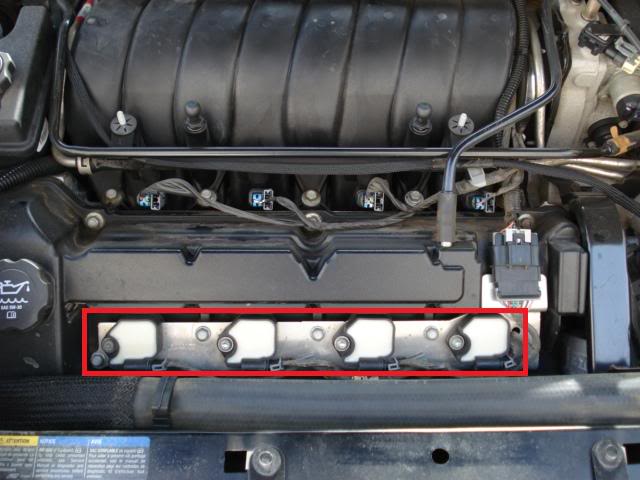

picture #1, is that where the spark plugs are sitting on the GXP?

Name:  DSC02353.jpg
Views: 1
Size:  47.8 KB

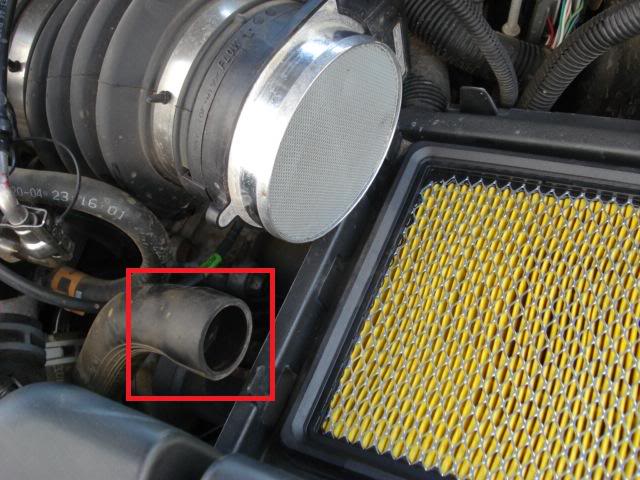

picture #2, what is this hose for? its coming to the intake box

Name:  DSC02356.jpg
Views: 1
Size:  63.0 KB

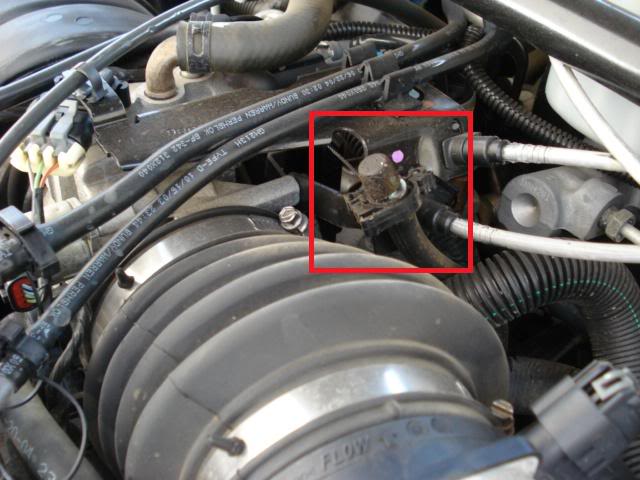

picture #3, what is this valve? or maybe socket?

Name:  DSC02355.jpg
Views: 1
Size:  51.3 KB

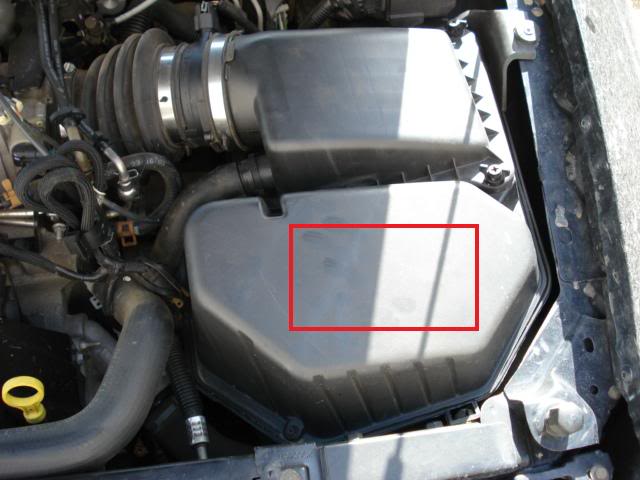

picture #4, whats in this box? PCM?

Name:  DSC02357.jpg
Views: 1
Size:  43.9 KB


thanks
samz
SAMzGXP is offline   Reply With Quote
Old 04-14-2010, 04:35 PM   #2
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Yep, the plugs are under them individual coil packs. Good Luck and God speed with the rear ones.

The hose goes to an air-pump. When you do alot of WOT'ing it likes to throw junk on the air filter. Some GXP mysteriously were missing that hose. I wonder if Friday they ran out of them at the plant and forgot to backtrac Monday.

Next little hose is a vent-off from your tranny. Surprised they didn't have our engines suck those vapors into our intakes also.

That box has the Air intake pipe hooked it to the front of it, and the passing air cools the PCM. I figure they made the first box bigger than the second to reduce restriction/improve airflow,
GXP Venom is offline   Reply With Quote
Old 04-17-2010, 01:14 AM   #3
Senior Member
Posts like a Turbo

Bville_GXP's Avatar

Join Date: May 2009
Location: South Carolina
Posts: 248
Thanks: 0
Thanked 0 Times in 0 Posts
Bville_GXP is on a distinguished road
Default

Those are some very good questions... I was wondering the same thing about all 3 pictured!!! Thanks for this post!!
Bville_GXP is offline   Reply With Quote
Old 04-18-2010, 01:26 PM   #4
Member
Posts like a V-Tak

Burgh Thing's Avatar

Join Date: Sep 2008
Location: Wisconsin
Posts: 70
Thanks: 0
Thanked 0 Times in 0 Posts
Burgh Thing is on a distinguished road
Default

So what is the best way to the rear plugs? From underneath?
Burgh Thing is offline   Reply With Quote
Old 04-18-2010, 07:46 PM   #5
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

No. It'* done from the top. You remove the sway bar, the EGR, then the back cosmetic cover and feel for everything you see in the front. First the coils packs, then the chrome retaining bar, then each plug. A tight fitting extension on the socket helps when bringing the plug out of the hole.
GXP Venom is offline   Reply With Quote
Old 04-22-2010, 01:31 PM   #6
Junior Member

Join Date: Apr 2010
Location: Southern, IL
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
lances42 is on a distinguished road
Default

Easiest way to replace the rear plugs..... Let someone else do it!!!
Lance
lances42 is offline   Reply With Quote
Old 04-22-2010, 02:19 PM   #7
Senior Member
True Car Nut
Thread Starter

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

Quote:
Originally Posted by lances42 View Post
Easiest way to replace the rear plugs..... Let someone else do it!!!
Lance
also the easiest way to know your car well is by doing the work yourself

to each his own, but i really enjoy working on my car, everything on my bonneville gxp was done at home, and same thing with my previously modded GTP. this way i know the job is done right, and if it wasnt im the only one to blame and bitch to lol
SAMzGXP is offline   Reply With Quote
Old 04-22-2010, 02:48 PM   #8
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Quote:
Originally Posted by SAMzGXP View Post
also the easiest way to know your car well is by doing the work yourself
X2
First time I did spark plugs on a 3800 I said "This is the last time I EVER do that", second time was a pain in the butt, took a lot less time though. Now I can swap them out in no time and know it was done right.
ymmot04 is offline   Reply With Quote
Old 04-22-2010, 02:53 PM   #9
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Yep. Your ready for the next level Tom. Take them out hot.
GXP Venom is offline   Reply With Quote
Old 04-22-2010, 02:57 PM   #10
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Luckily I haven't had to attempt that one yet. I did just get a nice new pair of gloves though, and I've got some long sleeve shirts. Just gotta stay away from those manifolds.
