tranny trouble codes/hard shifting - Page 3 - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Bonneville GXP/ Northstar Powered Cars Discuss your Bonneville GXP and/or any other Northstar powered Olds or Cadillac... Including the 3.5L Twin Cam V6 (Short Star ) 4.0L and 4.6L Northstar V8's. Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 11-11-2010, 12:45 AM   #21
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

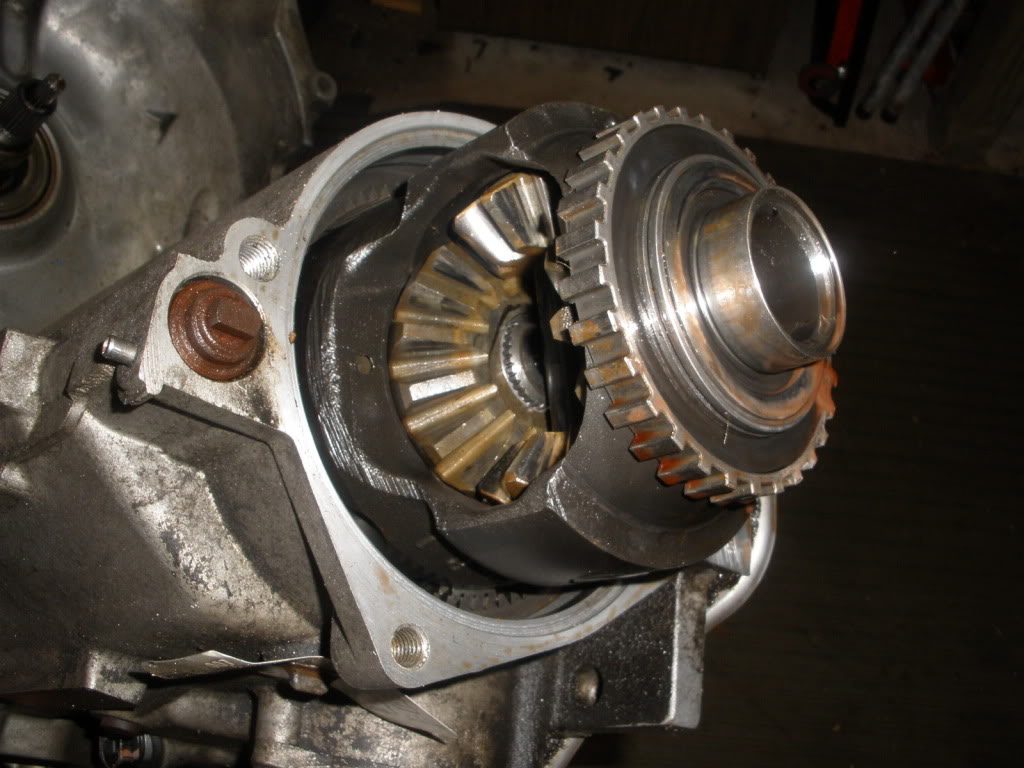

It'* possible the VSS reluctor wheel is gummed up. I would say remove the sensor and look in the hole with a flashlight. You should be able to see the wheel. Here'* what it looks like with the diff cover off. It'* the gear on the end. Each tooth should be clean.
Name:  PB230334.jpg
Views: 11
Size:  132.1 KB
Danthurs is offline   Reply With Quote
Old 11-11-2010, 06:17 PM   #22
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2010
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
victahmone is on a distinguished road
Default

cool. thanks. i'll check that out as soon as i get the car back.
victahmone is offline   Reply With Quote
Old 11-11-2010, 08:43 PM   #23
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2010
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
victahmone is on a distinguished road
Default

i got it back and the shop says all the electronics are good. it must be the reluctor wheel. does anyone know if the air gap would have anything to do with it? i haven't had a chance to check if it was gummed up or anything, but the shop said they checked it out and couldn't find anything wrong with it. it wasn't loose, not shifted, no teeth missing. i dunno what else to look for.
victahmone is offline   Reply With Quote
Old 11-11-2010, 09:29 PM   #24
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

I really don't see a gummed reluctor wheel doing this, or an 04 having any. Was the VSS sensor an OEM AC Delco? Did the shop check to see if it isn't defective?
GXP Venom is offline   Reply With Quote
Old 11-11-2010, 09:39 PM   #25
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

There is no way to adjust the gap between the sensor and the wheel. If it was me checking this, I would have my oscilloscope on that sensor. Possible causes are, bad reluctor wheel, bad sensor, bad sensor plug, bad sensor wires, problem in PCM. You have changed the sensor correct? You need to start removing what works, and the list will get smaller, until all that is left is what wrong. Start at the sensor and have the shop test with a oscilloscope. If the wave form looks good, then test the sensor again at the other end of the wires. Another possibility is your spark plug wires are laying on the wiring harness. Make sure the plug wires are not touching other wires.
Danthurs is offline   Reply With Quote
Old 11-11-2010, 10:09 PM   #26
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Dan your putting alot of 3800 retrospect into this. We don't have spark plug wires.
GXP Venom is offline   Reply With Quote
Old 11-11-2010, 10:11 PM   #27
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Scratch that part then. See, the list is already shorter.
Danthurs is offline   Reply With Quote
Old 11-11-2010, 10:12 PM   #28
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

LOL, and the shop says the reluctor and wiring good. Really wondering if he got a bum sensor. It happens.
GXP Venom is offline   Reply With Quote
Old 11-11-2010, 10:28 PM   #29
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

DOA is always possible. That'* why I suggest testing the wave form. This will say without doubt, if the sensor is good or bad.
Danthurs is offline   Reply With Quote
Old 11-11-2010, 11:01 PM   #30
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Nov 2010
Posts: 13
Thanks: 0
Thanked 0 Times in 0 Posts
victahmone is on a distinguished road
Default

well they tested it with another sensor and got the same voltage output. i got another sensor and it still did the same thing. they checked the reluctor wheel, the wiring, i changed the connector, and everything else looks and checks out fine. i think i'll have to take it to the... dealership. don't really wanna take it to them to hear some bullcrap, but sounds like i may have to.
victahmone is offline   Reply With Quote
