Opening up the Northstar's air box - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Bonneville GXP/ Northstar Powered Cars Discuss your Bonneville GXP and/or any other Northstar powered Olds or Cadillac... Including the 3.5L Twin Cam V6 (Short Star ) 4.0L and 4.6L Northstar V8's. Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 07-15-2005, 09:17 AM   #1
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2005
Posts: 45
Thanks: 0
Thanked 0 Times in 0 Posts
GreystoneGXP is on a distinguished road
Default Opening up the Northstar'* air box

I have been reading on a Northstar performance site about opening up the air box. This one done to a 4.0L Northstar from an Aurora, and gave an 8 h.p. increase witha K&N filter. Has anyone done anything similar to the GXP'* air box? If so, were the power gains similar?

Here is the link to the site: http://www.caddyinfo.com/dyno/auroraair.htm
GreystoneGXP is offline   Reply With Quote
Old 07-15-2005, 12:06 PM   #2
Senior Member
Posts like a Turbo

Join Date: May 2005
Location: West Chester, PA
Posts: 351
Thanks: 0
Thanked 0 Times in 0 Posts
auroradude is on a distinguished road
Default

I dont think i got 8hp by doing that to mine................
auroradude is offline   Reply With Quote
Old 07-15-2005, 01:10 PM   #3
Junior Member

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Custom88 is on a distinguished road
Default

we have the same airbox on my Aurora and your GXP. I gutted it out and noticed a much nicer engine sound. It almost sounds like a turbo. lol. at high RPM'* it has a whistle to it at times.

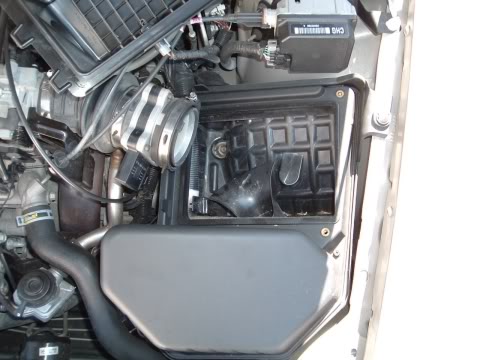

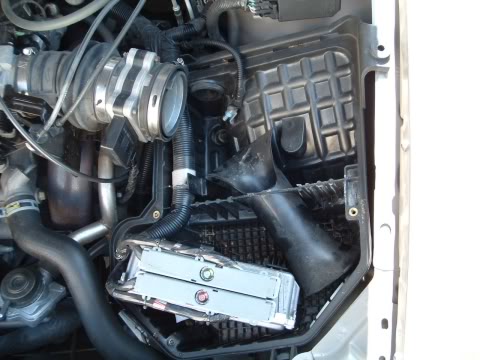

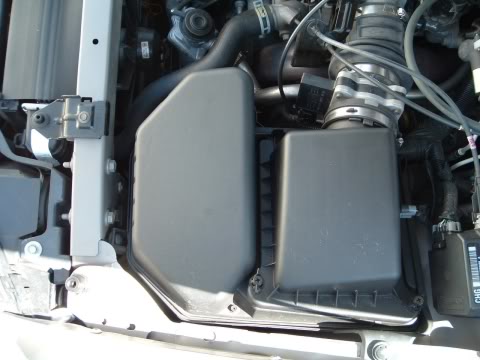

Stock air box:
Name:  DSCF1074.jpg
Views: 23
Size:  30.1 KB
Name:  DSCF1073.jpg
Views: 24
Size:  34.4 KB
Name:  DSCF1066.jpg
Views: 32
Size:  36.5 KB

It'* pretty restrictive..

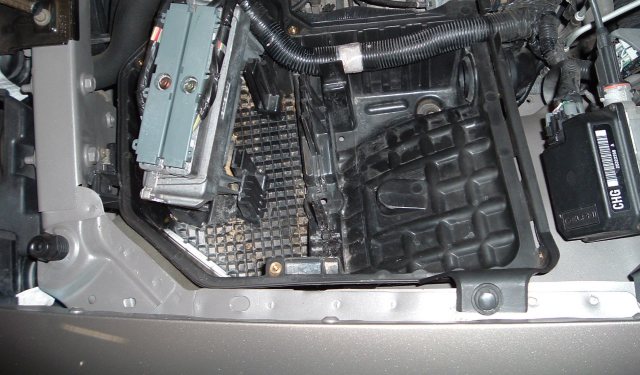

My modded airbox:
Name:  ab5.jpg
Views: 27
Size:  56.6 KB

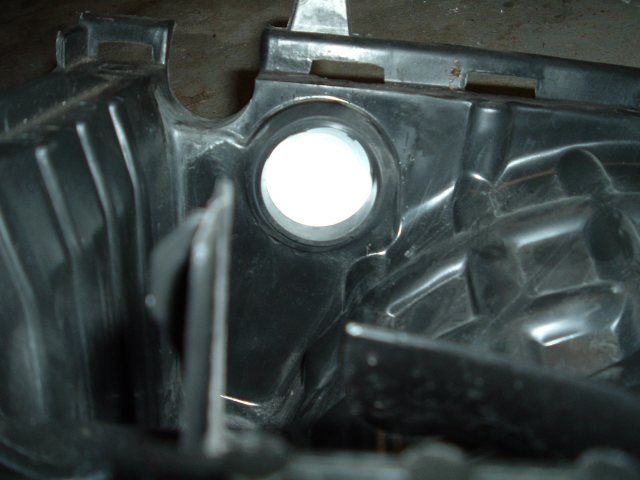

Below picture shows how I plugged off the airbox resonator.. It made the intake noise much deeper.
Name:  ab3.jpg
Views: 18
Size:  40.6 KB

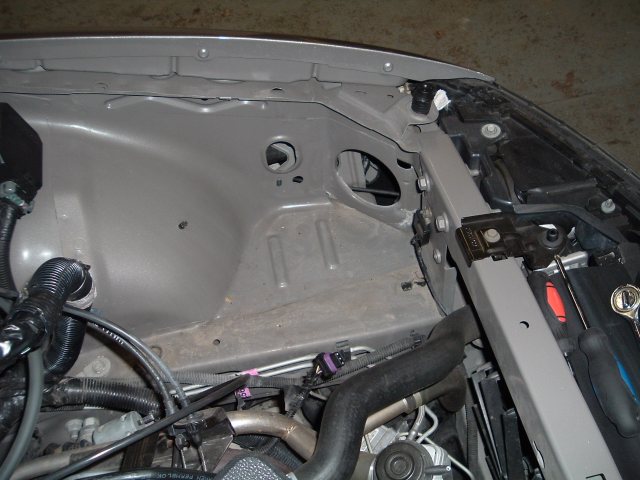

aurora with no airbox:
Name:  ab1.jpg
Views: 19
Size:  55.3 KB


in all gutting out the airbox increased throttle response and passing power. On the 4.6 I am sure it'd be even more of a gain.. It should really liven up your engine! I'd highly recommend it. I still need to do something with my airbox though to smooth the airflow out a bit. the waffled bottom can't be so great for performance. I don't know what to use to fill it in so I can mold the right shape, and it'd harden when it dries. I'd rather not mess with fiberglass..
Custom88 is offline   Reply With Quote
Old 07-15-2005, 02:35 PM   #4
Senior Member
Expert Gearhead

Join Date: Dec 2002
Location: Mississauga, Ontario
Posts: 20,892
Thanks: 0
Thanked 1 Time in 1 Post
Jim W is on a distinguished road
Default

8 HP, with a proper exhaust mod, netting +18-20 combined bHP. But the GXP exhaust sounds proper already...dont change it

5 tops without an exhaust modification, but the sound will be noticably more whiny!
Jim W is offline   Reply With Quote
Old 07-20-2005, 02:03 AM   #5
Senior Member
Posts like a Turbo

Join Date: May 2005
Location: West Chester, PA
Posts: 351
Thanks: 0
Thanked 0 Times in 0 Posts
auroradude is on a distinguished road
Default

The first thing I would do to a GXP is rip off the stock mufflers and weld some Dynomax Super Turbos on there. Good thing i didnt get a SSEi afterall, I would have gotten carried away with all the mods there are for them. Ofcourse all the mods are really cool and everything, but I'd have no money.
auroradude is offline   Reply With Quote
Old 07-20-2005, 02:13 AM   #6
Junior Member

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Custom88 is on a distinguished road
Default

Quote:
Originally Posted by auroradude
The first thing I would do to a GXP is rip off the stock mufflers and weld some Dynomax Super Turbos on there.
why in the world would you want to make the GXP sound like crap? I can only assume you have never heard the GXP exhaust.. it sounds so much better than a dynomax muffler!. The GXP exhaust note is just best described as "music" to the ears.
Custom88 is offline   Reply With Quote
Old 07-20-2005, 02:29 AM   #7
Senior Member
Posts like a Turbo

Join Date: May 2005
Location: West Chester, PA
Posts: 351
Thanks: 0
Thanked 0 Times in 0 Posts
auroradude is on a distinguished road
Default

Well no i havent. I mean the 2005 with the 275horse 4.6. Do you have any you can show me? I am too lazy to go Googling right now.

Damn i really wish i could just drop in a 4.6 from an STS. If its possible, I am doing it.
auroradude is offline   Reply With Quote
Old 07-20-2005, 03:34 AM   #8
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Climax Springs, Missouri
Posts: 2,493
Thanks: 0
Thanked 0 Times in 0 Posts
LittleHoov is on a distinguished road
Default

"Turbo" mufflers usually dont flow all that well, theyre probably better than stock, but originally turbo mufflers were designed to increase backpressure on turbocharged cars because of their lack of backpressure....so they arent the flowinest thing out there.
LittleHoov is offline   Reply With Quote
Old 07-27-2005, 09:01 PM   #9
Member
Posts like a V-Tak

Join Date: Jun 2004
Location: Wood River, IL
Posts: 66
Thanks: 0
Thanked 0 Times in 0 Posts
sahensley is on a distinguished road
Default

I added Flowmasters to mine the day after I got it and have not regretted it yet, much deeper growl!! I too have gutted my airbox, but not as much as the pics here. I think I am going to do more this weekend. Does anyone know how far the throttle body can be overbored without problems on the GXP'*? I am thinking of doing this next since we have had now help from the experts on this site for more HP from the GXP'*!
Scott
sahensley is offline   Reply With Quote
