Default GXP Motor Mounts

My GXP is going in for some service today, and i thought i should check the motor mounts maybe they are gone bad

This was about the best video i can take. Any idea if this movement means anything? or do i need a better video?



Emergency brake is off.
Car is in drive, while holding the brakes I'm barely touching the gas pedal. Did i do it right?
Attached Thumbnails

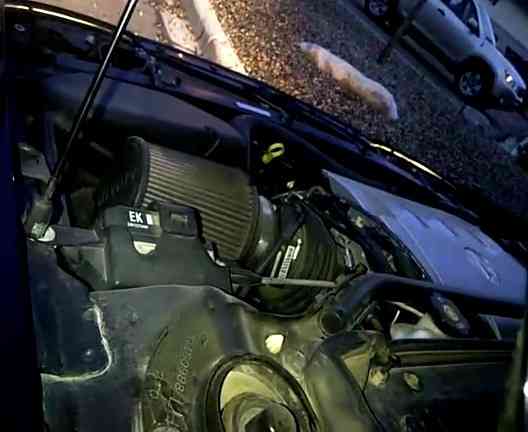

GXP Motor Mounts-th_vid-20110727-00019.jpg
SAMzGXP is offline   Reply With Quote
Old 07-28-2011, 10:48 AM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That don't look to bad. Try this. Engine off, in park, then start rocking the car back and forth. Watch the engine. It will move a bit, you want to watch for any large movements or anything contacting.
Danthurs is offline   Reply With Quote
Old 07-28-2011, 10:53 AM   #3
Senior Member
True Car Nut
Thread Starter

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

I will try that in a bit. Now the movement in the above video is that normal or there is something unusual?
SAMzGXP is offline   Reply With Quote
Old 07-28-2011, 11:09 AM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I don't think it looks that bad. Like I said, it'* contact that you don't want. When your rocking the car you should be able to look down and see the front mount. Look for any tears in the rubber. A sure sign a mount is bad is you will feel a bounce when accelerating and shifting gears. Cruise control will really show this when you go up or down a hill. You will feel the car bounce but the RPMs will stay the same.
Danthurs is offline   Reply With Quote
Old 07-28-2011, 09:16 PM   #5
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Doesn't look out of the ordinary. I'll check mine tomorrow if I get a chance. It should be fired up anyway....
GXP Venom is offline   Reply With Quote
Old 07-28-2011, 09:25 PM   #6
Junior Member

Join Date: Nov 2009
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
maxster92 is on a distinguished road
Default

Mine rocked like that too, and I thought I had a problem. After I looked at this forum and what was involved with the job, my brother-in-law hooked me up with a friend of his' kid who is a certified GM mechanic that works at a Caddy dealership and does work on the side. I actually had him order the mount for me before he looked at it, I was so convinced it was bad. When he got a look at it, said it was fine. It had actually already been replaced at sometime before I bought it at 32K, so it was probably under warranty with previous owner. Bottom line, he said the same as Danthurs, watch for rub anywhere, and for leak or tears at mount, since it'* hydraulic. I ended up with a sparte mount which I was told I will need eventually. Oh yeah, and also a great mechanic for my ride!
maxster92 is offline   Reply With Quote
Old 07-28-2011, 09:33 PM   #7
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

Hey Scott,

What are you driving?

PS: Welcome to the forum!
ymmot04 is offline   Reply With Quote
Old 08-20-2011, 12:01 AM   #8
Junior Member

Join Date: Nov 2009
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
maxster92 is on a distinguished road
Default

'05 GXP. Picked it up a Oct. '09 at 32K and it now just turned 87,000 (I do a lot of road trips). Still runs great. Had the usual issues mentioned in this site (excellent reference, by the way), but nothing major. I plan to be driving it for a quite a long time.
Attached Thumbnails
GXP Motor Mounts-bonny-fr.jpg   GXP Motor Mounts-bonny-rr.jpg
maxster92 is offline   Reply With Quote
Old 08-20-2011, 12:20 AM   #9
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Looks great, I love that grey. Welcome to the GMForum.
GXP Venom is offline   Reply With Quote
Old 08-21-2011, 05:58 PM   #10
Senior Member
True Car Nut
Thread Starter

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

Looks great Scott! love the color


PS. My engine mount was toasted, and its replaced under warranty

along with that repair they replace crankcase gasket, coolant crossover gasket, heated seat module, and now my car is making some weird engine noise, it goes back in on the 30th.

Also car is consuming gas like a ****!
SAMzGXP is offline   Reply With Quote
