Default Cluster Issue with pics (updated)

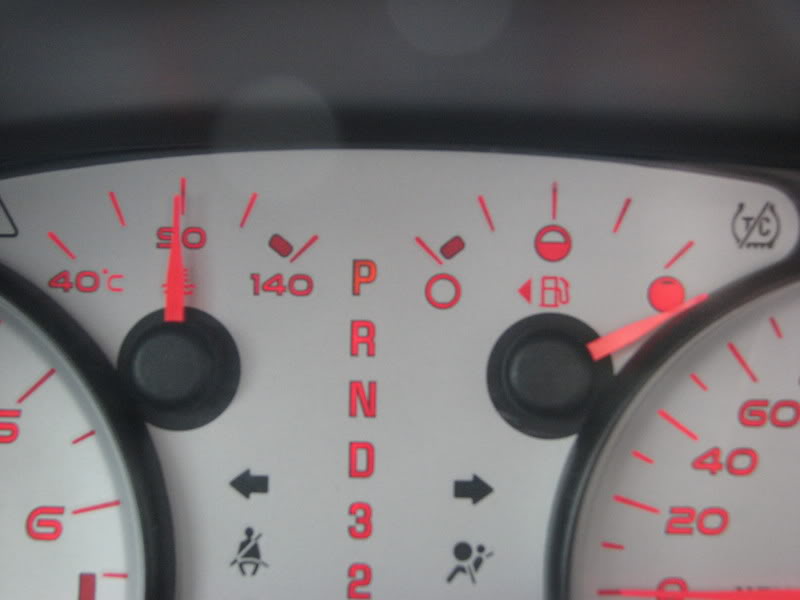

Last week I launched pretty hard with a full tank of Gas. I later noticed the dial past full resting on the dash. since then it hasn't worked right. It is covered by Warranty but im wondering if the gauge is separate from the cluster (is it something i can order and replace) with out having GM do it ???


Oh and Just to let ya'll know i have so far gotten 710kms from this tank of fuel lol

Name:  IMG_0129.jpg
Views: 2
Size:  36.2 KB
ReallyAGXP is offline   Reply With Quote
Old 02-10-2007, 04:09 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

Its very possible your fuel sender failed...that is does the gauge STAY at full even after you turn it off?

If it stays on after you turn the car off its probably the cluster...if its stuck on full it may be the sending unit.
Hans is offline   Reply With Quote
Old 02-10-2007, 10:28 AM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

it differs Hans sometimes it works others it doesnt. And like i mentioned i launched pretty hard and i believe i stripped the pin....

If it were the sending unit the DIC wouldn't be dead on would it ?
ReallyAGXP is offline   Reply With Quote
Old 02-12-2007, 01:08 PM   #4
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

ell it turns out it is the Cluster i forgot the PT# but the cost almost made me jump for joy (having a warranty) $897.59 plus 14% tax for a grand total of $1023.25 plus install lol

all this for a fuel gauge
ReallyAGXP is offline   Reply With Quote
Old 02-12-2007, 02:31 PM   #5
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

does the GXP do the sweep of the gagues like the SSEI??

if yes.....
does the fuel gague do the sweep
1993 SLE is offline   Reply With Quote
Old 02-12-2007, 05:17 PM   #6
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

nope, i mean it does... but the fuel gauge does other things...
ReallyAGXP is offline   Reply With Quote
Old 02-12-2007, 06:49 PM   #7
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Ummmmmmmm..... WTF. Man......tough call Eh? I would say the float is stuck, it may just need a nudge. Just what does the gauge do when the rest do the initial sweep? If it moves any, the gauge cant be stuck or stripped, and if the pin were stripped, it seems it would fall to empty. That price must be for th entire cluster no???? What a predicument. Definately time to go see Mr Goodwretch.
GXP Venom is offline   Reply With Quote
Old 02-12-2007, 06:55 PM   #8
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

Oh for sure i went this morning and they pulled the sending unit tested good..

they ARE replacing the whole cluster at that cost to them hehehe

i thought tho that they could just fix the gas gauge but it isn't like that..

BTW i found a second cluster for 150.00 to do my LED swap with
ReallyAGXP is offline   Reply With Quote
Old 02-12-2007, 07:03 PM   #9
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Hard to believe a hard launch could screw the gauge up isnt it. Dam. Reminding self not to launch with a full tank. Hard to believe they have to replace the entire cluster x2. Ridiculous isnt it.
GXP Venom is offline   Reply With Quote
Old 02-12-2007, 08:38 PM   #10
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

well thats the problem with Automakers today... COST.
