I still haven't taken the car to the dealership yet. I was hoping that the overflow tank was burping out the extra fluid I put in. It'* been three days now and I haven't seen a drop of antifreeze on the driveway. My low coolant level light isn't illuminating and the fluid level is still visible/acceptable according to the overflow tank callouts. I'm sure hoping that my problem is corrected now, but if not, I'll be taking it in for sure for a thorough check and repair.
I feel for you owners that have had a bad experience with these GXP'*. Had I bought one brand new, I'd be having a cow over all of the problems that have been mentioned. I bought mine just recently, fully knowing of all these issues, but tried to be prepared by getting a full warranty on the car. I don't know if buying the car makes me an idiot, or an avid Bonneville GXP fan! All I know is that I love the car'* looks, it'* comfort, it'* ride, and the exhaust tone! I've owned it now for about 2 1/2 weeks and my wife hasn't driven it until tonight. She couldn't understand why I wanted one of these cars so bad. She thought it was another one of my "cool car" dreams. After her first trip down the drive way and onto the freeway, she called me to let me know she now understands why I bought the car Now...if anything breaks and it has to be fixed, not only will the warranty take care of me, but my wife will be more understanding of why I purchased the car!

If my leak reappears, I'll let everyone know what has happened and what the fix is.

By the way, who can help me with my production numbers and finding out anything specific about my car in comparison to all the other GXP'* out there? I don't even know how many were made for 2004. Was it 2034?
Gary Willard is offline   Reply With Quote
Old 02-03-2009, 10:55 AM   #12
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

I've had some problems with mine but things seem to have settled quite nicely over the past 6 - 9 months. Nothing lately but routine maintenance. I hope things turn out well for you too. I do believe these are very nice cars, otherwise I wouldn't own one.

As for production numbers... I can't speak for the US but for the 2004 model year, there were 232 imported into Canada for sale. 47 of them were Graystone Metallic and 136 were equipped with HUD. Mine was built April 26, 2004
ddalder is offline   Reply With Quote
Old 02-03-2009, 12:00 PM   #13
Junior Member
Posts like a Ricer Type-R

CrossMi's Avatar

Join Date: Nov 2008
Posts: 22
Thanks: 0
Thanked 0 Times in 0 Posts
CrossMi is on a distinguished road
Default

being on of the few owners in Canada, Im happy to say Im the ONLY owner of a GXP in the Northwest Territiries....I kinda like that...I still have my Grand Prix and even up here I see them all the time...Sure the car can be a PITA...but to me...all the frustrations aside...its sucha sweeet ride....
CrossMi is offline   Reply With Quote
Old 02-04-2009, 08:53 PM   #14
Member
Posts like a V-Tak

Join Date: Jul 2007
Location: Sterling Heights, MIchigan
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
BonneGXP05 is on a distinguished road
Default

I have an appointment to take my car into the dealer on Monday to have it checked out. I smell antifreeze whenever I pull it into the garage when it'* hot. I haven't seen any leaks on the floor, but the smell is strong. I hope it'* just the cross over since many of you have had that fixed. Even if it'* the water pump, it'* still under warranty until 3/26. I want to get the GMPP extended warranty since I can't see buying a new car. This one just turned 13k this month. Can some of you give me an idea of what you paid for the extended warrany so I'll know what to expect when I go to the dealer on Monday. I though I might as well sign up for it while I'm there. Thanks
BonneGXP05 is offline   Reply With Quote
Old 02-04-2009, 10:36 PM   #15
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Mine was thrown in the "mix" when I bought the car new. There were alot of adds and subtractions, as I bought the car "new" but had been in the showroom for 14 months. But I think it was 70K miles for $1600. I'll have to dig for the paperwork in the glovebox and get back to ya.
GXP Venom is offline   Reply With Quote
Old 02-07-2009, 04:41 PM   #16
Member
Posts like a V-Tak

Bill's GXP's Avatar

Join Date: Nov 2008
Location: New Jersey
Posts: 93
Thanks: 0
Thanked 1 Time in 1 Post
Bill's GXP is on a distinguished road
Default

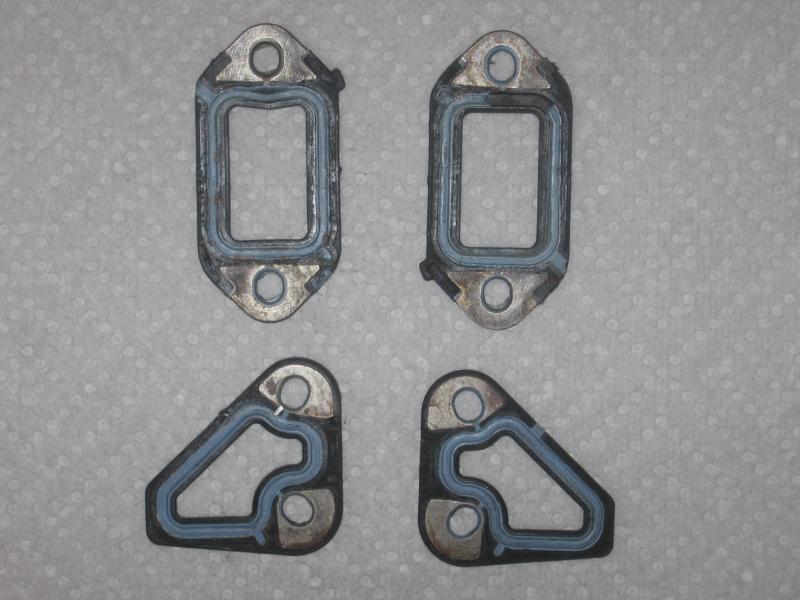

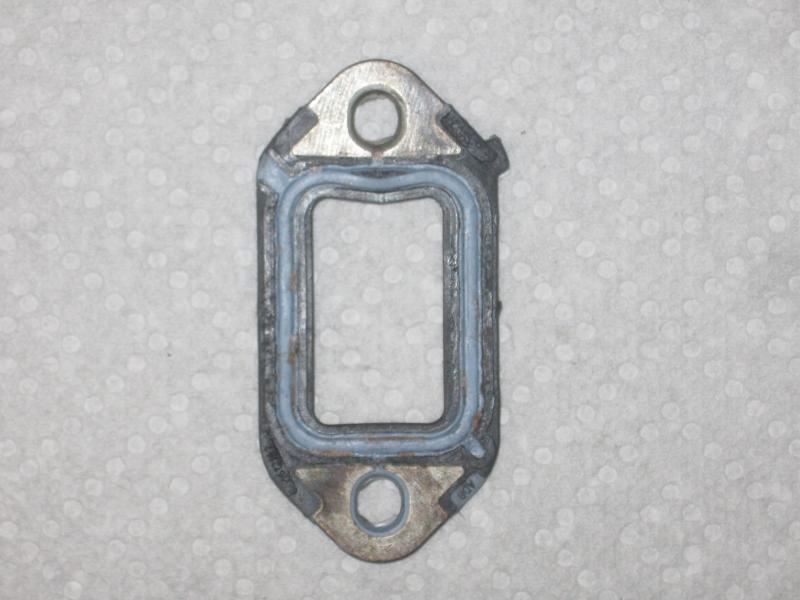

Well Gentlemen, here is the culprit. The dreaded water crossover gaskets. I received my car back from the service facility today and these are the gaskets that failed. If you look at the one in the upper LH corner, you'll see a small abnormality in the top of the gasket where the water flows.. This is where it cracked, hence having the anti-freeze leak and smell. The single photo shows it with more detail, I hope. The technician said the job wasn't that bad, just the lower gasket bolts had to be wrenched off by hand. No air tools there.
Attached Thumbnails
04' Bonneville GXP antifreeze leak-img_0670.jpg   04' Bonneville GXP antifreeze leak-img_0671.jpg
Bill's GXP is offline   Reply With Quote
Old 02-07-2009, 04:51 PM   #17
Member
Posts like a V-Tak

Bill's GXP's Avatar

Join Date: Nov 2008
Location: New Jersey
Posts: 93
Thanks: 0
Thanked 1 Time in 1 Post
Bill's GXP is on a distinguished road
Default

Quote:
Originally Posted by Gary Willard View Post
By the way, who can help me with my production numbers and finding out anything specific about my car in comparison to all the other GXP'* out there? I don't even know how many were made for 2004. Was it 2034?
I contacted Pontiac CS and they gave me the numbers in my signature
Bill's GXP is offline   Reply With Quote
Old 02-09-2009, 01:59 AM   #18
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Thanks for sharing the photos. It looks like this crossover gasket is becoming a common issue here. Like we need another one. Grrrrrrrrrrrr.
GXP Venom is offline   Reply With Quote
Old 02-09-2009, 08:16 PM   #19
Member
Posts like a V-Tak

Bill's GXP's Avatar

Join Date: Nov 2008
Location: New Jersey
Posts: 93
Thanks: 0
Thanked 1 Time in 1 Post
Bill's GXP is on a distinguished road
Default

I asked them If they could replace the GM supplied gaskets with better ones such as Fel-pro. He said that was not an option, as Fel-pro probably made the ones for GM. I felt that I was getting gaskets replaced with the same ones that failed. It was covered under my extended warranty, which cost $700.70. It also came with a 12 mo/12K warranty on the repairs. BTW, those gaskets are hard like they are made of a phenolic material, so I was surprised to see them crack as they did. Unlike others here, I baby this car. No racing or excessive speed, so I'm a little dismayed at how it'* been holding up.
Bill's GXP is offline   Reply With Quote
Old 02-09-2009, 09:07 PM   #20
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

GM went to alot of trouble rethinking gaskets and Coolant content after the first Dexcool catastrophe. It makes me wonder is there is a casting problem, heat warpage, or a guy in Detroit, Michigan who is used to steel blocks, overtorqueing on an all aluminum engine. Hammer down Bill. It'* works for me. Wait,..... whats that hissing I hear.
