Default They said it couldnt' be done!

Well, I was stubborn as usual and thought that I would be able to install a double-din Headunit in my car. The dash dimensions on my Aurora and the 2000+ Bonneville are the same, other than my dash opening is 7.25" at the top, and 6.75" wide at the bottom. I was told by various companies and other people that it wouldn't fit. I didn't listen, and this is what it got me.



































It fit perfectly through the dash opening!!!

The only insallation issue I had (which was pretty major) was that the dash was not DEEP enough. Toastedoats (Aaron) warned me of this, and he was absolutely right!

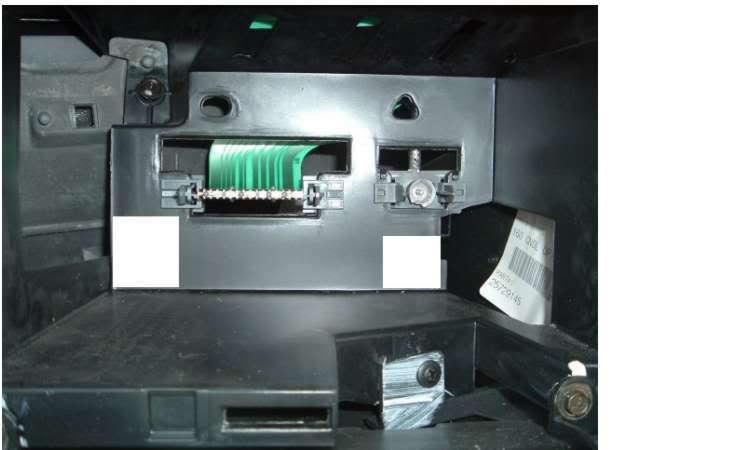

The spots that I cut out of my dash cavity can be seen in the picture below. I didn't get an actual picture of what I did, but the whtie boxes below represent the areas I had to cut out for the wire harness (right) and the RCA cables (left) to fit through.
Name:  dashcavity.jpg
Views: 1
Size:  24.9 KB

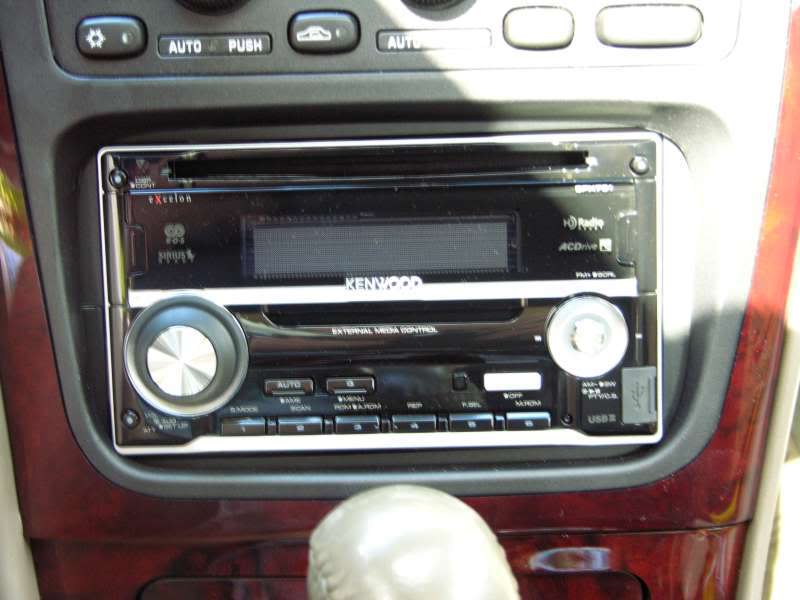

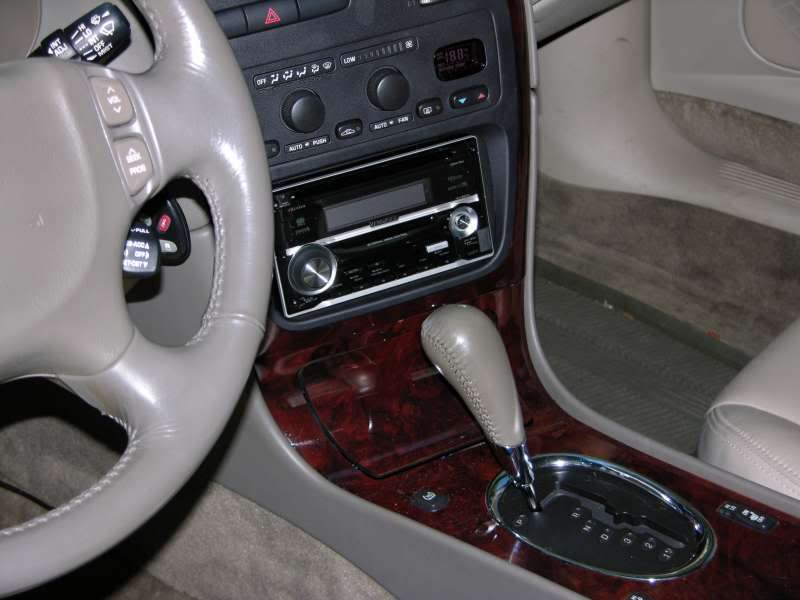

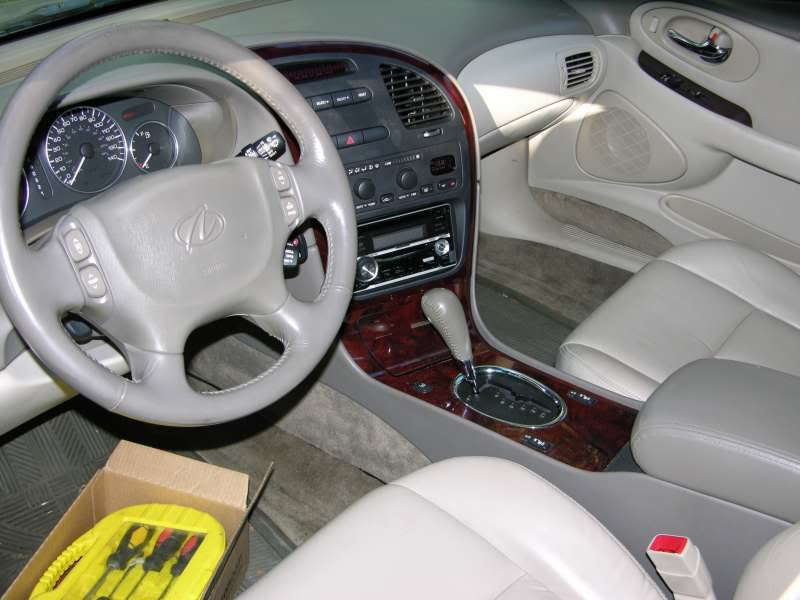

Here'* the unit fully installed in the dash. I'ts a perfect fit!
Name:  kenwoodinstalled.jpg
Views: 1
Size:  45.0 KB
Name:  kenwood4.jpg
Views: 1
Size:  46.8 KB
Name:  kenwood2.jpg
Views: 1
Size:  41.3 KB

Here is what the display shows when you turn the unit on:
Name:  kenwoodnight.jpg
Views: 1
Size:  10.7 KB

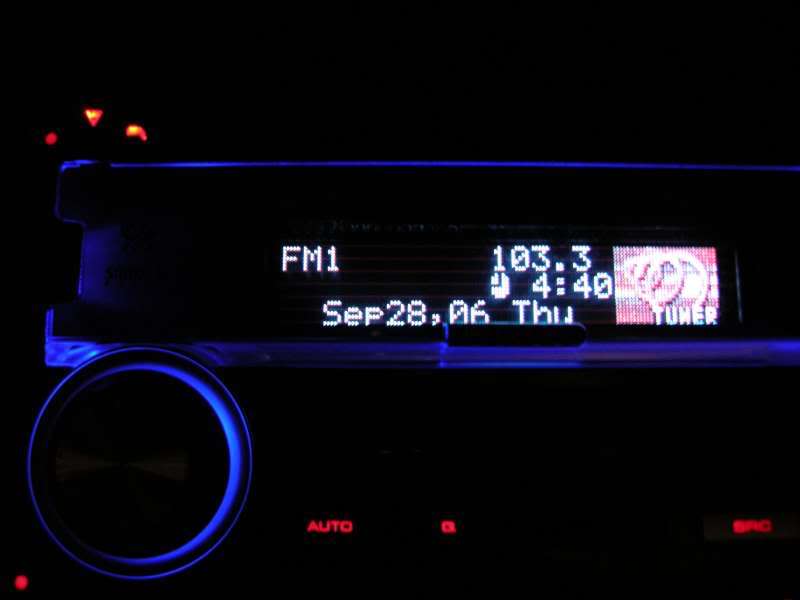

And while you play a cd or listen to the radio:
Name:  kenwooddisplay.jpg
Views: 1
Size:  18.9 KB
The color of the text can be changed to red/orange, yellow, white, or blue. I have it set on blue.

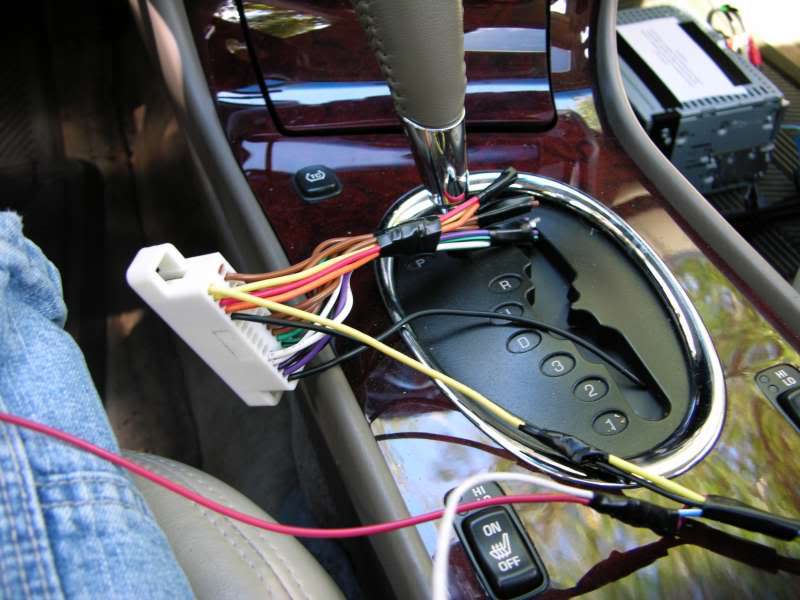

This is the wire harness that plugs into the factory ribbon cable. out of all these wires I only used TWO of them! the ground, and constant hot (yellow)..
Name:  harness2.jpg
Views: 1
Size:  57.2 KB

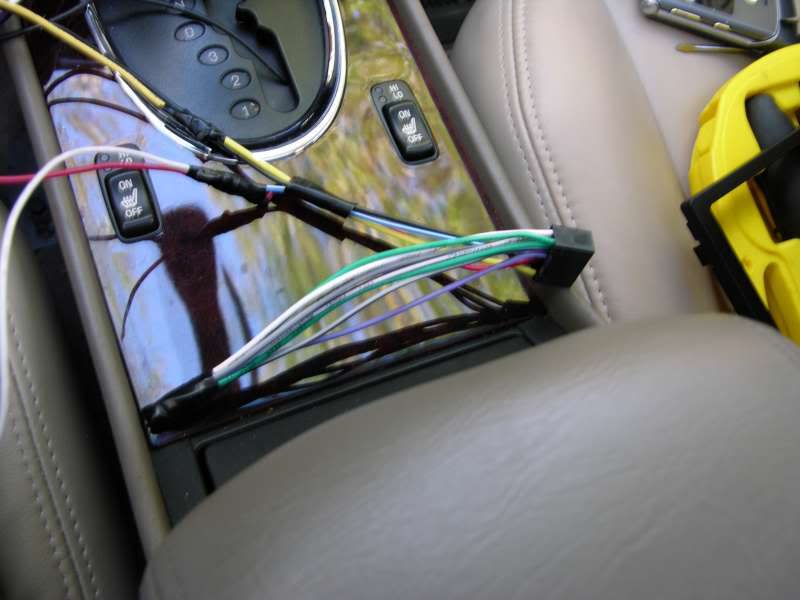

This is the Kenwood side of the harness.. only four wires connected here. switched ignition power (source is the positive side of cigarette lighter wiring), amp turn-on leed, ground, and constant hot.
Name:  harness.jpg
Views: 1
Size:  40.3 KB

All connections are soldered. the ribbon cable AND the antennae MUST be unclipped from the back of the dash cavity to provide clearance! The both of them are just hanging behind the dash cavity. It'* all plastic behind there, so there'* not a worry of anything shorting out! You'll need a motorola style of antenna adapter for the 2000+ Bonneville.

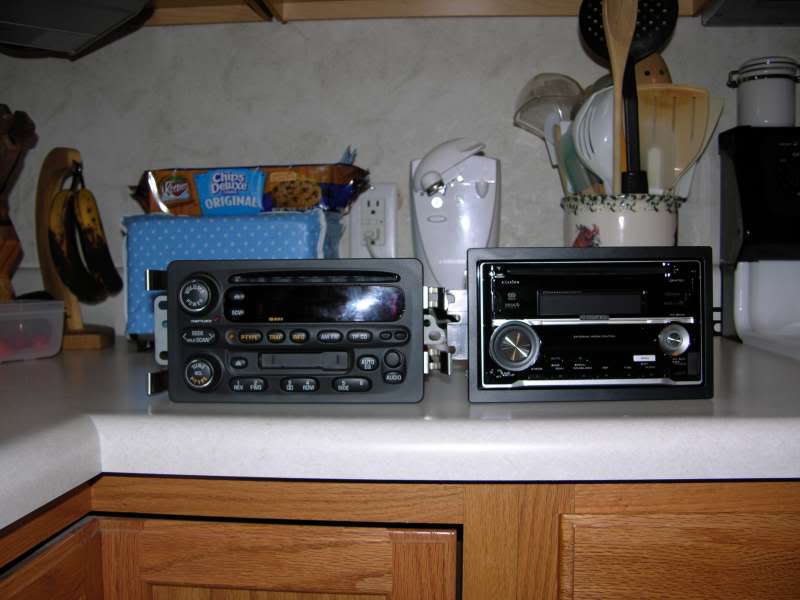

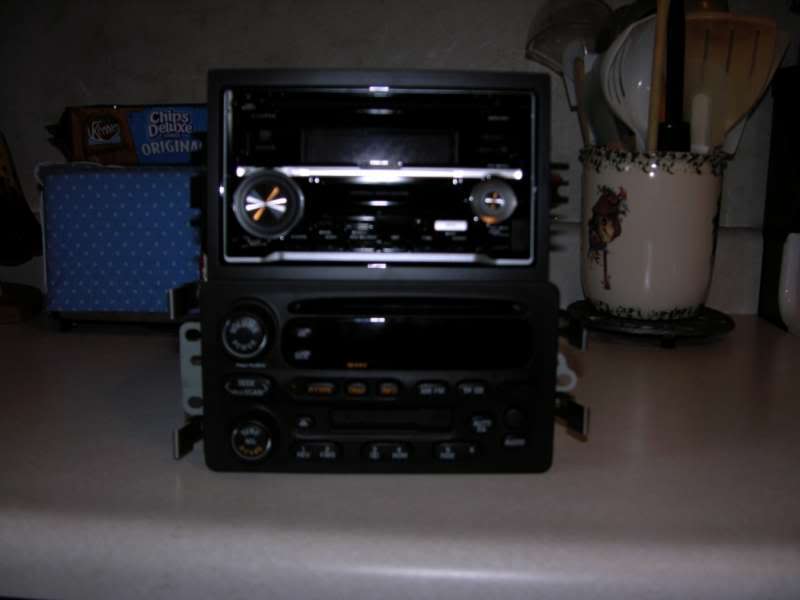

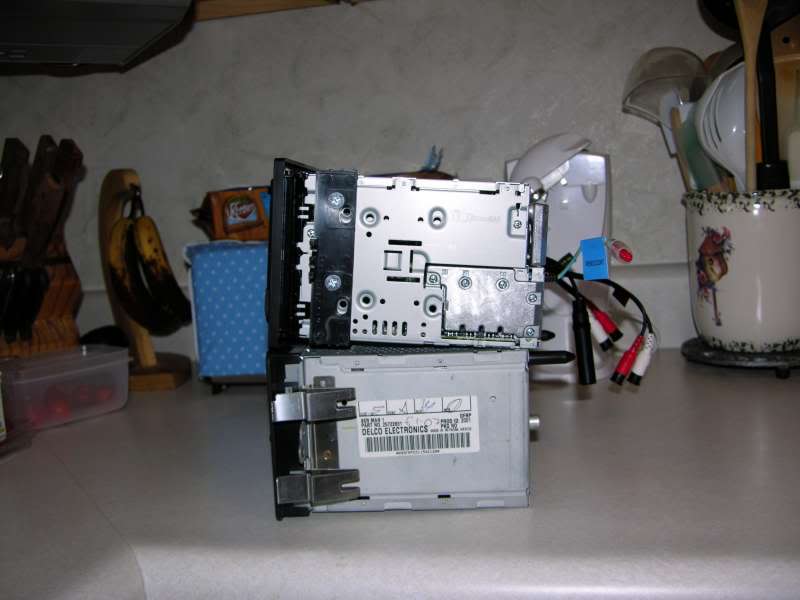

Last but not least, here'* the stock headunit in comparision to the Kenwood. They're very close in dimensions!
Name:  stockandkenwood3.jpg
Views: 2
Size:  23.3 KB

Name:  stockandkenwood2.jpg
Views: 2
Size:  42.9 KB

Name:  stockandkenwood.jpg
Views: 1
Size:  35.5 KB

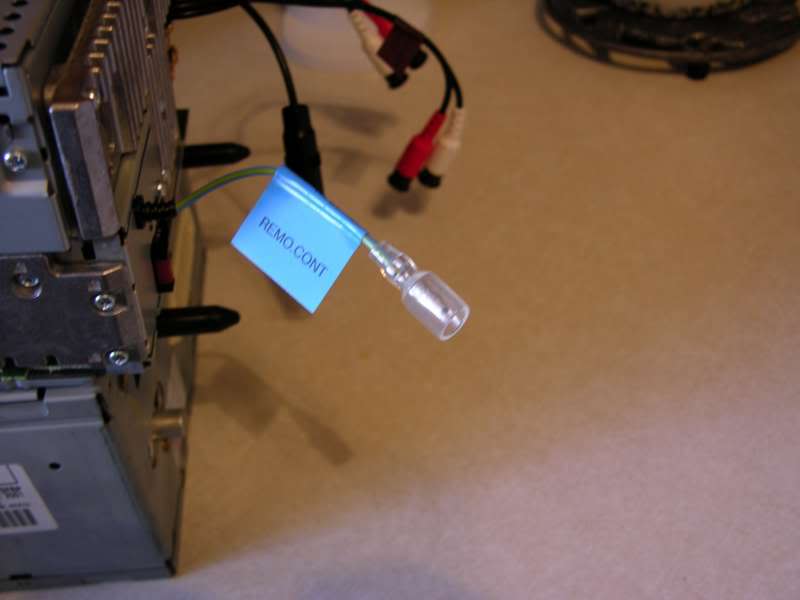

Here is the remote control wire to connect an adapter for my steering wheel controls.. I'm not sure where to get one, but I REALLY WANT to get one! Anyone know where I can get one??
Name:  remotecontroll.jpg
Views: 1
Size:  23.0 KB


In all, this job wasn't too bad, just had to be careful and measure things out! The installation in all took me right around 2 hours because of the cutting that was required to my dash. If it weren't for that, it wouldn't have taken so long! Also, if you don't use RCA cables, and jus tuse the internal amplifier, ther'es a chance you wouldn't have to cut the back of the dash. I cut it in a way however that the stock radio can be put back in if I so choose. Any questions or comments? Thanks!


Lastly, I would like to thank Aaron for his ideas and help throughout this project. It was really helpful to work with another person during this!! Thanks man!
