Default Steering Wheel Controls : FIXED

when my parents bought the car in '95, it was a company car for Alltel, anyway since we got it the steering wheel controls havn't worked...any ideas?

is this a common problem?
could it be related to the radio?

i just wnat to get a bit more info...and then maybe see what i can do about it...cuz over the summer i plan on fixing things...i just wish summer would get here...and im sure im not alone
93-SSE is offline   Reply With Quote
Old 03-14-2006, 07:39 PM   #2
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

92-95 Steering wheel controls fix

For those who have 'mushy' controls, non-working controls, or controls that seem to degrade their sensitivity with higher temperatures, this procedure is for you:

To remove the controls:

1. Disconnect the negative battery cable.
2. Pull the SIR fuse from the main fuse panel.
3. Remove 4 torx screws from back of steering wheel.
4. Disconnect the horn, stereo control, and SIR connectors.

NOTE: Disconnect the copper spade terminal from the back of the airbag assembly when disconnecting the horn. The other end (down in the column) is very fragile and brittle.

5. Remove the airbag assembly.
6. Remove the backing plate from the airbag assembly (4 screws to the assembly, 2 each to each stereo control pod).

At this point, you can remove the piece of tape on the control harness, and you have both pods and the harness seperated. Remove the 2 nuts on each assembly VERY carefully. DON'T open the pods yet.

At this point, you have a decision to make. Repair the old rubber pins, or replace them with round toothpicks. If you're going back to nature with the wood, cut round toothpicks to the same length as the rubber pins. Cut both tapered ends off in the process. If you're repairing the original rubber pins, follow on:

Get something like a large bowl to open the pods over. Small parts like to drop out. After opening the pods, you'll see 4 small rubber pins in the button half of the assembly. These need to be removed. Gently tap them upside down, if that doesn't work, use a straight pin to gently coax them out, but only from the small center hole, not the outer perimeter.

After all 8 pins have been removed, inspect the small end for 'mushrooming' or fraying. Carefully trim any of this off, leaving a small chamfer around the small end face. Clean all 8 pins with rubbing alcohol, and wash your hands. No oils or grease for awhile.

Mix up a small batch of JB weld or similar epoxy that is known to work on rubber. Gently dip the small end of each rubber pin in the jb weld, and stand them upright to dry. Don't allow any of the epoxy to drip down the sides of the pins, or they won't fit back in the pods later.

Also apply a small amount of jb weld to the microswitches in the pods. All 8 of them.

What you've just done is made up for any shrinkage, and prevented them from 'giving' too much when depressed. Wait a full 6 hours for the jb weld to fully cure. Prior to assembly, lightly coat each pin with a silicone or teflon lubricant that is known to work on plastic and rubber parts.

Re-assemble in the reverse order.

My controls are very crisp and responsive now, and are no longer affected by cockpit temps. No more 50 ft/lb mashing of the buttons. I can feel a crisp 'click' each time I use them now.


that was from tech-info
Hans is offline   Reply With Quote
Old 03-14-2006, 07:51 PM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Thanks: 0
Thanked 0 Times in 0 Posts
93-SSE is on a distinguished road
Default

awesome thanks

now i'll just have to find time for it...or at least a time when i have nowhere to go for a while
93-SSE is offline   Reply With Quote
Old 03-14-2006, 08:14 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by 93-SSE
awesome thanks

now i'll just have to find time for it...or at least a time when i have nowhere to go for a while
the process dosnet take more than a Day to complete
1993 SLE is offline   Reply With Quote
Old 03-14-2006, 08:22 PM   #5
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

would go a lot faster if you have the toothpics premade

9/32" long

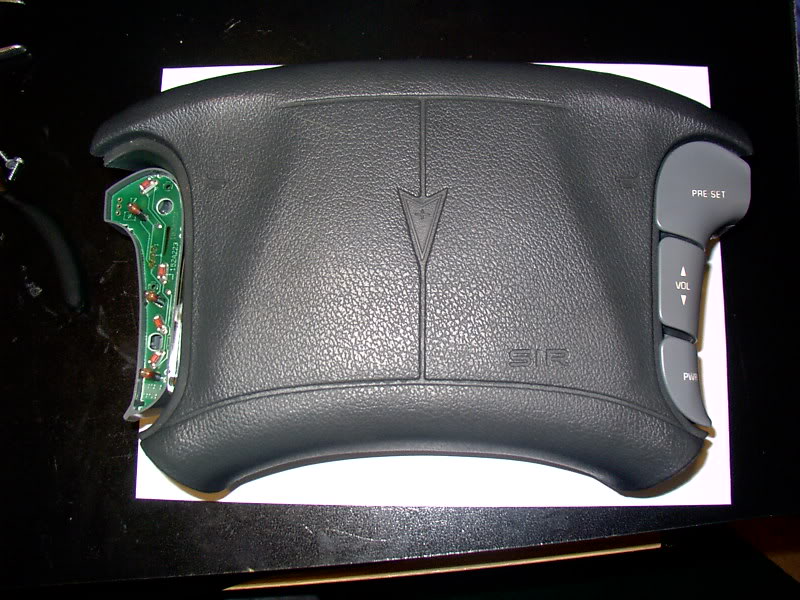

Name:  PDR_0008.jpg
Views: 2
Size:  99.6 KB

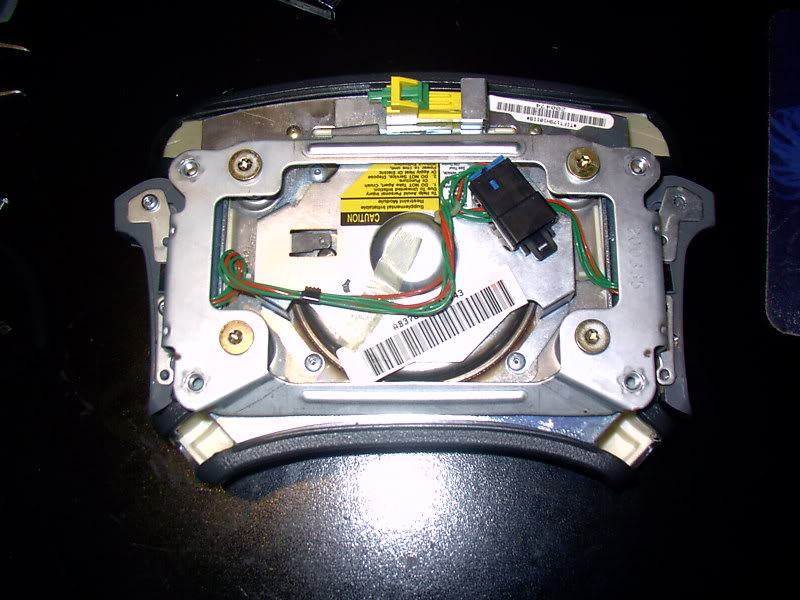

Name:  PDR_0009.jpg
Views: 3
Size:  83.2 KB
Name:  PDR_0001.jpg
Views: 3
Size:  50.1 KB

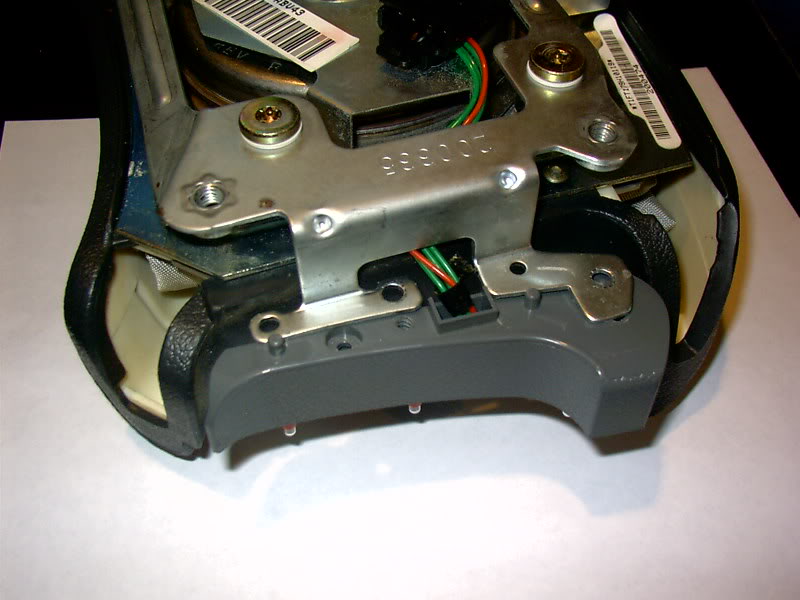

Name:  PDR_0002.jpg
Views: 4
Size:  60.6 KB

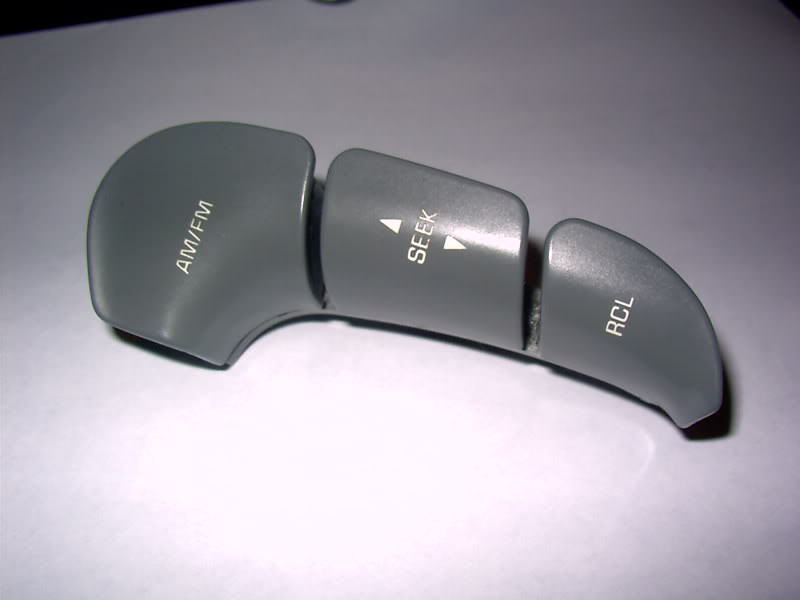

Name:  PDR_0004.jpg
Views: 2
Size:  25.4 KB

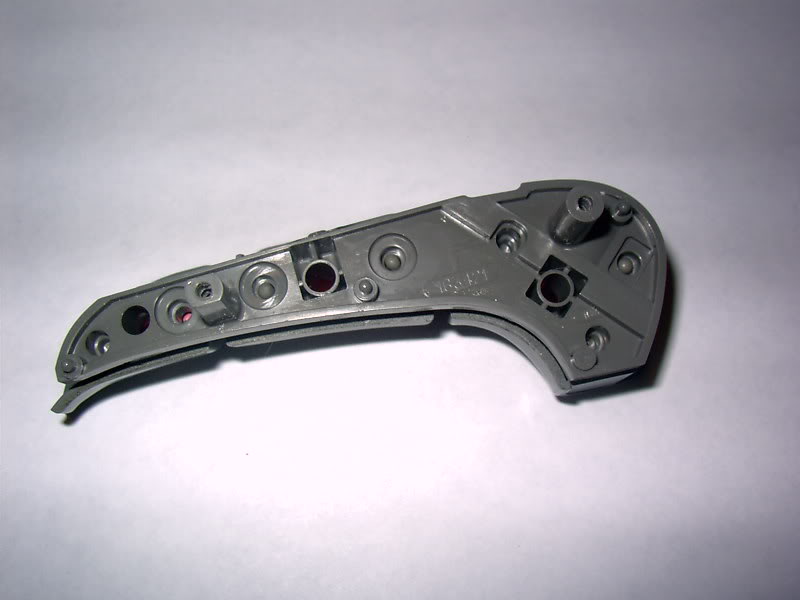

Name:  PDR_0003.jpg
Views: 3
Size:  34.2 KB
Name:  PDR_0007.jpg
Views: 3
Size:  18.0 KB
harofreak00 is offline   Reply With Quote
Old 03-14-2006, 08:35 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

ATTN: Admins and Mods

the above pics NEED to be added to the techinfo article
1993 SLE is offline   Reply With Quote
Old 03-14-2006, 09:29 PM   #7
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Thanks: 0
Thanked 0 Times in 0 Posts
93-SSE is on a distinguished road
Default

thanks again guys
93-SSE is offline   Reply With Quote
Old 03-15-2006, 09:58 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by 1993 SLE
ATTN: Admins and Mods

the above pics NEED to be added to the techinfo article
Gearheads saved them.
BillBoost37 is offline   Reply With Quote
Old 03-25-2006, 10:43 PM   #9
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Thanks: 0
Thanked 0 Times in 0 Posts
93-SSE is on a distinguished road
Default

AWESOME IT WORKS!!!

thanks guys my steering controlls work again...only weird thing was there was nothing to replace...where the old pins should have been was what seemed to be melted plastic ...as soon as i touched it it was like glue that wouldn't dry...anyway...so i just made the pins out of the toothpics and stuffed them into the gook...i figured instead of cleaing the stuff out of the hole i would leave it and it would help keep the pins in place...dad did clear the Power button one...of which after reinstalling it you have to press harder to get it to work...but it works

one problem was one of the seek buttons themself wasn't working...dad tried to fix it and folded a peice of metal while trying to get it to go back in place in...eventually he gave it to me to play with so he could continue to work on his car and i fixed it and super glued it back on without getting it on the button and it clicked again , i took somepictures that i'll post as soon as Dad puts them on the computer...or he lets me...


thanks again for the help
