Default New HU no inside Audio but I have subs.

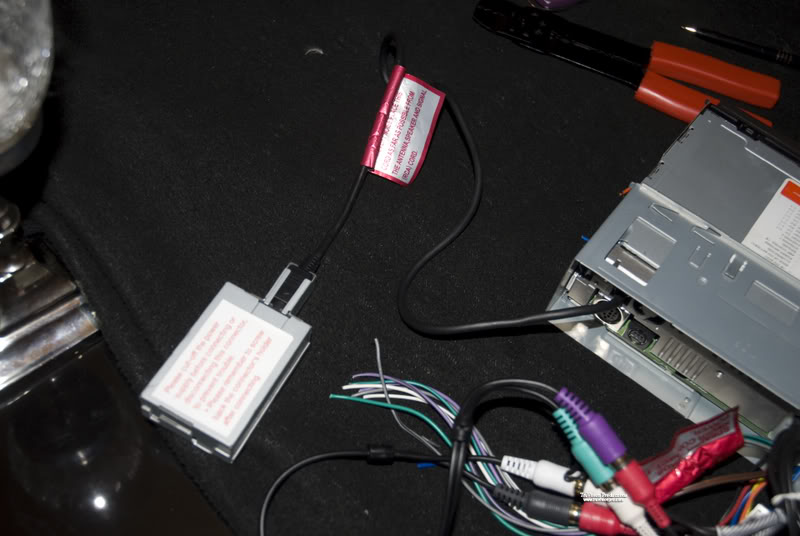

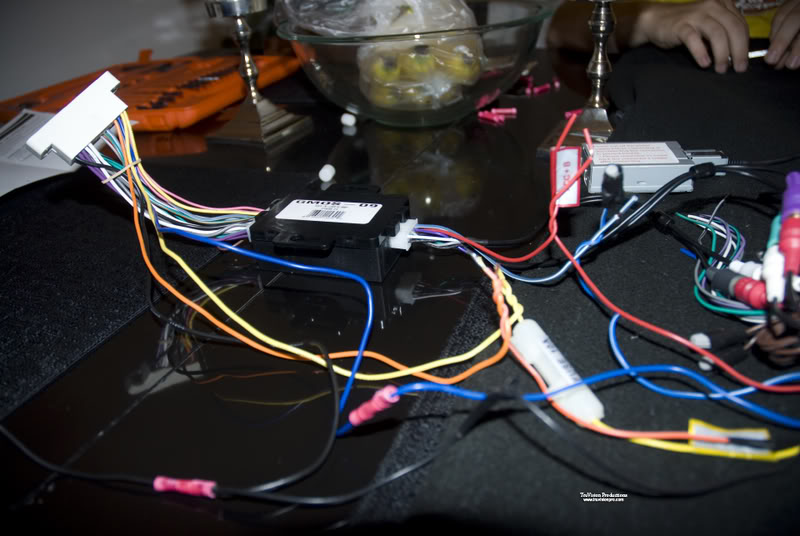

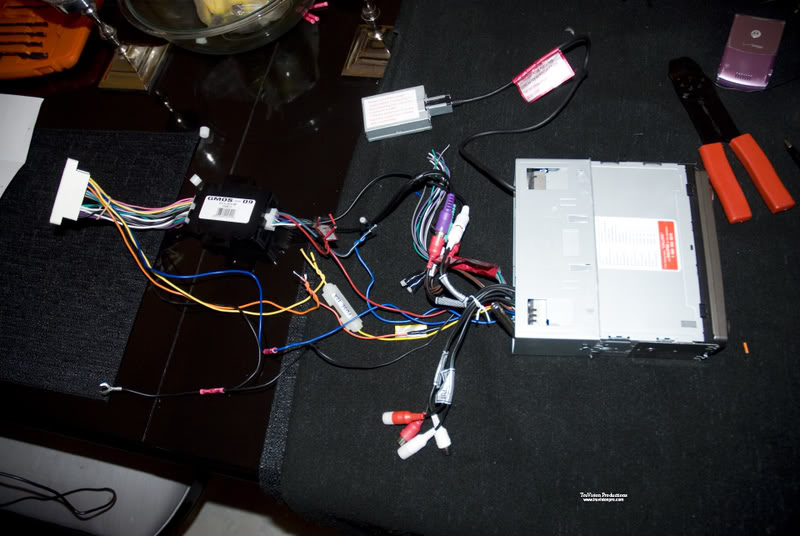

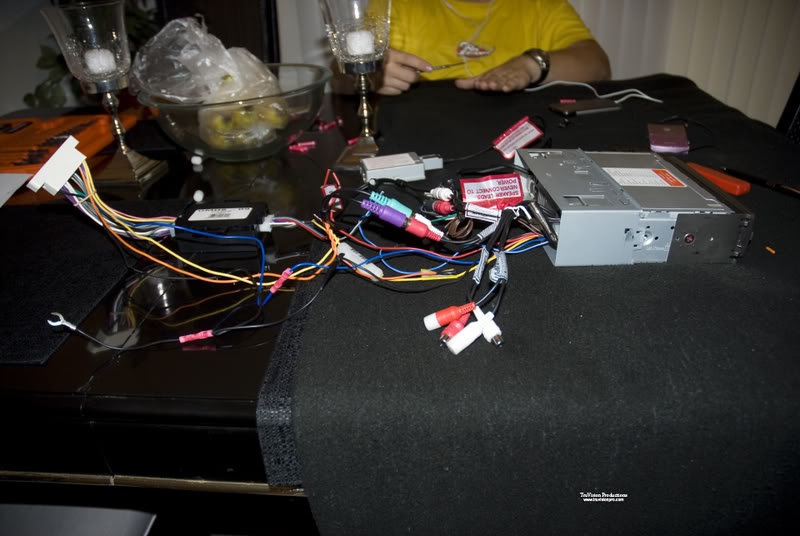

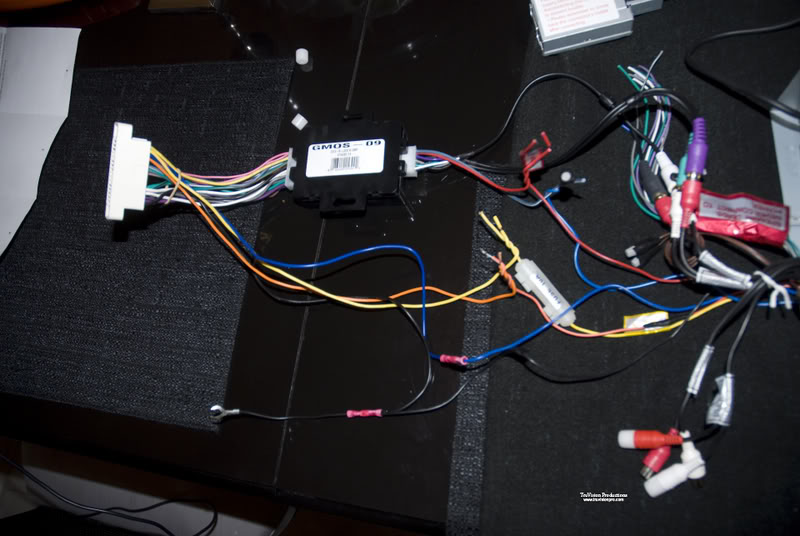

REallyAGXP and DDALDER and I have been trying to figure out my situation that I have with my new head unit. Here are some pictures of what the harness looks like
Name:  _CAJ6352copy.jpg
Views: 2
Size:  75.0 KB
Name:  _CAJ6358.jpg
Views: 2
Size:  79.2 KB
Name:  _CAJ6357copy.jpg
Views: 2
Size:  72.8 KB
Name:  _CAJ6356copy.jpg
Views: 2
Size:  60.8 KB
Name:  _CAJ6355copy.jpg
Views: 4
Size:  72.7 KB
Name:  _CAJ6354copy.jpg
Views: 3
Size:  71.0 KB
Name:  _CAJ6353copy.jpg
Views: 1
Size:  65.0 KB
Here is the manual to the GM0S-09

The HU is getting power it turns on and turns off with the car. I am getting subs from the nonfader line out no inside audio. We are thinking the monsoon amp is not getting power for some reason. I am using a Metra GMOS-09 harness that keeps the Chimes and RAP features of the car, I dont know where to go next. I will probly get the system done by a professional becuase this is making me frustrated. Any ideas before I give up a fork out some money?
GXP_Vince is offline   Reply With Quote
Old 09-02-2007, 06:15 PM   #2
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

so that gmos harness just uses the rca outputs? is there a separate harness for the green, white,purp, and gray?
samueljackson is offline   Reply With Quote
Old 09-02-2007, 06:58 PM   #3
Senior Member
Certified GM nut
Thread Starter

Join Date: Mar 2007
Location: Yuma, AZ.
Posts: 1,936
Thanks: 0
Thanked 0 Times in 0 Posts
GXP_Vince is on a distinguished road
Default

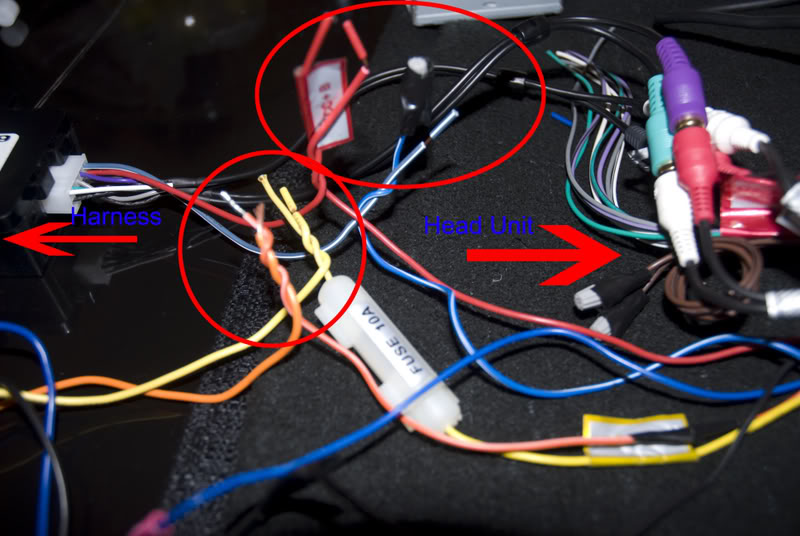

THe GMOS uses the rca for the speakers. The GMOS also has 6 other wires you have to hook up. Outline by the red circles
GXP_Vince is offline   Reply With Quote
Old 09-02-2007, 07:45 PM   #4
Senior Member
Posts like a Turbo

Join Date: Apr 2007
Location: Santa Rosa, CA
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
hawkjet is on a distinguished road
Default Re: New HU no inside Audio but I have subs.

Quote:
Originally Posted by GXP_Vince
We are thinking the monsoon amp is not getting power for some reason.
Do you mean that it doesn't get power at all, or it has power but it isn't turning itself on?

With Darcy helping you, you probably already know the Monsoon amp uses a reference voltage from pin A3 of the Dock-N-Lock connector to tell the Monsoon amp to turn itself on. Is that the Blue wire I see in the photo?

Do you have a volt meter?

Do you get 12V to 14V at pin A3 when the head unit is on?

Can you verify the Monsoon amp has 12V at it'* power supply wires?

Vince, I understand you are frustrated and there has been a lot of water under this bridge to get you that way. It looks like you are REALLY CLOSE so please continue to be patient. We should be able to get you going
hawkjet is offline   Reply With Quote
Old 09-02-2007, 08:30 PM   #5
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

THats where I was lost yesterday Vince... the power wire at the monsoon. And remember I had originally thought that Blue was the monsoon power wire...
ReallyAGXP is offline   Reply With Quote
Old 09-02-2007, 10:23 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

Any luck Vince?
bonnie94ssei is offline   Reply With Quote
Old 09-02-2007, 10:49 PM   #7
Senior Member
Posts like a Turbo

Join Date: Apr 2007
Location: Santa Rosa, CA
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
hawkjet is on a distinguished road
Default

Quote:
Originally Posted by ReallyAGXP
THats where I was lost yesterday Vince... the power wire at the monsoon. And remember I had originally thought that Blue was the monsoon power wire...
It is my understanding that this wire is NOT the actual power wire. It is merely a way to signal the Monsoon amp to turn itself on. (you may be saying that but it is a little unclear)
hawkjet is offline   Reply With Quote
Old 09-03-2007, 12:22 AM   #8
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

Quote:
Originally Posted by hawkjet
Quote:
Originally Posted by ReallyAGXP
THats where I was lost yesterday Vince... the power wire at the monsoon. And remember I had originally thought that Blue was the monsoon power wire...
It is my understanding that this wire is NOT the actual power wire. It is merely a way to signal the Monsoon amp to turn itself on. (you may be saying that but it is a little unclear)
I meant remote wire Vince knows what I meant lol

Now question is, Is the monsoon amp 12 volt? remote on or is there a power decrease. Because if it is 12 at the amp he can run a switched line to the amp to power it and see whats what.
ReallyAGXP is offline   Reply With Quote
Old 09-03-2007, 01:24 AM   #9
Senior Member
Posts like a Turbo

Join Date: Apr 2007
Location: Santa Rosa, CA
Posts: 360
Thanks: 0
Thanked 0 Times in 0 Posts
hawkjet is on a distinguished road
Default

Just keep in mind that it will require 12 volts at the power lead AND 12 volts at the reference that tells it to turn itself on (pin A1 of C2). The wiring diagram I have actually calls it a 14 volt reverence since the alternateor is set to charge at 13.8 volts (as memory serves).
hawkjet is offline   Reply With Quote
Old 09-03-2007, 01:36 AM   #10
Senior Member
Posts like a Corvette

Join Date: Nov 2006
Location: Alberta, Canada
Posts: 1,446
Thanks: 0
Thanked 0 Times in 0 Posts
ddalder is on a distinguished road
Default

I spoke with Vince yesterday. It appears that the module is connected correctly. He measured an appropriate voltage as being present on the 14V Ref line and as such the amp should have been turned on. For some reason, there is no audio and no chimes. This still makes me question whether the amp is actually on or not.

My next suggestion is to call the tech support line at Metra and speak with them. They will know their module and may have better luck helping you troubleshoot this. At this point, I'm not convinced there isn't a problem with the module. If there are any fuses in line with the module, perhaps check those. At any point was this connected to a power source incorrectly?
