Default Factory Radio Harness Questions

Ok.. I have researched my problem for a while now.. I have read all of your stickies but can't find the answer I need. Let me explain and if there is anyone out there listening that can help I would greatly appreciate it.

2000 Sunfire - purchased the car with the radio wires cut off..I have researched this and understand that once that radio was pulled out the Daytime running lights will not work.. no keyfob, no chimes..no auto door locks while driving..I am assuming because of the BUS part of the radio. So i decided to try and install a factory match back into the car..I know that it is a theftlock system 2 and will have to have the dealership install VIN after the installation is complete.. Since I have no idea if this radio was a monsoon or not I have tried a couple of local dealerships to see if they could run my VIN number and tell me what type of radio was originally installed.. Both stated that the VIN was 'TOO OLD' but did state that most Sunfires that year had Monsoon radios if it came with a sunroof. No sunroof.. 2.2 engine .. not a GT.. so I would be safe to say it did not. I will assume that it came with factory CD player attached. All the sunfires that I have found in that year did.. Only difference was Monsoon or not.. Now.. I have a diagram that shows what each wire goes to on the back side of factory radio. But the plug that I will assume is the BUS (short ) side of the radio also has wires. The harness wires that are clipped for the radio match perfectly.. But I can not find where or how do I attach the BUS wires into that harness. I have checked and there are no other harnesses that I can see in the dash. And that is my question.. How do these wires tie into the existing harness or is there some type of module missing that more wires should be coming from?
ksgentry00 is offline   Reply With Quote
Old 02-22-2012, 07:12 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I have never heard of lights not working when the radio was disconnected. But, I do know on newer models, the door, idiot bells and whistles will go through the radio. Yes, some radios are programmed with the VIN.

VIN TOO old? Are you familiar with the white "RPO" sticker located on your spare tire cover? If its still readable, repost all the 3 letter/number codes. I might be able to tell you what system you have.

Can you post pictures of the harness and the radio plug?
Mike is offline   Reply With Quote
Old 02-23-2012, 10:11 AM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

x2 on never hearing of that, if your cars stuff like that is not working i would think its a problem with the BCM. ive changed the radio in my old 03 monte and my 07, and my 99 yukon. none have any issues like you say. the yukon is no effect, the 03 had settings you have to have the radio to change(i kept the old one and if i want plugged it in to change then put the old aftermarket one back). the 07 i lost chimes only which is really nice those noises are annoying
jwfirebird is offline   Reply With Quote
Old 02-23-2012, 12:03 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
ksgentry00 is on a distinguished road
Default

Perhaps I didn't explain it correctly. Daytime running lights come on (headlights only, no tail lights or instrument cluster) as they should when first starting the car as they should. But once it becomes dusk and dark the headlights stay on but no dash lights or tail lights unless I physically turn on the lights. Also the automatic door locks do not lock when placing car in gear or driving. I was told at the dealership that the fob to release the trunk (it only releases door locks and trunk lock) would not work until the factory radio was installed. They also stated that not only would I lose the key in the ignition chime but I would also lose the chime for overheating or low oil pressure as well as the low fuel chime. It does have a temp gauge in the dash but only a light for low oil pressure. I have wired in the larger plug (except at this point I have not added the purple wire (data wire) but still do not know where the wires from the small plug tie into. There are no more wires let on the harness that comes from radio area.

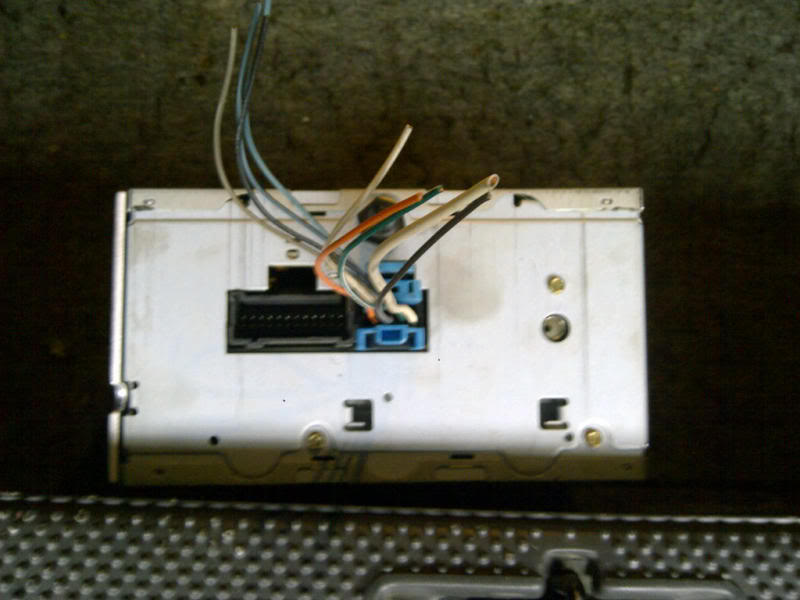

Name:  IMG-20120223-00059.jpg
Views: 54
Size:  51.4 KB

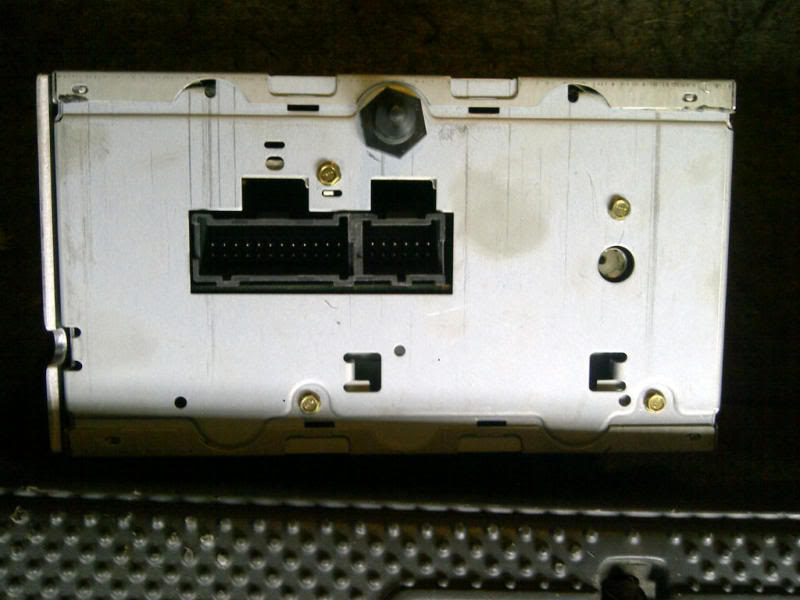

Name:  IMG-20120223-00058.jpg
Views: 29
Size:  52.1 KB


Last edited by Mike; 02-23-2012 at 12:35 PM. Reason: Rotated RPO sticker image for better visibility.
ksgentry00 is offline   Reply With Quote
Old 02-23-2012, 12:51 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

RPO Code Explanation/Description
AAA STANDARD FOR ABOVE VEHICLES
AK5 ESTRAINT SYSTEM SEAT, INFLATABLE, DRIVER & PASS
AR9 EAT FRT BKT, DELUXE
AU0 OCK CONTROL, ENTRY REMOTE ENTRY
AU3 NTROL SIDE DR, ELEC
A31 POWER OPERATED, ALL DOORS
C49 DEFOGGER RR WINDOW, ELECTRIC
C60 HVAC SYSTEM AIR CONDITIONER FRT, MAN CONTROLS
DG7 MIRROR O/* LH & RH, REMOTE CONTROL, ELECTRIC, COLOR
DL5 ROADSIDE SERVICE INFORMATION
DT4 Y CIGARETTE LIGHTER
FE0 SUSPENSION SYSTEM FRT & RR, ACTIVE
FE9 CERTIFICATION EMISSION, FEDERAL
F75 RATIO TRANSAXLE FINAL DRIVE 3.18
IPG TRIM INTERIOR DESIGN (PG)
JM4 BRAKE SYSTEM PWR, FRT DISC, RR DRUM, CAST IRON, ANTILOCK, FRT &RR WHL
K62 GENERATOR 105 AMP, DUAL INTERNAL FAN
LN2 ENGINE GAS, 4 CYL, 2.2L, MFI
LOD PLANT CODE LORDSTOWN, OH, USA
MD9 TRANSMISSION AUTO 3 SPD, HMD, 3T40, CLUTCH
MX1 MERCHANDISED TRANS AUTO PROVISIONS
NF2 EMISSION SYSTEM FEDERAL, TIER 1
N33 STEERING COLUMN TILT TYPE
N46 STEERING WHEEL 4 SPOKES
PG1 WHEEL 15 X 6, STEEL
QPD TIRE ALL P195/65R15-89S BW R/PE ST TL AL2
RC8 OL PLASTIC FUEL TANK CHANGE
R6D OL SALES ITEM NO. 04
R7X OL SALES ITEM NO. 48
R9P OL SALES ITEM NO. 90
T43 SPOILER RR
UH8 CLUSTER INST, COOL TEMP, TRIP ODOM, TACH
US6 ANTENNA FIXED, PAINTED, RADIO
UW6 SPEAKER SYSTEM 6, CUSTOM
U1P RADIO AM/FM STEREO, SEEK/SCAN, CD, CLOCK, EQLZR, RDS,ETR
VH9 OPE OWNER INFO MAN
VK3 LICENSE PLATE FRONT FRT MOUNTING PKG
VM3 LABEL INFORMATION CONSUMER, CONTAINS BPR IMP STANDARD FOR FRT 5 MPH & RR 5 MPH
V1B UNT VALUE PACKAGE
V73 VEHICLE STATEMENT USA/CANADA
1SB PACKAGE OPTION 02
12G TRIM COMBINATION CLOTH, GRAPHITE (G) (96)
121 No Match
41U PRIMARY COLOR EXTERIOR, BLUISH BLACK 3, (02), HOLDEN
41U PRIMARY COLOR EXTERIOR, BLACK (02)
41U PRIMARY COLOR EXTERIOR, GREEN MET (CATERA)(02)
41U PRIMARY COLOR EXTERIOR, ARINOS GREEN MET (BRAZIL) (02) 111
6BF COMPONENT FRT LH COMPUTER SEL SUSP (6BF)
7BF COMPONENT FRT RH COMPUTER SEL SUSP (7BF)
8HH COMPONENT RR LH COMPUTER SEL SUSP (8HH)
9HH COMPONENT RR RH COMPUTER SEL SUSP (9HH)

It doesn't appear you do. But either way, that doesn't explain the missing harness.
Mike is offline   Reply With Quote
Old 02-23-2012, 01:54 PM   #6
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
ksgentry00 is on a distinguished road
Default

When you look at all GM radios they all seem to have two plug-ins on the back.. the larger one for the radio and the smaller one for what I would think is the bus? plug. Guess I will pull the radio out of the grand am that I have and see where the wires to the small plug goes.
ksgentry00 is offline   Reply With Quote
Old 02-23-2012, 01:59 PM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

first and foremost dont trust the stealership parts replacers.
second: i looked through diagrams for your car.
your drls work as they should and it doesnt mention anything about having auto headlights so you have to physically turn the switch. i dont have the diagram for the radio, but your other problems are not likely caused by the radio either.
jwfirebird is offline   Reply With Quote
Old 02-23-2012, 02:20 PM   #8
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

http://www.uneeksupply.com/2000-Pont..._p_19336.html#

did you get something like this? so you will have both sides. i dont think that they would completely take those wires out maybe they just clipped the harness further in. did you try looking from the bottom up?
jwfirebird is offline   Reply With Quote
Old 02-23-2012, 03:24 PM   #9
Junior Member
Thread Starter

Join Date: Feb 2012
Posts: 6
Thanks: 0
Thanked 0 Times in 0 Posts
ksgentry00 is on a distinguished road
Default

Yes.. those are exactly the plugs that I have for the car. Unfortunately I have search thru the harness. I have peeled back the tape that covers the harness. I can not find any other harness inside. I removed both the heat/ac unit and the glove box and can find nothing. I have several vehicles on my lot that I had hoped would show me what I was looking for but every one of them have had the radio harness cut out and aftermarket cd players installed... Grr.. Dont understand how I can build an engine and install it but I can not do a simple factory radio installation!
ksgentry00 is offline   Reply With Quote
Old 02-23-2012, 04:13 PM   #10
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

See if you can find a module similar to this under the dash area.

http://www.crutchfield.com/p_120GMRC...n-Adapter.html
