Default Dual Battery System: 56k Grab a drink

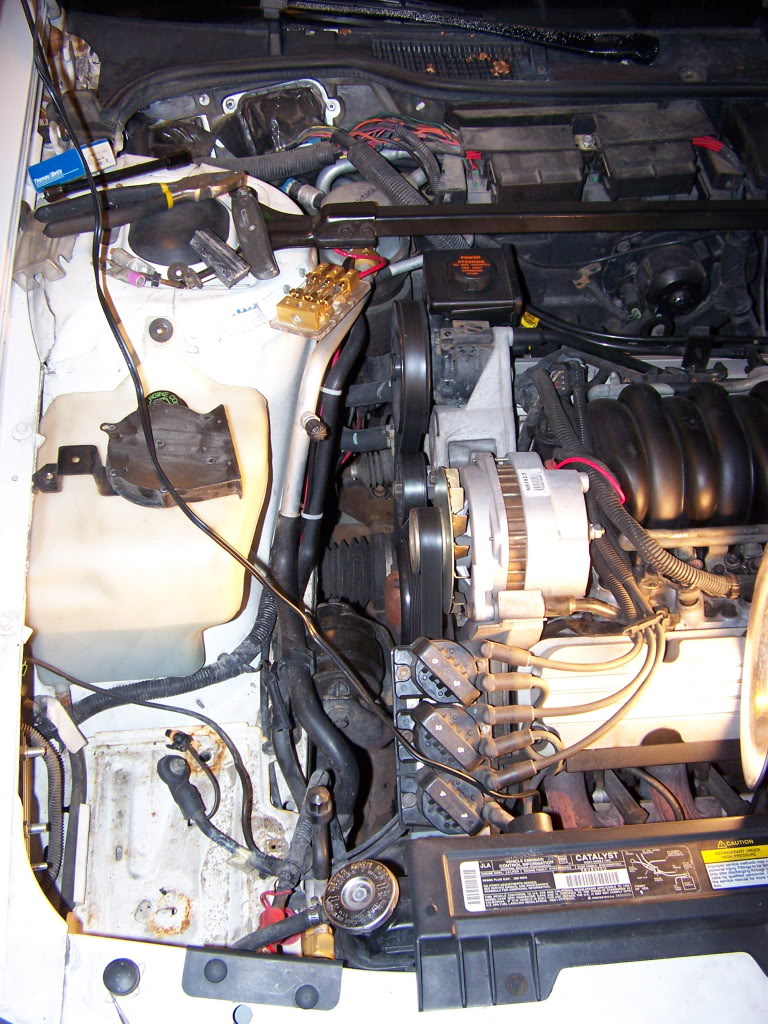

Well i started ripping out the wiring from the alt to the battery and battery to the fuse center.
Name:  100_2646.jpg
Views: 1
Size:  187.4 KB

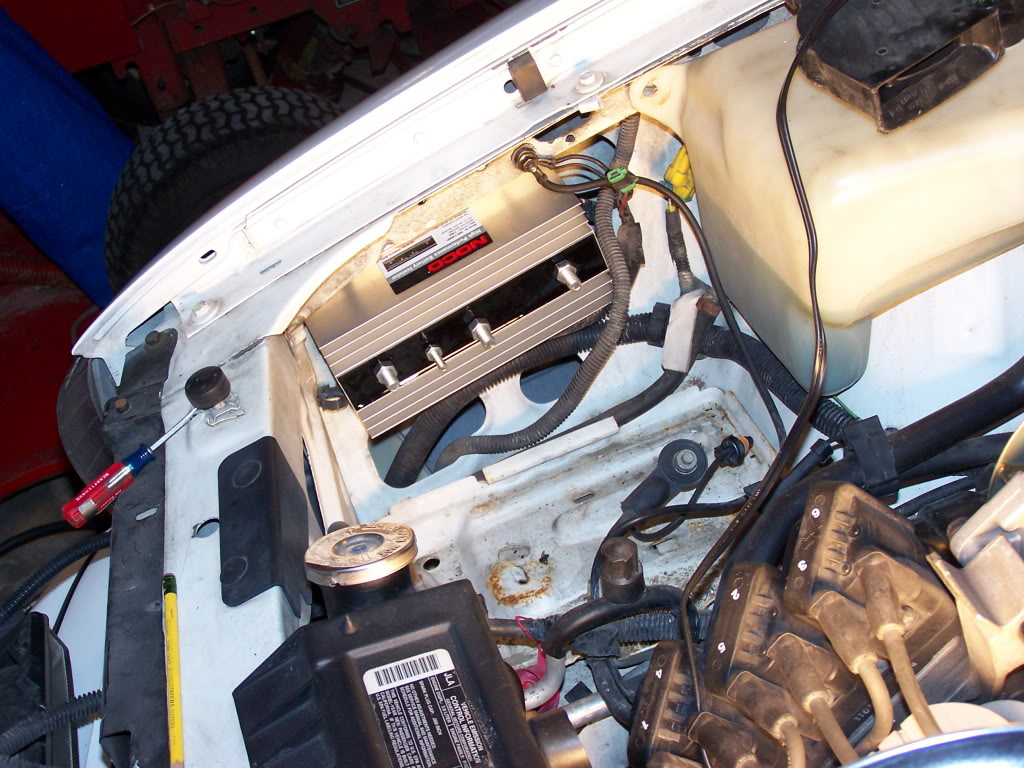

And then added something to help support my computer and future lights:
Name:  100_2647.jpg
Views: 1
Size:  162.7 KB
140 Amp isolator... CRAP i dont know where to put the horn now.

Im going way overkill and using 1ga wire, for reasons no-one knows... ok i do, i like to overkill.

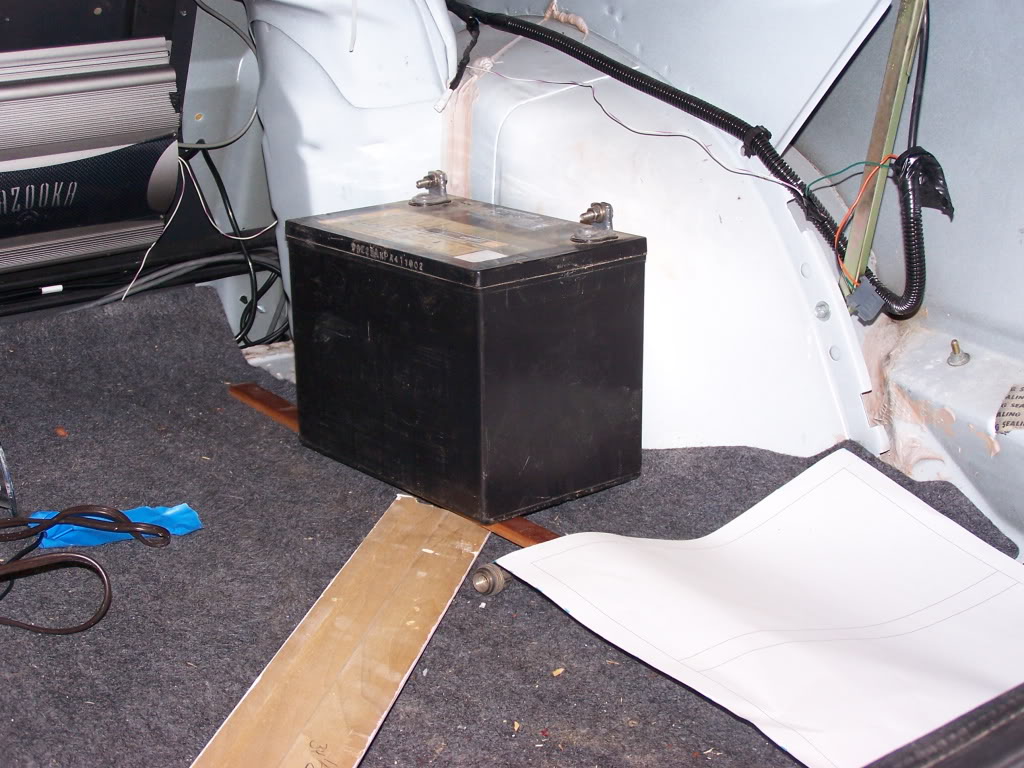

Battery going in the trunk:
Name:  100_2648.jpg
Views: 1
Size:  149.3 KB
It will power the computer, 1260W of amps, and accessory lighting. It has 75 AH and weighs as much as a small horse. (I had it laying around, so the next one will be lighter but why not use a $200 battery when you got it)

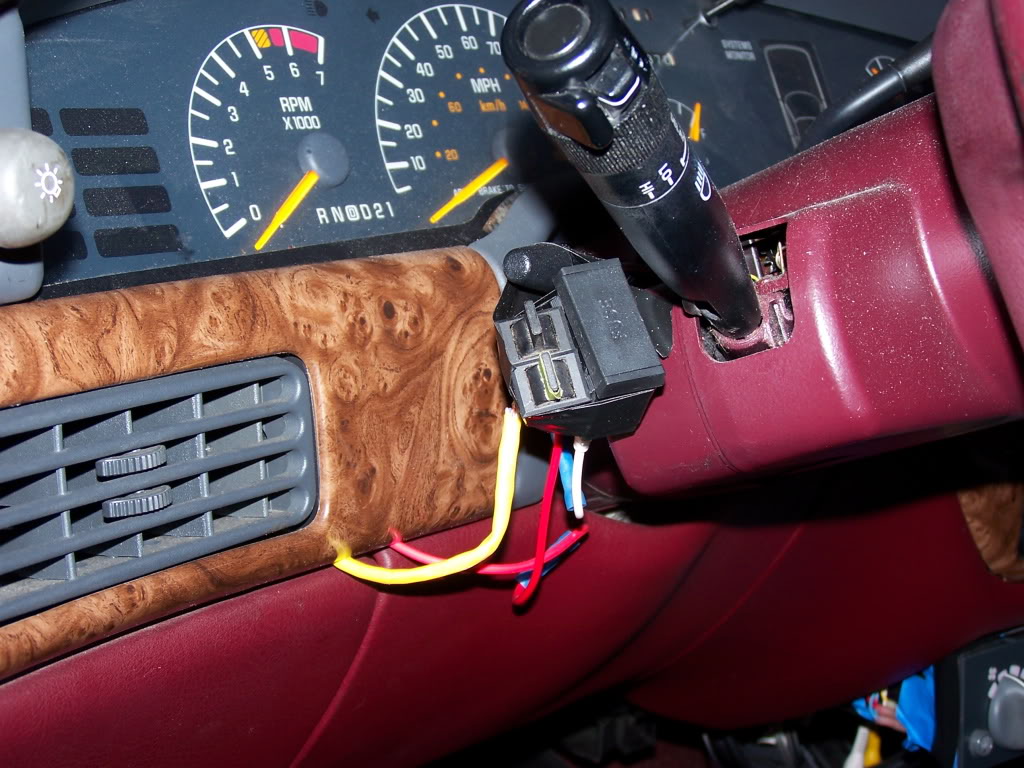

Other fun electronics: this is the future home of a small control panel for all my accessories
Name:  100_2649.jpg
Views: 1
Size:  151.9 KB

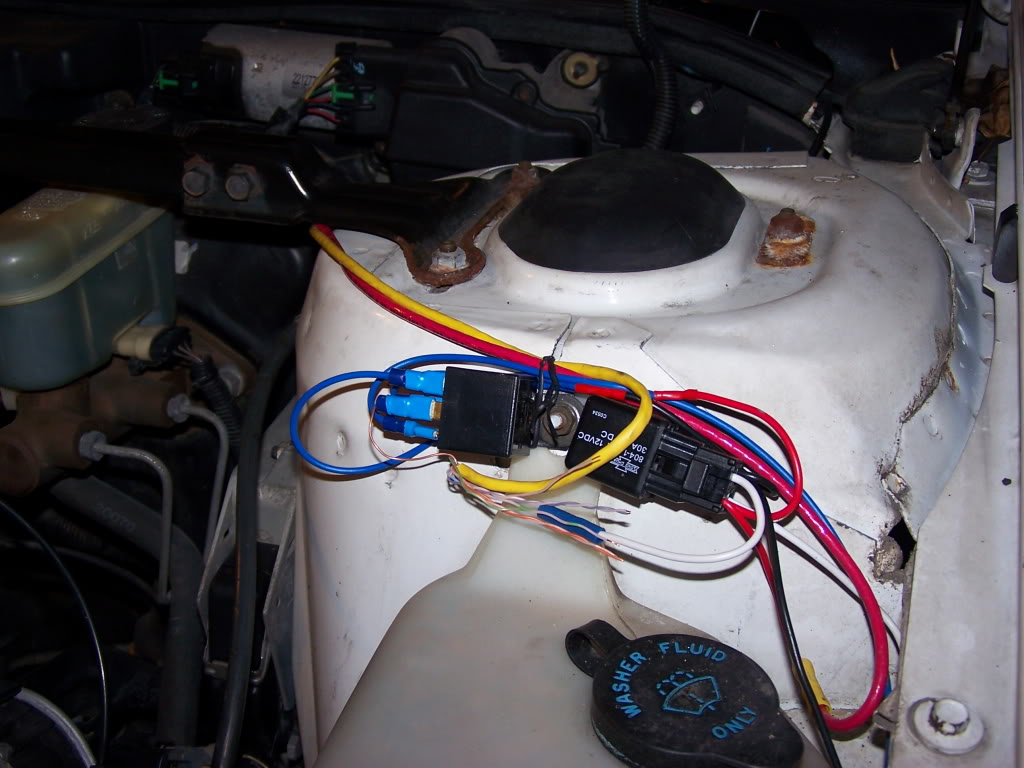

The crude beginnings of a relay panel controlled by a cat-5 wire so i could theoretically have 8 relays with no fancy electronics... and then if necessary i could do addressing and have MILLIONS!!
Name:  100_2651.jpg
Views: 1
Size:  108.5 KB

And then at 9:59 i realized i didnt have crimp on connectors to finish the job and all the stores close by 10 so tomorrow i should be done with this phase!
bmsgaffer86 is offline   Reply With Quote
Old 03-25-2007, 02:13 AM   #2
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

UPDATE: Heres the finished product.

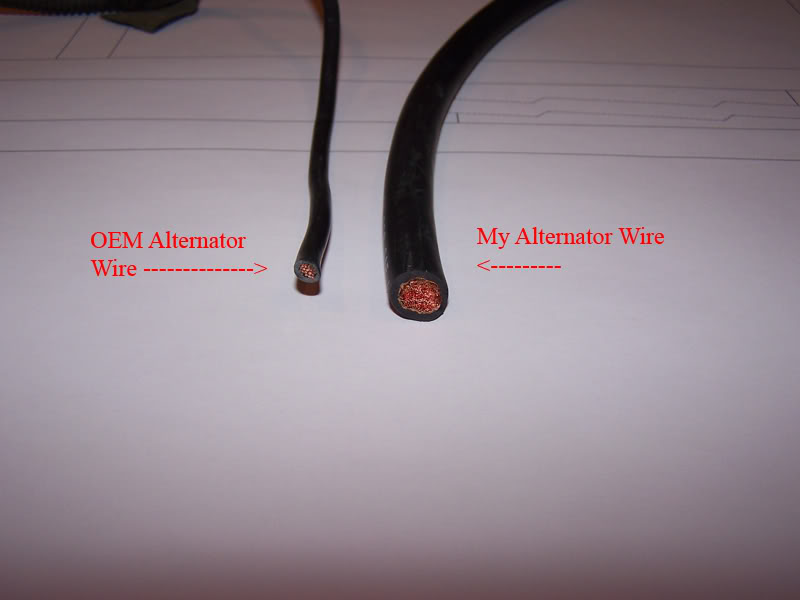

The reason im doing this:
Name:  100_2661.jpg
Views: 1
Size:  35.8 KB

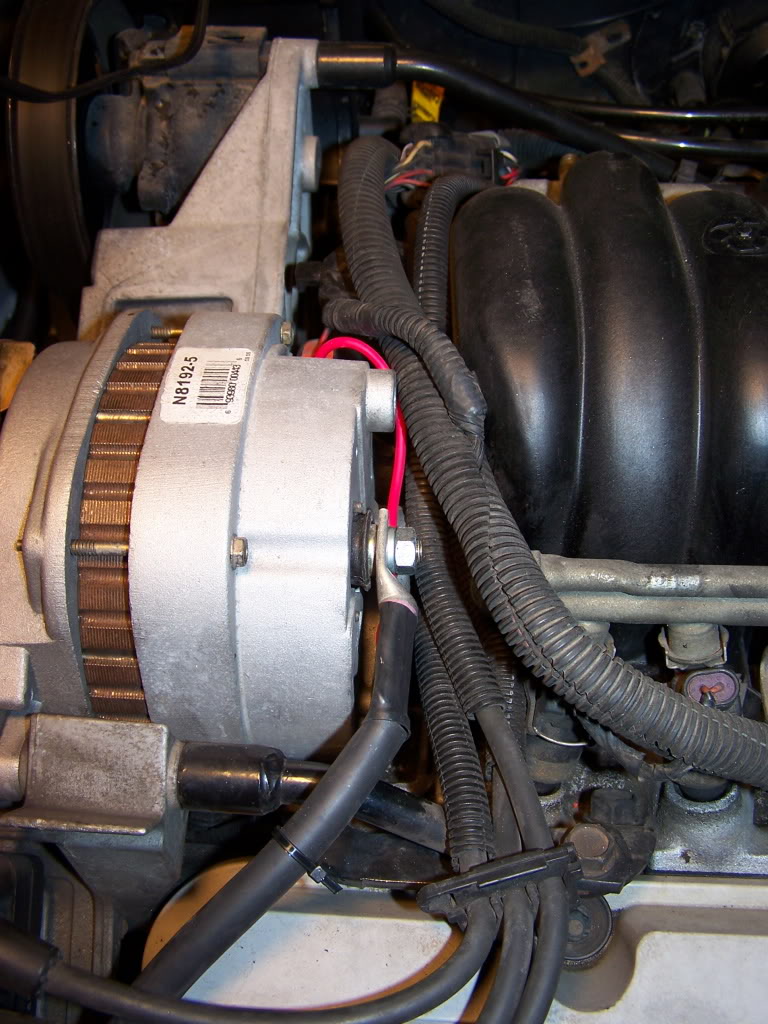

The alternator connection:
Name:  100_2652.jpg
Views: 1
Size:  152.3 KB

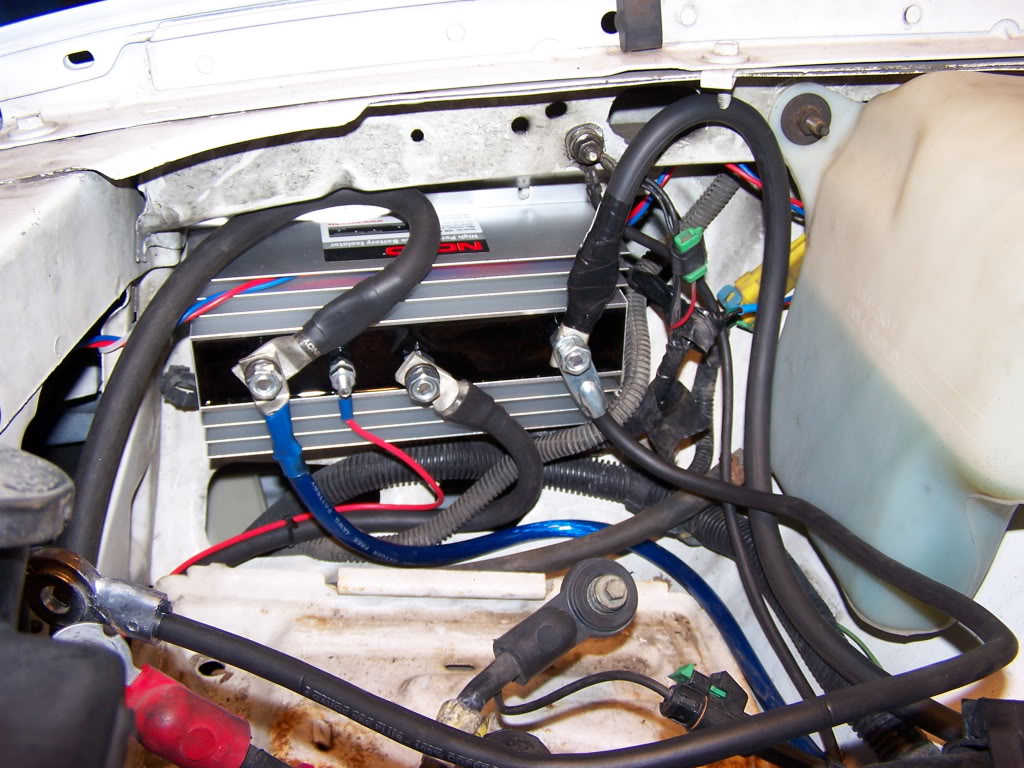

The isolator connection panel:
Name:  100_2653.jpg
Views: 1
Size:  144.4 KB

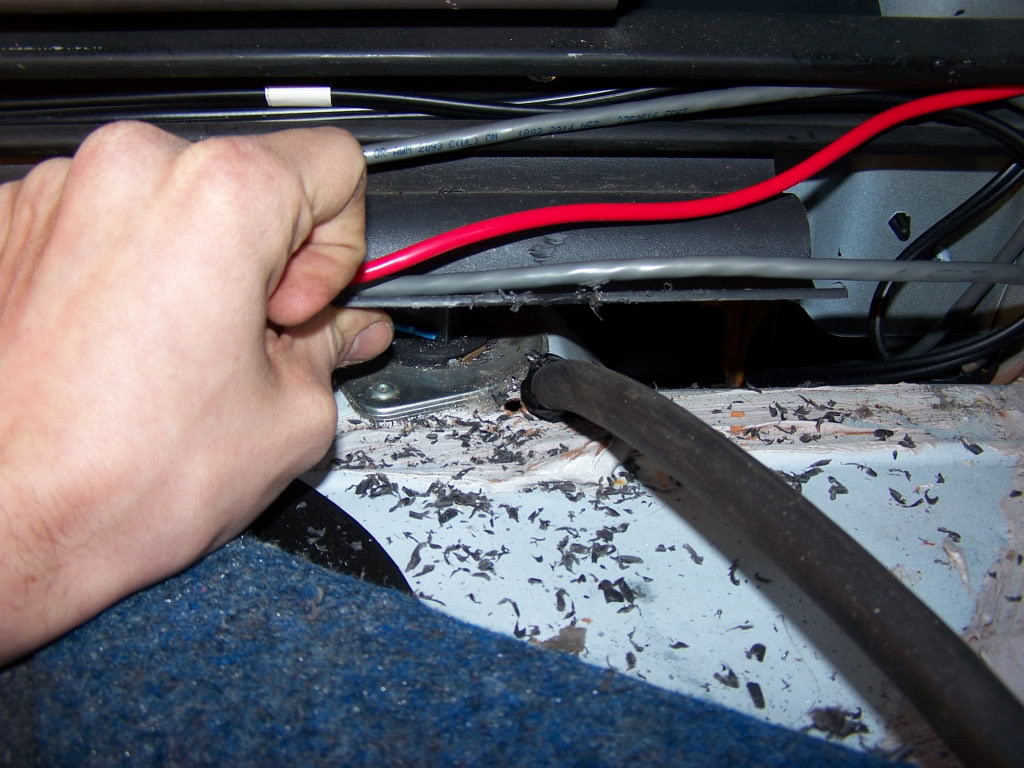

Wire running into the trunk:
Name:  100_2658.jpg
Views: 1
Size:  127.9 KB

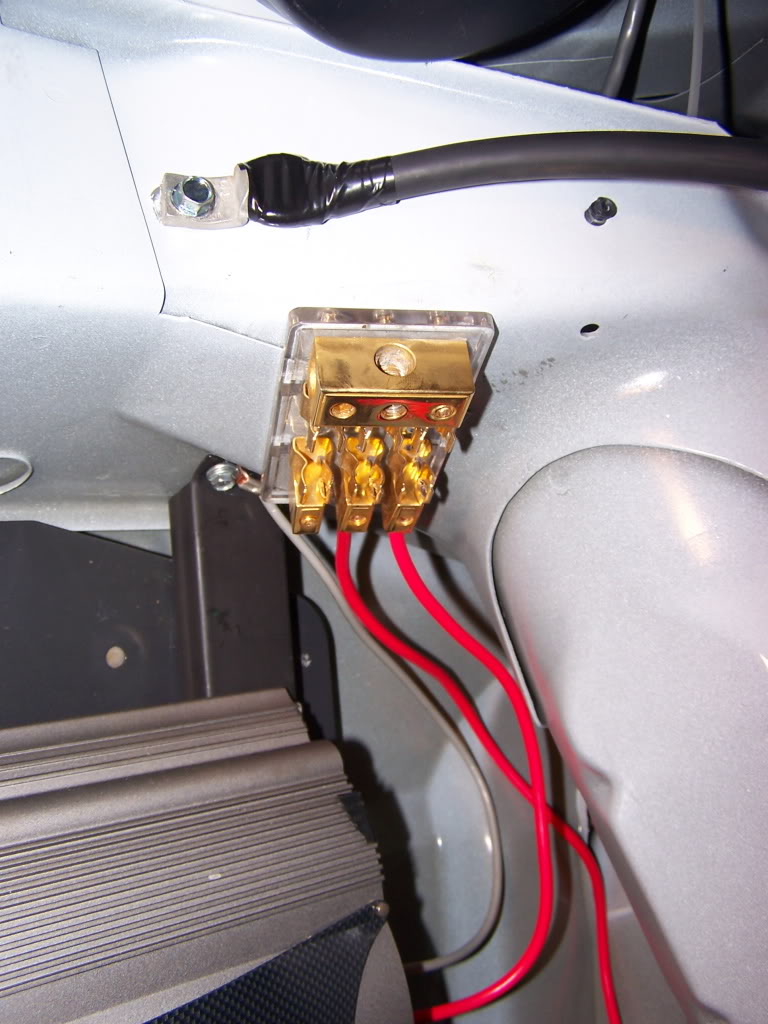

Rear Circuit Fuse Panel:
Name:  100_2659.jpg
Views: 1
Size:  111.1 KB

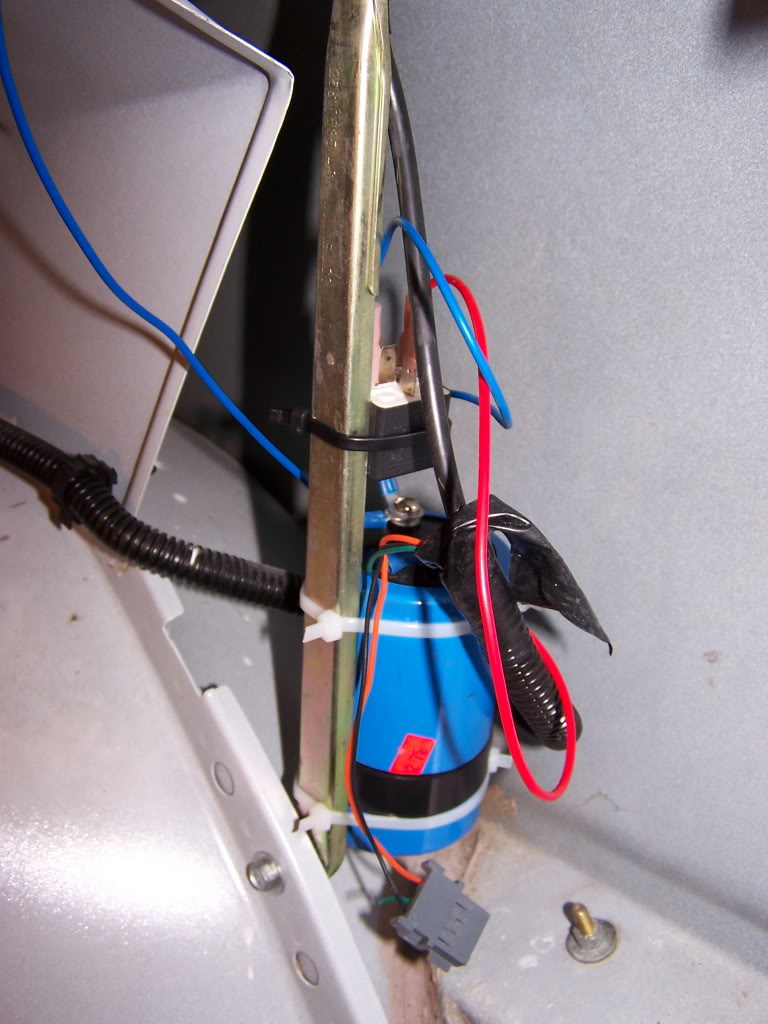

No, this isnt a bomb, its a huge capacitor/relay to extend the amplifier ON time by approx 3-4 seconds to avoid pops when i switch from ON to ACC. It also does the service of filtering the amplifier and computer ON circuit.
Name:  100_2660.jpg
Views: 1
Size:  99.8 KB

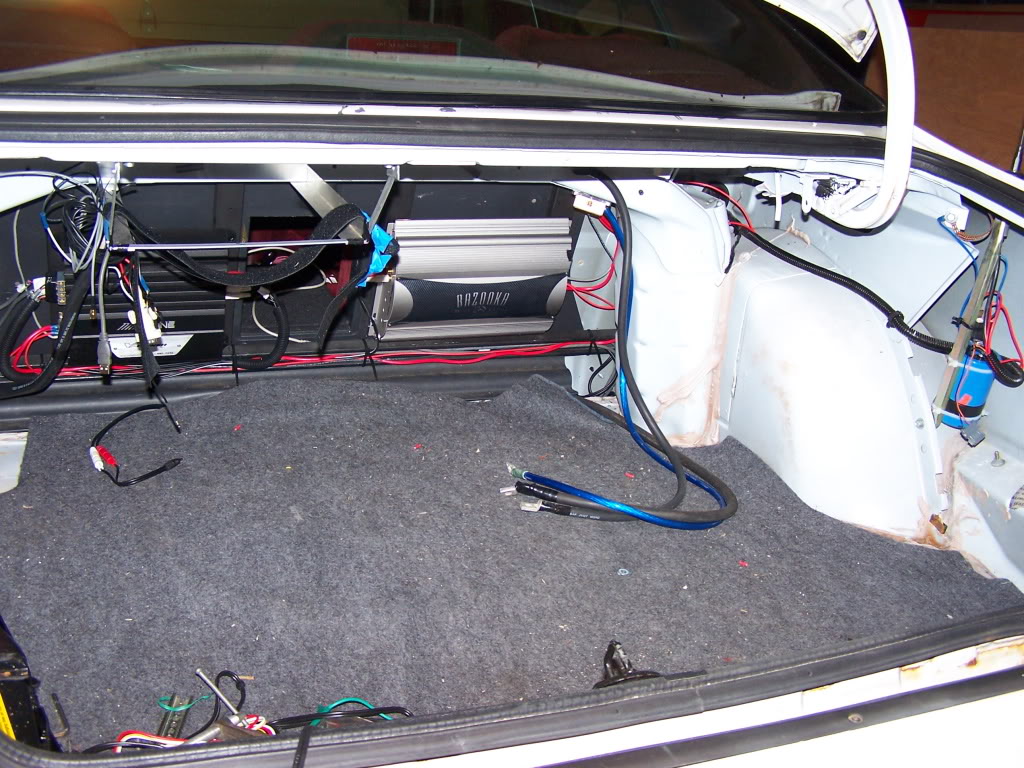

Finished Trunk, minus battery and battery box and computer.
Name:  100_2662.jpg
Views: 1
Size:  188.0 KB

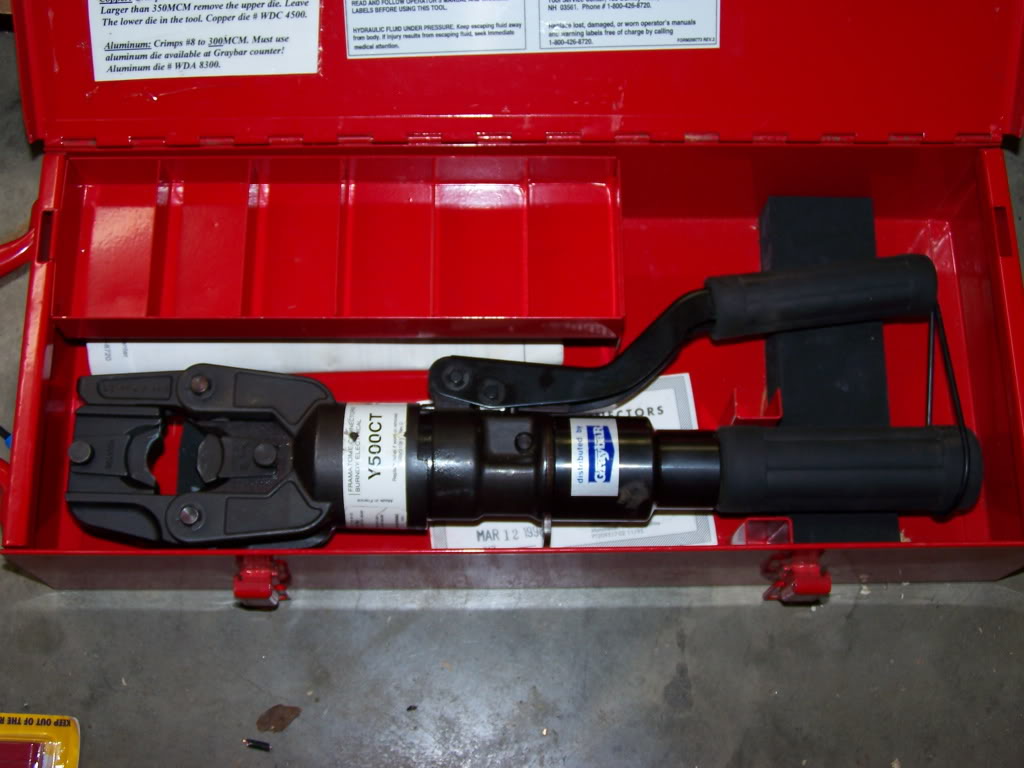

For CorvetteCrazy: Here is the crimp tool for any gauge wire from 8 - 4/0 that we rented for free through connections but had to put down $1800 deposit on.
Name:  100_2656.jpg
Views: 1
Size:  92.7 KB
bmsgaffer86 is offline   Reply With Quote
Old 03-25-2007, 02:21 AM   #3
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Looking good man.
corvettecrazy is offline   Reply With Quote
Old 03-25-2007, 02:24 AM   #4
Senior Member
Certified GM nut

Join Date: Dec 2004
Location: Port Charlotte FLORIDA
Posts: 2,077
Thanks: 0
Thanked 0 Times in 0 Posts
its840 is on a distinguished road
Default

1800 down... wow... well it will for sure get the job done... how bout if ya just took them to an audio install shop and have them crimp for ya... either way ya got it done.. and looks pretty good!!!
its840 is offline   Reply With Quote
Old 03-25-2007, 02:41 AM   #5
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Quote:
Originally Posted by its840
1800 down... wow... well it will for sure get the job done... how bout if ya just took them to an audio install shop and have them crimp for ya... either way ya got it done.. and looks pretty good!!!
Because im not that organized... and they werent 'audio' connectors they were thick walled standard electrical connectors. That tool puts down 16000lbs of force and i dont know what the audio shop has...


Oh and i normally work between 10pm and 2am
bmsgaffer86 is offline   Reply With Quote
Old 03-25-2007, 03:25 AM   #6
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

That is beautiful.


Going with the printer breakout?
Damemorder is offline   Reply With Quote
Old 03-25-2007, 05:25 AM   #7
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Quote:
Originally Posted by Damemorder
That is beautiful.


Going with the printer breakout?
Huh?
bmsgaffer86 is offline   Reply With Quote
Old 03-25-2007, 08:27 AM   #8
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

Looking good!! At least your taking care of the power first which usually is an afterthought with most people.

When I did my 0 gauge wire install in my Eclipse (2400 watt system) I used a hammer to crimp on the ring terminal. lol It worked quite nicely!!

Cant wait to see the finished project!!
BLACK94SSEi is offline   Reply With Quote
Old 03-25-2007, 09:49 PM   #9
Senior Member
True Car Nut

Join Date: Nov 2002
Location: Texarkana, Texas
Posts: 6,041
Thanks: 0
Thanked 0 Times in 0 Posts
Damemorder is on a distinguished road
Default

Quote:
Originally Posted by bmsgaffer86
Quote:
Originally Posted by Damemorder
That is beautiful.


Going with the printer breakout?
Huh?
http://www.electronickits.com/kit/co...lec/ck1601.htm
Damemorder is offline   Reply With Quote
Old 03-28-2007, 12:47 PM   #10
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

so you could use this relay to have your carputer turn on foglights, Nitros purger etc etc etc...?
OLDsman105 is offline   Reply With Quote
