Old 02-19-2007, 08:27 PM   #11
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Or a sealed box, My sealed box with two 10" subs in it sound realy good, pleanty of base.
bandit is offline   Reply With Quote
Old 02-19-2007, 08:35 PM   #12
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

Quote:
Originally Posted by bandit
Or a sealed box, My sealed box with two 10" subs in it sound realy good, pleanty of base.
No way, if he wants OUTPUT over punch he wants ported. Bandpass boxes are a JOKE for output and sound quality.

Personally I only run SEALED speakers...Currently I have a single 12inch sub on 1100 watts RMS in a 0.8 box and it gets LOUD..not super loud but I'm guessing mid-high 130s.

You stick a quarter on the middle of the trunk and usually it will get launched off the first "bump".

Bonnevilles do suck for output though compared to most other cars.

Sound deadening and a ported box will do wonders. I'd invest at least $80 or $100 at the minimum into some E-dead, thats the equivlant to $300 dynamat and its the same product.

edead is $1 a sq foot for 45mil which will give you 100 sq feet for $100, enough to do the trunk several layers thick.
Hans is offline   Reply With Quote
Old 02-19-2007, 08:41 PM   #13
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Ummm Hans, you realy need to see and here my Bros two 15"'* in a sealed box, you can watch the glass move

From ever Speake system iv herd, Sealed can be just as loud but will sound beter then ported.
bandit is offline   Reply With Quote
Old 02-19-2007, 08:45 PM   #14
Senior Member
Certified GM nut

Join Date: Dec 2004
Location: Port Charlotte FLORIDA
Posts: 2,077
Thanks: 0
Thanked 0 Times in 0 Posts
its840 is on a distinguished road
Default

i had 2 walmart 12 in a sealed box with a 300 watt amp to them and they pounded!!!
it was my 100$ set up... 2 subs from wallmart 50$ amp from ebay 40$ wire 10$
had the box... but ya bandpass sound great in a hatchback but not in a trunk...
its840 is offline   Reply With Quote
Old 02-19-2007, 11:49 PM   #15
Member
Posts like a V-Tak

Join Date: May 2005
Location: South Florida
Posts: 65
Thanks: 0
Thanked 0 Times in 0 Posts
myrddin70 is on a distinguished road
Default sealed box

I just entered my first SPL comp over the weekend.

I have 2 Punch 12"* in a sealed box, and they bump well enough to get me 3rd.

Off topic, but a question...
I have some more work to do and tune my car. I am trying to find out, online, what the bonnie tuned freq. is when they designed and built the car.

I seem to hit best at 47 Htz..so I am assuming its around that.

Any ideas?
myrddin70 is offline   Reply With Quote
Old 02-20-2007, 12:03 AM   #16
Member
Posts like a V-Tak

Join Date: Oct 2006
Location: jenison, mi
Posts: 50
Thanks: 0
Thanked 0 Times in 0 Posts
dogman4585 is on a distinguished road
Default

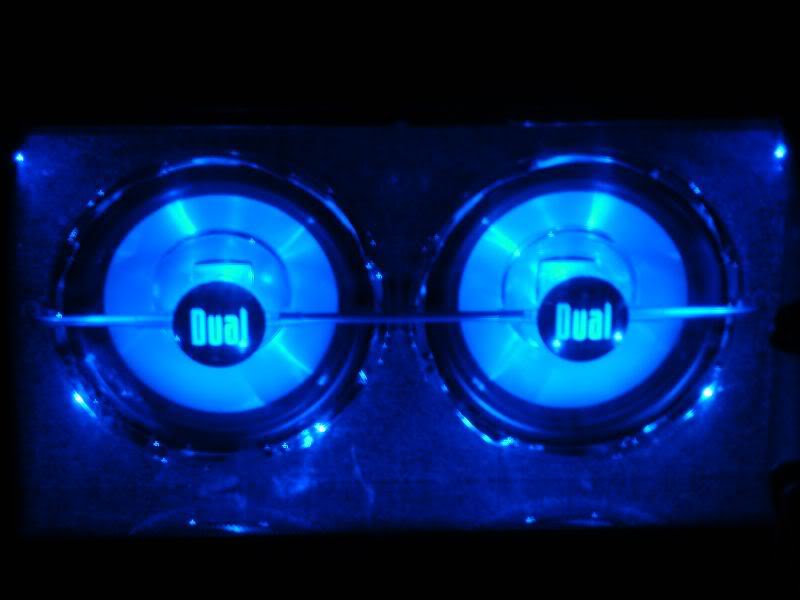

Name:  DSC02532.jpg
Views: 0
Size:  32.7 KB try this for size and thump I can get these to shake and get me in trouble with the law too but o well thay are only 12s and 1000 watts each and to amp 2000 each punch
dogman4585 is offline   Reply With Quote
Old 02-20-2007, 02:00 AM   #17
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

i agree that sealed boxes are the best bang for the buck.. i was running a rockford 801s amp with dual 12'* audiobahn and i got very good sound...

im out of the stereo world though, to much weight
harofreak00 is offline   Reply With Quote
Old 02-20-2007, 02:18 AM   #18
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default Re: sealed box

Quote:
Originally Posted by myrddin70
I just entered my first SPL comp over the weekend.

I have 2 Punch 12"* in a sealed box, and they bump well enough to get me 3rd.

Off topic, but a question...
I have some more work to do and tune my car. I am trying to find out, online, what the bonnie tuned freq. is when they designed and built the car.

I seem to hit best at 47 Htz..so I am assuming its around that.

Any ideas?
on a 2002 termpro I could hit 136db with my single 12" sub on 1100rms. this was with a 1.0 cu box AFTER displacement (I had it inversly mounted) My pb of 136 was with that sealed box and at around 43-44hz

we put that same sub with the same amp in a 1.4CF (after displacment) box and tuned the box to 32hz and I was pushing 139db.

significantly louder in a ported application, every speaker is different but as a general rule of thumb a properly ported enclosure will own any sealed enclosure as far as output is concerned.

obviously if you look at these T/* params.....my sub clearly likes ported boxes better from the FS/BL and QTS numbers. It also clearly likes LOW freqency ports when using ported, a high frequency ported enclosure would probably be about as loud as sealed on a meter and sound much worse.

T / * Parameters
Qts : 0.41
Qes : 0.45
Qms : 4.71
Vas : 47.27
Sd : 0.0465 m^2
XMag : 29.5 mm
XSus : 26.0 mm
XMax : 26.0 mm
MMd : 216 g
Fs : 27.3 Hz
Bl : 17.49
Hans is offline   Reply With Quote
Old 02-20-2007, 03:09 AM   #19
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

Ported over sealed will net you around ~ 3dB from what i remember correctly. Bandpass are generally louder then ported, but only over a very limited frequency range (hence the bandpass designation). A good bandpass box will have decent freq distribution on it'* own, and then EQ'* will take care of the rest. There'* no real reason to use on though IMO.

Actually when you get into really high numbers you have to go back to sealed, because ports slow down the woofers, and cause too much distortion.

The bonneville is hard to get a lot of noise out of however. But driving around blasting bass just so someone else can hear it outside of your car is kinda silly IMO. If you want to be heard, get a 15 or two, put them in a ported box, and let'r rip. You have to be playing the right stuff too. Getting below 30hz is important... I'm not talking about specs either, i'm talking about real world play-ability.
BonneMeMN is offline   Reply With Quote
Old 02-20-2007, 11:38 AM   #20
Senior Member
Posts like a Camaro

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

A 4th order bandp[*** will be around 6db louder in the passband. It will be a very boomy box with limited frequency response, and almost always detrimental to sound quality. A properly designed ported sub will usually get you an extra 3db over sealed. At higher power, a ported sub will still be louder. The port acts as a second speaker as you get closer to the tuning frequency hence increasing output. If you drop below the tuning frequency at high power there is a very good chance that your sub will over excurt and probably get damaged.
phoenix_flame220 is offline   Reply With Quote
