Default Bluetooth car kit installation.

I am going to attemp to hookup a Motorola IHF 1000 Bluetooth Car kit to my 2002 Bonneville SLE Radio. the car has OnStar and I was hoping to wire the kit using the OnStar connections if possible. I don't mind disconnecting the OnStar to get this kit to work if needed. My radio has the CD/TAPE option. Has anyone been successful at this or can I get a schematic of the Bonneville radio and Onstar system? Any help would be appreciated.

Thanks in advance for the brilliant replies!
brumay is offline   Reply With Quote
Old 12-01-2006, 09:25 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I have the FSM'* and was looking through last night at the radio. In the FSM'* there'* no schemaitcs.

What inputs do you need?
BillBoost37 is offline   Reply With Quote
Old 12-01-2006, 01:02 PM   #3
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Thanks: 0
Thanked 0 Times in 0 Posts
Archon is on a distinguished road
Default

This is the power and ground for the radio.

Name:  85117942.gif
Views: 3
Size:  24.5 KB

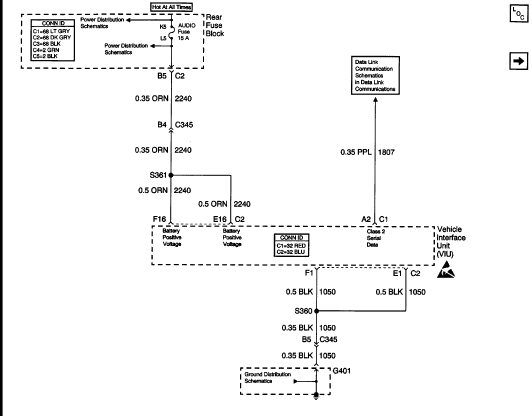

For Onstar

Name:  85114983.gif
Views: 3
Size:  13.4 KB

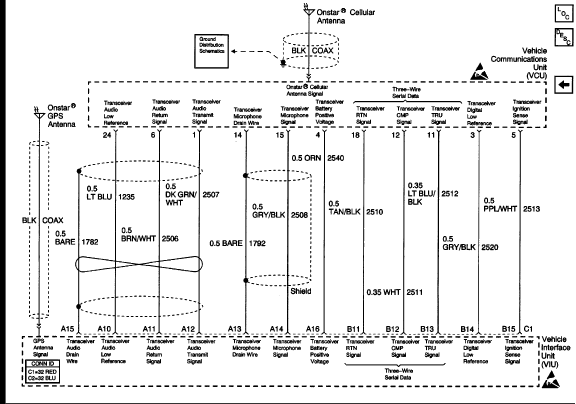

and Onstar Signals.

Name:  85114985.gif
Views: 3
Size:  28.6 KB
Archon is offline   Reply With Quote
Old 12-01-2006, 02:21 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2006
Location: Granville, Ohio ~NEBF '07 Survivor~
Posts: 5,001
Thanks: 0
Thanked 0 Times in 0 Posts
petraman is on a distinguished road
Default

hmm, this is interesting, but what I'd like to know is if this will have any affect on the PCM, since onstar monitors it constantly
petraman is offline   Reply With Quote
Old 12-01-2006, 07:06 PM   #5
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

You're going to have a problem inputting any AUX source to that system that wasn't designed to integrate. Looks like everything is on a databus.
randman1 is offline   Reply With Quote
Old 12-05-2006, 11:57 AM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2004
Location: Port Orange, Fla
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
brumay is on a distinguished road
Default

Thanks for the information. The car kit requires an auxilary input and a muting input to mute the radio when a call comes in. I can use the option of the 5 watt speaker that works well but I would rather use the radio if possible. Thanks

Connect the YELLOW Entertainment Mute Wire to the
vehicle’* entertainment system.
Note: This feature is only operational if the vehicle’*
radio supports this capability. Installation may require
an optional relay (not included).
Note: The ORANGE and BLUE wires are not used.
(These wires are used to connect the line-level audio to
the vehicle radio, if the radio supports this feature.)
brumay is offline   Reply With Quote
Old 12-11-2006, 11:34 AM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2004
Location: Port Orange, Fla
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
brumay is on a distinguished road
Default

Does anyone have a schematic of the outputs form the Delco Radio used in the 2002 Bonneville SLE? I have the six speaker combo w/tape and CD player as one unit. I may have to install a relay to make the car kit work through the speakers with mute option.
Thanks!
brumay is offline   Reply With Quote
Old 12-11-2006, 11:47 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The only schematic in the FSM'* is the power ones Archon supplied.

YOu know what might work.. is something along the lines of an adapter than some use when changiing out the HU. That "might" give you a method to input...but how to get the interface to be the same as the radio instead of wires... I dunno...lol
BillBoost37 is offline   Reply With Quote
Old 12-11-2006, 11:47 AM   #9
Member
Posts like a V-Tak
Thread Starter

Join Date: Apr 2004
Location: Port Orange, Fla
Posts: 49
Thanks: 0
Thanked 0 Times in 0 Posts
brumay is on a distinguished road
Default

Is there a place to get 12v constant and switched? I believe the cigarette lighter has switched or "retained" so I may only need a source for the constant unless the fuse box is the only place to go. Thanx again
brumay is offline   Reply With Quote
