Default adding tweets to SE...

hey folks...i am planning on getting rid of the "business card holders" in my SE and adding a component speaker set w/passive crossover in the door..what i am wondering about is how am I going to mount the tweeters?...how are the tweeters in the Bose models mounted?...will I need some sort of mounting bracket?....any suggestions are much appreciated: )
klystronik is offline   Reply With Quote
Old 11-12-2005, 02:45 AM   #2
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

there should be 4 holes to mount the tweeter to, already in the door pannel.
corvettecrazy is offline   Reply With Quote
Old 11-12-2005, 03:12 AM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by corvettecrazy
there should be 4 holes to mount the tweeter to, already in the door pannel.
there is a mounting bracket for the tweets. i removed the tweet and used the bracket to mount my comp. set....i actually found a better set of brackets from a bonne that fires the tweets up toward the ears as apposed to the knees
1993 SLE is offline   Reply With Quote
Old 11-12-2005, 03:15 AM   #4
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
Quote:
Originally Posted by corvettecrazy
there should be 4 holes to mount the tweeter to, already in the door pannel.
there is a mounting bracket for the tweets. i removed the tweet and used the bracket to mount my comp. set....i actually found a better set of brackets from a bonne that fires the tweets up toward the ears as apposed to the knees
my tweets are aimable w/in their little socket thing. so I made a plate that screws to the stock tweet holes to hold the socket thing to the door pannel.
corvettecrazy is offline   Reply With Quote
Old 11-12-2005, 03:16 AM   #5
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

i thought about it, and have some pics for ya

Name:  8-10RFnewinstall024.jpg
Views: 1
Size:  66.4 KB

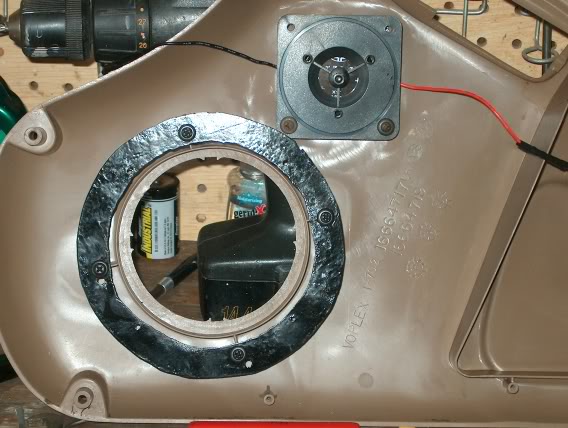

you can see the bracket that i used to mount the tweet...that is a stock bracket with the tweet removed, i then flipped over the bracket and attached my RF tweet

note your doors will be sightly different but very close to tha pic
