OK. It'* a good day. I learned how to remove a door panel withoutr breaking anything. I want to add a stock tweeter to my SE for now.

I was expecting to find two pairs of wires in the door based on info searched here. There ain't. i have accounted for every wire coming to the door. So this is what I have.

- 1 pair of wires
- 1 "full range" 5 1/4 with plug for straight into the amp wires
- 1 tweeter with what looks like some capacitance, which I hope is a high pass filter.

Is there any reason I shouldn't get a splitter type plug (if they exist) and put it on the wire pair.... or just splice off of the wire pair and jump it to the tweeter?

It would seem to me to be OK. I might get a frequency hump in the ranges duplicated, but WTH.
charliemax is offline   Reply With Quote
Old 03-28-2006, 05:11 PM   #2
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

On the cars without the Gain feature, like in your 95... I believe that you are correct... The tweeters I installed came out of a Bonnie , both the tweeter and the speaker were connected to the single circuit, so that resistor must be a high pass filter... For the size and poor location they sure do improve the sound quality...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-28-2006, 05:15 PM   #3
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

there is only 1 pair of wires(1+ & 1-) going into the door pannel, you are correct on that. there should be a connection on the 5.25 to attach a tweeter. if not solder it in to the 5.25 wires. all the filters for the tweeter should be mounted to the back of the tweeter.
corvettecrazy is offline   Reply With Quote
Old 03-28-2006, 05:49 PM   #4
Senior Member
Posts like a Northstar
Thread Starter

charliemax's Avatar

Join Date: Jan 2006
Location: Valley Forge, PA
Posts: 598
Thanks: 0
Thanked 0 Times in 0 Posts
charliemax is on a distinguished road
Default

Quote:
Originally Posted by jr's3800
(snip), both the tweeter and the speaker were connected to the single circuit, so that resistor must be a high pass filter... For the size and poor location they sure do improve the sound quality...
Thanks jr... and that'* good news about the sound quality.

Quote:
Originally Posted by corvettecrazy
(snip), if not solder it in to the 5.25 wires. all the filters for the tweeter should be mounted to the back of the tweeter...
brother, was I p*ssed when that second set of wires wasn't there. I re-researched the forum and found one of your posts about single, not double. Two sets was an errata conventional wisdom. So at least i stopped looking... The 5 1/4 has zip on it to connect the tweeter, so I'll just splice off of the wire pair. Thanks.
charliemax is offline   Reply With Quote
Old 03-28-2006, 08:53 PM   #5
Senior Member
Posts like a Turbo

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

we discussed this earlier because i wanted to do the same thing, which was add some full range 5 1/4"* to my stock tweeters........

your ohm load will get smaller if you attach a tweeter to the full range 5 1/4"*.......which is not good for the amplifier...on the stock bonneville audio system, the 5 1/4" was a woofer with a filter on it sending the lows to the woofer and the highs to the tweeter, and the tweeter has a filter on it to filter out any lows......this way, two speakers with a 4 ohm load will still be 4 ohms because one set of frequencies is going to the woofer, and the other is going to the tweeter


i guess you can try it, but it may mess with the ohm load to your amplifer
96bonniessei is offline   Reply With Quote
Old 03-28-2006, 09:24 PM   #6
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

in the end, if he wires it by just tapping into the wires that go to the 5.25, you are still presenting a 4ohm load to the amplifier. But the tweeter may "take" some wattage away from the 5.25 which is not a big deal because less wattage = less bass = longer life of speakers.
corvettecrazy is offline   Reply With Quote
Old 03-28-2006, 09:28 PM   #7
Senior Member
Posts like a Turbo

Join Date: Nov 2005
Location: Nebraska
Posts: 353
Thanks: 0
Thanked 0 Times in 0 Posts
96bonniessei is on a distinguished road
Default

sorry i was just going from this in my thread


Quote:
Originally Posted by Bugsi
Quote:
Originally Posted by 96bonniessei
i think i know what happened to my tweeter..........that black thing on the back of them, would not let a current through it when i used a multimeter.............but it would let a current through the gray thing.......so that'* pry what happened to the tweeter <SNIP>

and it should not mess with the impedance correct? my impedance will be fine for the radio to handle?
Oh man. Sorry to barge in here, but you need a quick lesson on crossovers.

The black thing on your tweeter is a capacitor. A capacitor is two metal plates separated by a gap such that electric charge will build up on the plates. You can't pass DC current from a multimeter through a capacitor because it is physically an air gap and air is, well, a lousy conductor. But audio is not DC, it is AC, and the varying charge on the plates will pass high frequency AC current, but block low frequency AC current (think of DC as Zero Hertz AC), which makes them ideal for use as a "bass blocker" in a speaker crossover. The gray thing is a resistor to lower the overall power through the tweeter to match its output to the 5.25" larger speaker so the two don't sound like "all tweeter". Because the factory tweeter is matched to the factory 5.25" speaker, it might be a bad match for an aftermarket 5.25" full range speaker.

In a properly designed 2-way crossover, there are capacitors that block lows from the tweeter, and there are inductors (coils of insulated wire) to block highs from the woofer. When used properly, an 8 ohm tweeter and an 8 ohm woofer separated by a crossover will appear as a uniform 8 ohm load to your amplifier so your total impedance will remain unaffected.

If you don't use a crossover network, then an 8 ohm tweeter paralleled with an 8 ohm woofer will appear as a 4 ohm load to an amplifier, demanding twice as much current, which your amplifier either can or cannot provide. If it cannot, then if you're lucky it engages a protection circuit. If you're not lucky, then it catches on fire. (Really!)

If you use a random aftermarket 5.25" speaker that has both a woofer and a co-axially mounted tweeter on it, then also connecting the factory tweeter will probably give you sound that has too much tweeter high-end and add phase distortions between the two tweeters. A much more ideal setup is to buy component separates (A prepackaged matched 5.25" woofer with a separate tweeter, and a crossover to connect the two). But these are a lot more expensive than just a good 5.25" co-axially mounted woofer+tweeter combo.

My advice is to either:
(1) Stick with factory speakers and make no other changes.
(2) Go all out and get a set of matched component separates.
(3) Find a 5.25" woofer, and buy a quality 2-way crossover from an autosound dealer to connect the woofer and factory tweeter.
(4) Get a good reasonably-priced 5.25" two-way, use that and leave the factory tweeter disconnected.

maybe i'm just makin a fool out of myself, but if he taps into that, it should go as parallel

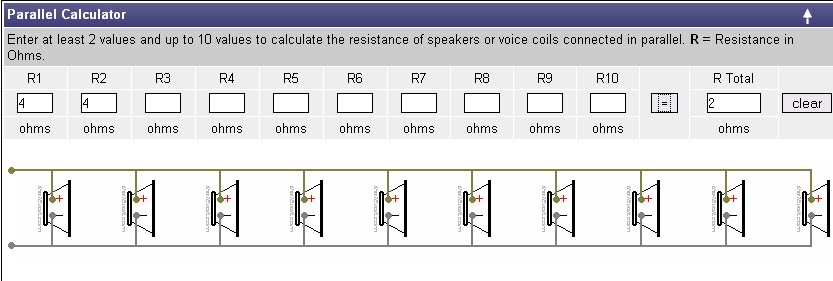

Name:  ohm.jpg
