Default 2000 SSEi - GMOS-09 connections

I'm trying to get my wiring situated with my JVC KW-XG700 deck along with the Metra GMOS-09 wiring harness. I've got everything hooked up except the remote turn ons. One connection is to be made for the amp turn on and another for the antenna turn on. Problem is that the deck only has one remote wire. Is it ok to connect both blue wires from the harness to the one blue wire from the deck?
Name:  DSC00077.jpg
Views: 51
Size:  95.2 KB

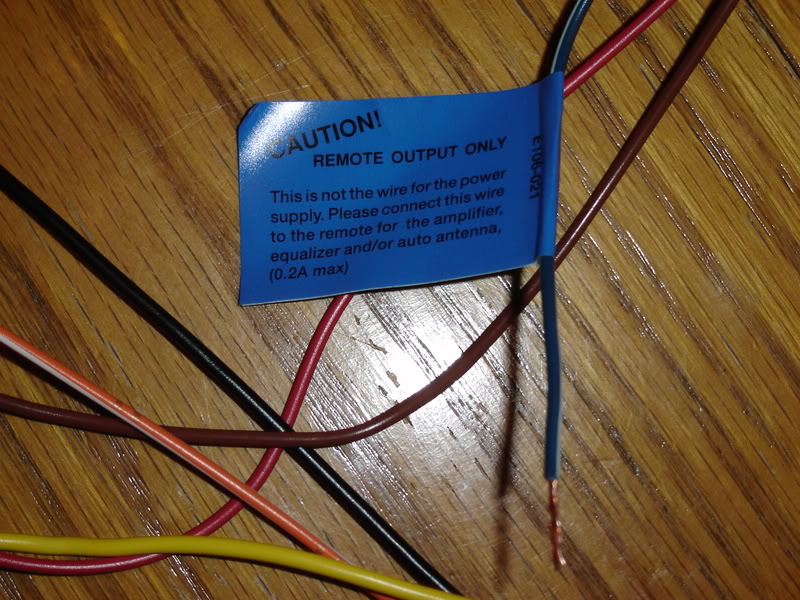

Coming off the deck...
Name:  DSC00079.jpg
Views: 47
Size:  124.5 KB
lglarum is offline   Reply With Quote
Old 01-09-2008, 10:35 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

the "and/or" seals the deal.

Yes, it will be fine.
harofreak00 is offline   Reply With Quote
Old 01-09-2008, 10:41 PM   #3
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Feb 2004
Location: Fargo, ND
Posts: 685
Thanks: 0
Thanked 0 Times in 0 Posts
lglarum is on a distinguished road
Default

Awesome, thanks Haro! I kept telling myself that it would be fine but I just had to make sure.
lglarum is offline   Reply With Quote
Old 01-10-2008, 09:46 AM   #4
Senior Member
Certified GM nut

Join Date: Mar 2007
Location: Yuma, AZ.
Posts: 1,936
Thanks: 0
Thanked 0 Times in 0 Posts
GXP_Vince is on a distinguished road
Default

Let us know if it works. I have had sooo many problems with it I just said screw redoing the whole audio system. Should be done on Sat.
GXP_Vince is offline   Reply With Quote
Old 01-10-2008, 12:57 PM   #5
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Feb 2004
Location: Fargo, ND
Posts: 685
Thanks: 0
Thanked 0 Times in 0 Posts
lglarum is on a distinguished road
Default

Will do Vince. I'm just waiting for my mounting brackets and SWI-JACK from eBay to show up, along with finding some free time to tear into it.
lglarum is offline   Reply With Quote
Old 01-13-2008, 07:59 PM   #6
Member
Posts like a V-Tak

Join Date: Feb 2006
Location: West Unity, Ohio
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
nate_boothman is on a distinguished road
Default Did everything work ok for you?

I hooked mine up and it shorted out my battery. I hooked everything up right, and this isn't my first install by far. I don't know what I did wrong. Is there anyway you and send me a wiring diagram? Thanks
nate_boothman is offline   Reply With Quote
Old 01-14-2008, 09:52 AM   #7
Senior Member
Certified GM nut

Join Date: Mar 2007
Location: Yuma, AZ.
Posts: 1,936
Thanks: 0
Thanked 0 Times in 0 Posts
GXP_Vince is on a distinguished road
Default

Just search for it on the forum like Monsoon wiring diagrams or GMOS-09 there is wiring diagrams in there I just dont have the time to look for them right now. Seriously, Its going to be a pain trying to figure it out using a GMOS there is another connector that I "Heard" works but I forgot what it was called. Search for that also.
GXP_Vince is offline   Reply With Quote
Old 01-17-2008, 09:28 AM   #8
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

What schematics are you using to wire this up? Can you post them here?
radomirthegreat is offline   Reply With Quote
Old 01-18-2008, 02:21 PM   #9
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Feb 2004
Location: Fargo, ND
Posts: 685
Thanks: 0
Thanked 0 Times in 0 Posts
lglarum is on a distinguished road
Default

Here'* the one for the Metra GMOS-09...
http://documents.victorytechnologies...ct/GMOS-09.pdf
I also am putting in the PAC SWI-JACK that gives me this for instructions...
http://www.pac-audio.com/swixprogram...Vehicles&ID=13
lglarum is offline   Reply With Quote
Old 01-19-2008, 01:28 PM   #10
Member
Posts like a V-Tak

Join Date: Feb 2006
Location: West Unity, Ohio
Posts: 31
Thanks: 0
Thanked 0 Times in 0 Posts
nate_boothman is on a distinguished road
Default Splicing

Would it hurt the factory amplifier if I would just cut and slice the speakers in instead of using the preamp outputs? Actually I had Best Buy install it for me and that'* what they did. They cut and spliced from the speakers leads out of the CD player directly into the ribbon cable. Is this a bad thing or what? It sounds really good, but could it be damaging or is it just a possibility?
