EDIT: Is the red/white thick wire from the ignition harness a 2nd constant 12 volt wire?




Doe the 92 SSE have a immobilizer in it and what type of door locks does this car uses?
trigga_b is offline   Reply With Quote
Old 10-16-2007, 03:21 AM   #2
Senior Member
Posts like a Camaro

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

if memory serves me, yes it has a factory immobilizer (cuts fuel I believe) and the door locks use a negative (ground) trigger.
phoenix_flame220 is offline   Reply With Quote
Old 10-16-2007, 02:15 PM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Vats....the great immobilizer.

You can measure the resistance on your key and then add a resistor into the wiring for the VATS to disable it.
BillBoost37 is offline   Reply With Quote
Old 10-16-2007, 03:20 PM   #4
Senior Member
Posts like a Camaro

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

Use a 5 pin relay to disable the vats. Wire it up to that when the relay is at rest, the VATS system works like normal, but when the remote starter is activated, it energizes the relay and connects the resistor to the circuit. That way the VATS is not actually disabled. Just bypassed temporarily.
phoenix_flame220 is offline   Reply With Quote
Old 10-17-2007, 01:08 AM   #5
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

Quote:
Originally Posted by phoenix_flame220
Use a 5 pin relay to disable the vats. Wire it up to that when the relay is at rest, the VATS system works like normal, but when the remote starter is activated, it energizes the relay and connects the resistor to the circuit. That way the VATS is not actually disabled. Just bypassed temporarily.
Yes, this is the correct way of doing it WHEN using a remote start system. I cannot stress this enough!
slick94prix is offline   Reply With Quote
Old 10-17-2007, 01:36 AM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2006
Location: Chicago, IL
Posts: 496
Thanks: 0
Thanked 0 Times in 0 Posts
trigga_b is on a distinguished road
Default

Thanks I don't even know what a relay is or look like I believe. The remote start system I have has on-board relays I just need to bypass the VATS. How would I measure the resistance on the key? Does anyone know the color of the VATS wiring for a 92? Thanks
trigga_b is offline   Reply With Quote
Old 10-17-2007, 05:35 AM   #7
Senior Member
Posts like a Camaro

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

To measure the keys resistance, get a multimeter and set it to OHMS, then put one lead to each side of that little chip thing n the middle of the key shaft. Find a resistor of that value. The VATS wires are orange. Itll be 2 thin wires with a cover that goes over both wires and hooks up to the ignition.
phoenix_flame220 is offline   Reply With Quote
Old 10-17-2007, 01:24 PM   #8
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2006
Location: Chicago, IL
Posts: 496
Thanks: 0
Thanked 0 Times in 0 Posts
trigga_b is on a distinguished road
Default

ok thanks, I got the remote start already hooked I just need to accomplish this bypass.
trigga_b is offline   Reply With Quote
Old 10-17-2007, 05:24 PM   #9
Senior Member
Posts like a Camaro

Join Date: Oct 2003
Location: Hamilton, Ontario
Posts: 1,074
Thanks: 0
Thanked 0 Times in 0 Posts
phoenix_flame220 is on a distinguished road
Default

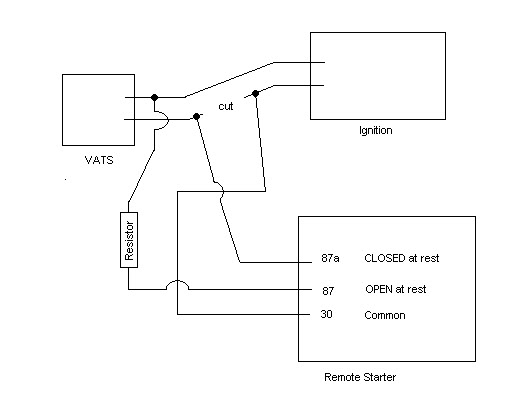

Heres I drew a diagram of how the VATS should be hooked up to your remote start.

Name:  remotestarterVATSbypassdiagram.jpg
Views: 1
Size:  14.3 KB
phoenix_flame220 is offline   Reply With Quote
Old 10-17-2007, 10:59 PM   #10
Senior Member
Posts like a Northstar

Join Date: Mar 2007
Location: Maumee, OH
Posts: 529
Thanks: 0
Thanked 0 Times in 0 Posts
slick94prix is on a distinguished road
Default

Quote:
Originally Posted by phoenix_flame220
Heres I drew a diagram of how the VATS should be hooked up to your remote start.

I can post actual diagrams, but I'd get yelled at by the mods.
slick94prix is offline   Reply With Quote
