Old 01-03-2006, 12:12 AM   #1
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default wss location

im bringing in the unit tomorrow for a $35 tech2 scan and i need to know if i should rehookup the wheel speed sensors to get a correct reading?

i have been told they are in plain sight behind the wheel if u turn them...

either im blind, or the disconnected wires have been pulled off by something?

can i get a pic or a better description please
harofreak00 is offline   Reply With Quote
Old 01-03-2006, 12:47 AM   #2
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: montreal, Canada
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
mike_peperni is on a distinguished road
Default

Normaly you cant miss them, the plug is kind of white , thats the only wire you will see.

Even disconnected, youll see the wire that is hold by the hub. If theres nothing then ...
mike_peperni is offline   Reply With Quote
Old 01-03-2006, 12:56 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

this is from the passenger side, wheel turned both ways from both angles

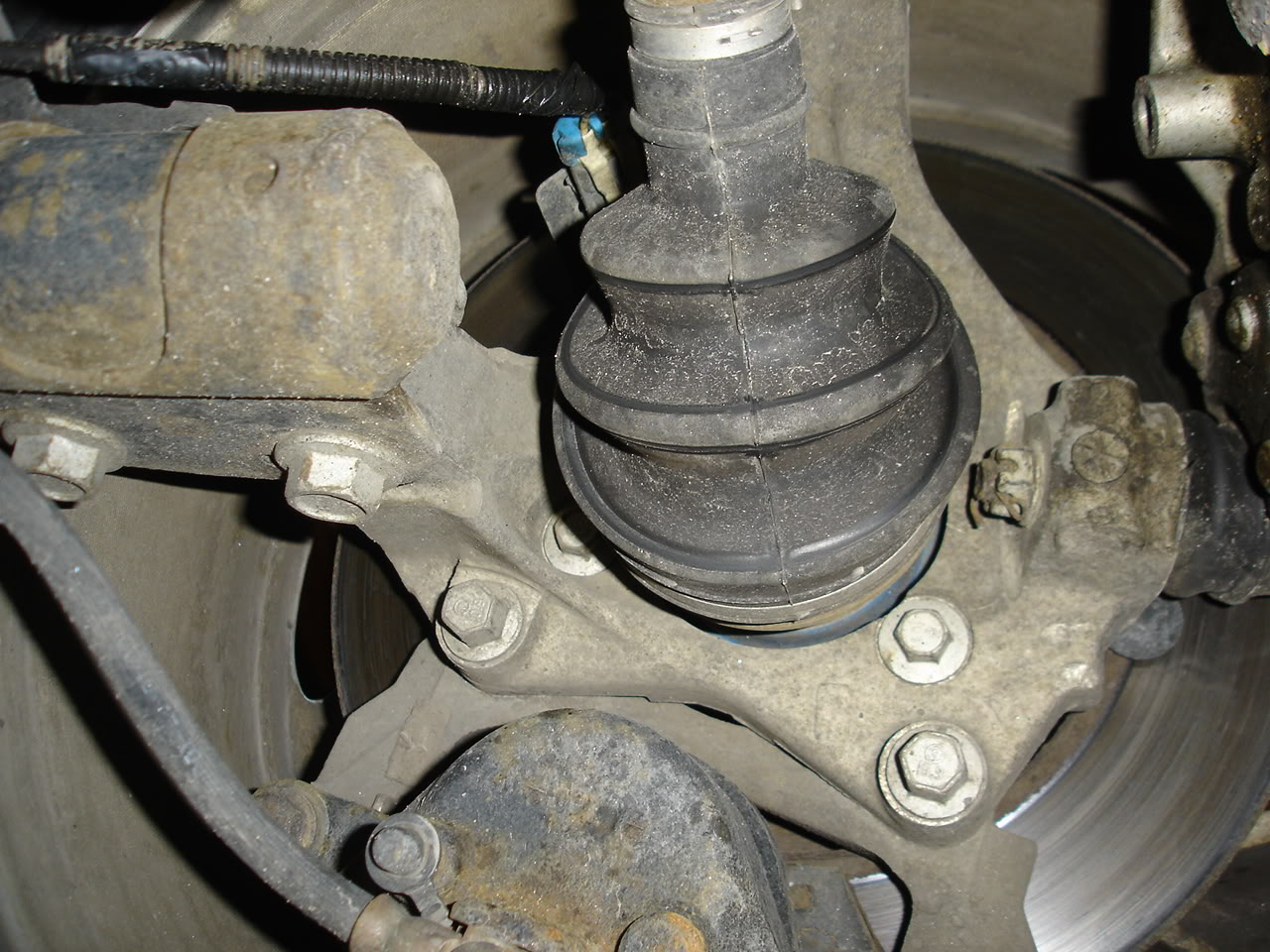

Name:  DSC08850.jpg
Views: 2
Size:  227.2 KB

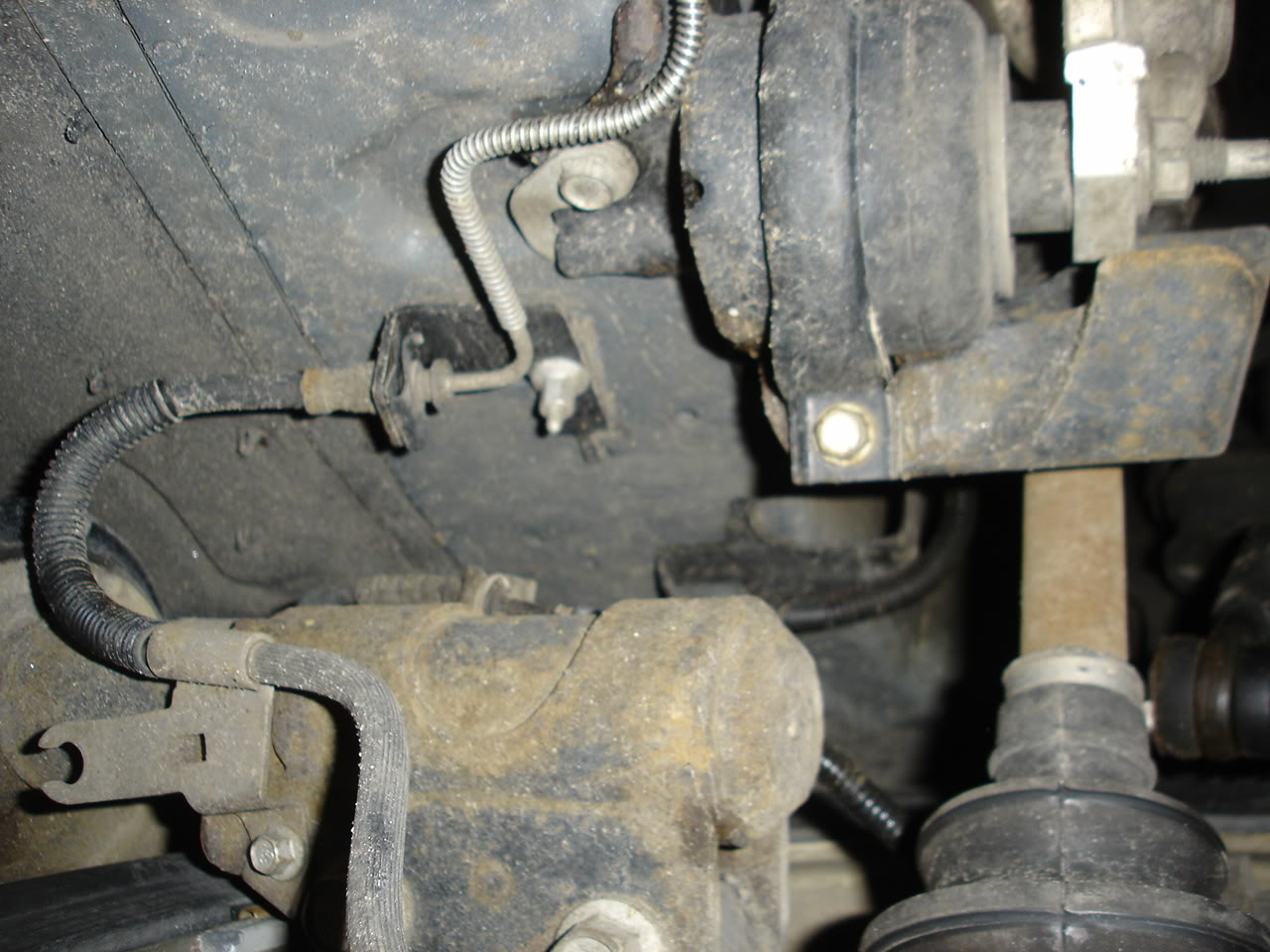

Name:  DSC08851.jpg
Views: 2
Size:  159.0 KB

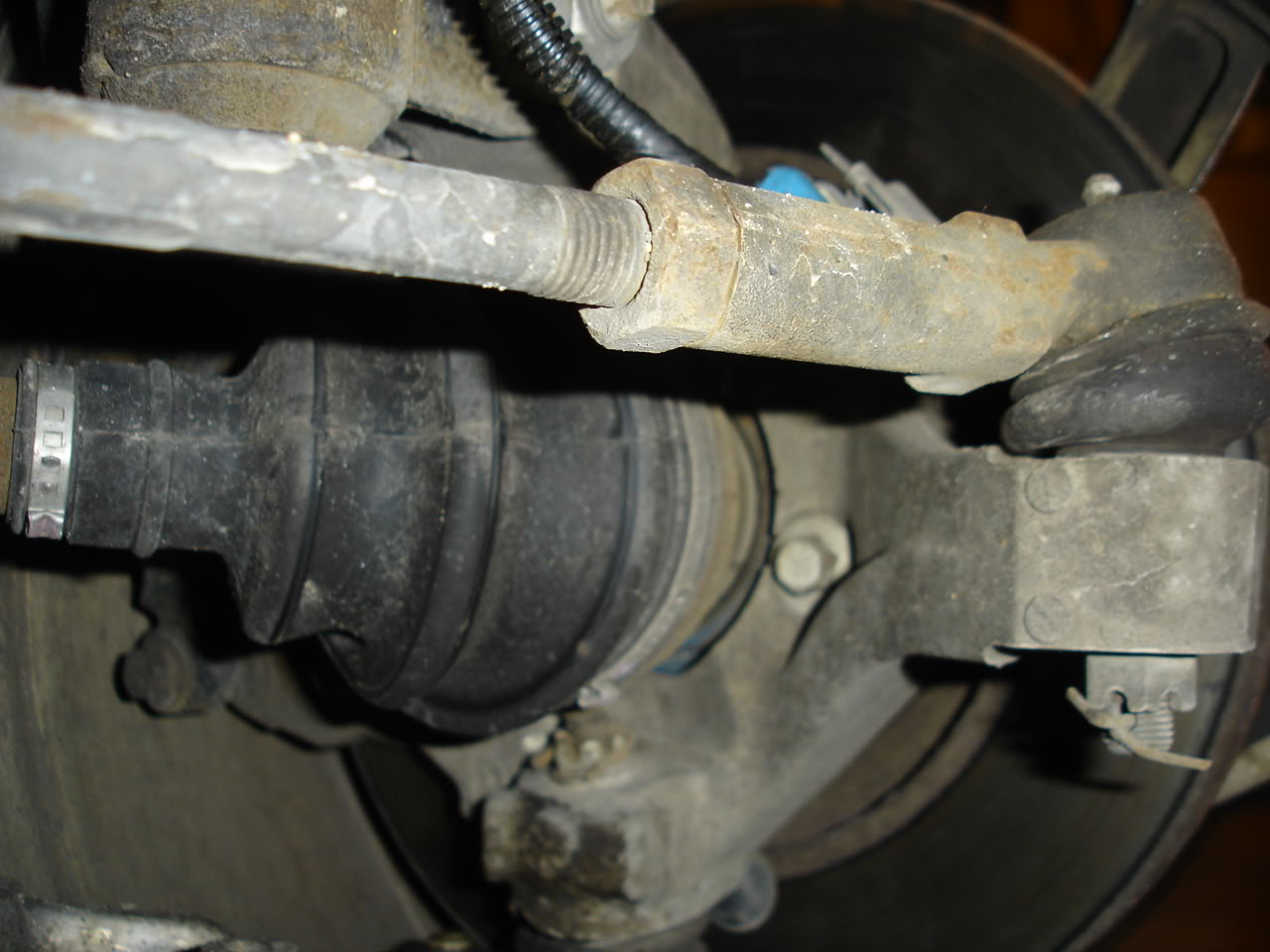

Name:  DSC08853.jpg
Views: 3
Size:  121.5 KB

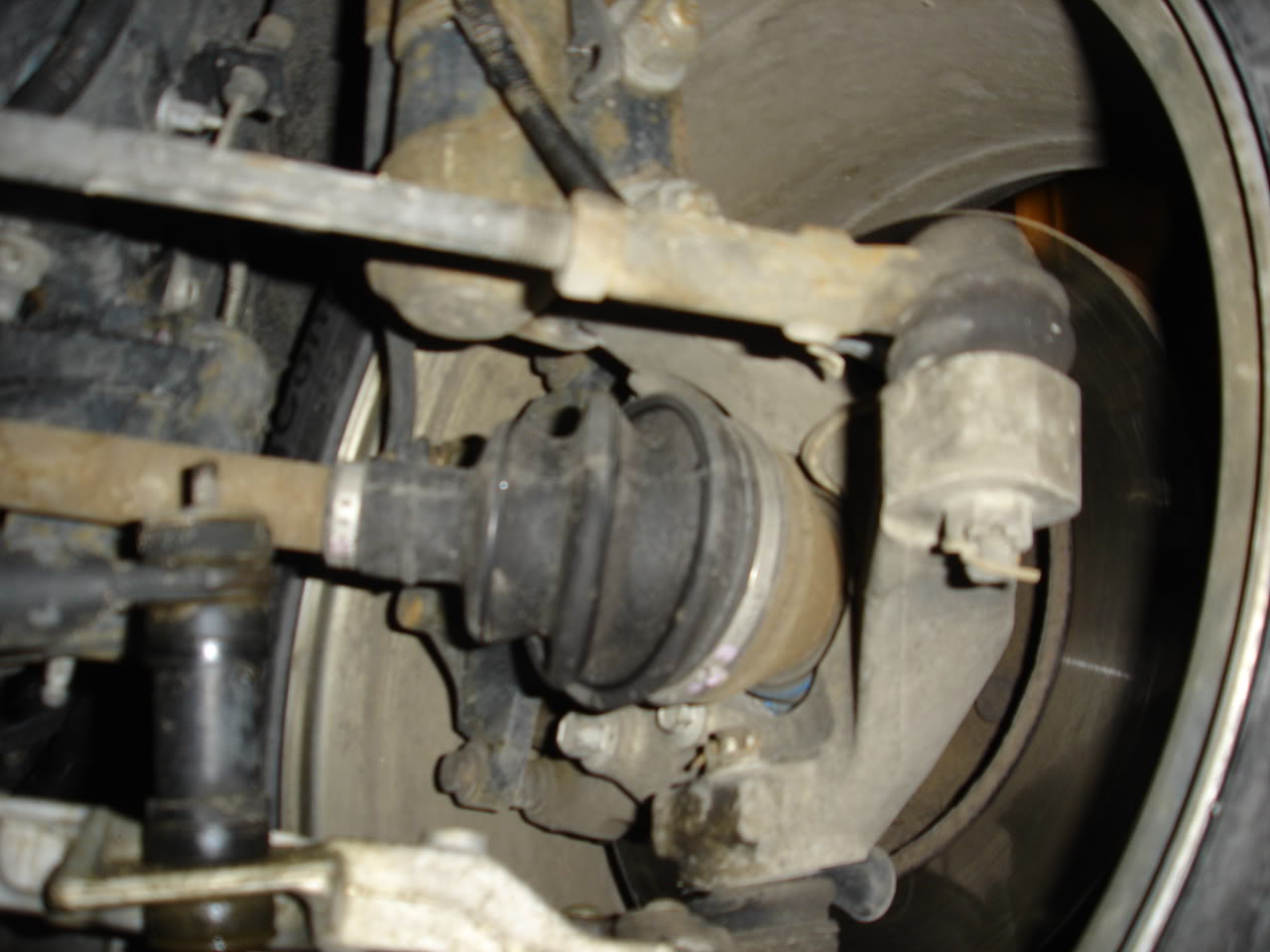

Name:  DSC08856.jpg
Views: 2
Size:  104.8 KB
harofreak00 is offline   Reply With Quote
Old 01-03-2006, 12:57 AM   #4
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

haha DOH... i see it now... these are the first pics i have taken of it...

BUT... doesnt it look like its connected?...

runs to check again
harofreak00 is offline   Reply With Quote
Old 01-03-2006, 01:05 AM   #5
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

yes the passenger was connected... but the driver side was disconnected... so i connected it... have not had a chance to drive it, but the antilock and trac lights are still on...

there are not any rear sensors correct?

i wonder why adam only disconnected one of them
harofreak00 is offline   Reply With Quote
Old 01-03-2006, 01:09 AM   #6
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Yes there are rear sensors too, and if the drivers side was disconnected for any length of time it may have gotten wet inside the connector.
PontiacDad is offline   Reply With Quote
Old 01-03-2006, 01:09 AM   #7
Senior Member
Certified GM nut

Join Date: Sep 2005
Location: Home Sweet Home in New York
Posts: 2,009
Thanks: 0
Thanked 0 Times in 0 Posts
Mortehl is on a distinguished road
Default

The 95 has sensors on all 4 wheels. Don't know about the 2000 but I'd imagine that would be the same.
Mortehl is offline   Reply With Quote
Old 01-03-2006, 01:11 AM   #8
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by PontiacDad
Yes there are rear sensors too, and if the drivers side was disconnected for any length of time it may have gotten wet inside the connector.
\

causing what??

the first snow caused this...

http://www.bonnevilleclub.com/forum/...ic.php?t=45823

Quote:
first of all, the entire ABS system is disabled because the WSS are disconnected because 1 or more sensors are bad... this means i have no ABS during winter, not good. with these sensors disconnected it displays "service stability system" on the DIC. along with that, the "anti-lock" and "trac off" lights are displayed.

i do not have the time or money right now to replace the hubs, but i think the following problrms is not related to this system.

about a month ago, the first day it snowed, i starting having this problem where when i would start the car, and all the above lights would go off.. i think wow, it fixed itsself. then i put it in gear and start to drive. as soon as the gas pedal is pushed, the car brakes by itself, the more you apply gas, the more it brakes, to a complete stop. to bypass it, you can LIGHTLY hold your foot on the brake, enough that it applies, and then the gas pedal works freely, driving around with the brake slightly applied... NOT COOL...

it is completely randon, but only during start up. it will switch back to its normal mode sometimes seconds after startup, sometimes minutes and miles away. i thought i could make it go normal by doing a burnout or turning sharp turns, but those were only coincedences that they shut off the stupid error.

i have narrowed it down to the front passenger callipers applying more than the driver side if that has anything to do with it.
harofreak00 is offline   Reply With Quote
Old 01-03-2006, 02:44 AM   #9
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: montreal, Canada
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
mike_peperni is on a distinguished road
Default

If you run too long with the WSS unplug , water can damage the connector and you need a new one, it happen to me, mine wasnt correctly connected. From the dealer the harness is 68.70$canadian.

If you have a bad WSS, the code will be set again. Wait till you have your new WSS/hub and the code will probably go away.
mike_peperni is offline   Reply With Quote
Old 01-04-2006, 09:53 PM   #10
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

went to dealer today.. tech2 pulled 21 history codes... didnt even get a chance to see them, he cleared them pretty much right away...

the sensor that is bad is the left front, it said it was open circut... he cleared it and it came up instantly...

the rear right sensor pulled a code after a drive of inconsistant data with the other readings...

going to check the wires on the left front sensor, but the lugs are stuck hard...
