Default water leak with pic - minor update.

we went into the car wash to get my car all prettied up. one thing we noticed as we pulled out of the car wash [in addition to the suds all over the back of my car, which the guy cleaned up], was a water leak.

there are two. one at the front bottom of both front doors. just a small thread of water coming into the car and getting absorbed by the carpet. this gave me the conclusion i need new door seals -- was i correct?

if i was correct, what can i expect to pay for these seals? any tips?
jwakamud is offline   Reply With Quote
Old 04-02-2007, 10:15 AM   #2
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

If the seals are soft and dont have any tears or blemishes. You can lift them out a bit and apply tape to the backing so they push out and seal a bit tighter.
I did this on the upper door seal and its still working 2 years later.
You can test the seal with a piece of paper closed into the door jam and try sliding it along.
PontiacDad is offline   Reply With Quote
Old 04-02-2007, 02:16 PM   #3
Junior Member
Thread Starter

Join Date: Sep 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
jwakamud is on a distinguished road
Default

the seals look fine. so i just need to apply tape to close the cap? what kind of tape?
jwakamud is offline   Reply With Quote
Old 04-02-2007, 03:06 PM   #4
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

Instead of moving the seal out couldn't you bring the door latch in a little? i think it takes a T40 or 45 torx. I had to do that awhile back and haven't had leakage issues since.
1994se is offline   Reply With Quote
Old 04-02-2007, 06:08 PM   #5
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default Re: water leak

Quote:
Originally Posted by jwakamud
there are two. one at the front bottom of both front doors. just a small thread of water coming into the car and getting absorbed by the carpet.
Does the water appear to be coming from behind the interior door panel? Just beneath the area where the speaker is located? If so, it sounds as if the water deflector seal is leaking.
markwb is offline   Reply With Quote
Old 04-03-2007, 12:58 AM   #6
Junior Member
Thread Starter

Join Date: Sep 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
jwakamud is on a distinguished road
Default

ill try to get a pic tomorrow to illustrate the issue.
jwakamud is offline   Reply With Quote
Old 04-03-2007, 08:01 PM   #7
Junior Member
Thread Starter

Join Date: Sep 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
jwakamud is on a distinguished road
Default

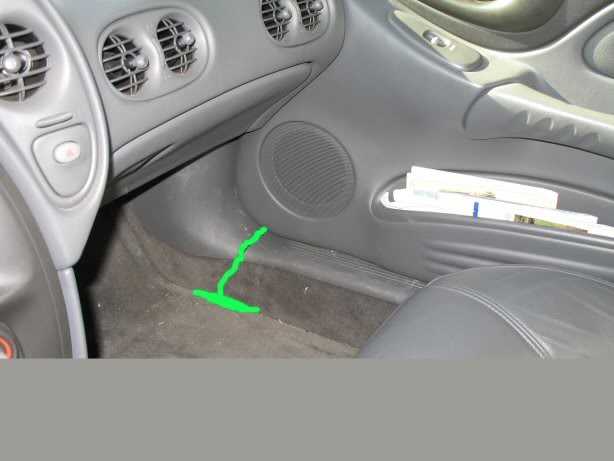

heres a pic, i shot in some green showing the path of the water, where it came in.

Name:  IMG_2353.jpg
Views: 0
Size:  32.0 KB
jwakamud is offline   Reply With Quote
Old 04-04-2007, 06:15 AM   #8
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

That looks like water deflector failure. You will have to remove the passenger door interior trim panel to have a closer look. When you have the panel removed, shut the door. From the outside have someone pour water (small glass) on the window glass to get water flowing through the door. Open the driver door, look across at the passenger door, you'll be able to pin point where the water is coming.
markwb is offline   Reply With Quote
Old 04-04-2007, 10:03 AM   #9
Junior Member
Thread Starter

Join Date: Sep 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
jwakamud is on a distinguished road
Default

okay. thanks for all the replies so far.

first i will try to go with the door seals, as it only leaked in the car wash. what should i use to push the seals out? or is that the best way to go about it? then i will check it with the hose (me on the outside, just spray it over the door and check to see if its leaking. if its still leaking, then ill tear the panel off and check the water deflector. the bonus is that once someone tells me (at their leisure, no one sits around waiting for me to ask a question) what to use to push it out, ill have a bit longer to figure out how to get the door panel off without causing damage to the panel.
jwakamud is offline   Reply With Quote
Old 04-04-2007, 08:21 PM   #10
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

Quote:
Originally Posted by jwakamud
then i will check it with the hose (me on the outside, just spray it over the door and check to see if its leaking.
Jeff, actually you want to use a small controlled amount of water like a 1 liter bottle for example. Leave the passenger door interior panel in place for now. Gently pour some water directly on the passenger window, walk around to the driver door, open the driver door, get down low with a bright light shining on the area of the passenger door where the water is coming in. What do you see? There are threads in the forums to help with removal of interior door panels on the 00+'*, I'll check around. But for now, do the water trick.
markwb is offline   Reply With Quote
