Torx bit for the supercharger drive belt tensioner. - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


2000-2005 Discuss your 2000-2005 Bonneville SE, SLE, and SSEi Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Reply



Thread Tools Search this Thread
Old 03-15-2007, 07:39 PM   #1
Junior Member
Thread Starter

Join Date: Mar 2007
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Leinzey is on a distinguished road
Default Torx bit for the supercharger drive belt tensioner.

Just wondering what size that Torx bit is. I don't have any and definitely don't feel like buying a full set just to change the belt on my father'* 2000 Bonneville SSEi. So yeah, would anyone happen to know what size Torx bit I will need? Thanks in advance.

MODS: feel free to move this into the 2000-2005 section, I didn't scroll down far enough to see those before making this post. Please forgive the newbie mistake.
Leinzey is offline   Reply With Quote
Old 03-15-2007, 07:45 PM   #2
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

IIRC it'* a T47. Don't forget it'* a reverse thread also
dbeast420 is offline   Reply With Quote
Old 03-15-2007, 07:58 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2007
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Leinzey is on a distinguished road
Default

Quote:
Originally Posted by dbeast420
IIRC it'* a T47. Don't forget it'* a reverse thread also
Hm, are you sure? I was searching through this thread: http://www.bonnevilleclub.com/forum/...highlight=torx and one member said that he used a T50. I could just buy both.
Leinzey is offline   Reply With Quote
Old 03-15-2007, 08:14 PM   #4
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

Quote:
Originally Posted by Leinzey
Quote:
Originally Posted by dbeast420
IIRC it'* a T47. Don't forget it'* a reverse thread also
Hm, are you sure? I was searching through this thread: http://www.bonnevilleclub.com/forum/...highlight=torx and one member said that he used a T50. I could just buy both.
My bad. I just checked mine against the pulley and it was a little loose. Just take the car with ya and size it at the parts store
dbeast420 is offline   Reply With Quote
Old 03-16-2007, 02:09 AM   #5
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

Just confirming that the T50 fits nice and snug so go with that. The T47 works but you don't want to strip that bolt because the dealer can't get you a new one and they don't come with the pulley so you have to order a whole new tensioner.
1994se is offline   Reply With Quote
Old 03-16-2007, 02:31 AM   #6
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

To make it easier in case you have to replace it again down the road find a GTP in the salvage yard and get the hex head bolt off it. That'* what I did on my parents 2002 Park Avenue Ultra. Easier to dig up a 15mm (IIRC) socket than try and find a T50 torx bit.
OLBlueEyesBonne is offline   Reply With Quote
Old 03-16-2007, 03:15 AM   #7
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

That is definately on my to do list as well.
1994se is offline   Reply With Quote
Old 03-16-2007, 03:16 AM   #8
Senior Member
True Car Nut

Join Date: Aug 2003
Location: Salina, KS
Posts: 5,246
Thanks: 0
Thanked 0 Times in 0 Posts
TrueWildMan is on a distinguished road
Default

You might want to buy a few of them. I went through 3 torx bits, ripped them in half, before that bolt finally broke loose. And, yes, I was turning it the right way.
TrueWildMan is offline   Reply With Quote
Old 03-16-2007, 04:39 PM   #9
Senior Member
Posts like a 4 Banger

Join Date: Jan 2007
Location: Nebraska
Posts: 103
Thanks: 0
Thanked 0 Times in 0 Posts
kcoop99 is on a distinguished road
Default

I just did this a week ago. I went to carquest and bought a T47 bit. I worked perfect. The one thread where the guy used a T50, he had stripped it out and had to pound a T50 into it to get it out. You are on the right track with a T47, about $7. Good luck.
kcoop99 is offline   Reply With Quote
Old 03-16-2007, 07:53 PM   #10
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

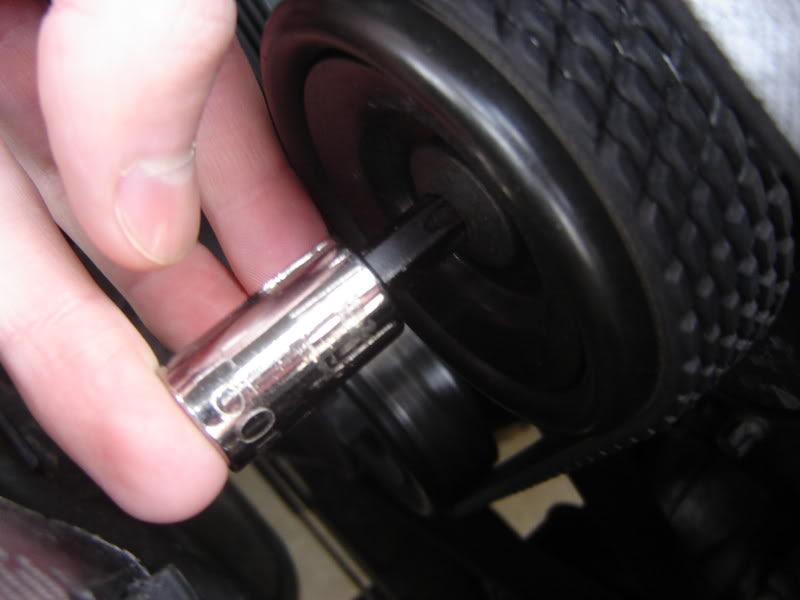

Did he take the tensioner off first before pounding the bit in? i don't have enough room in there to even get the torx bit on with my ratchet, i use a vice grips clamped down on the body of the torx and it works nicely. The T47 will work but if I were you i would use the T50 for the longevity of the bolt.Thats a lot of torque to be putting on a torx fitting that has some play in it.

Name:  see.jpg
Views: 53
Size:  41.4 KB
1994se is offline   Reply With Quote
