Supercharger hose

Old 09-25-2014, 04:58 PM
  #1
Senior Member
Posts like a Turbo
Thread Starter

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Likes: 0
Received 3 Likes on 3 Posts
vendo is on a distinguished road
Default Supercharger hose

towards the back of supercharger towards front of the car there is a hose missing...the other one goes to black soloniod that goes to top of supercharger,where does that hose go? do you need a pic?
Old 09-25-2014, 05:12 PM
  #2
Retired



Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 17,920
Received 1,780 Likes on 1,304 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Pics are worth a thousand words.
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel

Old 09-25-2014, 06:03 PM
  #3
Senior Member
Posts like a Turbo
Thread Starter

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Likes: 0
Received 3 Likes on 3 Posts
vendo is on a distinguished road
Default

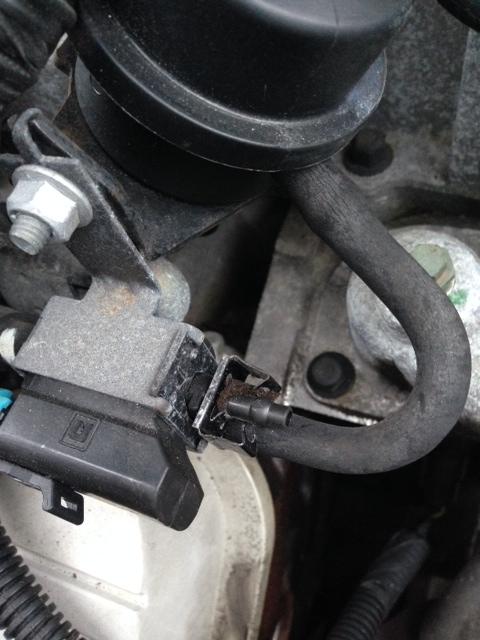

whats the black unit above it,I checked the vacuum to it and it does not hold,friend says its no good if it doesn't hold.
Attached Thumbnails Supercharger hose-hosefors-c.jpg
Old 09-25-2014, 06:20 PM
  #4
Retired



Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 17,920
Received 1,780 Likes on 1,304 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Nope, that'* suppose to be like that. It'* so that the boost control actuator can bleed off. Mines the same way.

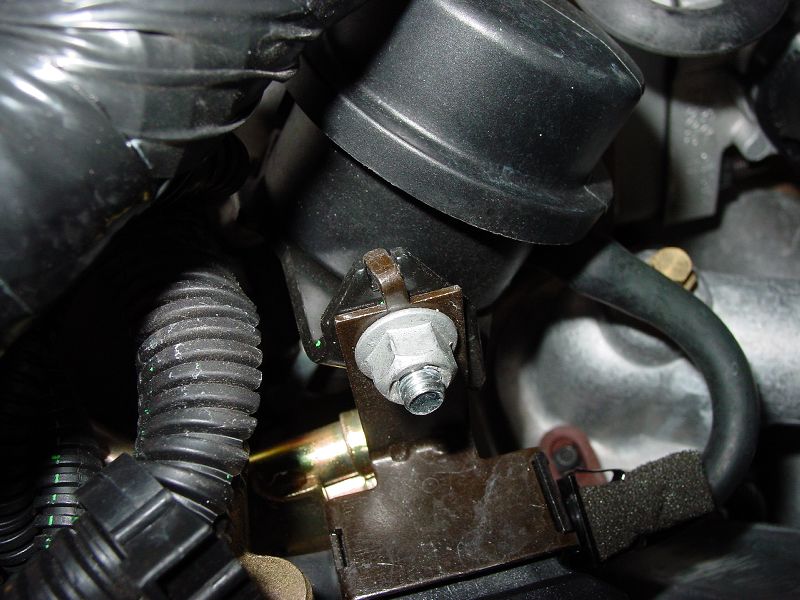

In this image, you will see that there is actually a piece of filter on the nipple...




Much like what you can see what'* left on yours.
Attached Thumbnails Supercharger hose-boostbypass2_zps2715bd4e.jpg
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel

The following users liked this post:
GunsOfNavarone (09-26-2014)
Old 09-25-2014, 06:27 PM
  #5
Senior Member
Posts like a Turbo
Thread Starter

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Likes: 0
Received 3 Likes on 3 Posts
vendo is on a distinguished road
Default

what about the black unit?
Old 09-25-2014, 08:56 PM
  #6
Retired



Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 17,920
Received 1,780 Likes on 1,304 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Boost valve actuator.

Note its position with engine off. Then start engine. If it doesn't move up, then there is a vacuum issue. If you use a vacuum tool to put vacuum on it, and it doesn't move, then it probably has a hole in it or the arm is seized.
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel

Old 09-25-2014, 09:12 PM
  #7
Senior Member
Posts like a Turbo
Thread Starter

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Likes: 0
Received 3 Likes on 3 Posts
vendo is on a distinguished road
Default

I put vaccum to it and it did not hold it.
Old 09-25-2014, 09:25 PM
  #8
Senior Member
Posts like a Turbo
Thread Starter

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Likes: 0
Received 3 Likes on 3 Posts
vendo is on a distinguished road
Default

it does move when the engine is running..so I don't know..i get a hesitation lately..thought that could be it.
Old 09-26-2014, 06:13 AM
  #9
Retired



Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Dark Side, AZ
Posts: 17,920
Received 1,780 Likes on 1,304 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

If you disconnect the black hose to it, connect your pump to it and pump it, its suppose to stay put.
Another way to do it is to disconnect the hose, manually push the actuator in, put your finger on the hose nipple and let go of the actuator. It should stay. If it does not, then the actuator is bad.
__________________
Retired Administrator
2002 *-10 5.7 V8
2023 Jeep Rubicon Diesel

Old 09-26-2014, 07:38 AM
  #10
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Received 579 Likes on 497 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

that vacuum line looks terrible, i would replace any that look like a dry rotted old tire, they get stiff and dont hold vacuum long before they look like that
