2000-2005 Discuss your 2000-2005 Bonneville SE, SLE, and SSEi Please use General Chat for non-mechanical issues, and Performance and Brainstorming for improvements.

Suggestions Please!

Thread Tools

Search this Thread

Old 01-29-2007, 05:05 PM
  #1
Junior Member
Posts like a Ricer Type-R
Thread Starter

Jer8778's Avatar

Join Date: Nov 2006
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Jer8778 is on a distinguished road
Default Suggestions Please!

Ok guys, so on my way home from work today I noticed my Bonne wasn't running right. I pulled into the driveway and opened the hood. As I suspected, the supercharger belt had came off. SO I'm thinking this is a perfect time to get a new pulley and belt. I was planning on going to a 3.5 pulley. I have the 180 degree drilled thermostat and planning on getting the intense fenderwell intake when I order the pulley. I guess my question is....how do I know what size belt I will need with the smaller pulley?
Old 01-29-2007, 05:23 PM
  #2
Senior Member
Certified Car Nut

1993 SLE's Avatar

Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes on 0 Posts
1993 SLE is on a distinguished road
Default

you will need a 715 belt OR a stock 725 belt with a oversized tensioner ....if you order the FWI, and pulley from Intense you can get the belt from them.....although i recommend that you get a belt sooner than that
Old 01-29-2007, 05:24 PM
  #3
Senior Member
True Car Nut

PontiacDad's Avatar

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Likes: 0
Received 0 Likes on 0 Posts
PontiacDad is on a distinguished road
Default

You would need a GB6-715 Gator back Belt for a 3.5" with no intercooler.
Hows your idler pulley looking? any play or squeaks when you give it a spin?
Old 01-29-2007, 05:32 PM
  #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Let'* get this belt issue fixed up before you upgrade. Do you know why your belt came off?
Old 01-29-2007, 06:08 PM
  #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Jer8778's Avatar

Join Date: Nov 2006
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Jer8778 is on a distinguished road
Default

Yeah...I know why my belt came off, it had a big chunk out of one of the sides of it...I had seen it when chaging my plugs a few weeks ago and knew I should get a new one....just been a little busy. The idler looks like crap now....like the plastic on the ouside is melted, I'm guessing from the beltrubbing against it as it was shredding. So I guess I need a new idler as well!
Old 01-29-2007, 06:17 PM
  #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Jer8778's Avatar

Join Date: Nov 2006
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Jer8778 is on a distinguished road
Default

Actually, so I guess what I should do for now is to go get a stock belt and then order the oversized tensioner when I order the other stuff? Sound like a good idea?
Old 01-29-2007, 06:24 PM
  #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Well..it sounds like the bearings in the tensioner went bad.

You could go at it with a new tensioner and the smaller belt, although you need to fix that idler first.
Old 01-29-2007, 06:48 PM
  #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Jer8778's Avatar

Join Date: Nov 2006
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Jer8778 is on a distinguished road
Default

Originally Posted by BillBoost37
Well..it sounds like the bearings in the tensioner went bad.

You could go at it with a new tensioner and the smaller belt, although you need to fix that idler first.
Good call, just went out and checked....the top idler is the one that'* plastic is all tore up, the bottom idler...is...ummm...missing, just a locked up bearing sitting in the place where it should be. Went to advance auto and bought both idlers and a new 725 belt, at least it should get me by until the stuff from intense gets here.
Old 01-29-2007, 06:51 PM
  #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Jer8778's Avatar

Join Date: Nov 2006
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Jer8778 is on a distinguished road
Default

Also a quick question, can someone tell me what size of torx the bolts are so I can have my roomate bring me one from the race shop.
Old 01-29-2007, 06:56 PM
  #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Jer8778's Avatar

Join Date: Nov 2006
Posts: 17
Likes: 0
Received 0 Likes on 0 Posts
Jer8778 is on a distinguished road
Default

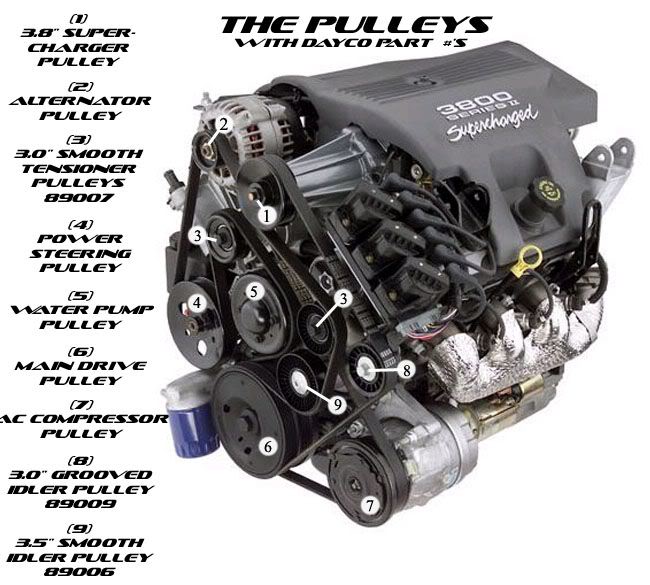

lol, just looked at the topic under mine and found this nice diagram

Name:  S2L67.jpg
Views: 42
Size:  74.1 KB

SO My number 3 pulley is torn up, and the number 9 is completely missing, just a bearing left. I bought the dayco replacement ones for now
