Default Replace Half Shaft

I have searched the forums and not found a solid answer. Can you remove the drivers side half shaft without splitting the ball joint? 2001 Bonneville SLE

Got a bad CV joint, got a new half shaft from Rock Auto (thanks for that tip) and am planning on doing it tonight, but I don't have a ball joint tool.

There is a ton a great info here, thanks for a great site!

Thanks,
Eric
echap is offline   Reply With Quote
Old 03-04-2010, 04:36 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Some of the below was originally for another member, but applies. So if there'* any stupid comments..they aren't toward you.

You really have two choices. Unbolt the strut to knuckle, which screws up your alignment, or pop the balljoint. I don't use a pickle fork either. That kills the boots, I use a long prybar in the below procedure. Pretty much identical to your car.



Jack and support the car.

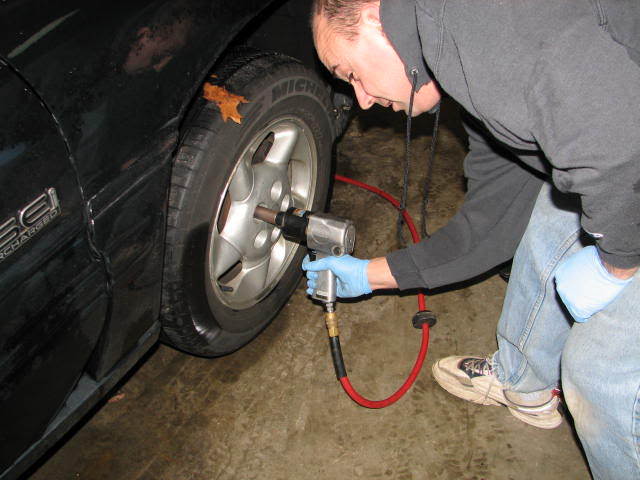

Zip the tire out of the way
Name:  IMG_2761.jpg
Views: 265
Size:  45.3 KB

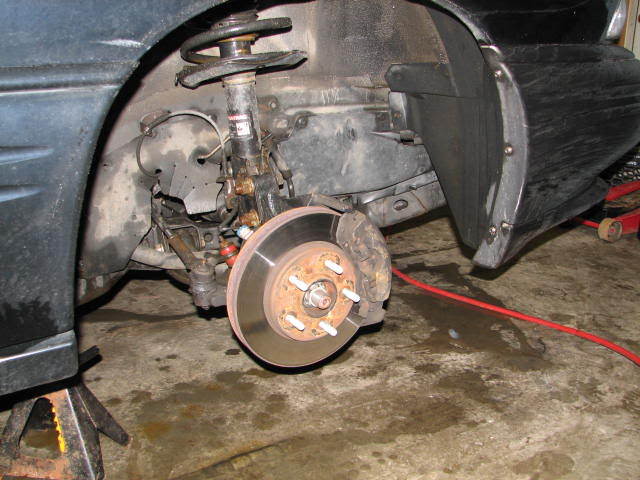

Name:  IMG_2762.jpg
Views: 264
Size:  56.8 KB

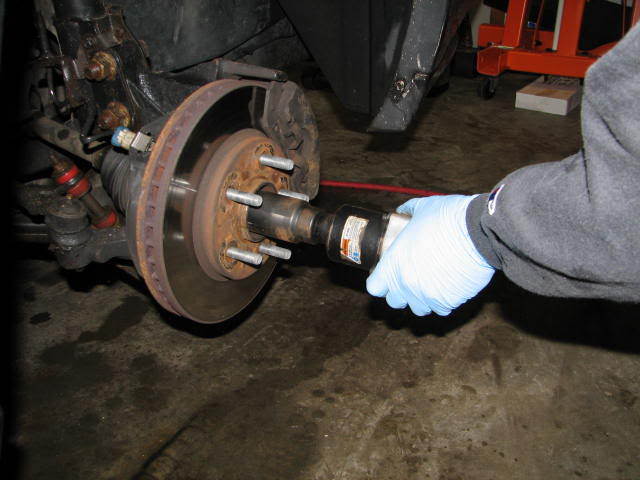

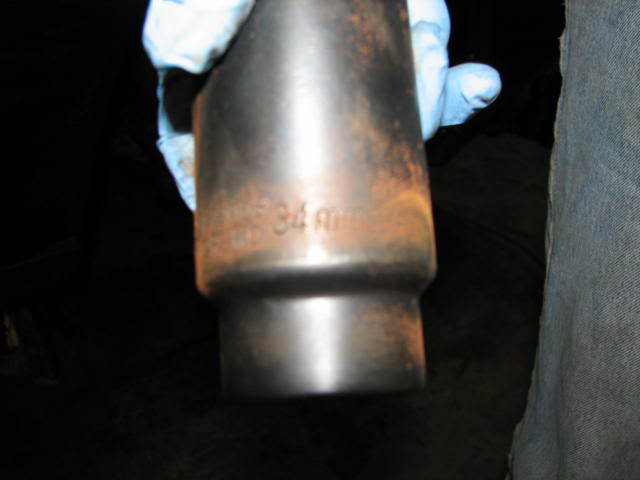

34mm socket for Bonneville axle nuts, remove axle nut
Name:  IMG_2763.jpg
Views: 262
Size:  23.8 KB
Name:  IMG_2764.jpg
Views: 272
Size:  42.5 KB

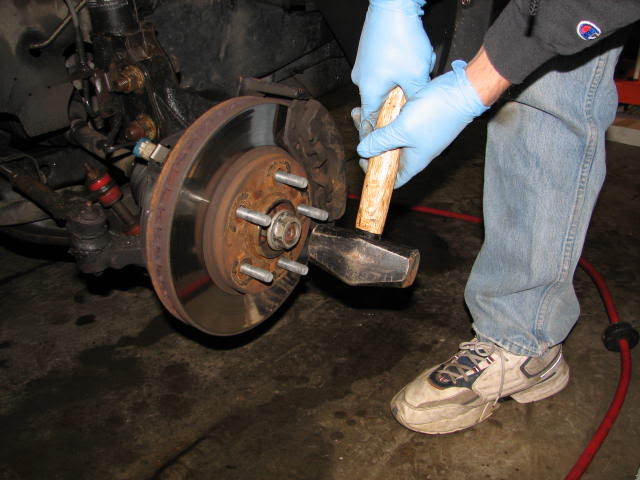

Thread nut back on so it'* flush with the end of the axle. This way when you hit it, the threads on the axle do not become hurt. Hit until you see axle move inward. This is to free it from the tapered splines of the hub/bearing.
Name:  IMG_2765.jpg
Views: 264
Size:  46.2 KB

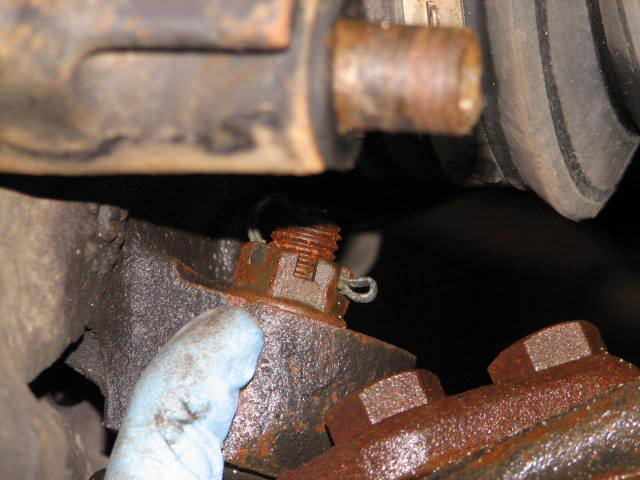

Remove cotter pin from the castle nut on the balljoint
Name:  IMG_2774.jpg
Views: 263
Size:  45.5 KB

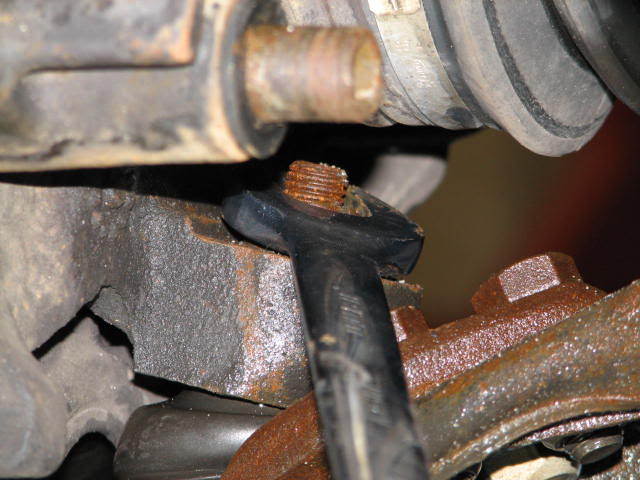

Using your 18mm wrench remove the castle nut from the balljoint
Name:  IMG_2776.jpg
Views: 261
Size:  50.6 KB

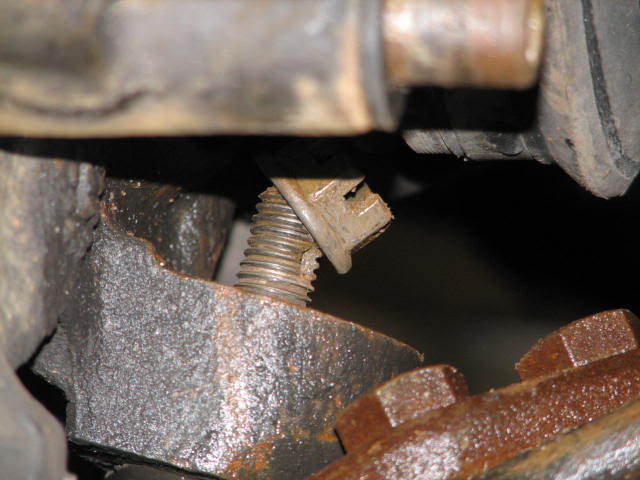

If the nut won't come out.. do your best to have it fully loosened.
Name:  IMG_2777.jpg
Views: 268
Size:  45.6 KB

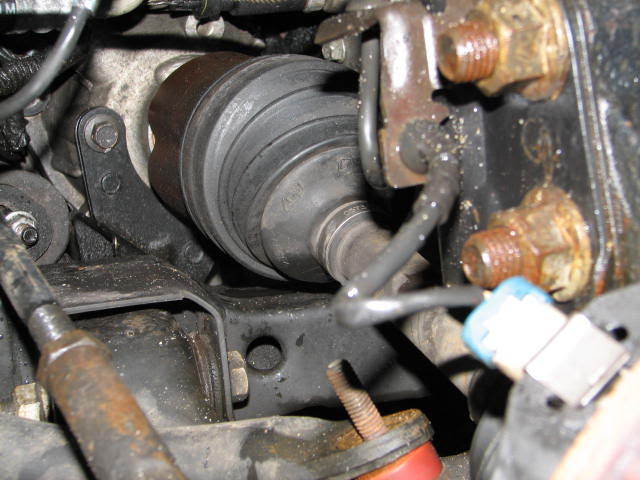

Undo your endlink to facilitate the control arm moving.
Name:  IMG_2779.jpg
Views: 270
Size:  52.5 KB

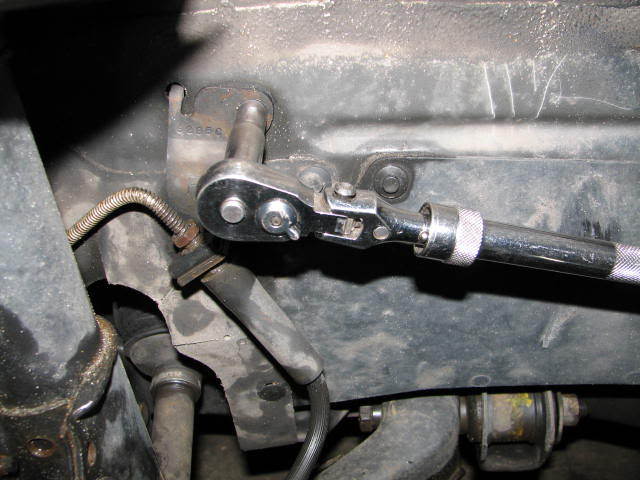

Unbolt the brake like from the body.
Name:  IMG_2772.jpg
Views: 265
Size:  49.1 KB

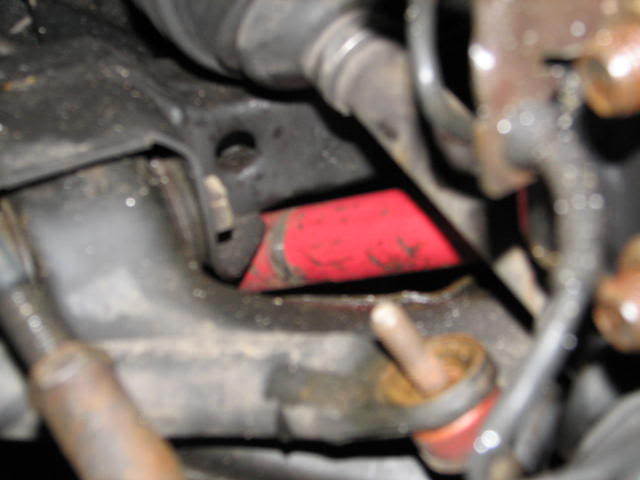

Bring in a 4-5 foot prybar (I use my steel floor jack handle) from by the front bumper where the wheel well meets it toward the body between the body edge and subframe bolts. Slide it under the axle and over the control arm.
Name:  IMG_2780.jpg
Views: 258
Size:  31.0 KB

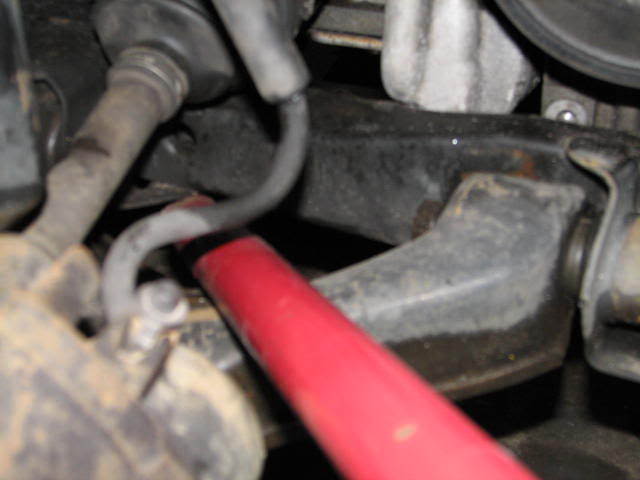

Name:  IMG_2781.jpg
Views: 257
Size:  30.2 KB

Pry down. It helps to have a helper. At the same time as the prying, hit the balljoing on the side (not where the grease zerk is, other side ) and after a few hits the ball joint will come free from the knuckle. Move the strut/knuckle behind the ball joint before letting the control arm back up.

I like to sit/kneel facing the hub. My hand that is closer to the rear of the vehicle grabs the caliper and pulls outward and toward the rear of the vehicle. At the same time, the hand that is closer to the front of the car reaches around and cups the CV between the hub an the outter CV joint. Pushing backward on the CV and outward and back on the knuckle you pull the axle out of the hub and then lay it on the control arm. Pics for this part are poor because I was basically blocking all the shots with my body to do the work.
Name:  IMG_2782.jpg
Views: 260
Size:  53.1 KB

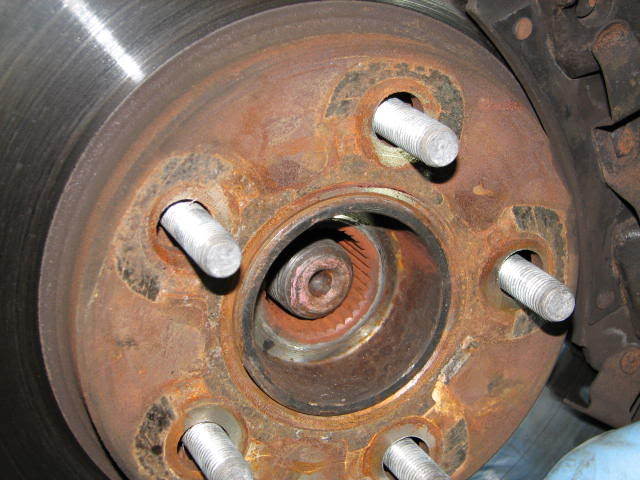

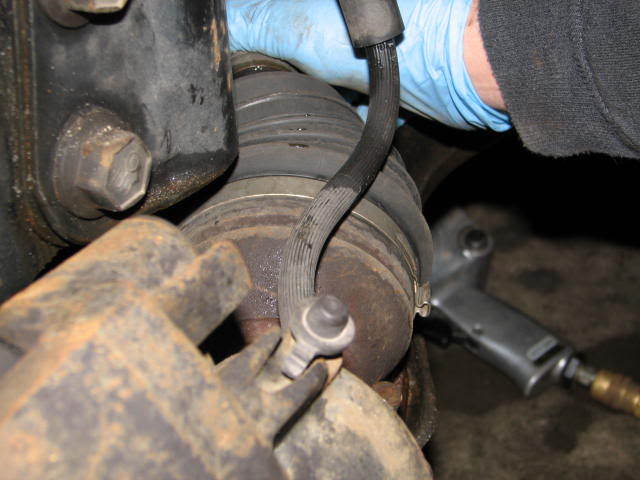

I moved my hand off the CV for a second for this shot. My hand was between the hub and the outter boot of the CV.
Name:  IMG_2783.jpg
Views: 261
Size:  42.5 KB

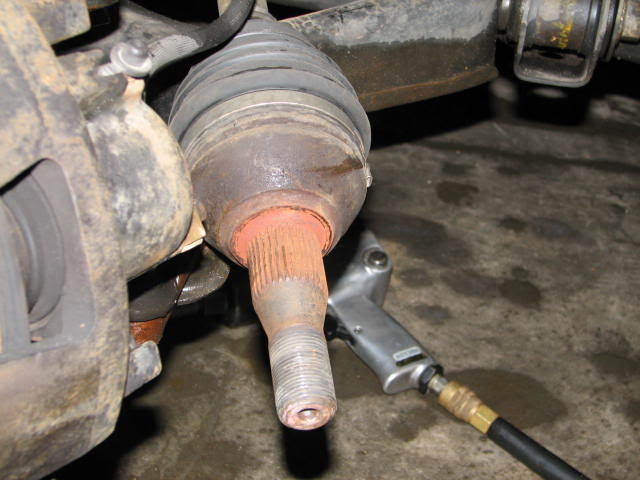

Name:  IMG_2784.jpg
Views: 289
Size:  45.2 KB

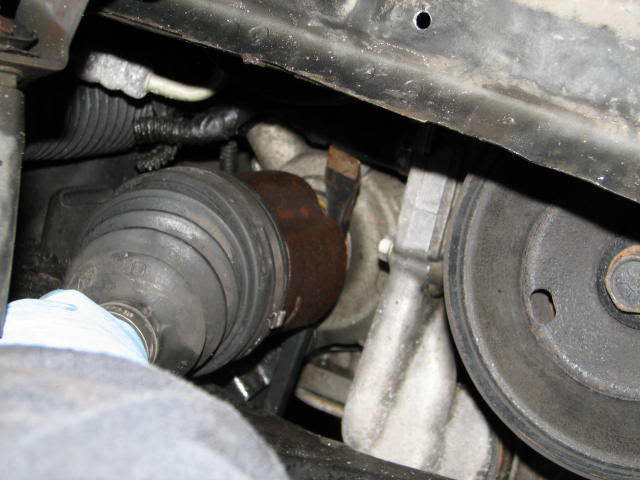

Crawl under and use a prybar etc (usually I use a block of wood and hammer on the pass side and prybar on driverside). to give the CV a quick pop like hit from the back. If you put tension on it the clip will hold it in. A quick pop is what is needed to remove it. Here we have the prybar in place.
Name:  IMG_2786.jpg
Views: 259
Size:  42.9 KB

And the axle is out.
Name:  IMG_2787.jpg
Views: 369
Size:  42.3 KB

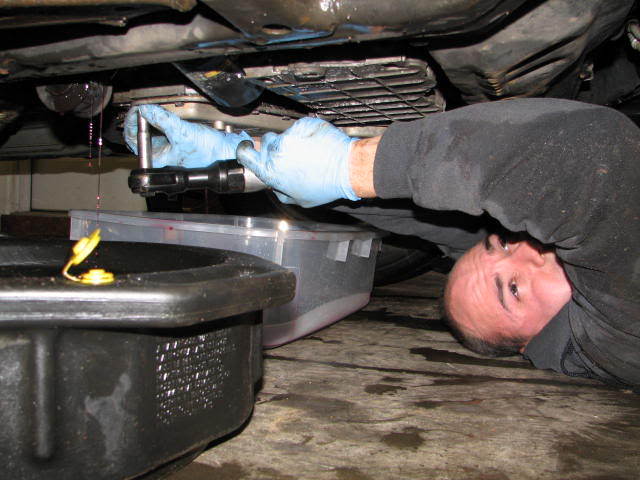

You may notice that somebody forgot that the axle seals, seal the axles from leaking trans fluid because the level of fluid is above them.
That someone then got under the car and drained the trans.
Name:  IMG_2788.jpg
Views: 262
Size:  50.2 KB

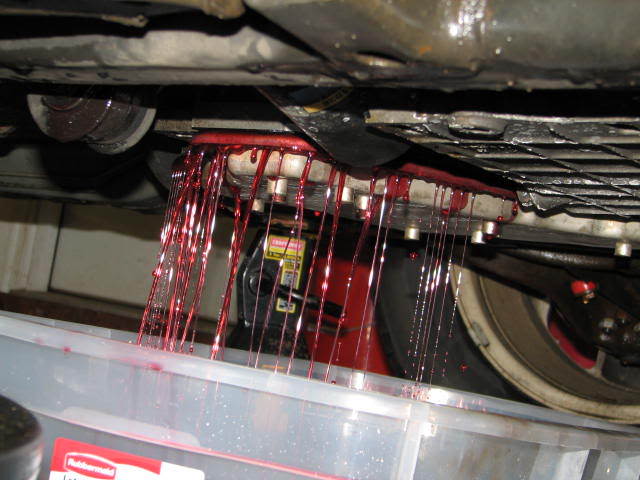

Technically this step should be before now. For anyone wondering $5 Steralite or Rubbermaid from Walmarts storage section.
Name:  IMG_2790.jpg
Views: 257
Size:  50.4 KB

Hope this helps.... feel free to turn this post into a write up .. I'm probaby off to bed soon.
BillBoost37 is offline   Reply With Quote
Old 03-04-2010, 05:04 PM   #3
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Wont the axle slide out through the hole if you remove the wheel bearing/hub?
Rockstar04 is offline   Reply With Quote
Old 03-04-2010, 05:23 PM   #4
Junior Member
Thread Starter

Join Date: Feb 2010
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
echap is on a distinguished road
Default

Wow thanks, my buddy wanted to undo the strut, we'll do the ball joint for sure. You guys are great!


You mentioned that you forgot that the axles seals tranny, can you just quickly reinstall the new half shaft do you have to drain the tranny?

THANKS!

Last edited by echap; 03-04-2010 at 05:28 PM.
echap is offline   Reply With Quote
Old 03-05-2010, 09:22 AM   #5
Junior Member
Thread Starter

Join Date: Feb 2010
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
echap is on a distinguished road
Default

Thanks alot, the pictures where perfect and the project went excellent. My inner joint was shot and all of the vibration is now gone. Really glad I did this, thanks for the help!

Eric
echap is offline   Reply With Quote
Old 03-05-2010, 11:05 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Rockstar, some axles fit through...some don't depending on model make etc. Our wheel bearings like to adhere the ABS part to the knuckle. This can break the bearing and require a new one to be purchased for reinstallation. As well, 1 balljoint nut vs 3 wheel bearing bolts. A mechanic buddy taught me to think in a quicker/flat rate paying process.

A little late...however the amount of time it takes to remove and reinstall an axle will likely be long enough that most of the fluid drains. You would need to replace probably half of the amount by pulling the axle and not draining at the pan. Good suggestion.
BillBoost37 is offline   Reply With Quote
Old 03-19-2010, 03:41 PM   #7
Junior Member
Thread Starter

Join Date: Feb 2010
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
echap is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Rockstar, some axles fit through...some don't depending on model make etc. Our wheel bearings like to adhere the ABS part to the knuckle. This can break the bearing and require a new one to be purchased for reinstallation. As well, 1 balljoint nut vs 3 wheel bearing bolts. A mechanic buddy taught me to think in a quicker/flat rate paying process.

A little late...however the amount of time it takes to remove and reinstall an axle will likely be long enough that most of the fluid drains. You would need to replace probably half of the amount by pulling the axle and not draining at the pan. Good suggestion.

Billboost- Not a drop of tranny fluid dripped out when I had the shaft out. I have a 01 SLE.

thanks again for the help, it went perfect.

Eric
echap is offline   Reply With Quote
Old 10-11-2010, 06:18 PM   #8
Member
Posts like a V-Tak

Join Date: May 2010
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
xdhd350 is on a distinguished road
Default

While this thread is several months old, I wanted to publicly acknowledge and thank Billboost for that pictorial. I had driven the 01 SSEi to my parent'* house about 300 miles from home. I had a nice loud growl coming from driver'* side. Pulled the wheel and saw that inner cv had thrown all its grease. Used my iphone to Google and this thread came up. Because of this thread and O'Reilly auto parts, I was able to replace the driver side transaxle without my garage full of nice tools. Only had to borrow a 1/2 breaker bar from their neighbor to get the spindle nut off. It was a bit fortunate that I had my nice 3/8 socket set with me because I knew I had to replace their garage door opener when I got there.

Since I was replacing the transaxle, I decided the wheel bearing assembly didn't sound too smooth either, and the tie rod end had a torn boot so they also get replaced. Drover her home last night and she was quiet as a church mouse.

So Bill, where do I send the beer money to?

Sincere thanks,

GregB

Thanks all for a wonderful forum. I would have been at the dealer'* mercy without this thread.
xdhd350 is offline   Reply With Quote
Old 10-11-2010, 06:22 PM   #9
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

There aint much Bill hasn't done. Glad the site was able to help you out.
Danthurs is offline   Reply With Quote
Old 10-11-2010, 06:26 PM   #10
Member
Posts like a V-Tak

Join Date: May 2010
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
xdhd350 is on a distinguished road
Default

I was going to edit my original post, but after thinking for a few moments, I went and put my money down to be a site supporter. That was a lot less money than I would have paid for that job to be done at a shop.

I also forgot to mention that prying down on the lower control arm to get the ball joint stud back in wasn't working with just one person. The easy trick was to loosen up the sway bar bolt. That allows the arm to free fall low enough to easily put the ball joint stud back into the steering knuckle.
