Default Rear suspension links?

Help calling all gearheads! I need to know the part number and how to change the rear control arm links. Dont really know the technical term for them, but they are the links attached from the bottom shock mount and travel inward and meet in the middle. They have a ball joint on one end. I am in bad need of replacements as mine are litterlly about to fall off. I have a horrible shake anywhere above 20 kmh. also does anyone know of rear shocks without air-assist that will work?

Thanking you all in advance
TheKaddyKid

Cheers
Kaddykid is offline
Old 10-27-2009, 10:59 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Check at Auto Parts Fast at RockAuto for struts. They will list what will work.

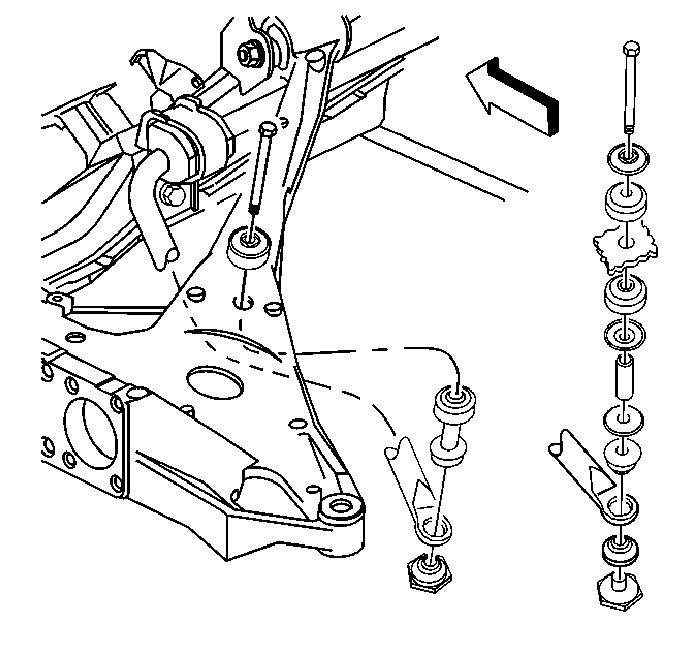

Is this the part your talking about? That'* the rear stabilizer. You can get new bushings from most auto parts stores. You can get a universal bushing, or you can get them from rockauto as well.
Attached Thumbnails
Rear suspension links?-rear-stabalizer.jpg
Danthurs is offline
Old 10-28-2009, 11:50 AM   #3
Member
Posts like a V-Tak

Join Date: Apr 2009
Location: Indy
Posts: 62
Thanks: 0
Thanked 0 Times in 0 Posts
Tedro951 is on a distinguished road
Default

You may be talking about the lateral arm. Go to GM parts direct and look at the illustration. They dont show the tie rod end as a separate item. Earlier Bvilles had a replaceable end on them, but I cant seem to find anything but the arm for around 80 bucks or so. Cheap GM parts shows the tie rod end separately, but doesn't give you the ability to order it, as far as I can tell.
Tedro951 is offline
Old 10-28-2009, 01:09 PM   #4
Senior Member
Posts like a 4 Banger

2001SCBONNE's Avatar

Join Date: Oct 2008
Location: DuPage IL
Posts: 108
Thanks: 0
Thanked 0 Times in 0 Posts
2001SCBONNE is on a distinguished road
Default

The only thing I can see in the rear suspension that has a ball joint would be a rear alignment link. Kinda like a rear tie rod. Prt# 25954973 per gmprtsdirect.com. Their price= 64.98
2001SCBONNE is offline
Old 10-28-2009, 02:20 PM   #5
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Dec 2005
Location: the 'swha
Posts: 155
Thanks: 0
Thanked 0 Times in 0 Posts
Kaddykid is on a distinguished road
Default

Yes they are just like a rear tierod.
Kaddykid is offline
Old 10-28-2009, 02:31 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

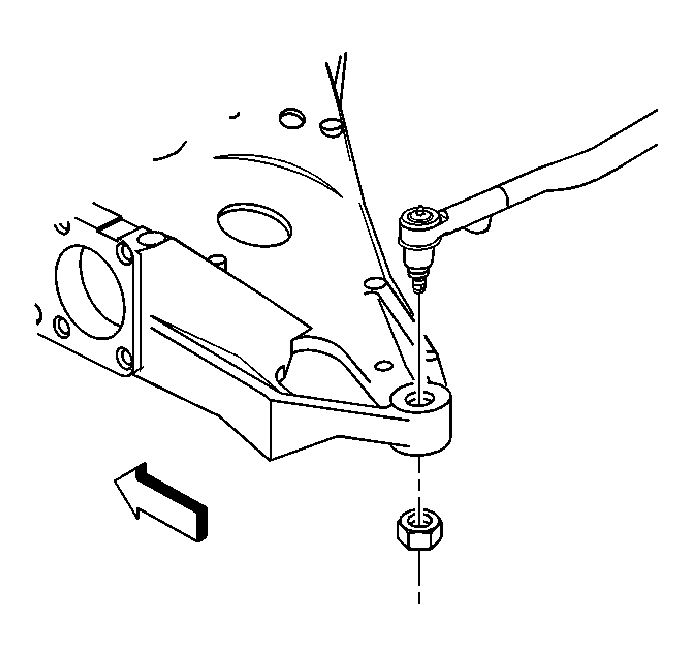

This is what you need? I'll try to make up a write up on replacing it.
Attached Thumbnails
Rear suspension links?-rear-adjustment.jpg
Danthurs is offline
Old 11-02-2009, 05:48 PM   #7
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Dec 2005
Location: the 'swha
Posts: 155
Thanks: 0
Thanked 0 Times in 0 Posts
Kaddykid is on a distinguished road
Default

yes please that would be a great help as I can not find how to anywhere.
Kaddykid is offline
Old 11-02-2009, 06:11 PM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I've been working on a write up, but it'* not totally done. But should be helpful for you.

https://www.gmforum.com/t285300/#post1399669
Danthurs is offline
Old 11-03-2009, 07:39 PM   #9
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: Dec 2005
Location: the 'swha
Posts: 155
Thanks: 0
Thanked 0 Times in 0 Posts
Kaddykid is on a distinguished road
Smile

wow thanks man. That really helps. Bonneville owners are awesome.
Kaddykid is offline
Old 07-23-2011, 12:28 AM   #10
Member
Posts like a V-Tak

sseilmnop's Avatar

Join Date: Jan 2010
Location: Mercer, PA
Posts: 52
Thanks: 0
Thanked 0 Times in 0 Posts
sseilmnop is on a distinguished road
Default

Old thread but quick question. Is GM (such as GM Parts Direct) the only place to get the lateral arm, no after market? Mine has started clunking at the bushing near the middle of the car.
