Default RAP wire 2001 SSEI

Can anyone tell me where I can find the RAP wire? I installed an XM radio and I want to power it from the RAP rather then the lighter. I looked around but I have been unable to find it.

On a side note, after I put the radio back in the dash after hooking up the xm direct adapter I lost most of the lighting in the LCD display. What a nightmare to fix. I got the front off and found that 2 of the bulbs for the LCD display were out and 3 others bulbs were out. I replaced them all with parts from an old Pontiac radio I had and it looks great but it was a lot of hassle to do and you have to be very careful not to break and wires to the display board (I did but I was able to fix them).

Thanks,

Static
static1701 is offline   Reply With Quote
Old 01-11-2013, 10:30 PM   #2
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

I don't know what the RAP wire is, but please note that your XM radio runs 5 volts and that there is a step down transformer in the XM radio cig lighter adapter to convert 12 VDC to 5VDC. To hardwire in a aftermarket external XM/ SIRIUS radio one requires a step down adapter.
GunsOfNavarone is offline   Reply With Quote
Old 01-11-2013, 11:41 PM   #3
Member
Posts like a V-Tak
Thread Starter

static1701's Avatar

Join Date: Apr 2010
Location: Waterford, MI
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
static1701 is on a distinguished road
Default

The RAP is the retained accessory power. I am just going to take the lighter adapter apart and solder leads to it once I find the RAP wire then tuck it behind the dash with the xm direct adapter.
static1701 is offline   Reply With Quote
Old 01-12-2013, 05:18 AM   #4
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Tap off of the radio'* 12v power. Not BATT power but the other one. That should be RAP.
Mike is offline   Reply With Quote
Old 01-12-2013, 10:46 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

one of the radio wires should be yes. the fuses and relay for that are under the rear seat
jwfirebird is offline   Reply With Quote
Old 01-12-2013, 11:47 AM   #6
Member
Posts like a V-Tak
Thread Starter

static1701's Avatar

Join Date: Apr 2010
Location: Waterford, MI
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
static1701 is on a distinguished road
Default

The radio uses the dock and lock, so all I see is a ribbon cable. I would like to find the rap cable somewhere under the dash rather then having to run a wire back to the fuse block.
static1701 is offline   Reply With Quote
Old 01-13-2013, 08:42 AM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

Attached Thumbnails

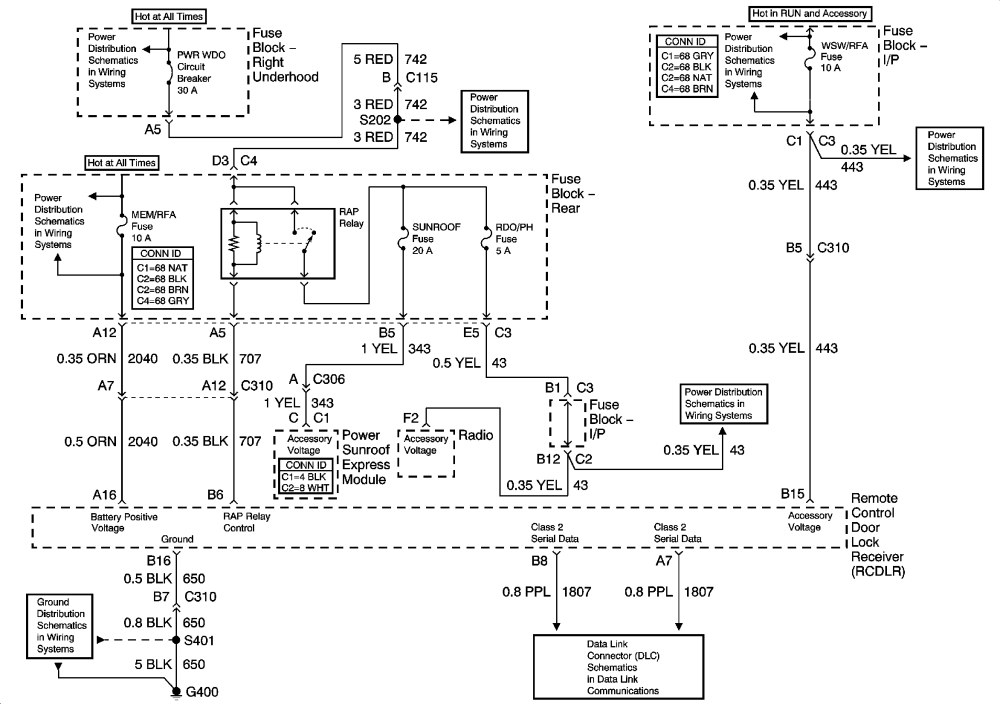

RAP wire 2001 SSEI-01bonnierap_zps5e9eee0a.gif
jwfirebird is offline   Reply With Quote
Old 01-13-2013, 12:35 PM   #8
Member
Posts like a V-Tak
Thread Starter

static1701's Avatar

Join Date: Apr 2010
Location: Waterford, MI
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
static1701 is on a distinguished road
Default

Thanks jwfirebird

So there is a fuse at the instrument panel. Looks like yellow wire feeds the rap to the radio.
static1701 is offline   Reply With Quote
Old 01-16-2013, 09:59 PM   #9
Member
Posts like a V-Tak
Thread Starter

static1701's Avatar

Join Date: Apr 2010
Location: Waterford, MI
Posts: 55
Thanks: 0
Thanked 0 Times in 0 Posts
static1701 is on a distinguished road
Default

I never could find a wire under the dash that worked. probed every yellow wire I could find. On my car a blue wire leaving the fuse box under the backseat had to be used. I am sure the rap exists someplace else but I got tired of messing with it.
static1701 is offline   Reply With Quote
Old 01-17-2013, 08:36 AM   #10
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

thanks for the update
