Default Problems w/pictures

Well, to start off I had a mechanic work on my car a few times in the last couple months and come to find out he messed the suspension and brakes. You think you can trust these mechanics but the best mechanic is always yourself. I always go over what I did twice and make sure all the bolts are torqued correctly. Well, on to the concerns...

First set:

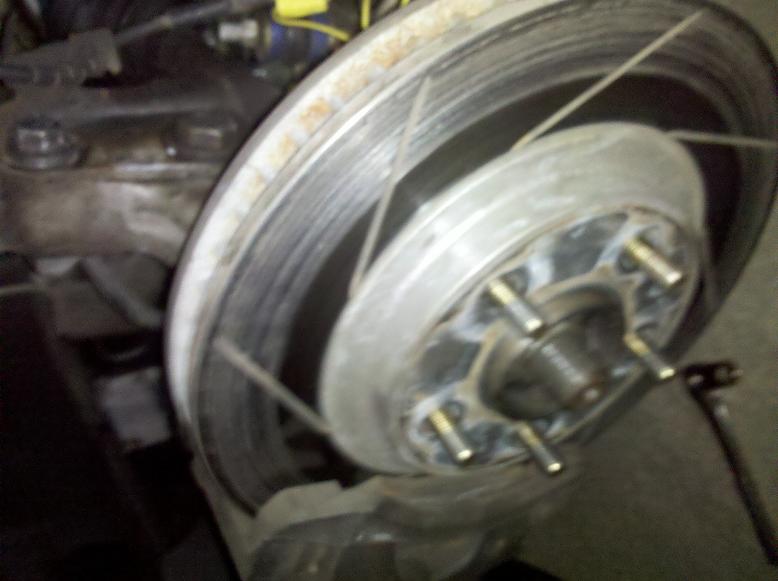

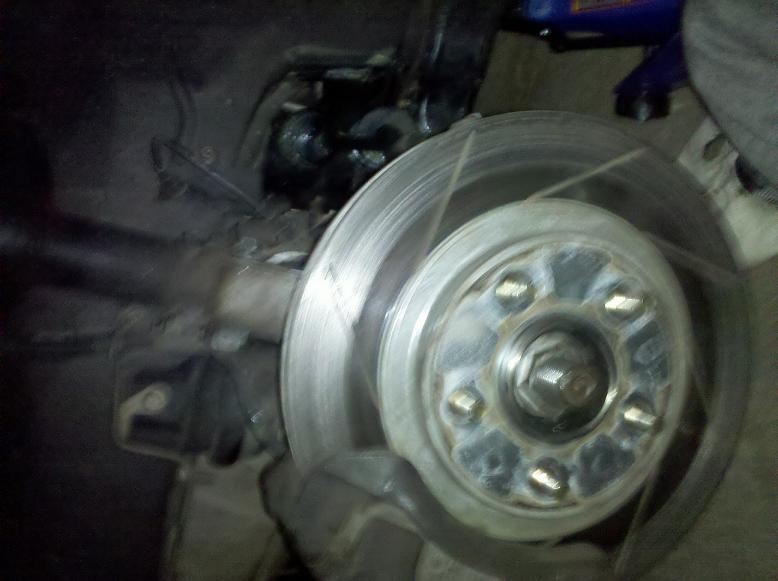

The driver'* side rotor looks like it has been all scrapped up since I have had these problems, Does the rotor look like it needs to be replaced? Also, I am getting a loud grinding noise when the car is in reverse.

Second set:

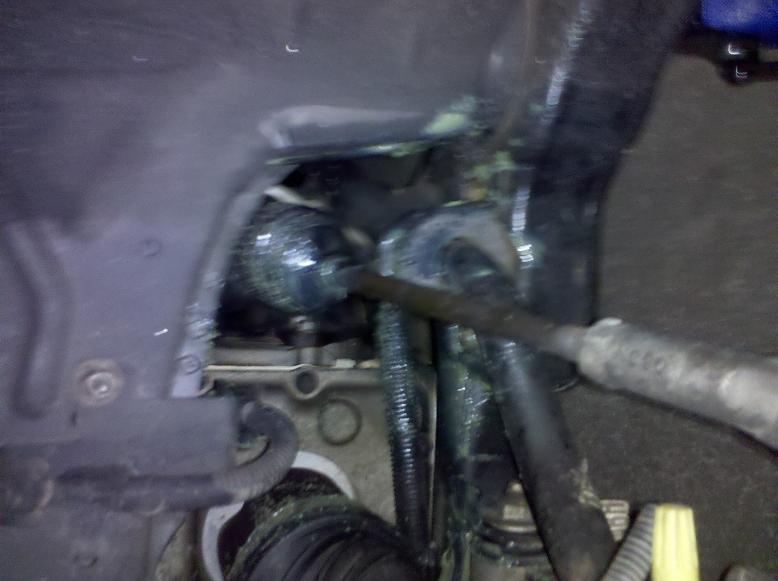

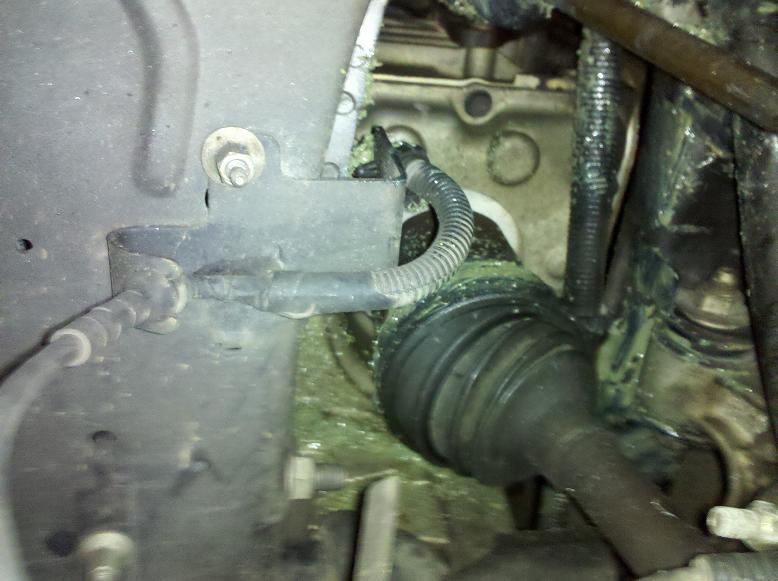

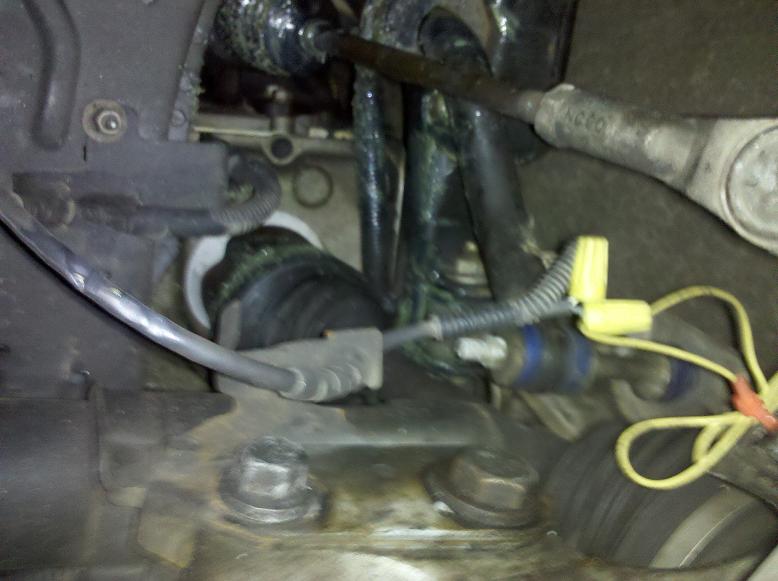

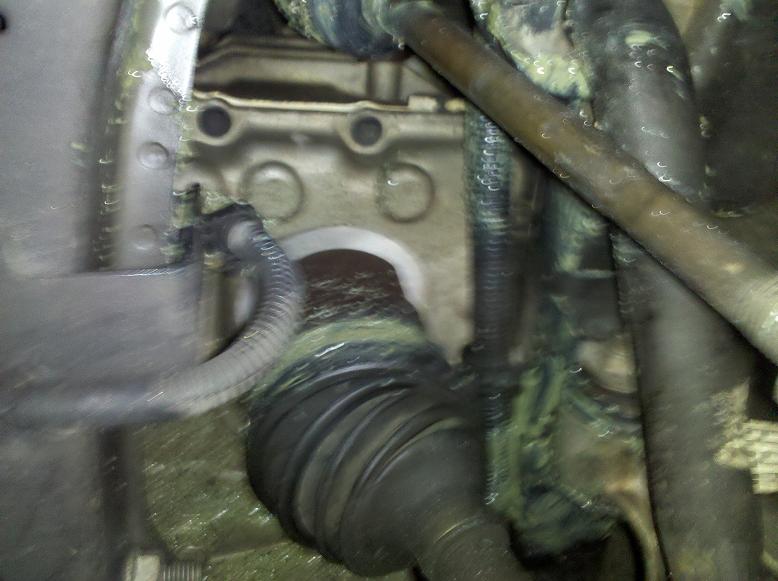

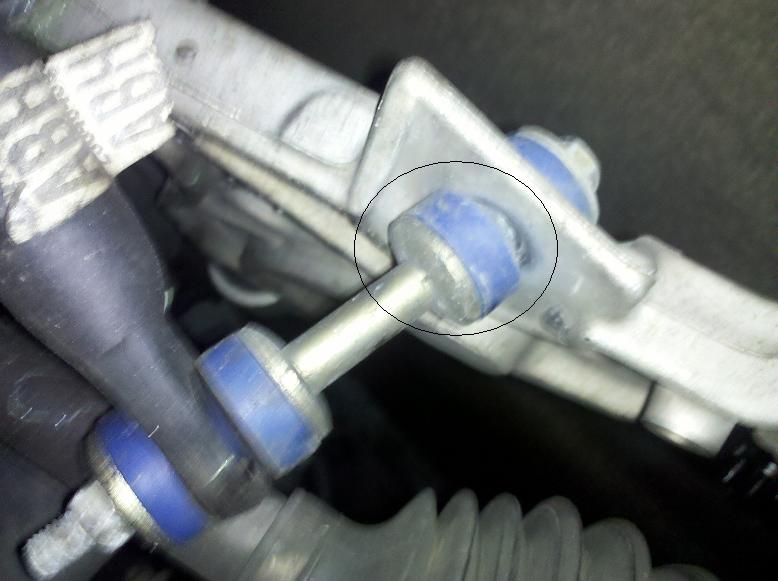

I notice all this green lube that is everywhere. This happened awhile back and the mechanic said the cv axle was popping out and that is why all the grease is there. Also, he said that the bushings on the control arms are wearing out and need to be replaced. Hope these pictures help
Attached Thumbnails
Problems w/pictures-img_20110221_184426.jpg   Problems w/pictures-img_20110221_184431.jpg   Problems w/pictures-img_20110221_184458.jpg   Problems w/pictures-img_20110221_184503.jpg   Problems w/pictures-img_20110221_184508.jpg

Problems w/pictures-img_20110221_184515.jpg   Problems w/pictures-img_20110221_184547.jpg
airlife9 is offline   Reply With Quote
Old 02-22-2011, 12:59 AM   #2
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

looks like the band clamp are missing from the CV boots.

and it also looks like there was something in between the pad and the rotor that was gouging the rotor
sawgunner is offline   Reply With Quote
Old 02-22-2011, 01:14 AM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

Should I go ahead and replace the cv axle?
airlife9 is offline   Reply With Quote
Old 02-22-2011, 01:16 AM   #4
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

nah you should be able to get some hose clamps that will fit on there and just tighten them down after you make sure there is still plenty of grease left inside, if not add a bunch
sawgunner is offline   Reply With Quote
Old 02-22-2011, 01:22 AM   #5
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

I had to do the same repair and nobody had the clamp i had to use a 3 or 4 inch dryer exhaust clamp lol for mine IDR
sseidriver97 is offline   Reply With Quote
Old 02-22-2011, 01:24 AM   #6
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

the original clamp is a pinch clamp and no body sells them that i have found so a normal screw type hose clamp will do just fine
sawgunner is offline   Reply With Quote
Old 02-22-2011, 01:24 AM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

What about the rotor.. Should I replace it?

Control Arms do they look like they need to be replaced?
airlife9 is offline   Reply With Quote
Old 02-22-2011, 01:28 AM   #8
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

just have that one and the one on the other side turned and you will be fine also take some 220 grit sand paper and smooth down the faces of the pads. control arms are difficult to decided to replace or not by a picture. put a pry bar in between the control arm and the sub frame and see how much if any play is there. also if ya blow a ball joint your better off to replace the entire control arm or have a long fun fight with the rivets holding the old ones in.
sawgunner is offline   Reply With Quote
Old 02-22-2011, 01:32 AM   #9
Senior Member
Posts like a Turbo
Thread Starter

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

I was tolding replacing the control arms would make a hell of difference....
airlife9 is offline   Reply With Quote
Old 02-22-2011, 01:34 AM   #10
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

think about it. you got told that by some one who sells and installs parts all day long and probably makes a commission off them as well. check and see if you have any play in the bushings or the ball joints and go from there
sawgunner is offline   Reply With Quote
