Default Possible LIM Gasket failure

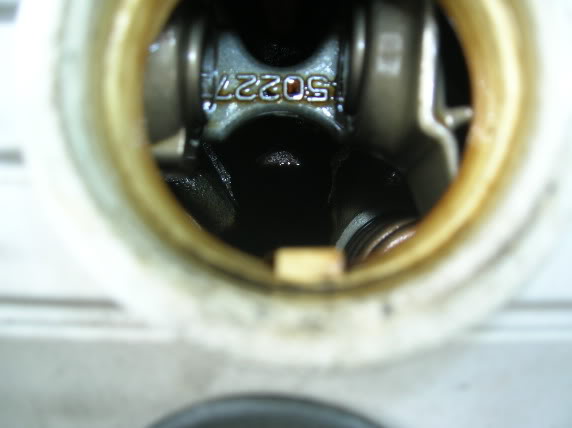

Im loosin coolant, not at an alarming rate, just little bit here and there. There is a small ticking noise coming from under the valve covers, but that has been there since Ive had the car. Its not very loud at all, kinda like a pin head on a tile. I took some pictures of the oil color and tried for an inside picture of the valve covers since I dont have the time to remove the covers themselves. Im thinking of droppin the car off monday to have the gaskets replaced...any other ideas



Name:  DSCN0393.jpg
Views: 1
Size:  24.3 KB


Sorry for the finger. lol
Chad V is offline   Reply With Quote
Old 05-05-2006, 02:22 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Wipe the dipstick on a clean white papertowel. It will be much easier to see something in it on white.
BillBoost37 is offline   Reply With Quote
Old 05-05-2006, 03:19 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Mar 2006
Location: Vesper, WI
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
marteeni is on a distinguished road
Default

FYI...Make sure to have the DexCool completely flushed out and new green antifreeze put in to keep this problem from happening again.
marteeni is offline   Reply With Quote
Old 05-05-2006, 03:21 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by marteeni
FYI...Make sure to have the DexCool completely flushed out and new green antifreeze put in to keep this problem from happening again.
Dexcool isn't necessarily the cause of the issue. Chads car is new enough where the Dex shouldn't have turned acidic yet.
BillBoost37 is offline   Reply With Quote
Old 05-05-2006, 03:25 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Mar 2006
Location: Vesper, WI
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
marteeni is on a distinguished road
Default

I tend to disagree. I had the same issue at 52000 miles. Others SSEi'* have had this problem with less.
marteeni is offline   Reply With Quote
Old 05-05-2006, 03:27 PM   #6
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Quote:
Originally Posted by marteeni
I tend to disagree. I had the same issue at 52000 miles. Others SSEi'* have had this problem with less.
Let'* not take Chad'* thread off topic. Start a new thread in General Chat to talk about DexCool.
vital49 is offline   Reply With Quote
Old 05-05-2006, 03:35 PM   #7
Senior Member Emeritus
Posts like a Camaro
Thread Starter

Join Date: Feb 2005
Location: Grand Rapids, Iraq
Posts: 1,129
Thanks: 0
Thanked 0 Times in 0 Posts
Chad V is on a distinguished road
Default

Heres the pictures on a clean white paper towel.

Name:  DSCN0401.jpg
Views: 1
Size:  28.3 KB
Name:  DSCN0404.jpg
Views: 1
Size:  25.9 KB
Name:  DSCN0405.jpg
Views: 1
Size:  20.3 KB
Chad V is offline   Reply With Quote
Old 05-05-2006, 03:36 PM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I don't see any water in the oil. Looks like oil is pretty clean so far. Am I missing it?
BillBoost37 is offline   Reply With Quote
Old 05-05-2006, 03:41 PM   #9
Senior Member Emeritus
Posts like a Camaro
Thread Starter

Join Date: Feb 2005
Location: Grand Rapids, Iraq
Posts: 1,129
Thanks: 0
Thanked 0 Times in 0 Posts
Chad V is on a distinguished road
Default

Just makin sure cause somewhere in the line I am loosing coolant a bit. But then again can that be an affect of the Dexcool and not regular stuff? And by switching this early in the cars lifespan, will I really need the new gaskets or will the green stuff kinda revitalize it so I wont need it since its not broken down

Also just thinkin about it. It looked like sludge near the injectors on the rear bank side and clean on the front side. But it looked oil orangish color.
Chad V is offline   Reply With Quote
Old 05-05-2006, 04:10 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

With your car being pretty new, it'* doubtful the Dexcool has turned acidic. However I would suggest changing the LIM gaskets to the new style aluminum frame ones that were recently released. Then flush well and fill with Prestone Dex compatible long life coolant.
BillBoost37 is offline   Reply With Quote
