Old 10-27-2005, 12:59 AM   #1
Junior Member
Thread Starter

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Custom88 is on a distinguished road
Default PCM tray

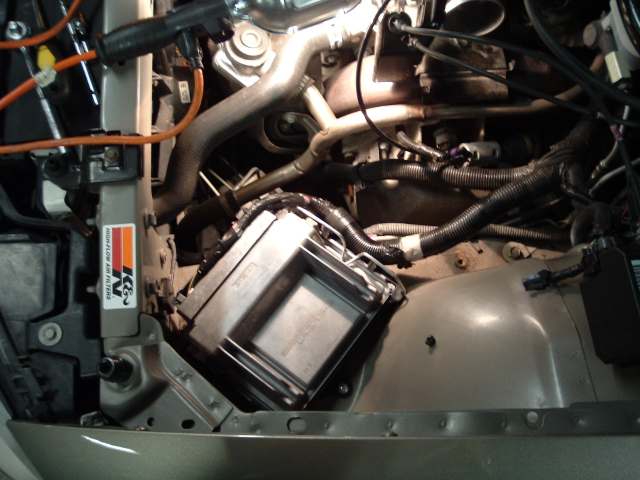

I bought the PCM tray from Intense and had a few questions. 1. I could only use two of the holes to screw it down. They're both on the right side. Is this ok? The PCM doesn't seem to move as far as I can tell. Secondly, should the top of the PCM be covered? I get nervous haaving the top half of the PCM exposed. Thirdly, is engine heat a concern? The computer isn't that far away from the exhaust manifolds.. in the airbox it was protected from all engine heat. What have the rest of you done with your PCM'*? Just leave it looking like mine does now?

Is this the only way to mount it? I couldn't get the wires to cooperate with mounting it in any other configuration besidse this one. (this is on the Aurora BTW.. looks just like the Bonn eh?)
Name:  DSCF1569.jpg
Views: 7
Size:  36.8 KB
Custom88 is offline   Reply With Quote
Old 10-27-2005, 02:09 AM   #2
Senior Member Emeritus
Posts like a Camaro

Join Date: Feb 2005
Location: Grand Rapids, Iraq
Posts: 1,129
Thanks: 0
Thanked 0 Times in 0 Posts
Chad V is on a distinguished road
Default Re: PCM tray

Quote:
Originally Posted by Custom88
I bought the PCM tray from Intense and had a few questions. 1. I could only use two of the holes to screw it down. They're both on the right side. Is this ok? The PCM doesn't seem to move as far as I can tell. Secondly, should the top of the PCM be covered? I get nervous haaving the top half of the PCM exposed. Thirdly, is engine heat a concern? The computer isn't that far away from the exhaust manifolds.. in the airbox it was protected from all engine heat. What have the rest of you done with your PCM'*? Just leave it looking like mine does now?

Is this the only way to mount it? I couldn't get the wires to cooperate with mounting it in any other configuration besidse this one. (this is on the Aurora BTW.. looks just like the Bonn eh?)
1. as long as the tray doesnt move or jar then your set. 2. The elements..ie your engine bay heat wont affect the PCM. Even tho its inside the air box before, the ambient temp of the car and the metal is still at engine temp, not harming the pcm, its fully protected from the elements. As long as you have a tray or some sort of way to hold it in place to the car, it wont matter.
Chad V is offline   Reply With Quote
Old 10-27-2005, 07:00 AM   #3
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Groton, CT _NEBF 05, 06, 07_
Posts: 2,703
Thanks: 0
Thanked 0 Times in 0 Posts
markwb is on a distinguished road
Default

I should think it was in the air box for reasons of protection, and possibly air flow across the PCM for cooling. I could be wrong though.
markwb is offline   Reply With Quote
Old 10-27-2005, 08:34 AM   #4
Senior Member
True Car Nut

toastedoats's Avatar

Join Date: Sep 2004
Location: Fitchburg Ma _ToastedRice_
Posts: 6,837
Thanks: 0
Thanked 0 Times in 0 Posts
toastedoats is on a distinguished road
Default

thats how i have mine bolted down..
toastedoats is offline   Reply With Quote
Old 10-27-2005, 10:36 AM   #5
Senior Member
Certified Car Nut

Join Date: Apr 2004
Location: Quincy, Ma
Posts: 15,341
Thanks: 0
Thanked 0 Times in 0 Posts
Gumball is on a distinguished road
Default

Quote:
Originally Posted by toastedoats
thats how i have mine bolted down..
mine as well. only 2 screws. holds just fine.
Gumball is offline   Reply With Quote
Old 10-27-2005, 12:36 PM   #6
Senior Member
True Car Nut

Join Date: Mar 2004
Location: Maryland, USA
Posts: 3,089
Thanks: 0
Thanked 0 Times in 0 Posts
95SLE is on a distinguished road
Default

Thanks Guys this is good to know. I will be getting the Intense Fender Well intake system this spring.
95SLE is offline   Reply With Quote
Old 10-27-2005, 01:19 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

We've got at least a couple dozen running with exposed PCM'* with no problems from heat or moisture.
willwren is offline   Reply With Quote
Old 10-27-2005, 03:08 PM   #8
Senior Member Emeritus
Posts like a Camaro

Join Date: Feb 2005
Location: Grand Rapids, Iraq
Posts: 1,129
Thanks: 0
Thanked 0 Times in 0 Posts
Chad V is on a distinguished road
Default

Now that I ordered a Thrasher, I have just a simple shield around the airfilter, but the pcm is exposed, and havent had a problem.
Chad V is offline   Reply With Quote
Old 10-30-2005, 10:07 PM   #9
Senior Member
Posts like a Northstar

bonnevillemac's Avatar

Join Date: Sep 2004
Location: The Bluegrass State
Posts: 522
Thanks: 0
Thanked 0 Times in 0 Posts
bonnevillemac is on a distinguished road
Default

I know this is a late reply but... I am also running with the pcm exposed and have been all summer. Hasn't hurt mine, I have a fabbed up mount for mine to go on, just havent got around to doing it yet. I have mine velcroed right now and it holds just fine.

so as long as you got two screws holding yours in you are golden.

Tim
bonnevillemac is offline   Reply With Quote
Old 10-30-2005, 10:17 PM   #10
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Quote:
Originally Posted by bonnevillemac
I know this is a late reply but... I am also running with the pcm exposed and have been all summer. Hasn't hurt mine, I have a fabbed up mount for mine to go on, just havent got around to doing it yet. I have mine velcroed right now and it holds just fine.

so as long as you got two screws holding yours in you are golden.

Tim
well that'* better than randy, his just kinda sits there.
